WHIRLPOOL AGS 910/WP - Prof. oven Combi 10 x GN2/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AGS 910/WP - Prof. oven Combi 10 x GN2/1 |
| Kód 12NC: | 856391001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás

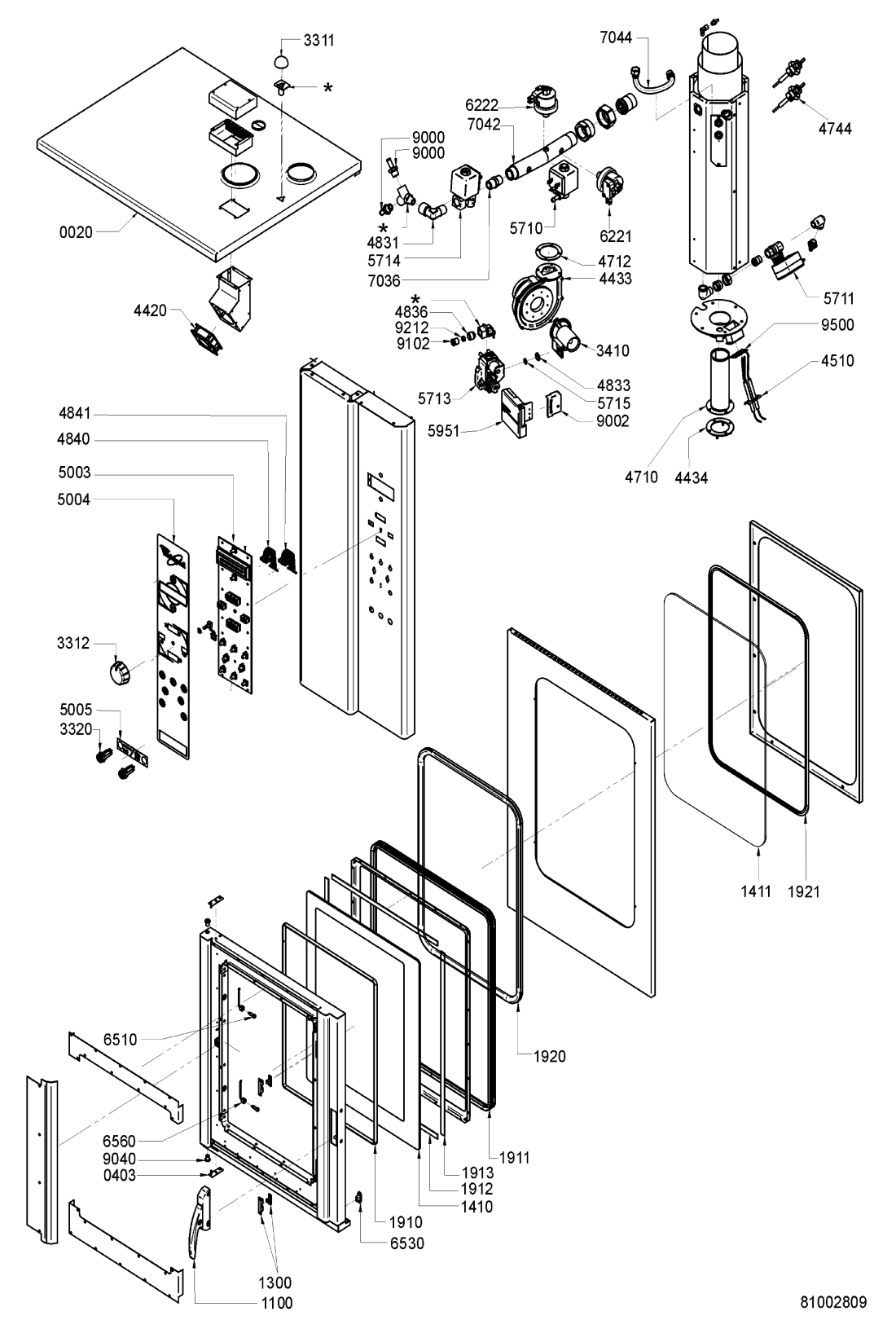

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR74560 |
C00421181
483286003047 |
Cover | Na dotaz | Zadat poptávku | |
| 011 0 WHR74560 |
C00420811
483286002626 |
Foot ,with sleeve | Na dotaz | Zadat poptávku | |
| 040 1 WHR74560 |
C00420812
483286002627 |
Hinge ,cpl lower | Na dotaz | Zadat poptávku | |
| 040 2 WHR74560 |
C00420813
483286002628 |
Hinge ,door top | Na dotaz | Zadat poptávku | |
| 040 3 WHR74560 |
C00420814
483286002629 |
Hinge ,door top | Na dotaz | Zadat poptávku | |
| 110 0 WHR74560 |
C00420588
483286002378 |
Handle PORTA XT-M2005.072-3 | Na dotaz | Zadat poptávku | |
| 110 1 WHR74560 |
C00581952
483286008725 |
Lock for handle | Na dotaz | Zadat poptávku | |
| 130 0 WHR74560 |
C00420591
483286002382 |
Lock MECCANISMO PER APRIRE CHIUDERE | Na dotaz | Zadat poptávku | |
| 141 0 WHR74560 |
C00420815
483286002631 |
Glass ,internal door | Na dotaz | Zadat poptávku | |
| 141 1 WHR74560 |
C00420816
483286002632 |
Glass ,neutral door | Na dotaz | Zadat poptávku | |
| 191 0 WHR74560 |
C00420817
483286002633 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 1 WHR74560 |
C00420818
483286002634 |
Gasket ,oven door | Na dotaz | Zadat poptávku | |
| 191 2 WHR74560 |
C00420819
483286002635 |
Rubber ,strap horizontal | Na dotaz | Zadat poptávku | |
| 191 3 WHR74560 |
C00420820
483286002636 |
Rubber ,strap vertical | Na dotaz | Zadat poptávku | |
| 192 0 WHR74560 |
C00420821
483286002637 |
Gasket ,external | Na dotaz | Zadat poptávku | |
| 192 1 WHR74560 |
C00420822
483286002638 |
Gasket ,internal door | Na dotaz | Zadat poptávku | |
| 331 1 WHR74560 |
C00420596
483286002387 |
Knob ,threaded with valve | Na dotaz | Zadat poptávku | |
| 331 2 WHR74560 |
C00420647
483286002444 |
Knob ,050 | Na dotaz | Zadat poptávku | |
| 332 0 WHR74560 |
C00581928
483286008692 |
Button reset gas alarm | Na dotaz | Zadat poptávku | |
| 341 0 WHR74560 |
C00420755
483286002564 |
Tube ,Venturi | Na dotaz | Zadat poptávku | |
| 404 0 WHR74560 |
C00420603
483286002395 |
Pump ,vibration with valve | Na dotaz | Zadat poptávku | |
| 404 3 WHR74560 |
C00420650
483286002447 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 411 1 WHR74560 |
C00420748
483286002556 |
Transformer ,1F 60VA 230/12V | Na dotaz | Zadat poptávku | |
| 411 2 WHR74560 |
C00421198
483286003066 |
Transformer ,1 F 120 VA | Na dotaz | Zadat poptávku | |
| 421 0 WHR74560 |
C00420606
483286002398 |
Filter ,interfer. +cable connect | Na dotaz | Zadat poptávku | |
| 421 1 WHR74560 |
C00420691
483286002493 |
Filter ,RFI BG x79240 | Na dotaz | Zadat poptávku | |
| 421 2 WHR74560 |
C00420685
483286002486 |
Filter ,RFI G479240 | Na dotaz | Zadat poptávku | |
| 421 3 WHR74560 |
C00581941
483286008712 |
Filter R.F.I. 250V 50-60 Hz | Na dotaz | Zadat poptávku | |
| 440 0 WHR74560 |
C00420652
483286002449 |
Motor ,three-phase 1020 400 V | Na dotaz | Zadat poptávku | |
| 440 1 WHR74560 |
C00501109
483286008697 |
Gasket steamtight f.engine shaft | Na dotaz | Zadat poptávku | |
| 440 2 WHR74560 |
C00501110
483286008698 |
Flange for engine shaft 17 diam. | Na dotaz | Zadat poptávku | |
| 440 3 WHR74560 |
C00501111
483286008699 |
Lock flange f. enginge shaft | Na dotaz | Zadat poptávku | |
| 442 0 WHR74560 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| 443 0 WHR74560 |
C00421106
483286002963 |
Fan | Na dotaz | Zadat poptávku | |
| 443 2 WHR74560 |
C00420750
483286002558 |
Control board ,for fan | Na dotaz | Zadat poptávku | |
| 443 3 WHR74560 |
C00420749
483286002557 |
Fan | Na dotaz | Zadat poptávku | |
| 443 4 WHR74560 |
C00420753
483286002562 |
Flange ,to fix the fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR74560 |
C00420754
483286002563 |
Electrode ,ignition | Na dotaz | Zadat poptávku | |
| 452 1 WHR74560 |
C00581943
483286008714 |
Probe detection w. cable | Na dotaz | Zadat poptávku | |
| 455 0 WHR74560 |
C00421131
483286002992 |
Burner ,gas | Na dotaz | Zadat poptávku | |
| 455 1 WHR74560 |
C00421132
483286002993 |
Shield ,exchanger flame | Na dotaz | Zadat poptávku | |
| 455 2 WHR74560 |
C00420641
483286002437 |
Fitting ,for pipe 0 12 + bicones | Na dotaz | Zadat poptávku | |
| 471 0 WHR74560 |
C00420751
483286002559 |
Burner ,premix | Na dotaz | Zadat poptávku | |
| 471 2 WHR74560 |
C00420752
483286002561 |
Gasket ,for burner flange | Na dotaz | Zadat poptávku | |
| 474 0 WHR74560 |
C00420607
483286002399 |
Nozzle ,0,7mm for steam condens. | Na dotaz | Zadat poptávku | |
| 474 1 WHR74560 |
C00420642
483286002438 |
Nozzle ,R type for G20 0 195 R | Na dotaz | Zadat poptávku | |
| 474 2 WHR74560 |
C00421194
483286003062 |
Nozzle ,washing device | Na dotaz | Zadat poptávku | |
| 474 3 WHR74560 |
C00420609
483286002402 |
Nozzle ,1/4" for pipe diam. 12 | Na dotaz | Zadat poptávku | |
| 474 4 WHR74560 |
C00420741
483286002548 |
Probe ,min water level l=600mm | Na dotaz | Zadat poptávku | |
| 483 0 WHR74560 |
C00421185
483286003052 |
Connector ,flame modulation | Na dotaz | Zadat poptávku | |
| 483 1 WHR74560 |
C00420809
483286002624 |
Connector ,1/4 MF | Na dotaz | Zadat poptávku | |
| 483 2 WHR74560 |
C00420775
483286002586 |
Connector ,T type nipple | Na dotaz | Zadat poptávku | |
| 483 3 WHR74560 |
C00420762
483286002572 |
Gasket ,for valve | Na dotaz | Zadat poptávku | |
| 483 6 WHR74560 |
C00420756
483286002565 |
Nipple ,threaded | Na dotaz | Zadat poptávku | |
| 484 0 WHR74560 |
C00421195
483286003063 |
Cable ,8x2 ways l=1100 mm | Na dotaz | Zadat poptávku | |
| 484 1 WHR74560 |
C00421196
483286003064 |
Cable ,10x2 ways l=1000 mm | Na dotaz | Zadat poptávku | |
| 491 0 WHR74560 |
C00420612
483286002405 |
Terminal block | Na dotaz | Zadat poptávku | |
| 500 3 WHR74560 |
C00421197
483286003065 |
Keyboard ,programmable | Na dotaz | Zadat poptávku | |
| 500 4 WHR74560 |
C00421207
483286003076 |
Label ,direct combi | Na dotaz | Zadat poptávku | |
| 500 5 WHR74560 |
C00420757
483286002566 |
Label ,double gas reset | Na dotaz | Zadat poptávku | |
| 500 6 WHR74560 |
C00421303
483286003183 |
Control board | Na dotaz | Zadat poptávku | |
| 500 7 WHR74560 |
C00421206
483286003075 |
Support ,controller programmable | Na dotaz | Zadat poptávku | |
| 522 0 WHR74560 |
C00581938
483286008708 |
Control unit flame control | Na dotaz | Zadat poptávku | |
| 522 2 WHR74560 |
C00420658
483286002456 |
Valve ,solenoid water filling | Na dotaz | Zadat poptávku | |
| 522 3 WHR74560 |
C00420659
483286002457 |
Valve ,solenoid water inlet | Na dotaz | Zadat poptávku | |
| 563 0 WHR74560 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| 564 0 WHR74560 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 564 1 WHR74560 |
C00420739
483286002546 |
Thermostat ,three-phase safety 20A | Na dotaz | Zadat poptávku | |
| 571 0 WHR74560 |
C00420620
483286002414 |
Valve ,steam electric 2mm | Na dotaz | Zadat poptávku | |
| 571 1 WHR74560 |
C00420621
483286002415 |
Valve ,discharge with motor,1/2 | Na dotaz | Zadat poptávku | |
| 571 2 WHR74560 |
C00421189
483286003056 |
Valve ,gas electric | Na dotaz | Zadat poptávku | |
| 571 3 WHR74560 |
C00420759
483286002568 |
Valve ,gas solenoid | Na dotaz | Zadat poptávku | |
| 571 4 WHR74560 |
C00420745
483286002553 |
Valve ,steam solenoid | Na dotaz | Zadat poptávku | |
| 571 5 WHR74560 |
C00420758
483286002567 |
Connector | Na dotaz | Zadat poptávku | |
| 595 0 WHR74560 |
C00581944
483286008715 |
Electrode ignition | Na dotaz | Zadat poptávku | |
| 595 1 WHR74560 |
C00420760
483286002569 |
Control box ,ignition and flame | Na dotaz | Zadat poptávku | |
| 617 0 WHR74560 |
C00420803
483286002617 |
Contact ,10A | Na dotaz | Zadat poptávku | |
| 617 1 WHR74560 |
C00420619
483286002413 |
Contactor ,mini 10A 230V 50-60Hz | Na dotaz | Zadat poptávku | |
| 617 2 WHR74560 |
C00420668
483286002467 |
Contactor ,25A AC1 50-60 Hz | Na dotaz | Zadat poptávku | |
| 617 3 WHR74560 |
C00421191
483286003058 |
Contactor ,auxiliary | Na dotaz | Zadat poptávku | |
| 622 0 WHR74560 |
C00420622
483286002416 |
Switch ,boiler pressure 0,9 bar | Na dotaz | Zadat poptávku | |
| 622 1 WHR74560 |
C00420740
483286002547 |
Switch ,boiler pressure1,6 bar | Na dotaz | Zadat poptávku | |
| 622 2 WHR74560 |
C00420623
483286002417 |
Switch ,boiler pressure 2,3 bar | Na dotaz | Zadat poptávku | |
| 623 0 WHR74560 |
C00420824
483286002641 |
Microswitch ,with button | Na dotaz | Zadat poptávku | |
| 651 0 WHR74560 |
C00581925
483286008688 |
Lamp,halogen 35W 12V | Na dotaz | Zadat poptávku | |
| 653 0 WHR74560 |
C00420629
483286002424 |
Plate ,door lighting | Na dotaz | Zadat poptávku | |
| 656 0 WHR74560 |
C00581924
483286008687 |
Holder lamp and cables 400mm | Na dotaz | Zadat poptávku | |
| 691 0 WHR74560 |
C00420653
483286002451 |
sonda | 3 232 Kč
€ 127.50 |
||
| 691 3 WHR74560 |
C00420661
483286002459 |
Probe ,core temperature PT1000 | Na dotaz | Zadat poptávku | |
| 703 0 WHR74560 |
C00420611
483286002404 |
Connector ,pipe 2 exits | Na dotaz | Zadat poptávku | |
| 703 1 WHR74560 |
C00421201
483286003069 |
Pipe ,water threaded | Na dotaz | Zadat poptávku | |
| 703 2 WHR74560 |
C00421204
483286003073 |
Sleeve ,brass 1/2" | Na dotaz | Zadat poptávku | |
| 703 3 WHR74560 |
C00420681
483286002482 |
Connector ,1/4x1/8 of brass | Na dotaz | Zadat poptávku | |
| 703 4 WHR74560 |
C00420776
483286002587 |
Nipple ,1/2x3/4 | Na dotaz | Zadat poptávku | |
| 703 5 WHR74560 |
C00421343
483286003228 |
Pipe ,valve for injectors | Na dotaz | Zadat poptávku | |
| 703 6 WHR74560 |
C00420799
483286002613 |
Nipple ,1/4 | Na dotaz | Zadat poptávku | |
| 703 7 WHR74560 |
C00421202
483286003071 |
Bushing ,antifriction | Na dotaz | Zadat poptávku | |
| 703 8 WHR74560 |
C00421199
483286003067 |
Hub ,injector | Na dotaz | Zadat poptávku | |
| 703 9 WHR74560 |
C00421200
483286003068 |
Fitting ,1/2" gas | Na dotaz | Zadat poptávku | |
| 704 0 WHR74560 |
C00421304
483286003184 |
Spray arm | Na dotaz | Zadat poptávku | |
| 704 1 WHR74560 |
C00421203
483286003072 |
Nipple ,brass elbow1/2" | Na dotaz | Zadat poptávku | |
| 704 2 WHR74560 |
C00420742
483286002549 |
Pipe ,steam distribution ramp | Na dotaz | Zadat poptávku | |
| 704 3 WHR74560 |
C00421208
483286003077 |
Pipe ,gas inlet | Na dotaz | Zadat poptávku | |
| 704 4 WHR74560 |
C00420743
483286002551 |
Pipe ,s/s flexible | Na dotaz | Zadat poptávku | |
| 781 0 WHR74560 |
C00420825
483286002642 |
Pipe ,water drainage | Na dotaz | Zadat poptávku | |
| 900 0 WHR74560 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| 900 1 WHR74560 |
C00421133
483286002994 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR74560 |
C00420764
483286002574 |
Cap ,for central connector | Na dotaz | Zadat poptávku | |
| 900 3 WHR74560 |
C00420763
483286002573 |
Support ,undercovering | Na dotaz | Zadat poptávku | |
| 900 4 WHR74560 |
C00420634
483286002429 |
Holder ,1/2 cylindrical pipe d12 | Na dotaz | Zadat poptávku | |
| 900 5 WHR74560 |
C00420826
483286002643 |
Lever ,to block the rack roll | Na dotaz | Zadat poptávku | |
| 904 0 WHR74560 |
C00581912
483286008217 |
Hinge bushing | Na dotaz | Zadat poptávku | |
| 910 1 WHR74560 |
C00421193
483286003061 |
Nut ,lock 1/2 " | Na dotaz | Zadat poptávku | |
| 910 2 WHR74560 |
C00421187
483286003054 |
Nipple | Na dotaz | Zadat poptávku | |
| 921 1 WHR74560 |
C00420827
483286002644 |
Wheel ,for roll in rack | Na dotaz | Zadat poptávku | |
| 921 2 WHR74560 |
C00420761
483286002571 |
Bicone ,d12 | Na dotaz | Zadat poptávku | |
| 950 0 WHR74560 |
C00421172
483286003037 |
Gasket ,electrodes | Na dotaz | Zadat poptávku | |
| 971 0 WHR74560 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
| 971 1 WHR74560 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
| 971 2 WHR74560 |
C00420686
483286002487 |
Fuse ,6,3A rapid 5x20 | Na dotaz | Zadat poptávku | |
