| Komerční kód: | AGS915/WP Prof oven 20xGN1/1 boiler E |
| Kód 12NC: | 856391501000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás

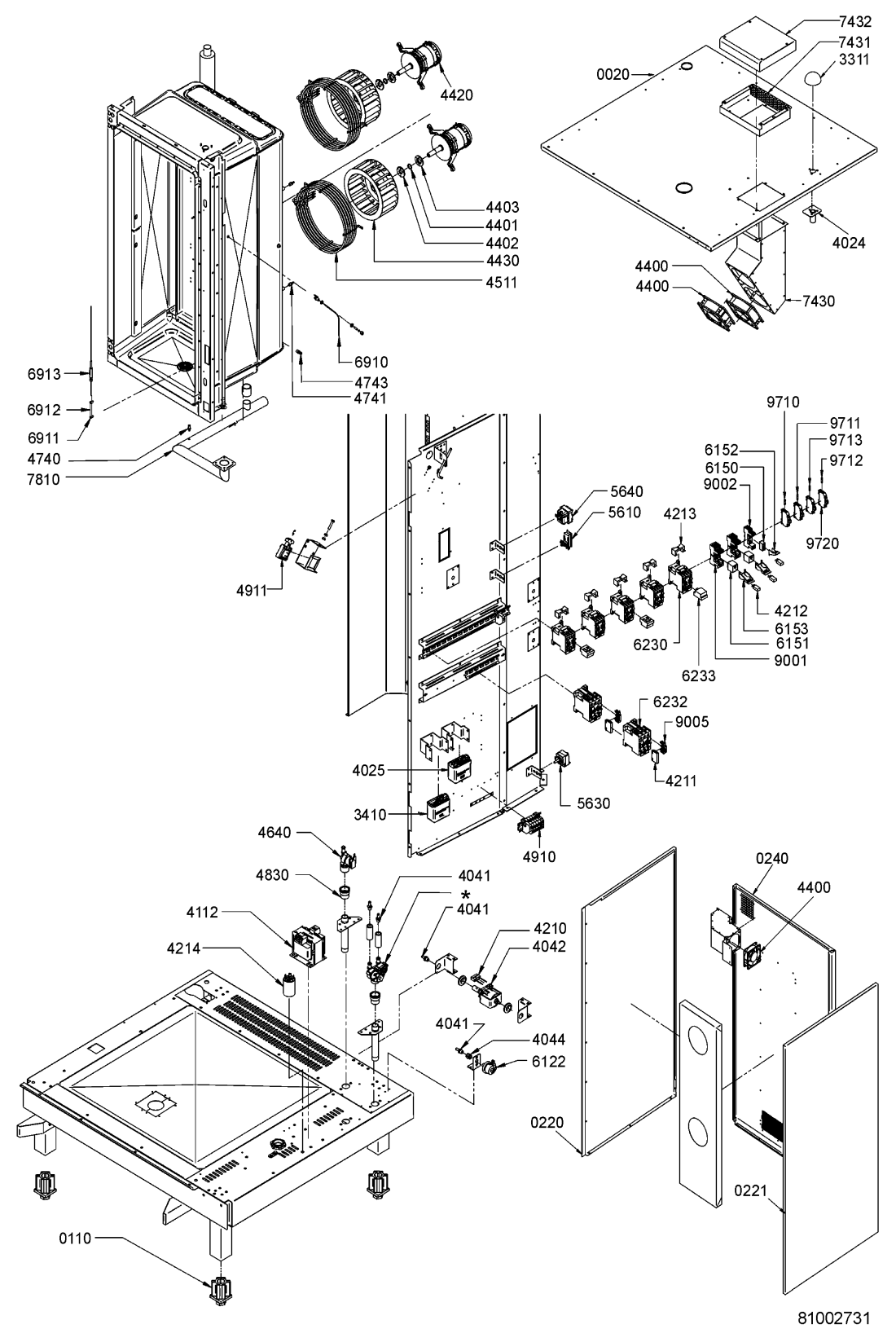

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR82379 |
C00420810
483286002625 |
Lid | Na dotaz | Zadat poptávku | |
| 011 0 WHR82379 |
C00420698
483286002501 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR82379 |
C00420767
483286002577 |
Panel ,left | Na dotaz | Zadat poptávku | |
| 022 1 WHR82379 |
C00420768
483286002578 |
Panel ,right | Na dotaz | Zadat poptávku | |
| 024 0 WHR82379 |
C00420769
483286002579 |
Panel ,back | Na dotaz | Zadat poptávku | |
| 040 1 WHR82379 |
C00420699
483286002502 |
Hinge ,door bottom | Na dotaz | Zadat poptávku | |
| 040 2 WHR82379 |
C00420700
483286002503 |
Hinge ,door top | Na dotaz | Zadat poptávku | |
| 121 0 WHR82379 |
C00420701
483286002504 |
Frame ,internal for mobile door | Na dotaz | Zadat poptávku | |
| 121 2 WHR82379 |
C00420702
483286002505 |
Frame ,top or bottom | Na dotaz | Zadat poptávku | |
| 130 0 WHR82379 |
C00420703
483286002506 |
Lock | Na dotaz | Zadat poptávku | |
| 130 1 WHR82379 |
C00420734
483286002541 |
Lock ,door lateral piece | Na dotaz | Zadat poptávku | |
| 130 2 WHR82379 |
C00420735
483286002542 |
Lock ,door central part | Na dotaz | Zadat poptávku | |
| 130 3 WHR82379 |
C00420704
483286002507 |
Wheel ,hand for block door | Na dotaz | Zadat poptávku | |
| 141 0 WHR82379 |
C00420705
483286002508 |
Glass ,neutral door | Na dotaz | Zadat poptávku | |
| 142 0 WHR82379 |
C00420706
483286002509 |
Glass ,internal door | Na dotaz | Zadat poptávku | |
| 142 1 WHR82379 |
C00420714
483286002518 |
Gasket ,beetw.int glass and door | Na dotaz | Zadat poptávku | |
| 142 3 WHR82379 |
C00420707
483286002511 |
Gasket ,internal glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR82379 |
C00420708
483286002512 |
Door ,external mobile | Na dotaz | Zadat poptávku | |
| 191 0 WHR82379 |
C00420709
483286002513 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 1 WHR82379 |
C00420710
483286002514 |
Gasket ,mobile rack | Na dotaz | Zadat poptávku | |
| 192 0 WHR82379 |
C00420711
483286002515 |
Gasket ,external window | Na dotaz | Zadat poptávku | |
| 192 1 WHR82379 |
C00420712
483286002516 |
Gasket ,internal for door window | Na dotaz | Zadat poptávku | |
| 192 3 WHR82379 |
C00420713
483286002517 |
Gasket ,beetw. ext.glass and doo | Na dotaz | Zadat poptávku | |
| 331 0 WHR82379 |
C00420595
483286002386 |
Knob ,cycles selection | Na dotaz | Zadat poptávku | |
| 331 1 WHR82379 |
C00420596
483286002387 |
Knob ,threaded with valve | Na dotaz | Zadat poptávku | |
| 331 2 WHR82379 |
C00420647
483286002444 |
Knob ,050 | Na dotaz | Zadat poptávku | |
| 341 0 WHR82379 |
C00420738
483286002545 |
Regulator ,water level | Na dotaz | Zadat poptávku | |
| 351 1 WHR82379 |
C00581902
483286008203 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 402 4 WHR82379 |
C00420602
483286002394 |
Pipe ,boiler cap | Na dotaz | Zadat poptávku | |
| 402 5 WHR82379 |
C00420648
483286002445 |
Case ,gear | Na dotaz | Zadat poptávku | |
| 404 1 WHR82379 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| 404 2 WHR82379 |
C00420603
483286002395 |
Pump ,vibration with valve | Na dotaz | Zadat poptávku | |
| 404 4 WHR82379 |
C00420649
483286002446 |
Sleeve ,1/8 | Na dotaz | Zadat poptávku | |
| 411 2 WHR82379 |
C00420715
483286002519 |
Transformer | Na dotaz | Zadat poptávku | |
| 421 0 WHR82379 |
C00420606
483286002398 |
Filter ,interfer. +cable connect | Na dotaz | Zadat poptávku | |
| 421 1 WHR82379 |
C00420716
483286002521 |
Filter ,R.F.I for contactors | Na dotaz | Zadat poptávku | |
| 421 2 WHR82379 |
C00420651
483286002448 |
Filter ,RFI | Na dotaz | Zadat poptávku | |
| 421 3 WHR82379 |
C00420685
483286002486 |
Filter ,RFI G479240 | Na dotaz | Zadat poptávku | |
| 421 4 WHR82379 |
C00581941
483286008712 |
Filter R.F.I. 250V 50-60 Hz | Na dotaz | Zadat poptávku | |
| 440 0 WHR82379 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| 440 1 WHR82379 |
C00420718
483286002523 |
Gasket ,steamtight for engine | Na dotaz | Zadat poptávku | |
| 440 2 WHR82379 |
C00420719
483286002524 |
Flange ,for motor shaft | Na dotaz | Zadat poptávku | |
| 440 3 WHR82379 |
C00420720
483286002525 |
Flange ,counter for motor shaft | Na dotaz | Zadat poptávku | |
| 442 0 WHR82379 |
C00420770
483286002581 |
Motor ,three-phase double speed | Na dotaz | Zadat poptávku | |
| 443 0 WHR82379 |
C00420721
483286002526 |
Fan ,external 300 mm | Na dotaz | Zadat poptávku | |
| 451 0 WHR82379 |
C00420797
483286002611 |
topení | 8 411 Kč
€ 331.70 |
||
| 451 1 WHR82379 |
C00420722
483286002527 |
Heating element ,three phase 14kW 230V | Na dotaz | Zadat poptávku | |
| 464 0 WHR82379 |
C00621633
483286008223 |
Valve water inlet | Na dotaz | Zadat poptávku | |
| 474 0 WHR82379 |
C00420607
483286002399 |
Nozzle ,0,7mm for steam condens. | Na dotaz | Zadat poptávku | |
| 474 1 WHR82379 |
C00420608
483286002401 |
Nozzle ,1/4 M DIAM 7 | Na dotaz | Zadat poptávku | |
| 474 3 WHR82379 |
C00420609
483286002402 |
Nozzle ,1/4" for pipe diam. 12 | Na dotaz | Zadat poptávku | |
| 483 0 WHR82379 |
C00420776
483286002587 |
Nipple ,1/2x3/4 | Na dotaz | Zadat poptávku | |
| 483 1 WHR82379 |
C00420809
483286002624 |
Connector ,1/4 MF | Na dotaz | Zadat poptávku | |
| 483 2 WHR82379 |
C00420808
483286002623 |
Connector ,1/8 MF | Na dotaz | Zadat poptávku | |
| 483 4 WHR82379 |
C00420799
483286002613 |
Nipple ,1/4 | Na dotaz | Zadat poptávku | |
| 483 5 WHR82379 |
C00420800
483286002614 |
Nipple ,Y type | Na dotaz | Zadat poptávku | |
| 483 6 WHR82379 |
C00420801
483286002615 |
Nipple ,1/8 | Na dotaz | Zadat poptávku | |
| 484 0 WHR82379 |
C00420778
483286002589 |
Keyboard ,conneting cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR82379 |
C00420723
483286002528 |
Terminal Board ,compl. | Na dotaz | Zadat poptávku | |
| 491 1 WHR82379 |
C00420638
483286002434 |
Relay ,electro | Na dotaz | Zadat poptávku | |
| 500 0 WHR82379 |
C00420725
483286002531 |
Control board ,electronic 20 grid | Na dotaz | Zadat poptávku | |
| 500 3 WHR82379 |
C00420724
483286002529 |
Gasket ,steamtight f. control p. | Na dotaz | Zadat poptávku | |
| 500 4 WHR82379 |
C00420656
483286002454 |
Insert | Na dotaz | Zadat poptávku | |
| 500 5 WHR82379 |
C00420340
483286002099 |
elektronika | Na dotaz | Zadat poptávku | |
| 500 6 WHR82379 |
C00420657
483286002455 |
Probe ,electronic keyboard | Na dotaz | Zadat poptávku | |
| 561 0 WHR82379 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 563 0 WHR82379 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| 564 0 WHR82379 |
C00420739
483286002546 |
Thermostat ,three-phase safety 20A | Na dotaz | Zadat poptávku | |
| 571 0 WHR82379 |
C00420745
483286002553 |
Valve ,steam solenoid | Na dotaz | Zadat poptávku | |
| 571 1 WHR82379 |
C00420621
483286002415 |
Valve ,discharge with motor,1/2 | Na dotaz | Zadat poptávku | |
| 571 2 WHR82379 |
C00420796
483286002609 |
Valve ,electric steam | Na dotaz | Zadat poptávku | |
| 612 0 WHR82379 |
C00420740
483286002547 |
Switch ,boiler pressure1,6 bar | Na dotaz | Zadat poptávku | |
| 612 1 WHR82379 |
C00420623
483286002417 |
Switch ,boiler pressure 2,3 bar | Na dotaz | Zadat poptávku | |
| 612 2 WHR82379 |
C00420622
483286002416 |
Switch ,boiler pressure 0,9 bar | Na dotaz | Zadat poptávku | |
| 615 0 WHR82379 |
C00420624
483286002418 |
Relay ,schrack 2 contacts 230V | Na dotaz | Zadat poptávku | |
| 615 1 WHR82379 |
C00420625
483286002419 |
relé | 2 078 Kč
€ 82.00 |
||
| 615 2 WHR82379 |
C00420626
483286002421 |
Clamp ,1/2 | Na dotaz | Zadat poptávku | |
| 615 3 WHR82379 |
C00420627
483286002422 |
Clamp ,4 | Na dotaz | Zadat poptávku | |
| 622 1 WHR82379 |
C00420660
483286002458 |
Switch ,7 positions 16A 600V | Na dotaz | Zadat poptávku | |
| 623 0 WHR82379 |
C00420668
483286002467 |
Contactor ,25A AC1 50-60 Hz | Na dotaz | Zadat poptávku | |
| 623 2 WHR82379 |
C00420726
483286002532 |
Contactor ,55A 50-60Hz | Na dotaz | Zadat poptávku | |
| 623 3 WHR82379 |
C00420803
483286002617 |
Contact ,10A | Na dotaz | Zadat poptávku | |
| 633 0 WHR82379 |
C00581898
483286008198 |
Door microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR82379 |
C00581925
483286008688 |
Lamp,halogen 35W 12V | Na dotaz | Zadat poptávku | |
| 653 0 WHR82379 |
C00420629
483286002424 |
Plate ,door lighting | Na dotaz | Zadat poptávku | |
| 656 0 WHR82379 |
C00581924
483286008687 |
Holder lamp and cables 400mm | Na dotaz | Zadat poptávku | |
| 691 0 WHR82379 |
C00420653
483286002451 |
sonda | 3 232 Kč
€ 127.50 |
||
| 691 1 WHR82379 |
C00420662
483286002461 |
SUPPORT ,core probe | Na dotaz | Zadat poptávku | |
| 691 2 WHR82379 |
C00420663
483286002462 |
Tube ,for core probe location | Na dotaz | Zadat poptávku | |
| 691 3 WHR82379 |
C00420727
483286002533 |
Probe ,core temperature PT1000 | Na dotaz | Zadat poptávku | |
| 694 2 WHR82379 |
C00420741
483286002548 |
Probe ,min water level l=600mm | Na dotaz | Zadat poptávku | |
| 703 1 WHR82379 |
C00420742
483286002549 |
Pipe ,steam distribution ramp | Na dotaz | Zadat poptávku | |
| 743 0 WHR82379 |
C00420804
483286002618 |
Air guide | Na dotaz | Zadat poptávku | |
| 743 1 WHR82379 |
C00420805
483286002619 |
Support | Na dotaz | Zadat poptávku | |
| 743 2 WHR82379 |
C00420806
483286002621 |
Lid | Na dotaz | Zadat poptávku | |
| 781 0 WHR82379 |
C00420728
483286002534 |
Pipe ,cooking chamber drain | Na dotaz | Zadat poptávku | |
| 900 0 WHR82379 |
C00420634
483286002429 |
Holder ,1/2 cylindrical pipe d12 | Na dotaz | Zadat poptávku | |
| 900 1 WHR82379 |
C00420635
483286002431 |
Support ,ES 15/4N PRS4 | Na dotaz | Zadat poptávku | |
| 900 2 WHR82379 |
C00420636
483286002432 |
Support ,ES15/4N PRS2 | Na dotaz | Zadat poptávku | |
| 900 3 WHR82379 |
C00420681
483286002482 |
Connector ,1/4x1/8 of brass | Na dotaz | Zadat poptávku | |
| 900 5 WHR82379 |
C00420731
483286002537 |
Support ,for filter | Na dotaz | Zadat poptávku | |
| 900 6 WHR82379 |
C00420682
483286002483 |
Nipple ,T type 1/8 of brass | Na dotaz | Zadat poptávku | |
| 904 0 WHR82379 |
C00420732
483286002538 |
Bushing ,door hinge | Na dotaz | Zadat poptávku | |
| 910 0 WHR82379 |
C00420637
483286002433 |
Pin ,contact f.chamber light. | Na dotaz | Zadat poptávku | |
| 965 0 WHR82379 |
C00420807
483286002622 |
Cap ,threated | Na dotaz | Zadat poptávku | |
| 971 0 WHR82379 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
| 971 1 WHR82379 |
C00420665
483286002464 |
Fuse ,1A 5x20 AC 250V | Na dotaz | Zadat poptávku | |
| 971 2 WHR82379 |
C00420733
483286002539 |
Fuse ,10A rapid | Na dotaz | Zadat poptávku | |
| 971 3 WHR82379 |
C00420765
483286002575 |
Fuse | Na dotaz | Zadat poptávku | |
| 972 0 WHR82379 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
