WHIRLPOOL AGS916/WP - Prof Oven Combi 20X GN 1/1 e
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AGS916/WP - Prof Oven Combi 20X GN 1/1 e |
| Kód 12NC: | 856391601000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás

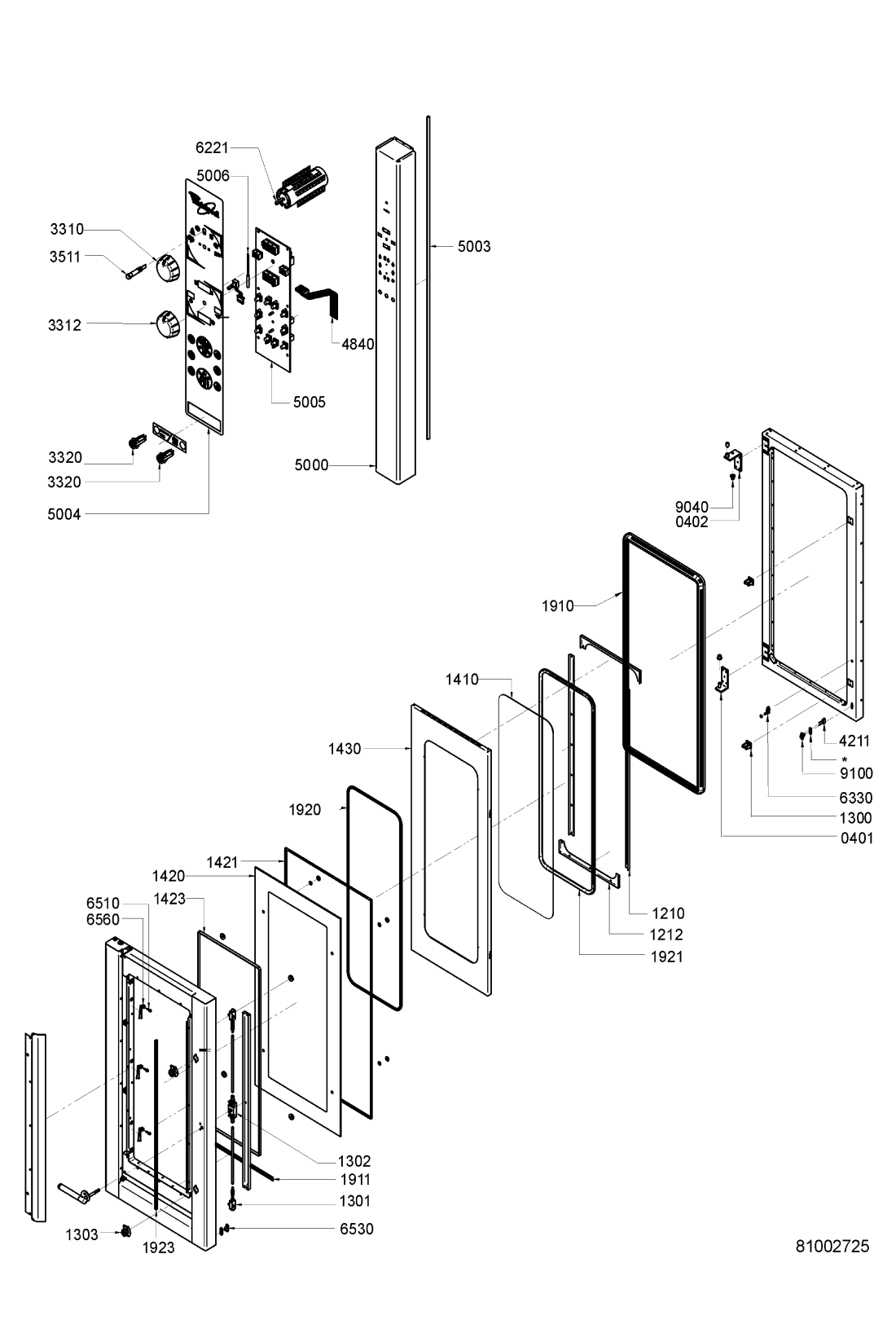

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR82381 |
C00420698
483286002501 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR82381 |
C00420767
483286002577 |
Panel ,left | Na dotaz | Zadat poptávku | |
| 022 1 WHR82381 |
C00420768
483286002578 |
Panel ,right | Na dotaz | Zadat poptávku | |
| 024 0 WHR82381 |
C00420769
483286002579 |
Panel ,back | Na dotaz | Zadat poptávku | |
| 040 1 WHR82381 |
C00420699
483286002502 |
Hinge ,door bottom | Na dotaz | Zadat poptávku | |
| 040 2 WHR82381 |
C00420700
483286002503 |
Hinge ,door top | Na dotaz | Zadat poptávku | |
| 121 0 WHR82381 |
C00420701
483286002504 |
Frame ,internal for mobile door | Na dotaz | Zadat poptávku | |
| 121 2 WHR82381 |
C00420702
483286002505 |
Frame ,top or bottom | Na dotaz | Zadat poptávku | |
| 130 0 WHR82381 |
C00420703
483286002506 |
Lock | Na dotaz | Zadat poptávku | |
| 130 1 WHR82381 |
C00420734
483286002541 |
Lock ,door lateral piece | Na dotaz | Zadat poptávku | |
| 130 2 WHR82381 |
C00420735
483286002542 |
Lock ,door central part | Na dotaz | Zadat poptávku | |
| 130 3 WHR82381 |
C00420704
483286002507 |
Wheel ,hand for block door | Na dotaz | Zadat poptávku | |
| 141 0 WHR82381 |
C00420705
483286002508 |
Glass ,neutral door | Na dotaz | Zadat poptávku | |
| 142 0 WHR82381 |
C00420706
483286002509 |
Glass ,internal door | Na dotaz | Zadat poptávku | |
| 142 1 WHR82381 |
C00420714
483286002518 |
Gasket ,beetw.int glass and door | Na dotaz | Zadat poptávku | |
| 142 3 WHR82381 |
C00420707
483286002511 |
Gasket ,internal glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR82381 |
C00420708
483286002512 |
Door ,external mobile | Na dotaz | Zadat poptávku | |
| 191 0 WHR82381 |
C00420709
483286002513 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 1 WHR82381 |
C00420710
483286002514 |
Gasket ,mobile rack | Na dotaz | Zadat poptávku | |
| 192 0 WHR82381 |
C00420711
483286002515 |
Gasket ,external window | Na dotaz | Zadat poptávku | |
| 192 1 WHR82381 |
C00420712
483286002516 |
Gasket ,internal for door window | Na dotaz | Zadat poptávku | |
| 192 3 WHR82381 |
C00420713
483286002517 |
Gasket ,beetw. ext.glass and doo | Na dotaz | Zadat poptávku | |
| 331 0 WHR82381 |
C00420595
483286002386 |
Knob ,cycles selection | Na dotaz | Zadat poptávku | |
| 331 1 WHR82381 |
C00420596
483286002387 |
Knob ,threaded with valve | Na dotaz | Zadat poptávku | |
| 331 2 WHR82381 |
C00420647
483286002444 |
Knob ,050 | Na dotaz | Zadat poptávku | |
| 332 0 WHR82381 |
C00581928
483286008692 |
Button reset gas alarm | Na dotaz | Zadat poptávku | |
| 341 0 WHR82381 |
C00420738
483286002545 |
Regulator ,water level | Na dotaz | Zadat poptávku | |
| 351 1 WHR82381 |
C00581902
483286008203 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 402 4 WHR82381 |
C00420602
483286002394 |
Pipe ,boiler cap | Na dotaz | Zadat poptávku | |
| 402 5 WHR82381 |
C00420648
483286002445 |
Case ,gear | Na dotaz | Zadat poptávku | |
| 404 0 WHR82381 |
C00420603
483286002395 |
Pump ,vibration with valve | Na dotaz | Zadat poptávku | |
| 404 1 WHR82381 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| 404 2 WHR82381 |
C00420649
483286002446 |
Sleeve ,1/8 | Na dotaz | Zadat poptávku | |
| 404 3 WHR82381 |
C00420650
483286002447 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 411 1 WHR82381 |
C00420748
483286002556 |
Transformer ,1F 60VA 230/12V | Na dotaz | Zadat poptávku | |
| 421 0 WHR82381 |
C00581941
483286008712 |
Filter R.F.I. 250V 50-60 Hz | Na dotaz | Zadat poptávku | |
| 421 1 WHR82381 |
C00420606
483286002398 |
Filter ,interfer. +cable connect | Na dotaz | Zadat poptávku | |
| 421 2 WHR82381 |
C00420651
483286002448 |
Filter ,RFI | Na dotaz | Zadat poptávku | |
| 421 3 WHR82381 |
C00420685
483286002486 |
Filter ,RFI G479240 | Na dotaz | Zadat poptávku | |
| 440 1 WHR82381 |
C00420718
483286002523 |
Gasket ,steamtight for engine | Na dotaz | Zadat poptávku | |
| 440 2 WHR82381 |
C00420719
483286002524 |
Flange ,for motor shaft | Na dotaz | Zadat poptávku | |
| 440 3 WHR82381 |
C00420720
483286002525 |
Flange ,counter for motor shaft | Na dotaz | Zadat poptávku | |
| 442 0 WHR82381 |
C00420770
483286002581 |
Motor ,three-phase double speed | Na dotaz | Zadat poptávku | |
| 442 1 WHR82381 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| 443 0 WHR82381 |
C00420771
483286002582 |
Fan ,external | Na dotaz | Zadat poptávku | |
| 443 1 WHR82381 |
C00420753
483286002562 |
Flange ,to fix the fan | Na dotaz | Zadat poptávku | |
| 443 2 WHR82381 |
C00420750
483286002558 |
Control board ,for fan | Na dotaz | Zadat poptávku | |
| 443 3 WHR82381 |
C00420749
483286002557 |
Fan | Na dotaz | Zadat poptávku | |
| 464 0 WHR82381 |
C00621633
483286008223 |
Valve water inlet | Na dotaz | Zadat poptávku | |
| 471 0 WHR82381 |
C00420772
483286002583 |
Burner ,premix | Na dotaz | Zadat poptávku | |
| 471 1 WHR82381 |
C00420773
483286002584 |
Gasket ,for burner | Na dotaz | Zadat poptávku | |
| 471 2 WHR82381 |
C00420752
483286002561 |
Gasket ,for burner flange | Na dotaz | Zadat poptávku | |
| 471 3 WHR82381 |
C00420774
483286002585 |
Flange ,for tube burner | Na dotaz | Zadat poptávku | |
| 474 0 WHR82381 |
C00420607
483286002399 |
Nozzle ,0,7mm for steam condens. | Na dotaz | Zadat poptávku | |
| 474 1 WHR82381 |
C00420608
483286002401 |
Nozzle ,1/4 M DIAM 7 | Na dotaz | Zadat poptávku | |
| 474 3 WHR82381 |
C00420609
483286002402 |
Nozzle ,1/4" for pipe diam. 12 | Na dotaz | Zadat poptávku | |
| 483 0 WHR82381 |
C00420754
483286002563 |
Electrode ,ignition | Na dotaz | Zadat poptávku | |
| 483 1 WHR82381 |
C00420775
483286002586 |
Connector ,T type nipple | Na dotaz | Zadat poptávku | |
| 483 2 WHR82381 |
C00420777
483286002588 |
Nipple ,with gasket | Na dotaz | Zadat poptávku | |
| 483 3 WHR82381 |
C00420762
483286002572 |
Gasket ,for valve | Na dotaz | Zadat poptávku | |
| 483 4 WHR82381 |
C00420747
483286002555 |
Flange ,curved | Na dotaz | Zadat poptávku | |
| 483 5 WHR82381 |
C00420782
483286002594 |
Nipple ,D6 | Na dotaz | Zadat poptávku | |
| 483 6 WHR82381 |
C00420776
483286002587 |
Nipple ,1/2x3/4 | Na dotaz | Zadat poptávku | |
| 483 7 WHR82381 |
C00420755
483286002564 |
Tube ,Venturi | Na dotaz | Zadat poptávku | |
| 483 8 WHR82381 |
C00420756
483286002565 |
Nipple ,threaded | Na dotaz | Zadat poptávku | |
| 484 0 WHR82381 |
C00420778
483286002589 |
Keyboard ,conneting cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR82381 |
C00420723
483286002528 |
Terminal Board ,compl. | Na dotaz | Zadat poptávku | |
| 491 1 WHR82381 |
C00420638
483286002434 |
Relay ,electro | Na dotaz | Zadat poptávku | |
| 500 0 WHR82381 |
C00420725
483286002531 |
Control board ,electronic 20 grid | Na dotaz | Zadat poptávku | |
| 500 3 WHR82381 |
C00420724
483286002529 |
Gasket ,steamtight f. control p. | Na dotaz | Zadat poptávku | |
| 500 4 WHR82381 |
C00420656
483286002454 |
Insert | Na dotaz | Zadat poptávku | |
| 500 5 WHR82381 |
C00420340
483286002099 |
elektronika | Na dotaz | Zadat poptávku | |
| 500 6 WHR82381 |
C00420657
483286002455 |
Probe ,electronic keyboard | Na dotaz | Zadat poptávku | |
| 522 3 WHR82381 |
C00420659
483286002457 |
Valve ,solenoid water inlet | Na dotaz | Zadat poptávku | |
| 522 4 WHR82381 |
C00420779
483286002591 |
Support ,water inlet | Na dotaz | Zadat poptávku | |
| 561 0 WHR82381 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 563 0 WHR82381 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| 564 0 WHR82381 |
C00420739
483286002546 |
Thermostat ,three-phase safety 20A | Na dotaz | Zadat poptávku | |
| 571 1 WHR82381 |
C00420621
483286002415 |
Valve ,discharge with motor,1/2 | Na dotaz | Zadat poptávku | |
| 571 2 WHR82381 |
C00420745
483286002553 |
Valve ,steam solenoid | Na dotaz | Zadat poptávku | |
| 571 3 WHR82381 |
C00420759
483286002568 |
Valve ,gas solenoid | Na dotaz | Zadat poptávku | |
| 595 0 WHR82381 |
C00420760
483286002569 |
Control box ,ignition and flame | Na dotaz | Zadat poptávku | |
| 595 1 WHR82381 |
C00420780
483286002592 |
Electrode ,ignition | Na dotaz | Zadat poptávku | |
| 611 2 WHR82381 |
C00420715
483286002519 |
Transformer | Na dotaz | Zadat poptávku | |
| 612 0 WHR82381 |
C00420740
483286002547 |
Switch ,boiler pressure1,6 bar | Na dotaz | Zadat poptávku | |
| 612 1 WHR82381 |
C00420623
483286002417 |
Switch ,boiler pressure 2,3 bar | Na dotaz | Zadat poptávku | |
| 612 2 WHR82381 |
C00420622
483286002416 |
Switch ,boiler pressure 0,9 bar | Na dotaz | Zadat poptávku | |
| 615 0 WHR82381 |
C00420624
483286002418 |
Relay ,schrack 2 contacts 230V | Na dotaz | Zadat poptávku | |
| 615 1 WHR82381 |
C00420625
483286002419 |
relé | 2 078 Kč
€ 82.00 |
||
| 615 2 WHR82381 |
C00420626
483286002421 |
Clamp ,1/2 | Na dotaz | Zadat poptávku | |
| 615 3 WHR82381 |
C00420627
483286002422 |
Clamp ,4 | Na dotaz | Zadat poptávku | |
| 622 1 WHR82381 |
C00420660
483286002458 |
Switch ,7 positions 16A 600V | Na dotaz | Zadat poptávku | |
| 623 0 WHR82381 |
C00420668
483286002467 |
Contactor ,25A AC1 50-60 Hz | Na dotaz | Zadat poptávku | |
| 633 0 WHR82381 |
C00581898
483286008198 |
Door microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR82381 |
C00581925
483286008688 |
Lamp,halogen 35W 12V | Na dotaz | Zadat poptávku | |
| 653 0 WHR82381 |
C00420629
483286002424 |
Plate ,door lighting | Na dotaz | Zadat poptávku | |
| 656 0 WHR82381 |
C00581924
483286008687 |
Holder lamp and cables 400mm | Na dotaz | Zadat poptávku | |
| 691 0 WHR82381 |
C00420653
483286002451 |
sonda | 3 232 Kč
€ 127.50 |
||
| 694 2 WHR82381 |
C00420741
483286002548 |
Probe ,min water level l=600mm | Na dotaz | Zadat poptávku | |
| 703 0 WHR82381 |
C00420783
483286002595 |
Pipe ,gas exchanger | Na dotaz | Zadat poptávku | |
| 703 2 WHR82381 |
C00420784
483286002596 |
Gasket ,draught diverter | Na dotaz | Zadat poptávku | |
| 743 0 WHR82381 |
C00420785
483286002597 |
Tube ,air regulation | Na dotaz | Zadat poptávku | |
| 743 1 WHR82381 |
C00420786
483286002598 |
Shutter ,air for venturi group | Na dotaz | Zadat poptávku | |
| 743 2 WHR82381 |
C00420790
483286002603 |
Guide ,fume diverter | Na dotaz | Zadat poptávku | |
| 743 3 WHR82381 |
C00420791
483286002604 |
Flange ,draught diverter | Na dotaz | Zadat poptávku | |
| 781 0 WHR82381 |
C00420728
483286002534 |
Pipe ,cooking chamber drain | Na dotaz | Zadat poptávku | |
| 781 1 WHR82381 |
C00420787
483286002599 |
Flange ,to fix exchanger | Na dotaz | Zadat poptávku | |
| 900 0 WHR82381 |
C00420764
483286002574 |
Cap ,for central connector | Na dotaz | Zadat poptávku | |
| 900 1 WHR82381 |
C00420635
483286002431 |
Support ,ES 15/4N PRS4 | Na dotaz | Zadat poptávku | |
| 900 2 WHR82381 |
C00420636
483286002432 |
Support ,ES15/4N PRS2 | Na dotaz | Zadat poptávku | |
| 900 3 WHR82381 |
C00420788
483286002601 |
Holder ,to fasten the clamps | Na dotaz | Zadat poptávku | |
| 900 4 WHR82381 |
C00420789
483286002602 |
Bracket ,to fix venturi | Na dotaz | Zadat poptávku | |
| 904 0 WHR82381 |
C00420732
483286002538 |
Bushing ,door hinge | Na dotaz | Zadat poptávku | |
| 910 0 WHR82381 |
C00420637
483286002433 |
Pin ,contact f.chamber light. | Na dotaz | Zadat poptávku | |
| 921 0 WHR82381 |
C00420761
483286002571 |
Bicone ,d12 | Na dotaz | Zadat poptávku | |
| 950 0 WHR82381 |
C00420781
483286002593 |
Gasket ,to fix exchanger | Na dotaz | Zadat poptávku | |
| 971 0 WHR82381 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
| 971 1 WHR82381 |
C00420665
483286002464 |
Fuse ,1A 5x20 AC 250V | Na dotaz | Zadat poptávku | |
| 971 2 WHR82381 |
C00420733
483286002539 |
Fuse ,10A rapid | Na dotaz | Zadat poptávku | |
| 971 3 WHR82381 |
C00420765
483286002575 |
Fuse | Na dotaz | Zadat poptávku | |
| 972 0 WHR82381 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
