WHIRLPOOL AKG 626
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKG 626 |
| Kód 12NC: | 853562678200 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

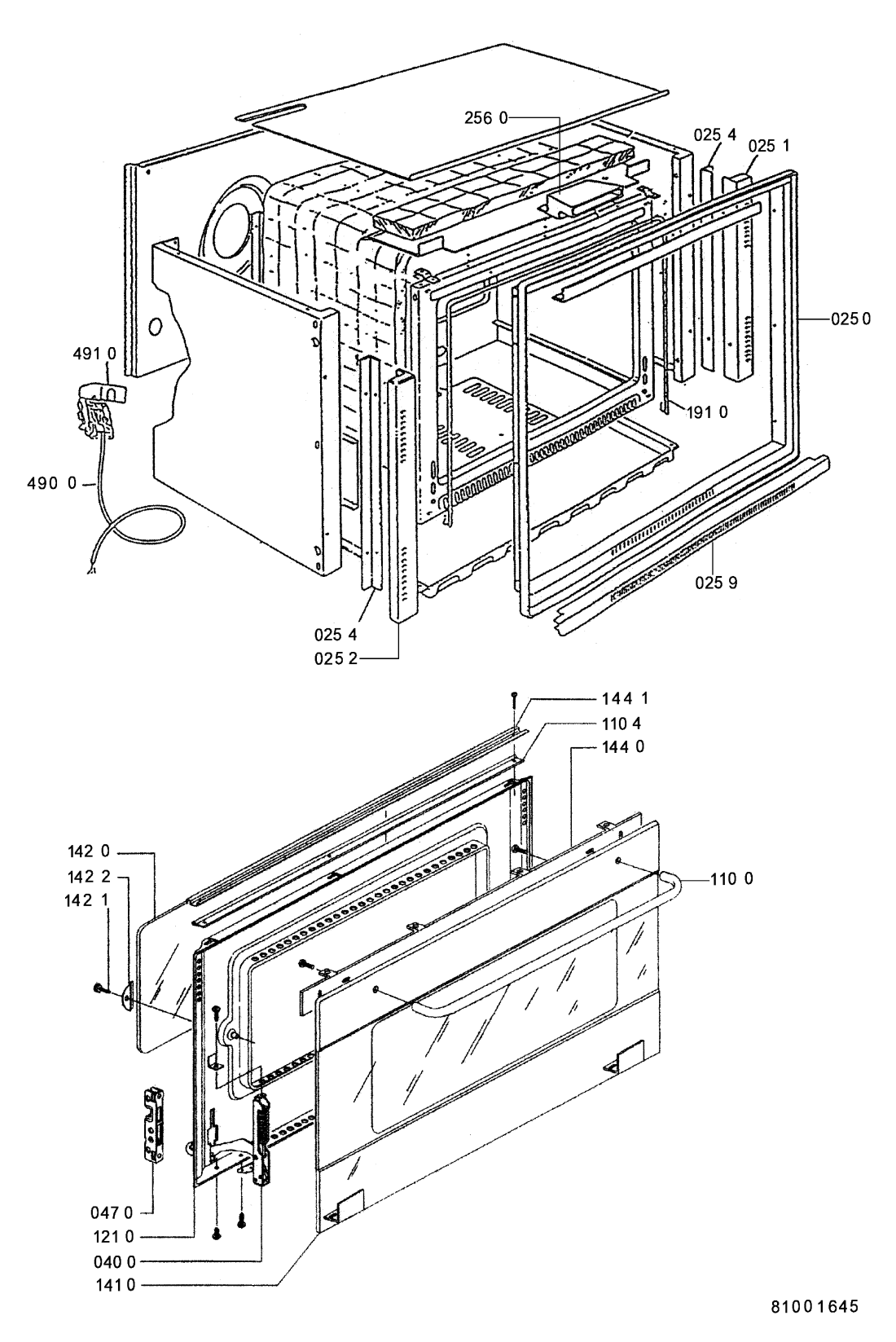

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 025 0 WHR116223 |
C00748097
481945928266 |
Frame oven | Na dotaz | Zadat poptávku | |
| 025 1 WHR116223 |
C00748098
481946088726 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 2 WHR116223 |
C00748099
481946088725 |
Trim side left | Na dotaz | Zadat poptávku | |
| 025 4 WHR116223 |
C00748100
481946078682 |
Profile | Na dotaz | Zadat poptávku | |
| 025 9 WHR116223 |
C00748101
481944268966 |
Plinth | Na dotaz | Zadat poptávku | |
| 040 0 WHR116223 |
C00490560
481941719124 |
HINGE | Na dotaz | Zadat poptávku | |
| 047 0 WHR116223 |
C00748102
481941719123 |
Hinge run.mech. | Na dotaz | Zadat poptávku | |
| 110 0 WHR116223 |
C00748103
481949878272 |
Handle door | Na dotaz | Zadat poptávku | |
| 110 4 WHR116223 |
C00748104
481946669751 |
Gasket border | Na dotaz | Zadat poptávku | |
| 121 0 WHR116223 |
C00748105
481944058831 |
Innerdoor,oven | Na dotaz | Zadat poptávku | |
| 141 0 WHR116223 |
C00748106
481945069154 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR116223 |
C00748107
481945069146 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 1 WHR116223 |
C00748108
481950218279 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR116223 |
C00748109
481940478015 |
Bracket | Na dotaz | Zadat poptávku | |
| 144 0 WHR116223 |
C00748110
481946078775 |
Trim door | Na dotaz | Zadat poptávku | |
| 144 1 WHR116223 |
C00748111
481946078774 |
Trim door | Na dotaz | Zadat poptávku | |
| 191 0 WHR116223 |
C00748112
481946669927 |
Gasket door | Na dotaz | Zadat poptávku | |
| 202 0 WHR116223 |
C00492370
481944059533 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 204 0 WHR116223 |
C00748113
481944239102 |
Panel side catalytic right | Na dotaz | Zadat poptávku | |
| 204 1 WHR116223 |
C00748114
481944239105 |
Panel side catalytic left | Na dotaz | Zadat poptávku | |
| 204 2 WHR116223 |
C00748115
481944239103 |
Plate catalytic,rear | Na dotaz | Zadat poptávku | |
| 204 3 WHR116223 |
C00748116
481944239104 |
Plate catalytic,upper | Na dotaz | Zadat poptávku | |
| 245 0 WHR116223 |
C00748117
481945819722 |
Grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR116223 |
C00748118
481941838316 |
Fat pan | Na dotaz | Zadat poptávku | |
| 248 0 WHR116223 |
C00748119
481953588081 |
Rotary spit | Na dotaz | Zadat poptávku | |
| 248 2 WHR116223 |
C00748120
481945819723 |
Grid support | Na dotaz | Zadat poptávku | |
| 256 0 WHR116223 |
C00493605
481246638027 |
Shield | Na dotaz | Zadat poptávku | |
| 261 0 WHR116223 |
C00748121
481945819721 |
Grille lateral | Na dotaz | Zadat poptávku | |
| 261 1 WHR116223 |
C00748122
481953228192 |
Pin | Na dotaz | Zadat poptávku | |
| 320 0 WHR116223 |
C00748123
481945359163 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 1 WHR116223 |
C00748124
481241359025 |
Knob | Na dotaz | Zadat poptávku | |
| 334 1 WHR116223 |
C00748125
481241359024 |
Knob | Na dotaz | Zadat poptávku | |
| 341 1 WHR116223 |
C00748126
481241378558 |
Indication disc | Na dotaz | Zadat poptávku | |
| 342 1 WHR116223 |
C00748127
481241378559 |
Indication disc | Na dotaz | Zadat poptávku | |
| 351 0 WHR116223 |
C00748128
481913448282 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR116223 |
C00748129
481238118242 |
Lens orange | Na dotaz | Zadat poptávku | |
| 401 0 WHR116223 |
C00490404
481936178186 |
Motor turn spit | Na dotaz | Zadat poptávku | |
| 452 0 WHR116223 |
C00748130
481925928926 |
Infraredelement | Na dotaz | Zadat poptávku | |
| 455 0 WHR116223 |
C00748131
481936069365 |
Burner oven | Na dotaz | Zadat poptávku | |
| 455 9 WHR116223 |
C00484487
481953228235 |
Bracket | Na dotaz | Zadat poptávku | |
| 456 1 WHR116223 |
C00748132
481225698028 |
Bracket Grill | Na dotaz | Zadat poptávku | |
| 474 0 WHR116223 |
C00748134
481936069364 |
Set of nozzles G20 | Na dotaz | Zadat poptávku | |
| 474 0 WHR116223 |
C00748133
481236068213 |
Set of nozzles G30/30 | Na dotaz | Zadat poptávku | |
| 474 9 WHR116223 |
C00748135
481950518296 |
Bicone 10 mm | Na dotaz | Zadat poptávku | |
| 490 0 WHR116223 |
C00748136
481232118093 |
Cable mains | Na dotaz | Zadat poptávku | |
| 491 0 WHR116223 |
C00748137
481929068409 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 500 1 WHR116223 |
C00748138
481225698029 |
Bracket Timer | Na dotaz | Zadat poptávku | |
| 503 0 WHR116223 |
C00748139
481928218772 |
Autotimer | Na dotaz | Zadat poptávku | |
| 554 0 WHR116223 |
C00748140
481927618232 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 558 0 WHR116223 |
C00531295
481927128803 |
Thermostat gas | Na dotaz | Zadat poptávku | |
| 558 1 WHR116223 |
C00748141
481946818312 |
Gasket | Na dotaz | Zadat poptávku | |
| 558 2 WHR116223 |
C00748142
481950518297 |
Nut | Na dotaz | Zadat poptávku | |
| 592 0 WHR116223 |
C00748143
481913838084 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 651 0 WHR116223 |
C00748144
481913488141 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 652 0 WHR116223 |
C00748145
481925518164 |
Lampholder | Na dotaz | Zadat poptávku | |
| 703 0 WHR116223 |
C00748146
481952648247 |
Connection gas tube metan | Na dotaz | Zadat poptávku | |
| 703 1 WHR116223 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 703 2 WHR116223 |
C00748147
481953258243 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 703 3 WHR116223 |
C00748148
481952648248 |
Connection gas tube G30 | Na dotaz | Zadat poptávku | |
| 703 9 WHR116223 |
C00748149
481940478563 |
Gas connection | Na dotaz | Zadat poptávku | |
| 773 4 WHR116223 |
C00748150
481953048759 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 773 9 WHR116223 |
C00748151
481952648249 |
Gas connection set | Na dotaz | Zadat poptávku | |
