WHIRLPOOL AKG659/IX/01
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | AKG659/IX/01 |
Kód 12NC: | 853565901030 |
I.C. kód: | 853565901031 |
Značka: | WHIRLPOOL |
Typ produktu: | Vestavné trouby a varné desky |
Další podobné modely: | 853565901030, Q0910090000, Q0910090001 |
Potřebujete servis? Jsme tady pro Vás

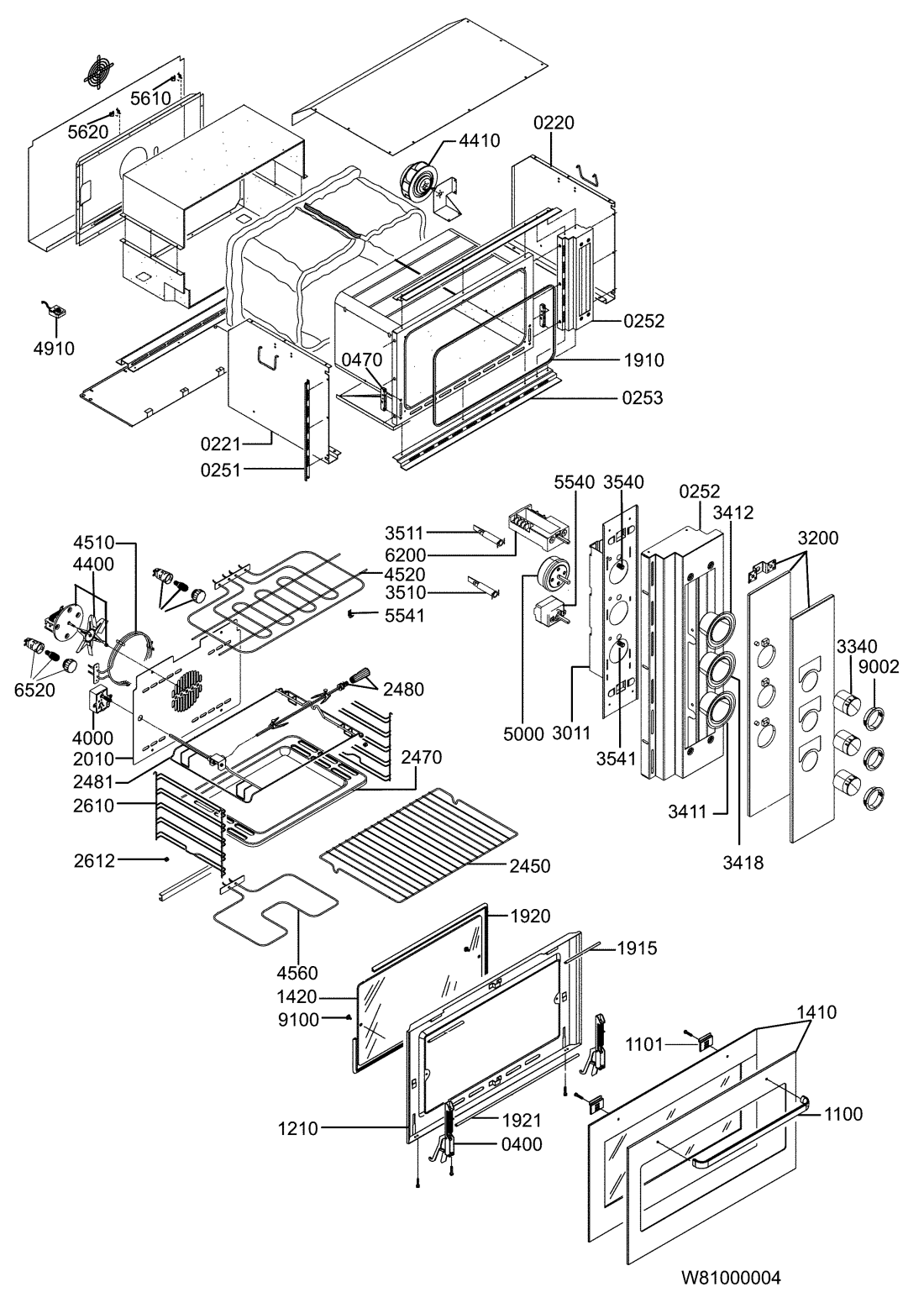

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
0220 WHR01247 |
C00327939 | Side panel oven right | Na dotaz | Zadat poptávku | |
0221 WHR01247 |
C00327940
481244010555 |
Side panel oven left | Na dotaz | Zadat poptávku | |
0251 WHR01247 |
C00330404
481246079117 |
Frame left post | Na dotaz | Zadat poptávku | |
0252 WHR01247 |
C00329960
481245359872 |
Support control panel | Na dotaz | Zadat poptávku | |
0253 WHR01247 |
C00330405
481246079118 |
Frame lower oven | Na dotaz | Zadat poptávku | |
0400 WHR01247 |
C00313542
481241719046 |
Hinge oven door | Na dotaz | Zadat poptávku | |
0470 WHR01247 |
C00314503
481241758385 |
Hinge support | Na dotaz | Zadat poptávku | |
1100 WHR01247 |
C00330711
481246268926 |
Handle | Na dotaz | Zadat poptávku | |
1101 WHR01247 |
C00329035 | Holder door | Na dotaz | Zadat poptávku | |
1210 WHR01247 |
C00330800
481246418073 |
Door inner skin | Na dotaz | Zadat poptávku | |
1410 WHR01247 |
C00319096
481231038806 |
Door complete | Na dotaz | Zadat poptávku | |
1420 WHR01247 |
C00331068
481244269257 |
Door glass inner | Na dotaz | Zadat poptávku | |
1910 WHR01247 |
C00314008
481246818111 |
Gasket oven | Na dotaz | Zadat poptávku | |
1915 WHR01247 |
C00331578
481246818113 |
Gasket door upper | Na dotaz | Zadat poptávku | |
1920 WHR01247 |
C00331579
481246818236 |
Seal inner oven door | Na dotaz | Zadat poptávku | |
1921 WHR01247 |
C00331497
481246688748 |
Gasket oven door lower | Na dotaz | Zadat poptávku | |
2010 WHR01247 |
C00331097
481244528016 |
Fan difusser | Na dotaz | Zadat poptávku | |
2450 WHR01247 |
C00330039
481245819083 |
Grid oven | Na dotaz | Zadat poptávku | |
2470 WHR01247 |
C00327786
481241838077 |
plech na peceni | 2 107 Kč
€ 83.10 |
||
2480 WHR01247 |
C00320255
481253578062 |
gril otocny | Na dotaz | Zadat poptávku | |
2481 WHR01247 |
C00329181
481240478486 |
drzak grilu | 2 026 Kč
€ 79.90 |
||
2610 WHR01247 |
C00330645
481246238122 |
Guide shelf | Na dotaz | Zadat poptávku | |
2612 WHR01247 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
3011 WHR01247 |
C00329201
481240478678 |
Support control panel | Na dotaz | Zadat poptávku | |
3200 WHR01247 |
C00329961
481245359897 |
Control panel complete | Na dotaz | Zadat poptávku | |
3340 WHR01247 |
C00329364
481241128948 |
Knoflík | Na dotaz | Zadat poptávku | |
3411 WHR01247 |
C00329518
481241378665 |
Collar thermostat | Na dotaz | Zadat poptávku | |
3412 WHR01247 |
C00329516
481241378663 |
Collar oven selector | Na dotaz | Zadat poptávku | |
3418 WHR01247 |
C00329517
481241378664 |
Collar end cooking | Na dotaz | Zadat poptávku | |
3510 WHR01247 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
3511 WHR01247 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
3540 WHR01247 |
C00328847
481238118279 |
Lens green | Na dotaz | Zadat poptávku | |
3541 WHR01247 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
4000 WHR01247 |
C00328827
481236158359 |
Motor spit | Na dotaz | Zadat poptávku | |
4400 WHR01247 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
4410 WHR01247 |
C00328826
481236158343 |
Motor fan rad. twin line | Na dotaz | Zadat poptávku | |
4510 WHR01247 |
C00316916
481225928814 |
Heating element circular 230V | Na dotaz | Zadat poptávku | |
4520 WHR01247 |
C00320050 | Heating element top+gr | Na dotaz | Zadat poptávku | |
4560 WHR01247 |
C00320306
481225948148 |
topeni | 1 652 Kč
€ 65.20 |
||
4910 WHR01247 |
C00322013
480121101331 |
Terminal Board | Na dotaz | Zadat poptávku | |
5000 WHR01247 |
C00322012
480121101329 |
Timer ,120 MIN | Na dotaz | Zadat poptávku | |
5540 WHR01247 |
C00327549
481228238095 |
Thermostat 2 bulbs ego 55.19 | Na dotaz | Zadat poptávku | |
5541 WHR01247 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
5610 WHR01247 |
C00319446
481228248286 |
termostat | 697 Kč
€ 27.50 |
||
5620 WHR01247 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
6200 WHR01247 |
C00327278
481227618383 |
Switch selector | Na dotaz | Zadat poptávku | |
6520 WHR01247 |
C00327133
481225518311 |
Lamp oven 25 W | Na dotaz | Zadat poptávku | |
9002 WHR01247 |
C00329365
481241128949 |
Flange for knob | Na dotaz | Zadat poptávku | |
9100 WHR01247 |
C00332086
481250218588 |
Screw oven door | Na dotaz | Zadat poptávku |
