IGNIS AKL 530
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKL 530 |
| Kód 12NC: | 854153057220 |
| I.C. kód: | 854153057221 |
| Značka: | IGNIS |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

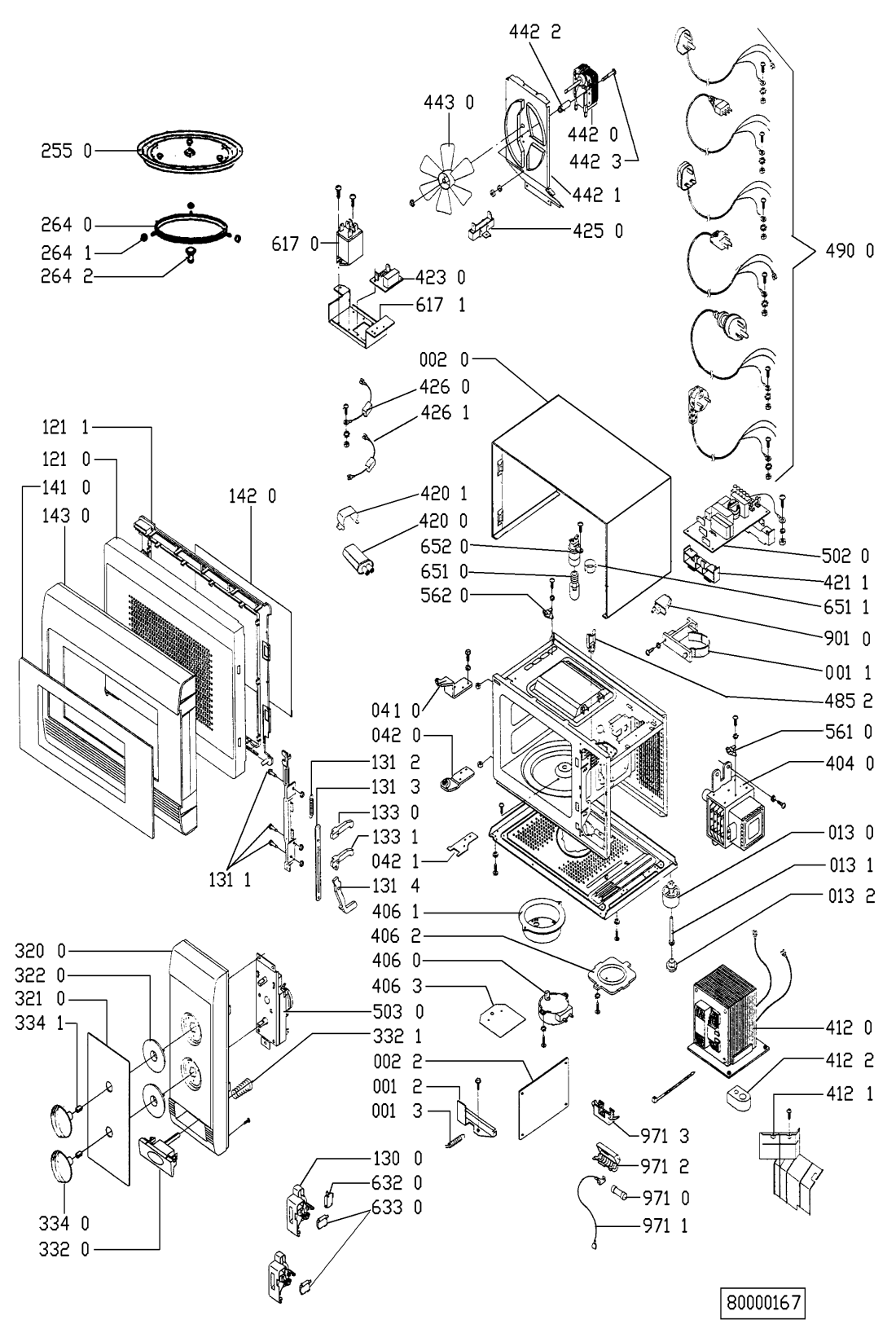

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR96209 |
C00586383
481990200031 |
Bracket | Na dotaz | Zadat poptávku | |
| 001 2 WHR96209 |
C00586379
481990200016 |
Lever. | Na dotaz | Zadat poptávku | |
| 001 3 WHR96209 |
C00586381
481990200025 |
Spring,tension. | Na dotaz | Zadat poptávku | |
| 002 0 WHR96209 |
C00556389
481990200172 |
SKRINA AKL530 N | Na dotaz | Zadat poptávku | |
| 002 2 WHR96209 |
C00556378
481990200082 |
NAHRADENE 481990200568 N | Na dotaz | Zadat poptávku | |
| 013 0 WHR96209 |
C00621604
481990200115 |
noha | 134 Kč
€ 5.30 |
||
| 013 1 WHR96209 |
C00586388
481990200055 |
kolik nohy | 67 Kč
€ 2.60 |
||
| 013 2 WHR96209 |
C00586389
481990200056 |
KRYTKA NOZKY PLAST N | Na dotaz | Zadat poptávku | |
| 041 0 WHR96209 |
C00586376
481990200007 |
Z?VES DVER? HORNŚ N | Na dotaz | Zadat poptávku | |
| 042 0 WHR96209 |
C00586377
481990200008 |
Hinge lower. | Na dotaz | Zadat poptávku | |
| 042 1 WHR96209 |
C00586408
481990200317 |
KUS DISTANCNY N | Na dotaz | Zadat poptávku | |
| 121 0 WHR96209 |
C00556413
481990200326 |
VNUTRO DVERI AKL534 N | Na dotaz | Zadat poptávku | |
| 121 1 WHR96209 |
C00586410
481990200329 |
RAM VNUTORNY N | Na dotaz | Zadat poptávku | |
| 130 0 WHR96209 |
C00586403
481990200228 |
PODLOYKA N | Na dotaz | Zadat poptávku | |
| 131 1 WHR96209 |
C00492730
481990200013 |
NIT N | Na dotaz | Zadat poptávku | |
| 131 2 WHR96209 |
C00586378
481990200014 |
pruzina | 25 Kč
€ 1.00 |
||
| 131 3 WHR96209 |
C00586409
481990200328 |
HAK N | Na dotaz | Zadat poptávku | |
| 131 4 WHR96209 |
C00492731
481990200037 |
NIT N | Na dotaz | Zadat poptávku | |
| 133 0 WHR96209 |
C00490842
481990200035 |
Z?MOK PLAST N | Na dotaz | Zadat poptávku | |
| 133 1 WHR96209 |
C00556371
481990200036 |
Z?MOK KOV. N | Na dotaz | Zadat poptávku | |
| 141 0 WHR96209 |
C00743670
481990200033 |
sklo dveri vnejsi | 1 225 Kč
€ 48.40 |
||
| 142 0 WHR96209 |
C00586384
481990200034 |
SKLO DVER? VN?TORN? AKL530 N | Na dotaz | Zadat poptávku | |
| 143 0 WHR96209 |
C00750152
481990200053 |
ram dveri vnejsi | 674 Kč
€ 26.60 |
||
| 255 0 WHR96209 |
C00556397
481990200218 |
NAHRADENE 481990200654 N | Na dotaz | Zadat poptávku | |
| 264 0 WHR96209 |
C00556392
481990200192 |
NAHRADENE 481990200529 N | Na dotaz | Zadat poptávku | |
| 264 1 WHR96209 |
C00556372
481990200042 |
NAHRADENE 481990200653 N | Na dotaz | Zadat poptávku | |
| 264 2 WHR96209 |
C00556380
481990200114 |
kolik unaseci 4hran. | 178 Kč
€ 7.00 |
||
| 320 0 WHR96209 |
C00743689
481990200227 |
Panel control | Na dotaz | Zadat poptávku | |
| 321 0 WHR96209 |
C00743675
481990200061 |
Panel AKL 530 | Na dotaz | Zadat poptávku | |
| 322 0 WHR96209 |
C00486906
481990200059 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 332 0 WHR96209 |
C00494899
481990200057 |
tlacitko otv.dveri | 132 Kč
€ 5.20 |
||
| 332 1 WHR96209 |
C00556405
481990200281 |
PRUYINA N | Na dotaz | Zadat poptávku | |
| 334 0 WHR96209 |
C00587921
481990200062 |
NASTAVOVAC? GOMB?K AKL560 plast N | Na dotaz | Zadat poptávku | |
| 334 1 WHR96209 |
C00556379
481990200095 |
nahradene 481990200619 N | Na dotaz | Zadat poptávku | |
| 404 0 WHR96209 |
C00556374
481990200063 |
NAHRADENE 481990200843 N | Na dotaz | Zadat poptávku | |
| 406 0 WHR96209 |
C00556410
481990200316 |
MOTOR.. | Na dotaz | Zadat poptávku | |
| 406 1 WHR96209 |
C00486907
481990200179 |
Cover TT motor | Na dotaz | Zadat poptávku | |
| 406 2 WHR96209 |
C00586375
481990200003 |
Cover plate TT motor. | Na dotaz | Zadat poptávku | |
| 406 3 WHR96209 |
C00586405
481990200272 |
TESNENIE N | Na dotaz | Zadat poptávku | |
| 412 0 WHR96209 |
C00750034
481990200336 |
Transformer,HT 220V | Na dotaz | Zadat poptávku | |
| 412 1 WHR96209 |
C00586382
481990200029 |
Air guide. | Na dotaz | Zadat poptávku | |
| 412 2 WHR96209 |
C00494900
481990200322 |
DORAZ GUMENY AKL535 N | Na dotaz | Zadat poptávku | |
| 420 0 WHR96209 |
C00556409
481990200315 |
KONDENZATOR HT N | Na dotaz | Zadat poptávku | |
| 420 1 WHR96209 |
C00484492
481990200177 |
Support | Na dotaz | Zadat poptávku | |
| 421 1 WHR96209 |
C00586390
481990200058 |
DRYIAK AKL N | Na dotaz | Zadat poptávku | |
| 423 0 WHR96209 |
C00484493
481990200216 |
KONTROLNA JEDNOTKA N | Na dotaz | Zadat poptávku | |
| 425 0 WHR96209 |
C00586401
481990200215 |
ODPOR N | Na dotaz | Zadat poptávku | |
| 426 0 WHR96209 |
C00556383
481990200122 |
DIODA N | Na dotaz | Zadat poptávku | |
| 426 1 WHR96209 |
C00556396
481990200209 |
NAHRADENE 481913038054 N | Na dotaz | Zadat poptávku | |
| 442 0 WHR96209 |
C00556412
481990200321 |
NAHRADENE 481990200588 N | Na dotaz | Zadat poptávku | |
| 442 1 WHR96209 |
C00556390
481990200178 |
Support.. | Na dotaz | Zadat poptávku | |
| 442 2 WHR96209 |
C00586387
481990200052 |
PÚZDRO | 189 Kč
€ 7.50 |
||
| 442 3 WHR96209 |
C00586380
481990200019 |
Screw. | Na dotaz | Zadat poptávku | |
| 443 0 WHR96209 |
C00636287
481990200044 |
vrtule ventilator-vyřazeno | Na dotaz | Zadat poptávku | |
| 485 2 WHR96209 |
C00586385
481990200047 |
Clip. | Na dotaz | Zadat poptávku | |
| 490 0 WHR96209 |
C00743690
481990200439 |
Cable | Na dotaz | Zadat poptávku | |
| 502 0 WHR96209 |
C00556384
481990200126 |
NAHRADENE 481990200075 N | Na dotaz | Zadat poptávku | |
| 503 0 WHR96209 |
C00556377
481990200073 |
NAHRADENE 481990200602 N | Na dotaz | Zadat poptávku | |
| 561 0 WHR96209 |
C00556376
481990200071 |
NAHRADENE 481990200164 N | Na dotaz | Zadat poptávku | |
| 562 0 WHR96209 |
C00610516
481990200426 |
THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 617 0 WHR96209 |
C00586400
481990200214 |
rele | 1 011 Kč
€ 39.90 |
||
| 617 1 WHR96209 |
C00586393
481990200094 |
Support. | Na dotaz | Zadat poptávku | |
| 632 0 WHR96209 |
C00586420
481990200371 |
SPINAC | 453 Kč
€ 17.90 |
||
| 633 0 WHR96209 |
C00636290
481990200314 |
SPINAC N | Na dotaz | Zadat poptávku | |
| 651 0 WHR96209 |
C00556401
481990200275 |
NAHRADENE 481913428051 N | Na dotaz | Zadat poptávku | |
| 651 1 WHR96209 |
C00586402
481990200219 |
Lampholder. | Na dotaz | Zadat poptávku | |
| 652 0 WHR96209 |
C00586392
481990200079 |
DRYIAK LAMPY N | Na dotaz | Zadat poptávku | |
| 901 0 WHR96209 |
C00586397
481990200197 |
Strain relief. | Na dotaz | Zadat poptávku | |
| 971 0 WHR96209 |
C00373283
481990200217 |
Fuse 8A | Na dotaz | Zadat poptávku | |
| 971 1 WHR96209 |
C00636614
481990200313 |
SPONA N | Na dotaz | Zadat poptávku | |
| 971 2 WHR96209 |
C00586407
481990200312 |
DRZIAK POISTKY N | Na dotaz | Zadat poptávku | |
| 971 3 WHR96209 |
C00750156
481990200428 |
Fuse Holder | Na dotaz | Zadat poptávku | |
