IGNIS AKL 711 IX GAS HOBS IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKL 711 IX GAS HOBS IG |
| Kód 12NC: | 854171138500 |
| I.C. kód: | 854171138505 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 854171138503, 854171138001, 854171138000, 854171138002, 854171138003, 854171138004 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

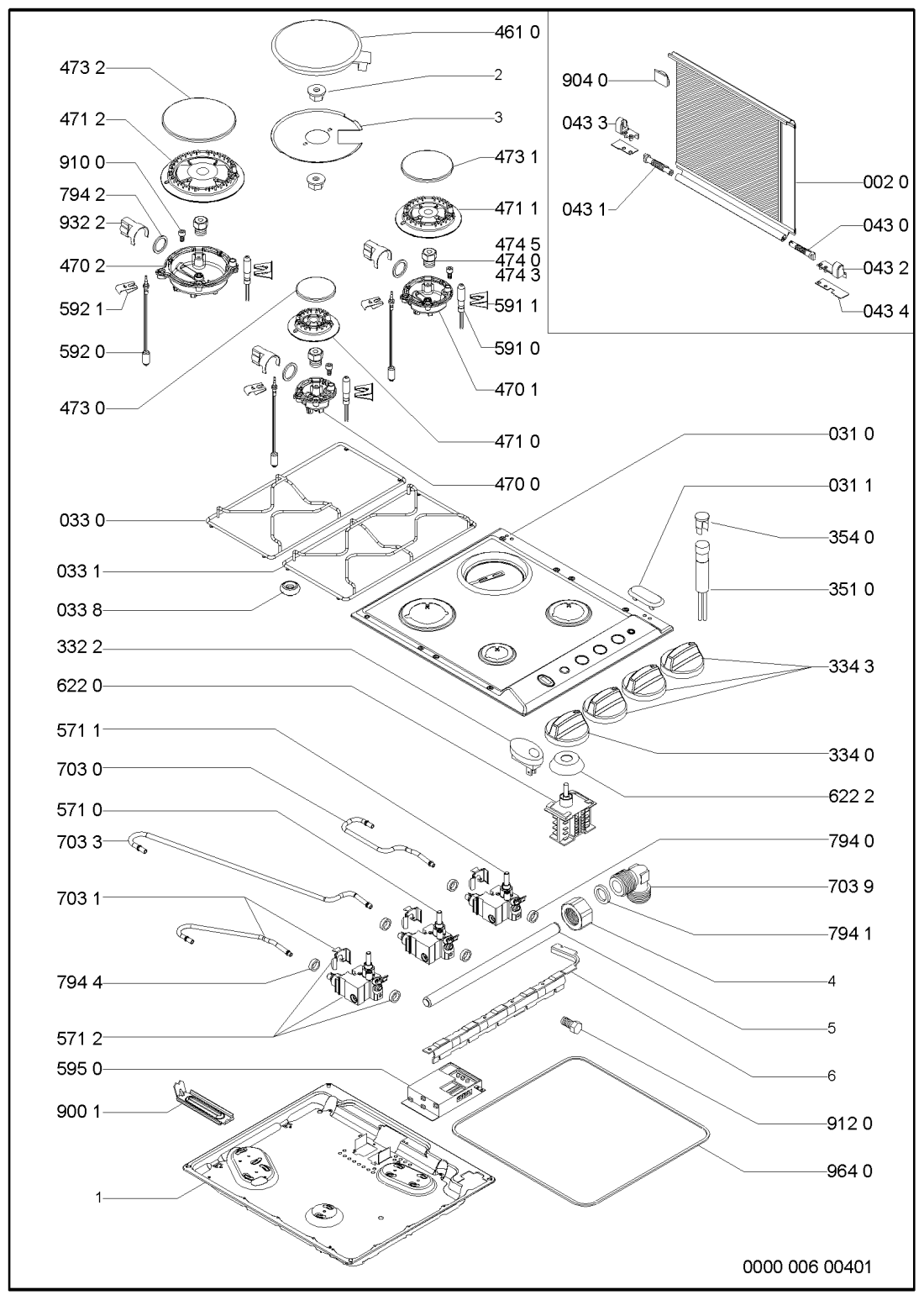

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR39798 |
C00333042
481945058183 |
Lid BL | Na dotaz | Zadat poptávku | |
| 031 0 WHR39798 |
C00496644
481244038967 |
Hob LAV.INOX | Na dotaz | Zadat poptávku | |
| 031 1 WHR39798 |
C00330511
481246228553 |
zaslepka | 475 Kč
€ 18.80 |
||
| 033 0 WHR39798 |
C00587849
481931039798 |
Grid for hob KIT. | Na dotaz | Zadat poptávku | |
| 033 1 WHR39798 |
C00332875
481931039796 |
Mřížka hořáku plynové varné desky - levá | 2 269 Kč
€ 89.60 |
||
| 033 8 WHR39798 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 043 0 WHR39798 |
C00332986
481941719216 |
Hinge right | Na dotaz | Zadat poptávku | |
| 043 1 WHR39798 |
C00332987
481941719217 |
Hinge left | Na dotaz | Zadat poptávku | |
| 043 2 WHR39798 |
C00332953
481940479318 |
BEARING RIGHT | Na dotaz | Zadat poptávku | |
| 043 3 WHR39798 |
C00332954
481940479319 |
Bearing left | Na dotaz | Zadat poptávku | |
| 043 4 WHR39798 |
C00332870
481931039437 |
TRYSKA - SADA | Na dotaz | Zadat poptávku | |
| 332 2 WHR39798 |
C00313015
481227618335 |
Tlačítko zapalování -náhrada C00313015 | Na dotaz | Zadat poptávku | |
| 334 0 WHR39798 |
C00319916
481941129275 |
Knob | Na dotaz | Zadat poptávku | |
| 334 3 WHR39798 |
C00314759
481941129253 |
Knoflík | 564 Kč
€ 22.30 |
||
| 351 0 WHR39798 |
C00314545
481913448493 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR39798 |
C00312211
481238118284 |
Signálka žlutočervená | 316 Kč
€ 12.50 |
||
| 461 0 WHR39798 |
C00343121
481225998337 |
plotna varna | Na dotaz | Zadat poptávku | |
| 470 0 WHR39798 |
C00318580
481236068854 |
rameno | Na dotaz | Zadat poptávku | |
| 470 1 WHR39798 |
C00328705
481236068855 |
miska horaku | 486 Kč
€ 19.20 |
||
| 470 2 WHR39798 |
C00328706
481236068856 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 471 0 WHR39798 |
C00314563
481236078156 |
Těleso hořáku - levé přední | 627 Kč
€ 24.80 |
||
| 471 1 WHR39798 |
C00312494
481236078157 |
teleso horaku | 694 Kč
€ 27.40 |
||
| 471 2 WHR39798 |
C00311440
481236078158 |
teleso horaku | 890 Kč
€ 35.10 |
||
| 473 0 WHR39798 |
C00313795
481236068851 |
viko horaku - male | 913 Kč
€ 36.00 |
||
| 473 1 WHR39798 |
C00314511
481236068852 |
viko horaku - stredni | 1 142 Kč
€ 45.10 |
||
| 473 2 WHR39798 |
C00318554
481236068853 |
viko horaku | 1 451 Kč
€ 57.30 |
||
| 474 0 WHR39798 |
C00381872
481231039117 |
Set of nozzles G20 | Na dotaz | Zadat poptávku | |
| 474 3 WHR39798 |
C00381873
481231039118 |
Set of nozzles G30-29 mbar | Na dotaz | Zadat poptávku | |
| 474 5 WHR39798 |
C00457103
481231039128 |
Set of nozzles G110 | Na dotaz | Zadat poptávku | |
| 571 0 WHR39798 |
C00313759
481236058489 |
Gas cock R/UR G20 | Na dotaz | Zadat poptávku | |
| 571 1 WHR39798 |
C00313896
481236058491 |
kohout stredni | 2 201 Kč
€ 86.90 |
||
| 571 2 WHR39798 |
C00315277
481236058492 |
ventil | 2 201 Kč
€ 86.90 |
||
| 591 0 WHR39798 |
C00327112
481225268083 |
Spark plug L=300 | Na dotaz | Zadat poptávku | |
| 591 1 WHR39798 |
C00345759
481249268215 |
Spring | Na dotaz | Zadat poptávku | |
| 592 0 WHR39798 |
C00311632
481213838004 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 592 1 WHR39798 |
C00314265
481949268789 |
pruzina termopojist. | Na dotaz | Zadat poptávku | |
| 595 0 WHR39798 |
C00311369
481214208005 |
transformator | Na dotaz | Zadat poptávku | |
| 622 0 WHR39798 |
C00381887
481927328447 |
7 STEP SINGLE SWITCH | Na dotaz | Zadat poptávku | |
| 622 2 WHR39798 |
C00332627
481253058105 |
Clamp ring | Na dotaz | Zadat poptávku | |
| 703 0 WHR39798 |
C00332518
481253048702 |
trubka na plyn | Na dotaz | Zadat poptávku | |
| 703 1 WHR39798 |
C00381885
481253048711 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 703 3 WHR39798 |
C00381884
481253048709 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 703 9 WHR39798 |
C00317975
481931039599 |
Koleno | 361 Kč
€ 14.30 |
||
| 794 0 WHR39798 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 1 WHR39798 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 794 2 WHR39798 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 4 WHR39798 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 1 WHR39798 |
C00328981
481240418524 |
prichytka varne desk | 178 Kč
€ 7.00 |
||
| 904 0 WHR39798 |
C00333156
481946818271 |
Gumová nožička mřížky hořáku | 157 Kč
€ 6.20 |
||
| 910 0 WHR39798 |
C00332120
481250218746 |
Śroub | 70 Kč
€ 2.80 |
||
| 912 0 WHR39798 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 932 2 WHR39798 |
C00333191
481949268831 |
Pružina | 177 Kč
€ 7.00 |
||
| 964 0 WHR39798 |
C00331545
481246688988 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR39798 |
C00611123 | Gastable WHP | Na dotaz | Zadat poptávku | |
