| Komerční kód: | AKM 113 NB/02 |
| Kód 12NC: | 857111301010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

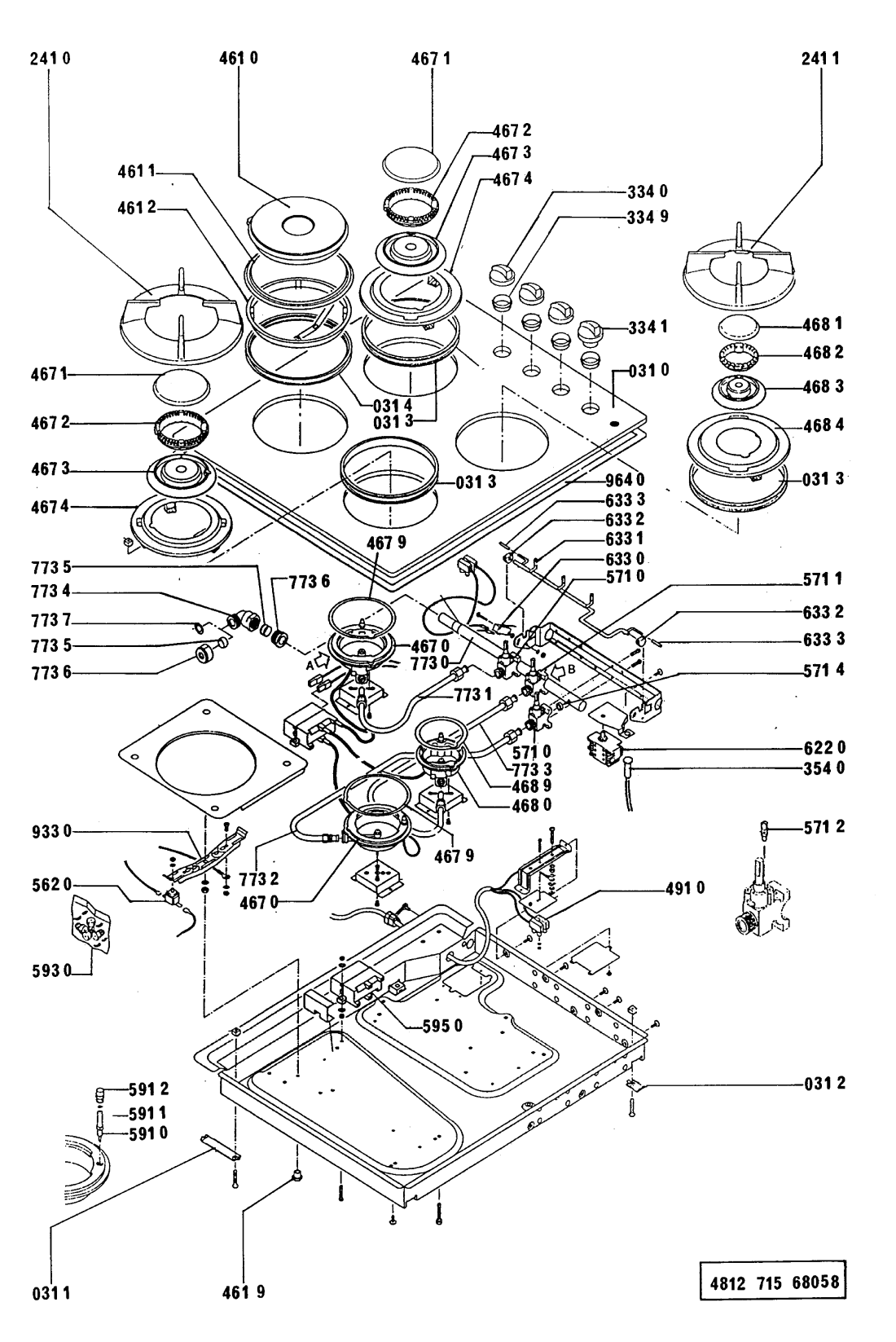

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR102322 |
C00756802
481944238143 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR102322 |
C00756763
481940118757 |
Clamp | Na dotaz | Zadat poptávku | |
| 031 2 WHR102322 |
C00756764
481940118756 |
Clamp | Na dotaz | Zadat poptávku | |
| 031 3 WHR102322 |
C00756765
481953278199 |
Gasket | Na dotaz | Zadat poptávku | |
| 031 4 WHR102322 |
C00756803
481953278203 |
Gasket | Na dotaz | Zadat poptávku | |
| 241 0 WHR102322 |
C00488250
481945858541 |
Grid large | Na dotaz | Zadat poptávku | |
| 241 1 WHR102322 |
C00756766
481945858542 |
Grid medium | Na dotaz | Zadat poptávku | |
| 334 0 WHR102322 |
C00488174
481941258424 |
Knob tap | Na dotaz | Zadat poptávku | |
| 334 1 WHR102322 |
C00756806
481941258429 |
Knob | Na dotaz | Zadat poptávku | |
| 334 9 WHR102322 |
C00756767
481953268731 |
Gasket | Na dotaz | Zadat poptávku | |
| 354 0 WHR102322 |
C00756807
481913448452 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 461 0 WHR102322 |
C00756808
481925998394 |
Cooking plate | Na dotaz | Zadat poptávku | |
| 461 1 WHR102322 |
C00756809
481953288039 |
Ring | Na dotaz | Zadat poptávku | |
| 461 2 WHR102322 |
C00756810
481953278205 |
Shaft seal | Na dotaz | Zadat poptávku | |
| 461 8 WHR102322 |
C00756811
481932058286 |
Wire | Na dotaz | Zadat poptávku | |
| 461 9 WHR102322 |
C00756812
481950518333 |
Nut | Na dotaz | Zadat poptávku | |
| 467 0 WHR102322 |
C00756768
481936078354 |
Injector holder | Na dotaz | Zadat poptávku | |
| 467 1 WHR102322 |
C00531579
481936069501 |
BURNER CAP large | Na dotaz | Zadat poptávku | |
| 467 2 WHR102322 |
C00531577
481936069498 |
SPREADER,BURNER large | Na dotaz | Zadat poptávku | |
| 467 3 WHR102322 |
C00756769
481940478882 |
Support | Na dotaz | Zadat poptávku | |
| 467 4 WHR102322 |
C00531603
481936078355 |
Cover large large | Na dotaz | Zadat poptávku | |
| 467 9 WHR102322 |
C00756770
481953278201 |
Gasket | Na dotaz | Zadat poptávku | |
| 468 0 WHR102322 |
C00756771
481936078353 |
Burner body | Na dotaz | Zadat poptávku | |
| 468 1 WHR102322 |
C00531578
481936069499 |
BURNER CAP medium | Na dotaz | Zadat poptávku | |
| 468 2 WHR102322 |
C00531576
481936069497 |
SPREADER,BURNER medium | Na dotaz | Zadat poptávku | |
| 468 3 WHR102322 |
C00756772
481940478881 |
Support | Na dotaz | Zadat poptávku | |
| 468 4 WHR102322 |
C00531604
481936078356 |
COVER medium | Na dotaz | Zadat poptávku | |
| 468 9 WHR102322 |
C00756773
481953278202 |
Gasket | Na dotaz | Zadat poptávku | |
| 491 0 WHR102322 |
C00738786
481929068359 |
Terminal strip | Na dotaz | Zadat poptávku | |
| 562 0 WHR102322 |
C00749700
481928248284 |
TERMOSTAT BIMET | 952 Kč
€ 37.50 |
||
| 571 0 WHR102322 |
C00756775
481936058572 |
Tap large | Na dotaz | Zadat poptávku | |
| 571 1 WHR102322 |
C00756776
481936058573 |
Tap medium | Na dotaz | Zadat poptávku | |
| 571 2 WHR102322 |
C00756777
481936069502 |
Valve 0.28 | Na dotaz | Zadat poptávku | |
| 571 2 WHR102322 |
C00756778
481936069503 |
Valve 0.40 | Na dotaz | Zadat poptávku | |
| 571 4 WHR102322 |
C00756779
481953268733 |
Gasket | Na dotaz | Zadat poptávku | |
| 591 0 WHR102322 |
C00756780
481925268125 |
Spark plug | Na dotaz | Zadat poptávku | |
| 591 1 WHR102322 |
C00756781
481953268732 |
Ring,rubber | Na dotaz | Zadat poptávku | |
| 591 2 WHR102322 |
C00756782
481950518328 |
Nut | Na dotaz | Zadat poptávku | |
| 591 9 WHR102322 |
C00756813
481932058285 |
Wire | Na dotaz | Zadat poptávku | |
| 593 0 WHR102322 |
C00531450
481931039052 |
Set of nozzles G20 | Na dotaz | Zadat poptávku | |
| 593 0 WHR102322 |
C00756814
481931039053 |
Set of nozzles G30/31 | Na dotaz | Zadat poptávku | |
| 595 0 WHR102322 |
C00486417
481914578173 |
GENERATOR | Na dotaz | Zadat poptávku | |
| 622 0 WHR102322 |
C00756815
481927328405 |
Energy Regulat. | Na dotaz | Zadat poptávku | |
| 633 0 WHR102322 |
C00756783
481927138177 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 1 WHR102322 |
C00756816
481953598542 |
Lever | Na dotaz | Zadat poptávku | |
| 633 2 WHR102322 |
C00756785
481953228262 |
Bushing | Na dotaz | Zadat poptávku | |
| 633 3 WHR102322 |
C00756786
481932528023 |
Insulator | Na dotaz | Zadat poptávku | |
| 773 0 WHR102322 |
C00756817
481931088657 |
Tube | Na dotaz | Zadat poptávku | |
| 773 1 WHR102322 |
C00756788
481931088652 |
Pipe, burner | Na dotaz | Zadat poptávku | |
| 773 2 WHR102322 |
C00756789
481931088648 |
Pipe, burner | Na dotaz | Zadat poptávku | |
| 773 3 WHR102322 |
C00756818
481931088658 |
Pipe, burner | Na dotaz | Zadat poptávku | |
| 773 4 WHR102322 |
C00756791
481952648347 |
Coupling piece 12 | Na dotaz | Zadat poptávku | |
| 773 4 WHR102322 |
C00756792
481952648348 |
Coupling piece 15 | Na dotaz | Zadat poptávku | |
| 773 4 WHR102322 |
C00756793
481952648349 |
Coupling piece NF | Na dotaz | Zadat poptávku | |
| 773 5 WHR102322 |
C00756794
481936069504 |
Bicone 12 | Na dotaz | Zadat poptávku | |
| 773 5 WHR102322 |
C00756795
481936069505 |
Bicone 14 | Na dotaz | Zadat poptávku | |
| 773 5 WHR102322 |
C00756796
481936069506 |
Bicone 15 | Na dotaz | Zadat poptávku | |
| 773 6 WHR102322 |
C00756797
481950518329 |
Nut 12 | Na dotaz | Zadat poptávku | |
| 773 6 WHR102322 |
C00756798
481950518331 |
Nut 14 | Na dotaz | Zadat poptávku | |
| 773 6 WHR102322 |
C00756799
481950518332 |
Nut 15 | Na dotaz | Zadat poptávku | |
| 773 7 WHR102322 |
C00756800
481953268734 |
Gasket | Na dotaz | Zadat poptávku | |
| 933 0 WHR102322 |
C00756819
481940478887 |
Bracket | Na dotaz | Zadat poptávku | |
| 964 0 WHR102322 |
C00756801
481946818034 |
Gasket | Na dotaz | Zadat poptávku | |
