WHIRLPOOL AKM 260/IX/03
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKM 260/IX/03 |
| Kód 12NC: | 857126010500 |
| I.C. kód: | 857126010502 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 44935770000, 857126010700, 769990935772, 857126010500, 857126010501, 857126010504, 857126010506, 857126010509, 857126010507, 857126010508 |
Potřebujete servis? Jsme tady pro Vás

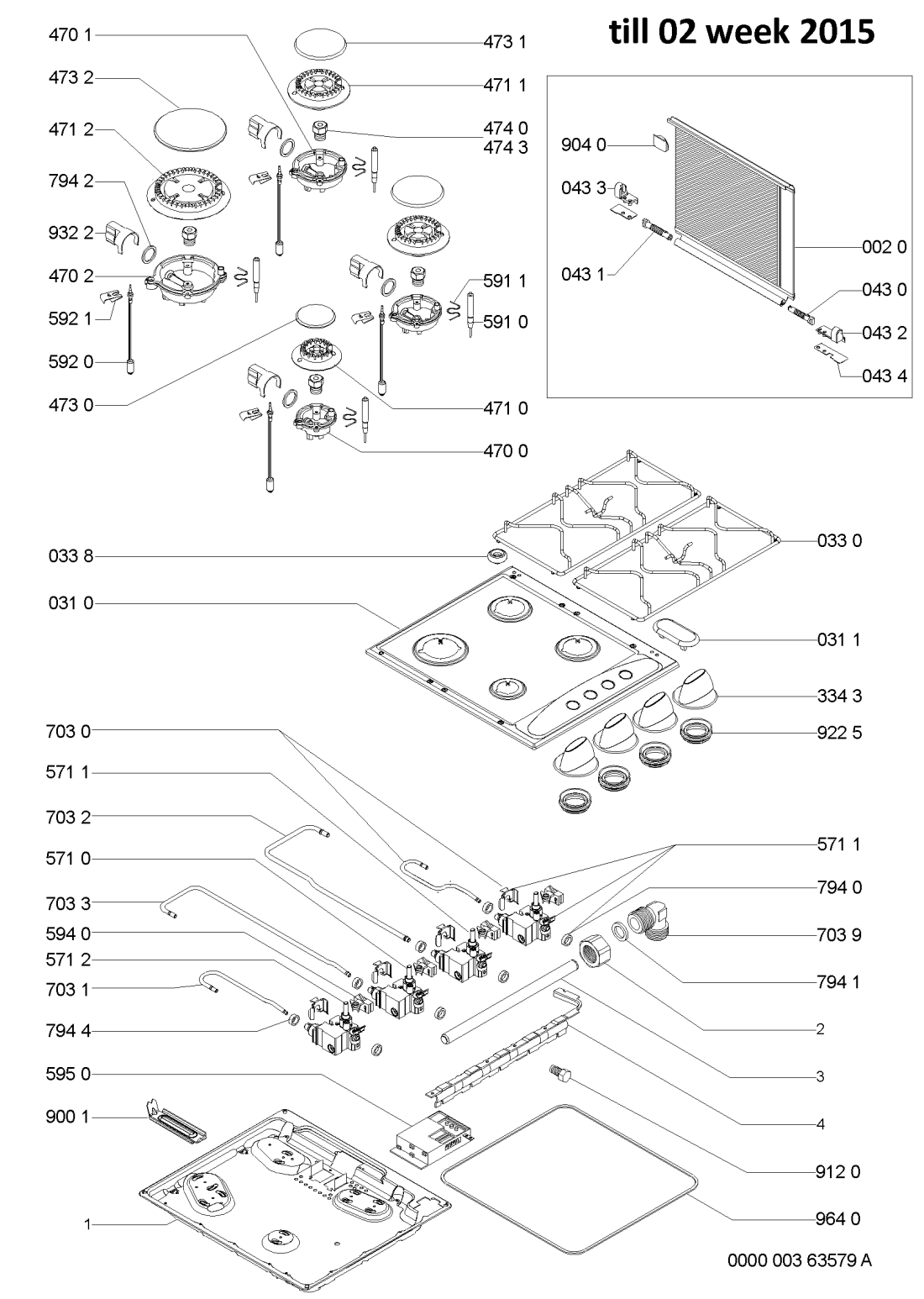

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR102428 |
C00326597
481061319391 |
Lid glass BR | Na dotaz | Zadat poptávku | |
| 0020 WHR102428 |
C00333042
481945058183 |
Lid BL | Na dotaz | Zadat poptávku | |
| 0020 WHR102428 |
C00326594
481061319361 |
Lid NB | Na dotaz | Zadat poptávku | |
| 0310 WHR102428 |
C00311897
481060118401 |
Hob GAS IX | Na dotaz | Zadat poptávku | |
| 0310 WHR102428 |
C00328176
481244038846 |
Hob | Na dotaz | Zadat poptávku | |
| 0311 WHR102428 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 18.10 |
||
| 0311 WHR102428 |
C00330511
481246228553 |
zaslepka | 475 Kč
€ 18.80 |
||
| 0330 WHR102428 |
C00312331
481931039799 |
Mřížka hořáku (levá/pravá) plynové varné desky Whirlpool | 1 997 Kč
€ 78.80 |
||
| 0338 WHR102428 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 0430 WHR102428 |
C00332986
481941719216 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR102428 |
C00332987
481941719217 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR102428 |
C00322484
480121104579 |
Bracket aluminium brite right | Na dotaz | Zadat poptávku | |
| 0432 WHR102428 |
C00332953
481940479318 |
BEARING RIGHT | Na dotaz | Zadat poptávku | |
| 0432 WHR102428 |
C00322485
480121104581 |
Bracket new black right | Na dotaz | Zadat poptávku | |
| 0433 WHR102428 |
C00322486
480121104582 |
Bracket aluminium brite left | Na dotaz | Zadat poptávku | |
| 0433 WHR102428 |
C00332954
481940479319 |
Bearing left | Na dotaz | Zadat poptávku | |
| 0433 WHR102428 |
C00322487
480121104583 |
Bracket new black left | Na dotaz | Zadat poptávku | |
| 0434 WHR102428 |
C00322479
480121104571 |
Washer | Na dotaz | Zadat poptávku | |
| 0434 WHR102428 |
C00332870
481931039437 |
TRYSKA - SADA | Na dotaz | Zadat poptávku | |
| 3343 WHR102428 |
C00312727
481241279141 |
Knoflík ovládací NB | Na dotaz | Zadat poptávku | |
| 3343 WHR102428 |
C00312690
480121104819 |
Knoflík | 243 Kč
€ 9.60 |
||
| 4700 WHR102428 |
C00325703
481010619731 |
Injector holder A QF | Na dotaz | Zadat poptávku | |
| 4700 WHR102428 |
C00332885
481936069687 |
dno horaku male | Na dotaz | Zadat poptávku | |
| 4701 WHR102428 |
C00332884
481936069686 |
dno horaku stredni | 530 Kč
€ 20.90 |
||
| 4701 WHR102428 |
C00325704
481010619741 |
Injector holder SR QF | Na dotaz | Zadat poptávku | |
| 4702 WHR102428 |
C00316445
481010646791 |
Injector holder R QF | Na dotaz | Zadat poptávku | |
| 4702 WHR102428 |
C00332886
481936069688 |
dno horaku velke | 639 Kč
€ 25.20 |
||
| 4710 WHR102428 |
C00325714
481010621283 |
Těleso hořáku | 591 Kč
€ 23.30 |
||
| 4710 WHR102428 |
C00315577
481936078396 |
teleso horaku male | 680 Kč
€ 26.80 |
||
| 4711 WHR102428 |
C00317889
481010621284 |
Rozdělovač hořáku-náhrada C00317889 | 305 Kč
€ 12.00 |
||
| 4711 WHR102428 |
C00313867
481936078395 |
teleso horaku stred. | 854 Kč
€ 33.70 |
||
| 4712 WHR102428 |
C00313900
481010621285 |
Těleso hořáku - velké plynové varné desky Whirlpool, Indesit | 248 Kč
€ 9.80 |
||
| 4712 WHR102428 |
C00314711
481936078394 |
Těleso hořáku velké | 1 141 Kč
€ 45.00 |
||
| 4730 WHR102428 |
C00314709
481936069682 |
viko horaku - male | 437 Kč
€ 17.30 |
||
| 4730 WHR102428 |
C00326324
481010714671 |
víko hořáku malé | 216 Kč
€ 8.50 |
||
| 4731 WHR102428 |
C00312721
481936069681 |
viko horaku - stredn | 582 Kč
€ 23.00 |
||
| 4731 WHR102428 |
C00326326
481010714673 |
Burner cap SR black glossy HE | 288 Kč
€ 11.40 |
||
| 4732 WHR102428 |
C00312769
481936069679 |
viko horaku - velke | 749 Kč
€ 29.60 |
||
| 4732 WHR102428 |
C00326328
481010714675 |
Burner cap R black glossy HE | 399 Kč
€ 15.80 |
||
| 4740 WHR102428 |
C00315268
481931039346 |
Sada trysek G20 – zemní plyn | 1 114 Kč
€ 44.00 |
||
| 4740 WHR102428 |
C00317702
481060414031 |
trysky - zemni plyn | Na dotaz | Zadat poptávku | |
| 4743 WHR102428 |
C00326576
481060413271 |
trysky - propan butan | Na dotaz | Zadat poptávku | |
| 4743 WHR102428 |
C00373661
481231038581 |
Sada trysek G30-G29 - propan butan (LPG) | 1 038 Kč
€ 41.00 |
||
| 4901 WHR102428 |
C00322477
480121104531 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 5710 WHR102428 |
C00313892
481236058386 |
ventil plynovy velky | 2 238 Kč
€ 88.40 |
||
| 5710 WHR102428 |
C00312348
481010647653 |
ventil plynovy | 1 077 Kč
€ 42.50 |
||
| 5711 WHR102428 |
C00319726
481236058387 |
kohout stredni | 2 238 Kč
€ 88.40 |
||
| 5711 WHR102428 |
C00312191
481010647652 |
ventil | Na dotaz | Zadat poptávku | |
| 5712 WHR102428 |
C00317951
481236058388 |
ventil plynovy maly | 2 238 Kč
€ 88.40 |
||
| 5712 WHR102428 |
C00312473
481010647651 |
ventil | Na dotaz | Zadat poptávku | |
| 5910 WHR102428 |
C00311700
481925268167 |
Svíčka zapalovací | 604 Kč
€ 23.80 |
||
| 5910 WHR102428 |
C00313511
481010611915 |
Svíčka zapalovací | Na dotaz | Zadat poptávku | |
| 5911 WHR102428 |
C00313852
481949268788 |
pruzina | 30 Kč
€ 1.20 |
||
| 5920 WHR102428 |
C00311632
481213838004 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 5920 WHR102428 |
C00381450
481010714624 |
Thermocouple QUICK FIX, 460 mm | Na dotaz | Zadat poptávku | |
| 5921 WHR102428 |
C00314265
481949268789 |
pruzina termopojist. | Na dotaz | Zadat poptávku | |
| 5940 WHR102428 |
C00314386
481227138491 |
Spínač jiskry | Na dotaz | Zadat poptávku | |
| 5940 WHR102428 |
C00325830
481010645252 |
Electronic ignition PAULA 4G | Na dotaz | Zadat poptávku | |
| 5950 WHR102428 |
C00315258
481914578227 |
Generator | Na dotaz | Zadat poptávku | |
| 5950 WHR102428 |
C00313108
480121104525 |
zapalovac plynu ele. | Na dotaz | Zadat poptávku | |
| 7030 WHR102428 |
C00324203
481010409829 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 7030 WHR102428 |
C00332518
481253048702 |
trubka na plyn | Na dotaz | Zadat poptávku | |
| 7031 WHR102428 |
C00324201
481010409826 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 7031 WHR102428 |
C00332516
481253048699 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 7032 WHR102428 |
C00324202
481010409827 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 7032 WHR102428 |
C00332517
481253048701 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 7033 WHR102428 |
C00324200
481010409823 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 7033 WHR102428 |
C00318909
481253048698 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 7039 WHR102428 |
C00317975
481931039599 |
Koleno | 361 Kč
€ 14.30 |
||
| 7940 WHR102428 |
C00313330
480121103673 |
Těsnění | 222 Kč
€ 8.80 |
||
| 7940 WHR102428 |
C00331499
481246688767 |
Gasket | Na dotaz | Zadat poptávku | |
| 7941 WHR102428 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 7941 WHR102428 |
C00313293
480121103128 |
GASKET | Na dotaz | Zadat poptávku | |
| 7942 WHR102428 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7944 WHR102428 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 7945 WHR102428 |
C00326569
481060295871 |
Spring fastener | Na dotaz | Zadat poptávku | |
| 9001 WHR102428 |
C00328981
481240418524 |
prichytka varne desk | 178 Kč
€ 7.00 |
||
| 9001 WHR102428 |
C00314607
481240118823 |
Držák desky 1ks | Na dotaz | Zadat poptávku | |
| 9040 WHR102428 |
C00333156
481946818271 |
Gumová nožička mřížky hořáku | 157 Kč
€ 6.20 |
||
| 9100 WHR102428 |
C00332120
481250218746 |
Śroub | 70 Kč
€ 2.80 |
||
| 9120 WHR102428 |
C00322394
480121103816 |
Screw | Na dotaz | Zadat poptávku | |
| 9120 WHR102428 |
C00333217
481950218429 |
Screw | Na dotaz | Zadat poptávku | |
| 9225 WHR102428 |
C00312206
481246668814 |
Podložka knoflíku | Na dotaz | Zadat poptávku | |
| 9225 WHR102428 |
C00333308
481953058102 |
Těsnění knoflíku plynové varné desky Whirlpool AKM 262 IX, GOA 6423/NB, AKM 203/IX. | 210 Kč
€ 8.30 |
||
| 9322 WHR102428 |
C00322347
480121103657 |
Clip injector holder | Na dotaz | Zadat poptávku | |
| 9322 WHR102428 |
C00333191
481949268831 |
Pružina | 177 Kč
€ 7.00 |
||
| 9640 WHR102428 |
C00331545
481246688988 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR102428 |
C00775042 | Gastable WHP | Na dotaz | Zadat poptávku | |
| 9990 WHR102428 |
C00335156
484000000116 |
Lid AKL 799NB/01 | Na dotaz | Zadat poptávku | |
| 9991 WHR102428 |
C00335158
484000000118 |
Lid AKM 549/MR/01 | Na dotaz | Zadat poptávku | |
