| Komerční kód: | AKM 475 |
| Kód 12NC: | 857147529000 |
| I.C. kód: | 857147529001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857147529000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

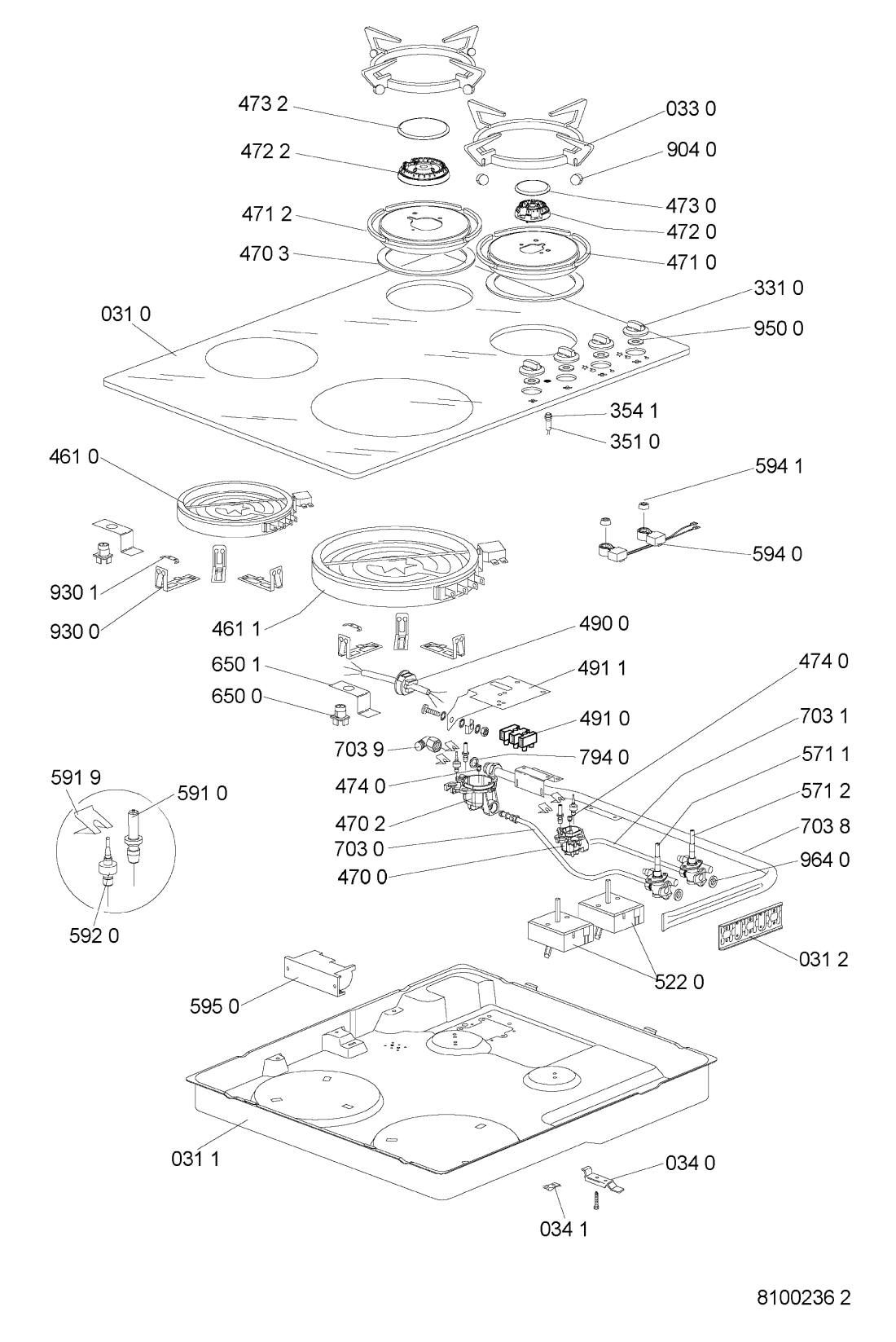

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR75061 |
C00489244
481244039431 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR75061 |
C00500844
481244039429 |
Hob base | Na dotaz | Zadat poptávku | |
| 031 2 WHR75061 |
C00621349
481231038831 |
Bracket | Na dotaz | Zadat poptávku | |
| 033 0 WHR75061 |
C00487688
481245858393 |
Grid | Na dotaz | Zadat poptávku | |
| 034 0 WHR75061 |
C00332869
481931039306 |
Holder | Na dotaz | Zadat poptávku | |
| 034 1 WHR75061 |
C00045235
481231038832 |
spona | 167 Kč
€ 6.60 |
||
| 331 0 WHR75061 |
C00385391
481241128976 |
Knob | Na dotaz | Zadat poptávku | |
| 351 0 WHR75061 |
C00488480
481225518274 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 1 WHR75061 |
C00045314
481225518272 |
LIGHT LENS - GREEN | Na dotaz | Zadat poptávku | |
| 461 0 WHR75061 |
C00488542
481225998449 |
Heating element halogen 145mm 230V | Na dotaz | Zadat poptávku | |
| 461 1 WHR75061 |
C00092115
481225998451 |
RADIANT PLATE RING 180R-230V 1700W | Na dotaz | Zadat poptávku | |
| 470 0 WHR75061 |
C00328765
481236078104 |
Malý hořák | Na dotaz | Zadat poptávku | |
| 470 2 WHR75061 |
C00328767
481236078106 |
Burner cup | Na dotaz | Zadat poptávku | |
| 470 3 WHR75061 |
C00385214
481236068646 |
Burner sealing ring | Na dotaz | Zadat poptávku | |
| 471 0 WHR75061 |
C00385215
481236078119 |
Burner Aux | Na dotaz | Zadat poptávku | |
| 471 2 WHR75061 |
C00380927
481236078121 |
Burner R | Na dotaz | Zadat poptávku | |
| 472 0 WHR75061 |
C00328655
481236068521 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 472 2 WHR75061 |
C00328657
481236068523 |
Spreader,burner rapid | Na dotaz | Zadat poptávku | |
| 473 0 WHR75061 |
C00328658
481236068525 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 473 2 WHR75061 |
C00328660
481236068527 |
Burner cap rapid | Na dotaz | Zadat poptávku | |
| 474 0 WHR75061 |
C00389650
480121100457 |
Set of nozzles GN | Na dotaz | Zadat poptávku | |
| 474 0 WHR75061 |
C00482647
481231038868 |
Nozzle kit LPG | Na dotaz | Zadat poptávku | |
| 490 0 WHR75061 |
C00327584
481229048014 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 0 WHR75061 |
C00045324
481229068289 |
TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 491 1 WHR75061 |
C00092048
481229068288 |
TERMINAL BOARD SUPPORT | Na dotaz | Zadat poptávku | |
| 522 0 WHR75061 |
C00267368
481227308001 |
REGULÁTOR ENERGIE 230V L32 | Na dotaz | Zadat poptávku | |
| 571 1 WHR75061 |
C00328605
481236058351 |
Gas cock 0.43 large | Na dotaz | Zadat poptávku | |
| 571 2 WHR75061 |
C00328604
481236058349 |
Gas cock 0.34 small/medium | Na dotaz | Zadat poptávku | |
| 591 0 WHR75061 |
C00385894
481225268053 |
Spark plug L=500mm | Na dotaz | Zadat poptávku | |
| 591 9 WHR75061 |
C00267205
481244048355 |
SPRING | Na dotaz | Zadat poptávku | |
| 592 0 WHR75061 |
C00326863
481213838016 |
Thermo couple L=600mm | Na dotaz | Zadat poptávku | |
| 594 0 WHR75061 |
C00081765
481227328233 |
MIKRO ZAPALOVÁNÍ 2F. 'MENEGHETTI' | Na dotaz | Zadat poptávku | |
| 594 1 WHR75061 |
C00329419
481241259044 |
Push button ignition | Na dotaz | Zadat poptávku | |
| 595 0 WHR75061 |
C00621879
481227328234 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 650 0 WHR75061 |
C00113501
481225518268 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 650 1 WHR75061 |
C00500752
481225518267 |
Lamp support | Na dotaz | Zadat poptávku | |
| 703 0 WHR75061 |
C00493798
481253048731 |
Pipe right rear | Na dotaz | Zadat poptávku | |
| 703 1 WHR75061 |
C00621495
481253048729 |
Pipe right front | Na dotaz | Zadat poptávku | |
| 703 8 WHR75061 |
C00621496
481253048732 |
Pipe gas main | Na dotaz | Zadat poptávku | |
| 703 9 WHR75061 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 794 0 WHR75061 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 904 0 WHR75061 |
C00330797
481246378011 |
grille rubber | Na dotaz | Zadat poptávku | |
| 930 0 WHR75061 |
C00287468
481240448911 |
RETAINER - RADIANT RING | Na dotaz | Zadat poptávku | |
| 930 1 WHR75061 |
C00287467
481240448909 |
GAFFEL | Na dotaz | Zadat poptávku | |
| 950 0 WHR75061 |
C00621713
481249268198 |
Washer | Na dotaz | Zadat poptávku | |
| 964 0 WHR75061 |
C00332780
481285018015 |
Gasket | Na dotaz | Zadat poptávku | |
