| Komerční kód: | AKM 485 IX |
| Kód 12NC: | 857148538000 |
| I.C. kód: | 857148538002 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857148538000, 857148538003 |
Potřebujete servis? Jsme tady pro Vás

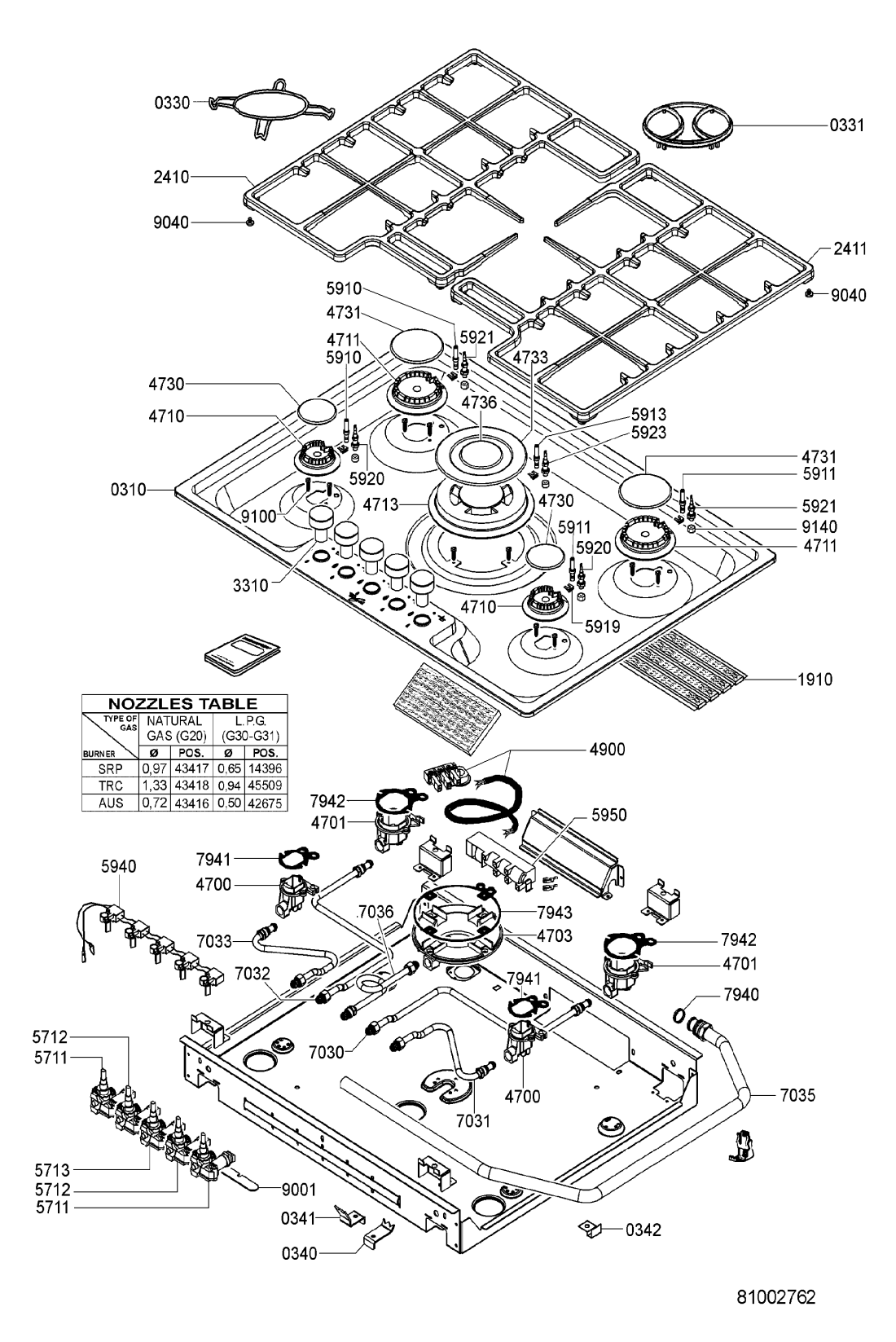

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR75069 |
C00404144
481245350344 |
Hob ,cooktop | Na dotaz | Zadat poptávku | |
| 033 0 WHR75069 |
C00545028
481245858409 |
Grid WOK | Na dotaz | Zadat poptávku | |
| 033 1 WHR75069 |
C00404406
481245848395 |
Grid | Na dotaz | Zadat poptávku | |
| 034 0 WHR75069 |
C00402104
481240478743 |
Bracket hob | Na dotaz | Zadat poptávku | |
| 034 1 WHR75069 |
C00402103
481240478742 |
Bracket hob | Na dotaz | Zadat poptávku | |
| 034 2 WHR75069 |
C00402119
481240478786 |
Frame hook | Na dotaz | Zadat poptávku | |
| 191 0 WHR75069 |
C00545048
481246688806 |
Gasket kit | Na dotaz | Zadat poptávku | |
| 241 0 WHR75069 |
C00404408
481245848397 |
Grid hob left | Na dotaz | Zadat poptávku | |
| 241 1 WHR75069 |
C00404407
481245848396 |
Grid hob right | Na dotaz | Zadat poptávku | |
| 331 0 WHR75069 |
C00402308
481241129061 |
Knob gas | Na dotaz | Zadat poptávku | |
| 470 0 WHR75069 |
C00301402
481236068701 |
SMALL BURNER | Na dotaz | Zadat poptávku | |
| 470 1 WHR75069 |
C00301403
481236068702 |
SEMI-RAPID BURNER | Na dotaz | Zadat poptávku | |
| 470 3 WHR75069 |
C00482783
481236068709 |
Burner | Na dotaz | Zadat poptávku | |
| 471 0 WHR75069 |
C00301506
481236068703 |
Burner | Na dotaz | Zadat poptávku | |
| 471 1 WHR75069 |
C00301507
481236068704 |
Burner | Na dotaz | Zadat poptávku | |
| 471 3 WHR75069 |
C00500775
481236068711 |
horak | 3 388 Kč
€ 133.60 |
||
| 473 0 WHR75069 |
C00301514
481236068708 |
Burner cap | Na dotaz | Zadat poptávku | |
| 473 1 WHR75069 |
C00301513
481236068707 |
Burner cap | Na dotaz | Zadat poptávku | |
| 473 3 WHR75069 |
C00482782
481236068706 |
viko horaku | 1 210 Kč
€ 47.70 |
||
| 473 6 WHR75069 |
C00500774
481236068705 |
viko horaku | 724 Kč
€ 28.60 |
||
| 474 0 WHR75069 |
C00401172
481231039045 |
Set of nozzles G20 | Na dotaz | Zadat poptávku | |
| 474 0 WHR75069 |
C00401173
481231039046 |
Set of nozzles LPG | Na dotaz | Zadat poptávku | |
| 490 0 WHR75069 |
C00544922
481229068301 |
Cable | Na dotaz | Zadat poptávku | |
| 571 1 WHR75069 |
C00401476
481236058567 |
Gas cock 0.30 | Na dotaz | Zadat poptávku | |
| 571 2 WHR75069 |
C00401477
481236058568 |
Gas cock 0.33 | Na dotaz | Zadat poptávku | |
| 571 3 WHR75069 |
C00401478
481236058569 |
Gas cock 0.65 | Na dotaz | Zadat poptávku | |
| 591 0 WHR75069 |
C00301589
481225268075 |
Svíčka zapalovací | 514 Kč
€ 20.30 |
||
| 591 1 WHR75069 |
C00302542
481225268076 |
Svíčka zapalovací | 487 Kč
€ 19.20 |
||
| 591 3 WHR75069 |
C00484738
481236058438 |
svicka zapalovaci | 497 Kč
€ 19.60 |
||
| 591 9 WHR75069 |
C00301396
481249258055 |
Spring thermocouple | Na dotaz | Zadat poptávku | |
| 592 0 WHR75069 |
C00621796
481213838038 |
termopojistka | 871 Kč
€ 34.40 |
||
| 592 1 WHR75069 |
C00621795
481213838037 |
Thermo couple 450mm | Na dotaz | Zadat poptávku | |
| 592 3 WHR75069 |
C00490925
481213838035 |
Thermo couple TC 450mm | Na dotaz | Zadat poptávku | |
| 594 0 WHR75069 |
C00400873
481227138513 |
Microswitch assembly | Na dotaz | Zadat poptávku | |
| 595 0 WHR75069 |
C00484610
481214528031 |
Generator | Na dotaz | Zadat poptávku | |
| 703 0 WHR75069 |
C00401603
481236068934 |
Pipe ,SR right | Na dotaz | Zadat poptávku | |
| 703 1 WHR75069 |
C00401604
481236068935 |
Pipe ,AUX right | Na dotaz | Zadat poptávku | |
| 703 2 WHR75069 |
C00401605
481236068936 |
Pipe ,SR left | Na dotaz | Zadat poptávku | |
| 703 3 WHR75069 |
C00401606
481236068937 |
Pipe ,AUX left | Na dotaz | Zadat poptávku | |
| 703 5 WHR75069 |
C00401608
481236068939 |
Pipe ,gas distributor | Na dotaz | Zadat poptávku | |
| 703 6 WHR75069 |
C00401607
481236068938 |
Pipe ,TRC centre | Na dotaz | Zadat poptávku | |
| 794 0 WHR75069 |
C00301563
481253258032 |
Gasket ,gas | Na dotaz | Zadat poptávku | |
| 794 1 WHR75069 |
C00545046
481246688803 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 2 WHR75069 |
C00545047
481246688804 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 3 WHR75069 |
C00545045
481246688802 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 1 WHR75069 |
C00404580
481246049837 |
Plate ,taps | Na dotaz | Zadat poptávku | |
| 904 0 WHR75069 |
C00301537
481246378014 |
Support | Na dotaz | Zadat poptávku | |
| 910 0 WHR75069 |
C00545059
481250518411 |
Screw | Na dotaz | Zadat poptávku | |
| 914 0 WHR75069 |
C00301406
481250518417 |
Nut for thermocouple | Na dotaz | Zadat poptávku | |
