Komerční kód: | AKM 260/WH |
Kód 12NC: | 857126015500 |
I.C. kód: | Q0918240005 |
Značka: | WHIRLPOOL |
Typ produktu: | Vestavné trouby a varné desky |
Další podobné modely: | 857126015500, Q0918240000, 857126015502, Q0918240002, 857126015504, Q0918240004, 857126015505, 857126038512, Q0918280002, 857126038514, Q0918280004, 857126038515, Q0918280005, 857126038516, Q0918280006, 857126038517, Q0918280007, 44935310000, 857126010512, 857126010515, 857126010516, 857126044512, 857126044514, 857126042504, 857126044516, 857126010514, 857126010010, 857126010011, 857126010013, 857126010012, 857126015000, 857126015001, 857126035010, 857126035011, 857126035012, 857126035013 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

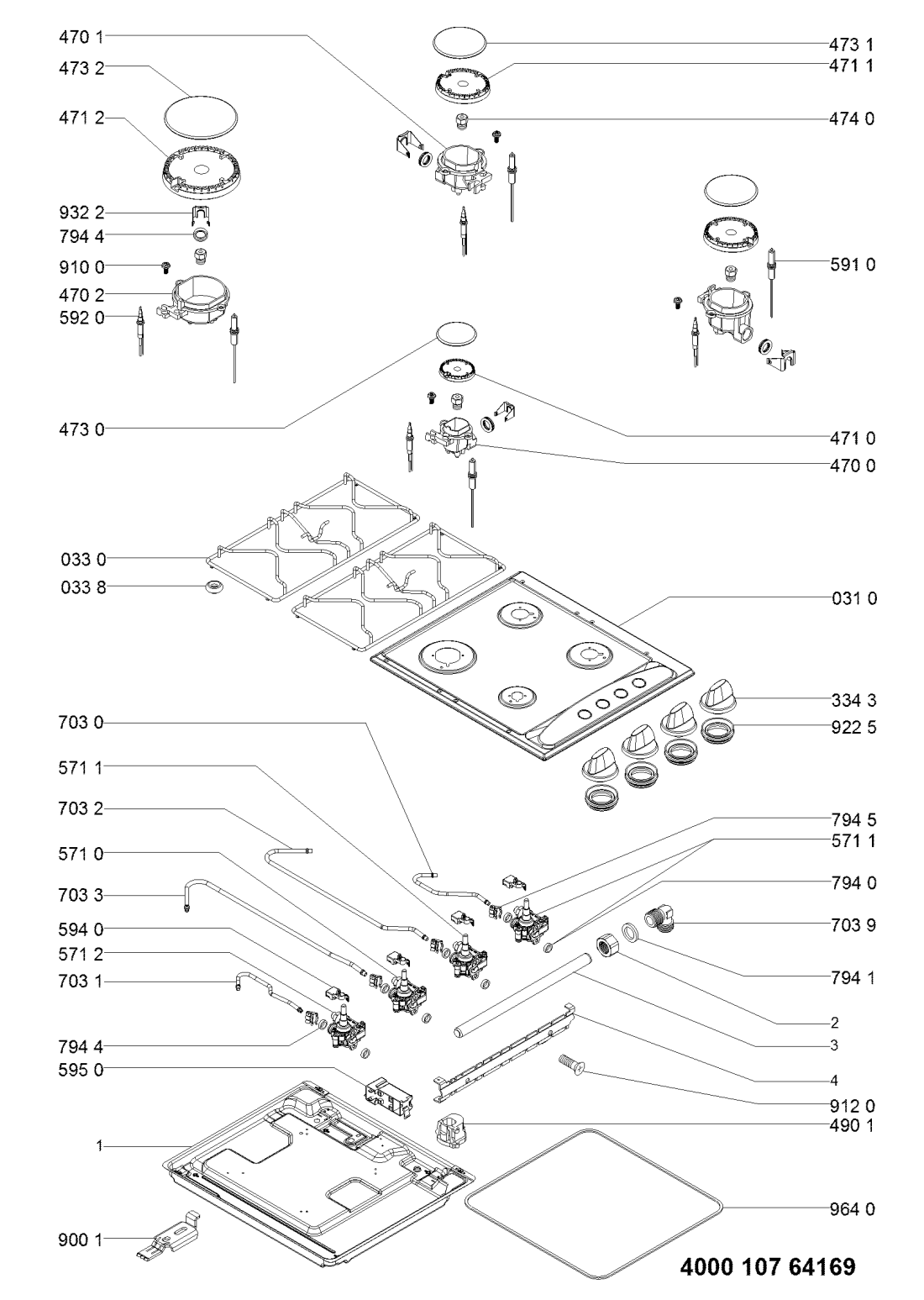

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
0310 WHR01612 |
C00317674
481060118691 |
Hob GAS WH | Na dotaz | Zadat poptávku | |
0330 WHR01612 |
C00312331
481931039799 |
Mřížka hořáku (levá/pravá) plynové varné desky Whirlpool | 1 997 Kč
€ 78.80 |
||
0338 WHR01612 |
C00314361
484000000903 |
Noha mřížky sada 4ks | Na dotaz | Zadat poptávku | |
3343 WHR01612 |
C00326548
481060118151 |
Knob EW | Na dotaz | Zadat poptávku | |
4700 WHR01612 |
C00325703
481010619731 |
Injector holder A QF | Na dotaz | Zadat poptávku | |
4701 WHR01612 |
C00325704
481010619741 |
Injector holder SR QF | Na dotaz | Zadat poptávku | |
4702 WHR01612 |
C00316445
481010646791 |
Injector holder R QF | Na dotaz | Zadat poptávku | |
4710 WHR01612 |
C00325714
481010621283 |
Těleso hořáku | 591 Kč
€ 23.30 |
||
4711 WHR01612 |
C00317889
481010621284 |
Rozdělovač hořáku-náhrada C00317889 | 305 Kč
€ 12.00 |
||
4712 WHR01612 |
C00313900
481010621285 |
Těleso hořáku - velké plynové varné desky Whirlpool, Indesit | 248 Kč
€ 9.80 |
||
4730 WHR01612 |
C00326324
481010714671 |
víko hořáku malé | 216 Kč
€ 8.50 |
||
4731 WHR01612 |
C00326326
481010714673 |
Burner cap SR black glossy HE | 288 Kč
€ 11.40 |
||
4732 WHR01612 |
C00326328
481010714675 |
Burner cap R black glossy HE | 399 Kč
€ 15.80 |
||
4740 WHR01612 |
C00326391
481010745078 |
Set of nozzles G20-20 mbar | Na dotaz | Zadat poptávku | |
4901 WHR01612 |
C00322477
480121104531 |
Clamp cable | Na dotaz | Zadat poptávku | |
5710 WHR01612 |
C00312348
481010647653 |
ventil plynovy | 1 077 Kč
€ 42.50 |
||
5711 WHR01612 |
C00312191
481010647652 |
ventil | Na dotaz | Zadat poptávku | |
5712 WHR01612 |
C00312473
481010647651 |
ventil | Na dotaz | Zadat poptávku | |
5910 WHR01612 |
C00313511
481010611915 |
Svíčka zapalovací | Na dotaz | Zadat poptávku | |
5920 WHR01612 |
C00326307
481010707501 |
Thermocouple QUICK FIX 460mm | Na dotaz | Zadat poptávku | |
5940 WHR01612 |
C00325830
481010645252 |
Electronic ignition PAULA 4G | Na dotaz | Zadat poptávku | |
5950 WHR01612 |
C00313108
480121104525 |
zapalovac plynu ele. | Na dotaz | Zadat poptávku | |
7030 WHR01612 |
C00324203
481010409829 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
7031 WHR01612 |
C00324201
481010409826 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
7032 WHR01612 |
C00324202
481010409827 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
7033 WHR01612 |
C00324200
481010409823 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
7039 WHR01612 |
C00317975
481931039599 |
Koleno | 361 Kč
€ 14.30 |
||
7940 WHR01612 |
C00313330
480121103673 |
Těsnění | 222 Kč
€ 8.80 |
||
7941 WHR01612 |
C00313293
480121103128 |
GASKET | Na dotaz | Zadat poptávku | |
7944 WHR01612 |
C00333307
482000091781 |
Seal pressure chamber ring | Na dotaz | Zadat poptávku | |
7945 WHR01612 |
C00324905
481010595118 |
Clip tube/valve | Na dotaz | Zadat poptávku | |
9001 WHR01612 |
C00314607
481240118823 |
Držák desky 1ks | Na dotaz | Zadat poptávku | |
9100 WHR01612 |
C00325966
481010663434 |
Screw M4 0.7x8 | Na dotaz | Zadat poptávku | |
9120 WHR01612 |
C00322394
480121103816 |
Screw | Na dotaz | Zadat poptávku | |
9225 WHR01612 |
C00312206
481246668814 |
Podložka knoflíku | Na dotaz | Zadat poptávku | |
9322 WHR01612 |
C00322347
480121103657 |
Clip injector holder | Na dotaz | Zadat poptávku | |
9640 WHR01612 |
C00330986
481246688351 |
Těsnění varné desky, černé - silné | 780 Kč
€ 30.80 |
||
999 WHR01612 |
C00362254 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
999 WHR01612 |
C00362255 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
999 WHR01612 |
C00362256 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
999 WHR01612 |
C00362257 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku |
