WHIRLPOOL AKM 481 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKM 481 IX |
| Kód 12NC: | 857148138000 |
| I.C. kód: | 857148138005 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857148138001, 857148138002, 857148138004, 857148138000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

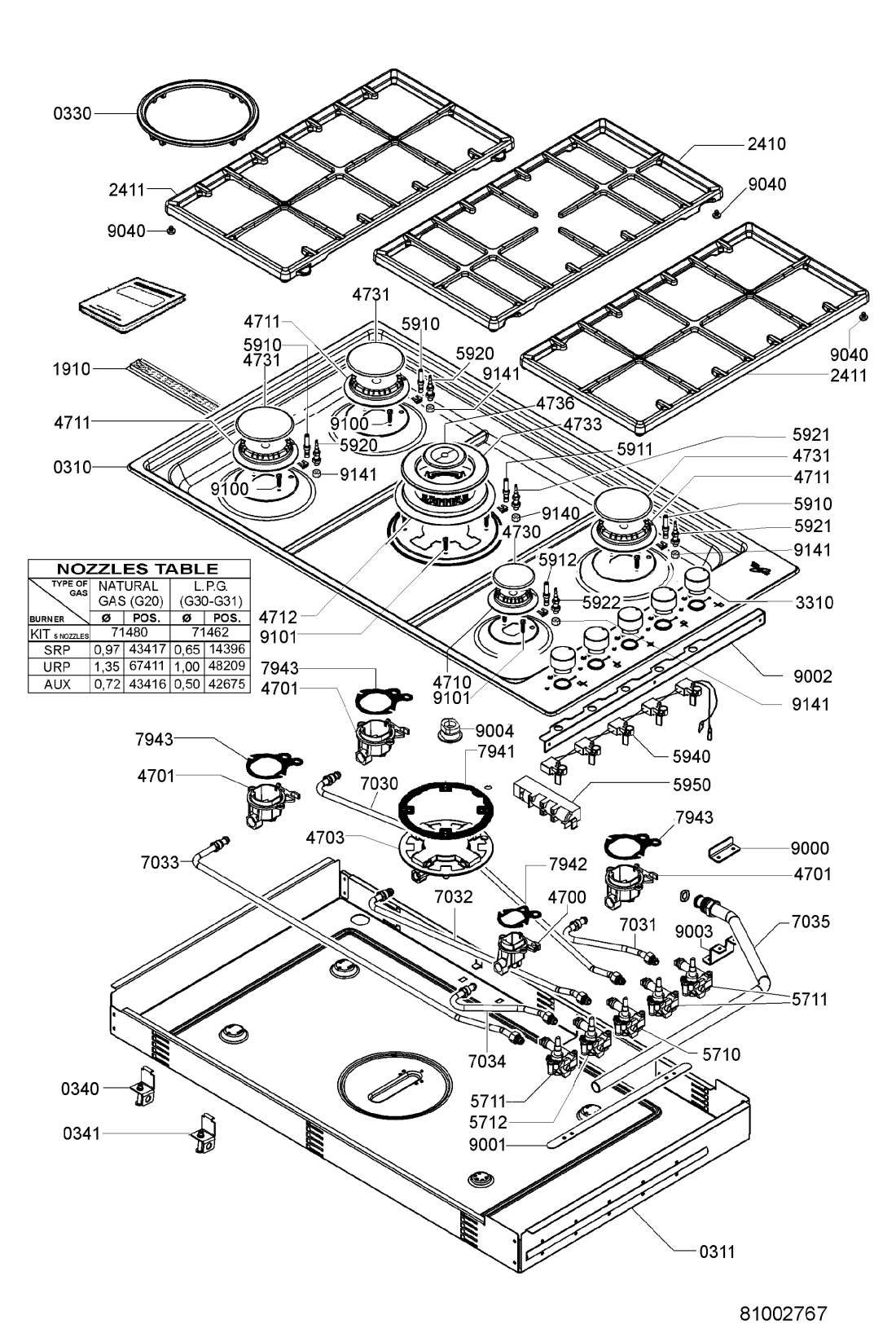

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR75066 |
C00404149
481245350354 |
Hob ,top | Na dotaz | Zadat poptávku | |
| 031 1 WHR75066 |
C00403310
481244039846 |
Casing ,burners | Na dotaz | Zadat poptávku | |
| 033 0 WHR75066 |
C00404389
481245828038 |
Support ,wok | Na dotaz | Zadat poptávku | |
| 034 0 WHR75066 |
C00402065
481240449833 |
Bracket ,frame | Na dotaz | Zadat poptávku | |
| 034 1 WHR75066 |
C00402066
481240449834 |
Bracket ,frame | Na dotaz | Zadat poptávku | |
| 191 0 WHR75066 |
C00545048
481246688806 |
Gasket kit | Na dotaz | Zadat poptávku | |
| 241 0 WHR75066 |
C00487689
481245858402 |
Grid | Na dotaz | Zadat poptávku | |
| 241 1 WHR75066 |
C00487690
481245858403 |
GRID | Na dotaz | Zadat poptávku | |
| 331 0 WHR75066 |
C00402309
481241129062 |
knoflik | 1 234 Kč
€ 48.70 |
||
| 470 0 WHR75066 |
C00301402
481236068701 |
SMALL BURNER | Na dotaz | Zadat poptávku | |
| 470 1 WHR75066 |
C00301403
481236068702 |
SEMI-RAPID BURNER | Na dotaz | Zadat poptávku | |
| 470 3 WHR75066 |
C00401609
481236068942 |
Burner ,cup D.1,35 | Na dotaz | Zadat poptávku | |
| 471 0 WHR75066 |
C00301506
481236068703 |
Burner | Na dotaz | Zadat poptávku | |
| 471 1 WHR75066 |
C00301507
481236068704 |
Burner | Na dotaz | Zadat poptávku | |
| 471 2 WHR75066 |
C00401610
481236068943 |
Burner ,spreader TRC | Na dotaz | Zadat poptávku | |
| 473 0 WHR75066 |
C00301514
481236068708 |
Burner cap | Na dotaz | Zadat poptávku | |
| 473 1 WHR75066 |
C00301513
481236068707 |
Burner cap | Na dotaz | Zadat poptávku | |
| 473 3 WHR75066 |
C00482782
481236068706 |
viko horaku | 1 210 Kč
€ 47.70 |
||
| 473 6 WHR75066 |
C00401611
481236068944 |
Burner cap ,inn triplecrown | Na dotaz | Zadat poptávku | |
| 474 0 WHR75066 |
C00401215
481231039195 |
Set of nozzles G30-G31 | Na dotaz | Zadat poptávku | |
| 474 0 WHR75066 |
C00401216
481231039196 |
Set of nozzles G20 | Na dotaz | Zadat poptávku | |
| 571 0 WHR75066 |
C00401488
481236058594 |
Gas cock ,D.0,63 | Na dotaz | Zadat poptávku | |
| 571 1 WHR75066 |
C00401487
481236058593 |
Gas cock ,D.0,32 | Na dotaz | Zadat poptávku | |
| 571 2 WHR75066 |
C00401486
481236058592 |
Gas cock ,D.0,30 | Na dotaz | Zadat poptávku | |
| 591 0 WHR75066 |
C00301589
481225268075 |
Svíčka zapalovací | 514 Kč
€ 20.30 |
||
| 591 1 WHR75066 |
C00401489
481236058595 |
Spark plug ,TRC mm 600 | Na dotaz | Zadat poptávku | |
| 591 2 WHR75066 |
C00302542
481225268076 |
Svíčka zapalovací | 487 Kč
€ 19.20 |
||
| 592 0 WHR75066 |
C00399877
481213838045 |
termopojistka | 918 Kč
€ 36.20 |
||
| 592 1 WHR75066 |
C00301567
481213838052 |
TERMOČLÁNEK TRC MM.750 | Na dotaz | Zadat poptávku | |
| 592 2 WHR75066 |
C00621796
481213838038 |
termopojistka | 871 Kč
€ 34.40 |
||
| 594 0 WHR75066 |
C00400912
481227328285 |
mikrospinac | 1 431 Kč
€ 56.40 |
||
| 595 0 WHR75066 |
C00484610
481214528031 |
Generator | Na dotaz | Zadat poptávku | |
| 703 0 WHR75066 |
C00405702
481253049061 |
Pipe SR left rear | Na dotaz | Zadat poptávku | |
| 703 1 WHR75066 |
C00405701
481253049059 |
Pipe SR right rear | Na dotaz | Zadat poptávku | |
| 703 2 WHR75066 |
C00405703
481253049062 |
Pipe TC | Na dotaz | Zadat poptávku | |
| 703 3 WHR75066 |
C00405700
481253049058 |
Pipe SR left front | Na dotaz | Zadat poptávku | |
| 703 4 WHR75066 |
C00405699
481253049057 |
Pipe AUX. | Na dotaz | Zadat poptávku | |
| 703 5 WHR75066 |
C00545071
481253048844 |
Pipe | Na dotaz | Zadat poptávku | |
| 794 1 WHR75066 |
C00405142
481246688998 |
Gasket ,ultrarapid cup | Na dotaz | Zadat poptávku | |
| 794 2 WHR75066 |
C00545046
481246688803 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 3 WHR75066 |
C00545047
481246688804 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 0 WHR75066 |
C00402116
481240478783 |
Bracket pipe fixing plate | Na dotaz | Zadat poptávku | |
| 900 1 WHR75066 |
C00404581
481246049839 |
Plate ,for taps | Na dotaz | Zadat poptávku | |
| 900 2 WHR75066 |
C00402117
481240478784 |
Bracket for taps | Na dotaz | Zadat poptávku | |
| 900 3 WHR75066 |
C00402115
481240478782 |
Bracket pipe support plate | Na dotaz | Zadat poptávku | |
| 900 4 WHR75066 |
C00399924
481219808018 |
Connector | Na dotaz | Zadat poptávku | |
| 904 0 WHR75066 |
C00301537
481246378014 |
Support | Na dotaz | Zadat poptávku | |
| 910 0 WHR75066 |
C00545059
481250518411 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR75066 |
C00405434
481250218789 |
Screw | Na dotaz | Zadat poptávku | |
| 914 0 WHR75066 |
C00301559
481250518442 |
Nut | Na dotaz | Zadat poptávku | |
| 914 1 WHR75066 |
C00301406
481250518417 |
Nut for thermocouple | Na dotaz | Zadat poptávku | |
