Komerční kód: | AKP 801 IX |
Kód 12NC: | 857780115000 |
Značka: | WHIRLPOOL |
Typ produktu: | Vestavné trouby a varné desky |
Další podobné modely: | Q0910730000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
022 0 WHR05648 |
C00330807
481246418151 |
Panel side right | Na dotaz | Zadat poptávku | |
022 1 WHR05648 |
C00330808
481246418152 |
Panel side left | Na dotaz | Zadat poptávku | |
022 2 WHR05648 |
C00330810
481246418154 |
Frame post right | Na dotaz | Zadat poptávku | |
022 3 WHR05648 |
C00330809
481246418153 |
Frame post left | Na dotaz | Zadat poptávku | |
025 0 WHR05648 |
C00332759
481281518708 |
Trim side | Na dotaz | Zadat poptávku | |
025 2 WHR05648 |
C00332760
481281518709 |
Plate support | Na dotaz | Zadat poptávku | |
040 0 WHR05648 |
C00312539
481241719298 |
Hinge oven door lower 3/4 | Na dotaz | Zadat poptávku | |
040 1 WHR05648 |
C00313466
481241719299 |
Hinge oven door upper 1/2 3 V | Na dotaz | Zadat poptávku | |
043 2 WHR05648 |
C00329728
481241719297 |
Hinge support oven door | Na dotaz | Zadat poptávku | |
100 0 WHR05648 |
C00337951
480121104495 |
Oven door 1/2 | Na dotaz | Zadat poptávku | |
100 1 WHR05648 |
C00337950
480121104496 |
Oven door 3/4 | Na dotaz | Zadat poptávku | |
110 0 WHR05648 |
C00339041
480121104497 |
Door handle | Na dotaz | Zadat poptávku | |
110 1 WHR05648 |
C00314956
480121100189 |
Support handle | Na dotaz | Zadat poptávku | |
121 0 WHR05648 |
C00312509
481246418156 |
Oven door inner glass frame lower | Na dotaz | Zadat poptávku | |
121 1 WHR05648 |
C00316452 | Oven door inner glass frame upper | Na dotaz | Zadat poptávku | |
142 0 WHR05648 |
C00317620
481245058984 |
Oven glass medium | Na dotaz | Zadat poptávku | |
142 4 WHR05648 |
C00316632
481240418465 |
Bracket inner door glass | Na dotaz | Zadat poptávku | |
143 1 WHR05648 |
C00319055
481240418464 |
Door frame inner | Na dotaz | Zadat poptávku | |
143 2 WHR05648 |
C00317301
481245058985 |
Oven glass medium | Na dotaz | Zadat poptávku | |
143 3 WHR05648 |
C00315379
481240418463 |
Door frame inner | Na dotaz | Zadat poptávku | |
191 0 WHR05648 |
C00311502
481204658011 |
Gasket | Na dotaz | Zadat poptávku | |
191 1 WHR05648 |
C00311672
481204658009 |
Gasket | Na dotaz | Zadat poptávku | |
201 0 WHR05648 |
C00327928
481242378009 |
Fan oven diffuser | Na dotaz | Zadat poptávku | |
245 0 WHR05648 |
C00330066
481245819268 |
Oven shelf | Na dotaz | Zadat poptávku | |
245 1 WHR05648 |
C00330064
481245819266 |
Grill grid | Na dotaz | Zadat poptávku | |
247 0 WHR05648 |
C00327791
481241838126 |
Baking tray | Na dotaz | Zadat poptávku | |
247 1 WHR05648 |
C00327929
481242378011 |
Handle baking tray | Na dotaz | Zadat poptávku | |
256 5 WHR05648 |
C00328915
481240118697 |
Bracket | Na dotaz | Zadat poptávku | |
261 0 WHR05648 |
C00330067
481245819269 |
Inset grid upper cavity | Na dotaz | Zadat poptávku | |
261 2 WHR05648 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
261 8 WHR05648 |
C00330065
481245819267 |
Inset grid lower cavity | Na dotaz | Zadat poptávku | |
301 0 WHR05648 |
C00342634
480121104498 |

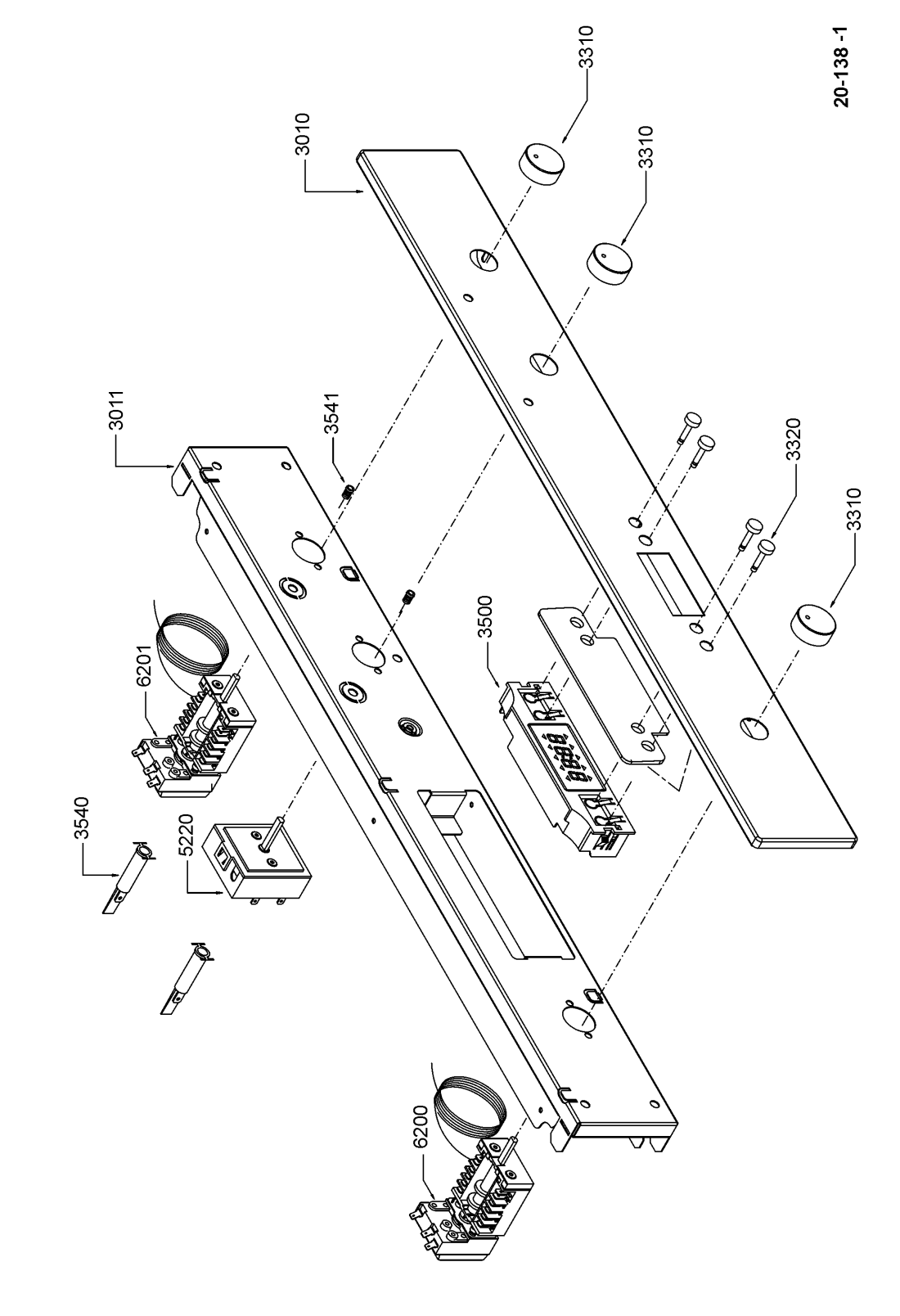

Control panel | Na dotaz | Zadat poptávku | |
301 1 WHR05648 |
C00335850
480121100184 |
Support control panel | Na dotaz | Zadat poptávku | |
331 0 WHR05648 |
C00322471
480121104499 |
Knob | Na dotaz | Zadat poptávku | |
332 0 WHR05648 |
C00335776
480121104501 |
Switch | Na dotaz | Zadat poptávku | |
350 0 WHR05648 |
C00315205
480121100188 |
Display board | Na dotaz | Zadat poptávku | |
354 0 WHR05648 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
354 1 WHR05648 |
C00330616
481246228993 |
Cover light transparent | Na dotaz | Zadat poptávku | |
440 0 WHR05648 |
C00311342
481236118457 |
Motor fan complete | Na dotaz | Zadat poptávku | |
441 0 WHR05648 |
C00315048
481202858348 |
96ntilator tangential motor | Na dotaz | Zadat poptávku | |
441 1 WHR05648 |
C00326715
481202858349 |
Cover protect. cooling fan | Na dotaz | Zadat poptávku | |
451 0 WHR05648 |
C00313041
481225998583 |
Heating element circular 2000 W | Na dotaz | Zadat poptávku | |
452 0 WHR05648 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | 2 399 Kč
€ 94.70 |
||
452 1 WHR05648 |
C00329523
481241378786 |
Cover grill | Na dotaz | Zadat poptávku | |
456 0 WHR05648 |
C00311969
481225948189 |
Heating element lower | Na dotaz | Zadat poptávku | |
491 0 WHR05648 |
C00314644
481232128427 |
Terminal block + cable | Na dotaz | Zadat poptávku | |
491 1 WHR05648 |
C00327596
481229068306 |
Bracket terminal block | Na dotaz | Zadat poptávku | |
500 0 WHR05648 |
C00315199
480121100187 |
User board | Na dotaz | Zadat poptávku | |
522 0 WHR05648 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
554 1 WHR05648 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
562 0 WHR05648 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
562 1 WHR05648 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
562 2 WHR05648 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
562 3 WHR05648 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | 898 Kč
€ 35.50 |
||
620 0 WHR05648 |
C00316305 | Switch oven + thermostat lower | Na dotaz | Zadat poptávku | |
620 1 WHR05648 |
C00314735
481228208648 |
Switch,oven + thermostat upper | Na dotaz | Zadat poptávku | |
652 0 WHR05648 |
C00312081
481213428087 |
Lamp,oven | Na dotaz | Zadat poptávku | |
743 0 WHR05648 |
C00316208
481244039495 |
Conveyor air upper | Na dotaz | Zadat poptávku | |
743 1 WHR05648 |
C00328203
481244039496 |
Conveyor air lower | Na dotaz | Zadat poptávku | |
900 0 WHR05648 |
C00330680
481246248433 |
Chimney part condenser | Na dotaz | Zadat poptávku | |
963 0 WHR05648 |
C00327597
481229068307 |
Bracket | Na dotaz | Zadat poptávku | |
999 WHR05648 |
C00371968 | TECHNICAL DATA WHP | Na dotaz | Zadat poptávku | |
999 WHR05648 |
C00371970 | WD LEGEND WHP | Na dotaz | Zadat poptávku |
