WHIRLPOOL AKP 904 WH/02
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKP 904 WH/02 |
| Kód 12NC: | 857790429060 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

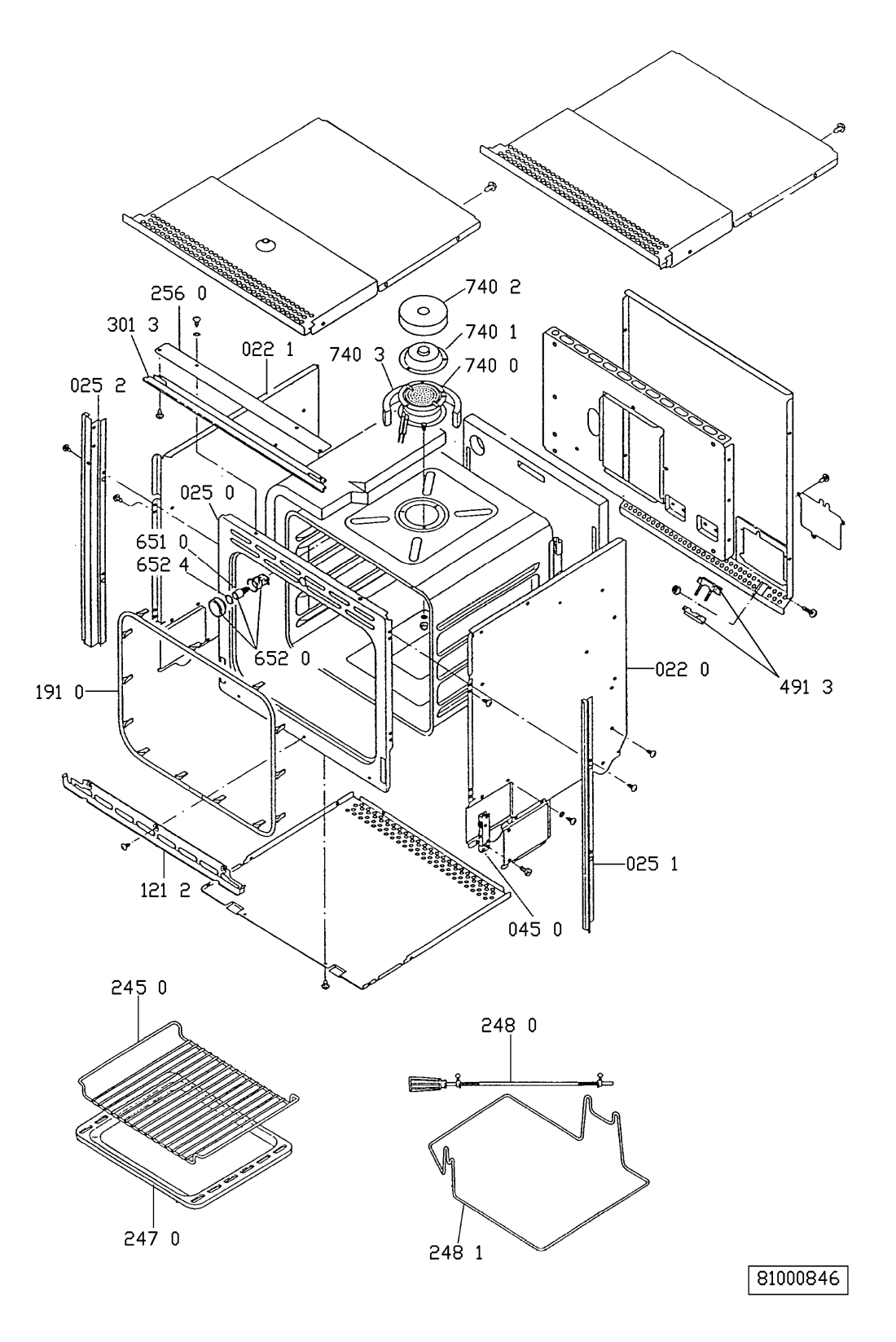

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR103680 |
C00599974
481946689429 |
Side panel right | Na dotaz | Zadat poptávku | |
| 022 1 WHR103680 |
C00599973
481946689428 |
Side panel left. | Na dotaz | Zadat poptávku | |
| 025 0 WHR103680 |
C00599943
481945928349 |
Frame front. | Na dotaz | Zadat poptávku | |
| 025 1 WHR103680 |
C00582952
481946089142 |
Trim side right. | Na dotaz | Zadat poptávku | |
| 025 2 WHR103680 |
C00582951
481946089141 |
Trim side left. | Na dotaz | Zadat poptávku | |
| 041 0 WHR103680 |
C00582884
481941719329 |
Hinge. | Na dotaz | Zadat poptávku | |
| 045 0 WHR103680 |
C00499100
481941719328 |
GUIDE | Na dotaz | Zadat poptávku | |
| 110 0 WHR103680 |
C00599981
481949859519 |
Handle. | Na dotaz | Zadat poptávku | |
| 110 4 WHR103680 |
C00599965
481946689109 |
Support. | Na dotaz | Zadat poptávku | |
| 121 0 WHR103680 |
C00596695
481944059716 |
Door inner Pyrolitic. | Na dotaz | Zadat poptávku | |
| 121 2 WHR103680 |
C00582954
481946089144 |
PROFILE. | Na dotaz | Zadat poptávku | |
| 121 4 WHR103680 |
C00492702
481953588098 |
Pin | Na dotaz | Zadat poptávku | |
| 121 5 WHR103680 |
C00596788
481949268674 |
Spring. | Na dotaz | Zadat poptávku | |
| 121 7 WHR103680 |
C00486600
481944278354 |
Protector | Na dotaz | Zadat poptávku | |
| 121 8 WHR103680 |
C00599991
481953268835 |
Spacer. | Na dotaz | Zadat poptávku | |
| 130 0 WHR103680 |
C00492339
481941758126 |
Block | Na dotaz | Zadat poptávku | |
| 141 0 WHR103680 |
C00636210
481945058044 |
Oven glass. | Na dotaz | Zadat poptávku | |
| 142 0 WHR103680 |
C00338934
481945069623 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 142 2 WHR103680 |
C00195519
481940118801 |
SOFTENING DETERGENT | Na dotaz | Zadat poptávku | |
| 142 3 WHR103680 |
C00499435
481946669963 |
GASKET | Na dotaz | Zadat poptávku | |
| 191 0 WHR103680 |
C00499485
481946818193 |
GASKET | Na dotaz | Zadat poptávku | |
| 201 0 WHR103680 |
C00582899
481944059993 |
Panel rear. | Na dotaz | Zadat poptávku | |
| 245 0 WHR103680 |
C00499273
481945819941 |
GRID | Na dotaz | Zadat poptávku | |
| 247 0 WHR103680 |
C00582894
481941838335 |
PEKAC | 2 048 Kč
€ 80.80 |
||
| 248 0 WHR103680 |
C00336784
481953588101 |
ROTARY SPIT | Na dotaz | Zadat poptávku | |
| 248 1 WHR103680 |
C00335926
481940478648 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 256 0 WHR103680 |
C00582948
481946078376 |
TRIM. | Na dotaz | Zadat poptávku | |
| 301 3 WHR103680 |
C00582953
481946089143 |
PROFILE. | Na dotaz | Zadat poptávku | |
| 301 4 WHR103680 |
C00556245
481948038002 |
Display chart.. | Na dotaz | Zadat poptávku | |
| 320 0 WHR103680 |
C00599921
481945358438 |
Control panel. | Na dotaz | Zadat poptávku | |
| 320 4 WHR103680 |
C00599969
481946689347 |
Cover right. | Na dotaz | Zadat poptávku | |
| 320 5 WHR103680 |
C00599968
481946689346 |
Cover left. | Na dotaz | Zadat poptávku | |
| 332 0 WHR103680 |
C00557213
481941028854 |
Button,push.. | Na dotaz | Zadat poptávku | |
| 334 0 WHR103680 |
C00556980
481941028853 |
Knob.. | Na dotaz | Zadat poptávku | |
| 341 0 WHR103680 |
C00599869
481941379101 |
Disc, knob. | Na dotaz | Zadat poptávku | |
| 341 1 WHR103680 |
C00599868
481941379099 |
Disc, knob. | Na dotaz | Zadat poptávku | |
| 344 9 WHR103680 |
C00599819
481940479214 |
Holder. | Na dotaz | Zadat poptávku | |
| 354 1 WHR103680 |
C00490301
481913448283 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 2 WHR103680 |
C00582784
481913448285 |
Pilot lamp. | Na dotaz | Zadat poptávku | |
| 401 0 WHR103680 |
C00341704
481936178195 |
MOTOR | Na dotaz | Zadat poptávku | |
| 421 1 WHR103680 |
C00596620
481912118256 |
Filter. | Na dotaz | Zadat poptávku | |
| 440 0 WHR103680 |
C00498964
481936118335 |
Fan oven | Na dotaz | Zadat poptávku | |
| 442 0 WHR103680 |
C00503193
481936118334 |
Ventilator,tangential - 9529.59300 | Na dotaz | Zadat poptávku | |
| 452 0 WHR103680 |
C00596629
481925928738 |
Heating element. | Na dotaz | Zadat poptávku | |
| 452 5 WHR103680 |
C00336917
481944238137 |
REFLECTOR | Na dotaz | Zadat poptávku | |
| 452 6 WHR103680 |
C00335927
481940478647 |
Support | Na dotaz | Zadat poptávku | |
| 452 7 WHR103680 |
C00336135
481949268772 |
SPRING | Na dotaz | Zadat poptávku | |
| 456 0 WHR103680 |
C00596630
481925928739 |
Heating element. | Na dotaz | Zadat poptávku | |
| 491 0 WHR103680 |
C00343468
481929068326 |
CONNECTIONBLOCK | Na dotaz | Zadat poptávku | |
| 491 3 WHR103680 |
C00498989
481940118696 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 503 0 WHR103680 |
C00755542
481928218746 |
Timer Pylino | Na dotaz | Zadat poptávku | |
| 554 0 WHR103680 |
C00596643
481927128825 |
Thermostat. | Na dotaz | Zadat poptávku | |
| 554 1 WHR103680 |
C00582813
481928238038 |
Thermostat to clean (500 C). | Na dotaz | Zadat poptávku | |
| 562 0 WHR103680 |
C00287684
481927128956 |
TERMOSTAT 70°C | Na dotaz | Zadat poptávku | |
| 562 1 WHR103680 |
C00498889
481928248252 |
SAFETY THERMOS. | Na dotaz | Zadat poptávku | |
| 620 0 WHR103680 |
C00582804
481927328367 |
spínač | 1 663 Kč
€ 65.60 |
||
| 620 0 WHR103680 |
C00582807
481927328459 |
Switch,oven Ego. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103680 |
C00341808
481913488191 |
LAMP15W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR103680 |
C00373418
481913488164 |
LAMP,OVEN | Na dotaz | Zadat poptávku | |
| 652 4 WHR103680 |
C00340601
481946818019 |
Gasket | Na dotaz | Zadat poptávku | |
| 653 0 WHR103680 |
C00599798
481913448499 |
Pilot lamp. | Na dotaz | Zadat poptávku | |
| 740 0 WHR103680 |
C00492726
481969048047 |
Catalitic sheet | Na dotaz | Zadat poptávku | |
| 740 1 WHR103680 |
C00499377
481946258191 |
COVER | Na dotaz | Zadat poptávku | |
| 740 2 WHR103680 |
C00599811
481932528034 |
Insulation. | Na dotaz | Zadat poptávku | |
| 740 3 WHR103680 |
C00498942
481932528027 |
INSULATION | Na dotaz | Zadat poptávku | |
