IGNIS AKS 338/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKS 338/IX |
| Kód 12NC: | 857933812500 |
| I.C. kód: | 857933812501 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 44935290000, 44935290100, 857933838500, 857933812500, 857933812510, 857933838501, 857933838502, 857933838503, 857933838504 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

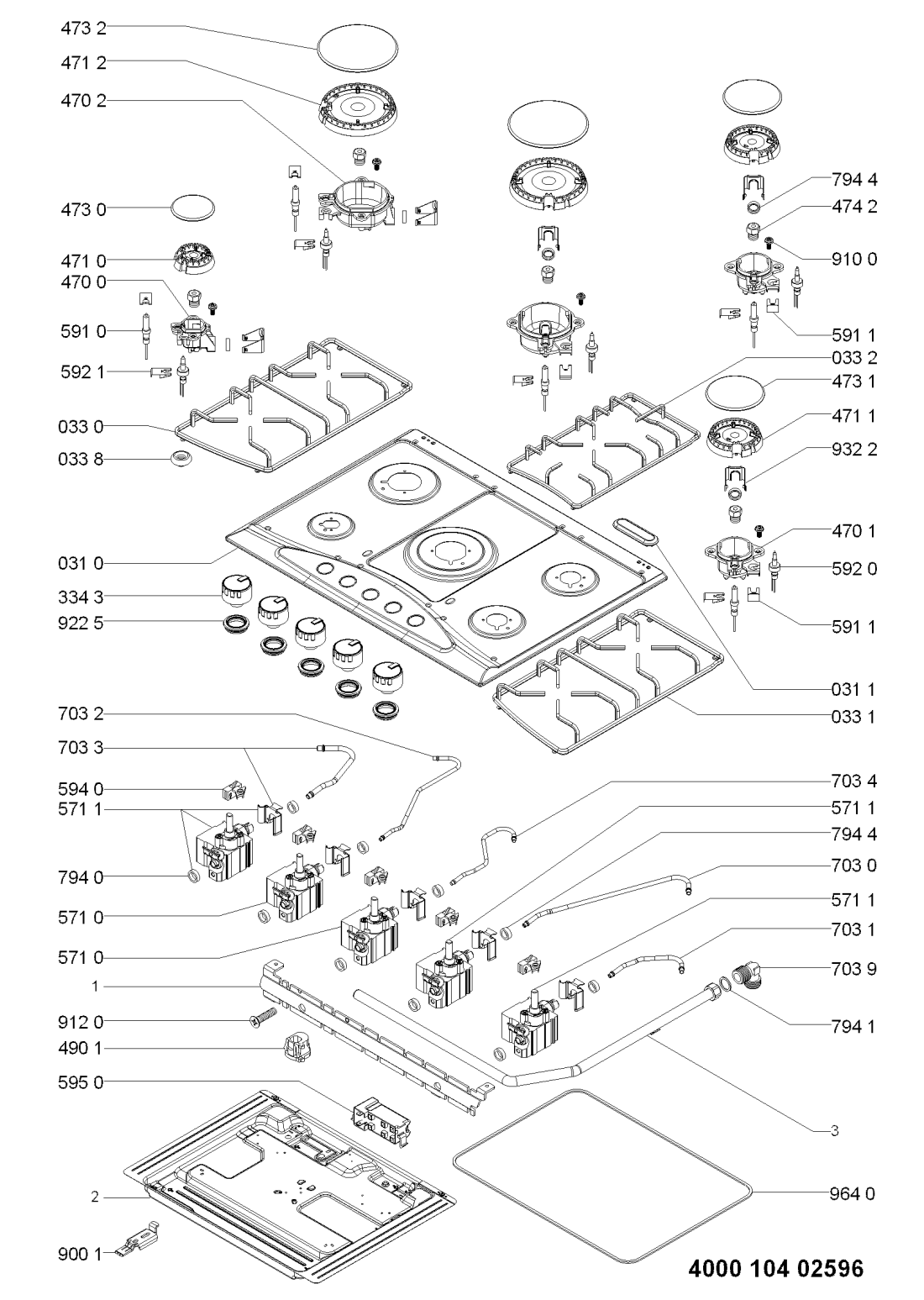

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR32824 |
C00333044
481945058308 |
Lid | Na dotaz | Zadat poptávku | |
| 0021 WHR32824 |
C00332873
481931039567 |
Support for lid | Na dotaz | Zadat poptávku | |
| 0310 WHR32824 |
C00436195
481010400198 |
Hob gas IX | Na dotaz | Zadat poptávku | |
| 0311 WHR32824 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 18.10 |
||
| 0330 WHR32824 |
C00330148
481245848368 |
Grille left | Na dotaz | Zadat poptávku | |
| 0331 WHR32824 |
C00330149
481245848369 |
Grille right | Na dotaz | Zadat poptávku | |
| 0332 WHR32824 |
C00330150
481245848371 |
Grille central | Na dotaz | Zadat poptávku | |
| 0337 WHR32824 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 59 Kč
€ 2.30 |
||
| 0338 WHR32824 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 0430 WHR32824 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR32824 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR32824 |
C00322484
480121104579 |
Bracket aluminium brite right | Na dotaz | Zadat poptávku | |
| 0433 WHR32824 |
C00322486
480121104582 |
Bracket aluminium brite left | Na dotaz | Zadat poptávku | |
| 0434 WHR32824 |
C00322479
480121104571 |
Washer | Na dotaz | Zadat poptávku | |
| 0435 WHR32824 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 3343 WHR32824 |
C00381829
481060116831 |
Knob IX | Na dotaz | Zadat poptávku | |
| 4700 WHR32824 |
C00381409
480121104488 |
injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR32824 |
C00381410
480121104489 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4702 WHR32824 |
C00381411
480121104491 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 4710 WHR32824 |
C00313402
480121103803 |
teleso horaku | Na dotaz | Zadat poptávku | |
| 4711 WHR32824 |
C00312844
480121103652 |
horak | 744 Kč
€ 29.40 |
||
| 4712 WHR32824 |
C00312908
480121103653 |
Hořák | 283 Kč
€ 11.20 |
||
| 4730 WHR32824 |
C00326570
481060295961 |
poklička hořáku | 241 Kč
€ 9.50 |
||
| 4731 WHR32824 |
C00326571
481060296021 |
poklicka horaku | 286 Kč
€ 11.30 |
||
| 4732 WHR32824 |
C00326572
481060296081 |
poklicka horaku | 295 Kč
€ 11.60 |
||
| 4742 WHR32824 |
C00436211
481010400280 |
Set of nozzles G25-25 mbar | Na dotaz | Zadat poptávku | |
| 4901 WHR32824 |
C00322477
480121104531 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 5710 WHR32824 |
C00381480
481236058524 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5711 WHR32824 |
C00381481
481236058525 |
Gas cock SR/A | Na dotaz | Zadat poptávku | |
| 5910 WHR32824 |
C00312382
480121104703 |
Spark plug | 346 Kč
€ 13.70 |
||
| 5911 WHR32824 |
C00326550
481060118372 |
Spring spark plug L-shape | Na dotaz | Zadat poptávku | |
| 5920 WHR32824 |
C00311826
480121103647 |
Thermocouple 520mm | Na dotaz | Zadat poptávku | |
| 5921 WHR32824 |
C00314321
480121103648 |
spona | Na dotaz | Zadat poptávku | |
| 5940 WHR32824 |
C00315697
481061522751 |
Electron.ignit. | Na dotaz | Zadat poptávku | |
| 5950 WHR32824 |
C00311495
480121104662 |
Transformátor zapalování | 1 700 Kč
€ 67.10 |
||
| 7030 WHR32824 |
C00326529
481060115982 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 7031 WHR32824 |
C00326527
481060115961 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 7032 WHR32824 |
C00326528
481060115971 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 7033 WHR32824 |
C00326526
481060115952 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 7034 WHR32824 |
C00381827
481060116311 |
Gas pipe CN | Na dotaz | Zadat poptávku | |
| 7039 WHR32824 |
C00333359
481981529775 |
Elbow pipe connection | Na dotaz | Zadat poptávku | |
| 7940 WHR32824 |
C00313985
480121103415 |
Těsnění | 195 Kč
€ 7.70 |
||
| 7941 WHR32824 |
C00313293
480121103128 |
GASKET | Na dotaz | Zadat poptávku | |
| 7944 WHR32824 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 9001 WHR32824 |
C00314607
481240118823 |
Držák desky 1ks | Na dotaz | Zadat poptávku | |
| 9100 WHR32824 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 9120 WHR32824 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 9225 WHR32824 |
C00312206
481246668814 |
Podložka knoflíku | Na dotaz | Zadat poptávku | |
| 9227 WHR32824 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 9322 WHR32824 |
C00322347
480121103657 |
Clip injector holder | Na dotaz | Zadat poptávku | |
| 9640 WHR32824 |
C00330986
481246688351 |
Těsnění varné desky, černé - silné | 780 Kč
€ 30.80 |
||
| 999 WHR32824 |
C00580635 | Gastable WHP | Na dotaz | Zadat poptávku | |
| 9990 WHR32824 |
C00335154
484000000088 |
Lid HOB AKM 548 MR 01 | Na dotaz | Zadat poptávku | |
