WHIRLPOOL AKT 621/IXL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKT 621/IXL |
| Kód 12NC: | 859462153000 |
| I.C. kód: | 859462153001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 859462138000, 859462110000, 859462110001, 859462138001, 859462138002, 859462144000, 859462144001, 859462153000 |
Potřebujete servis? Jsme tady pro Vás

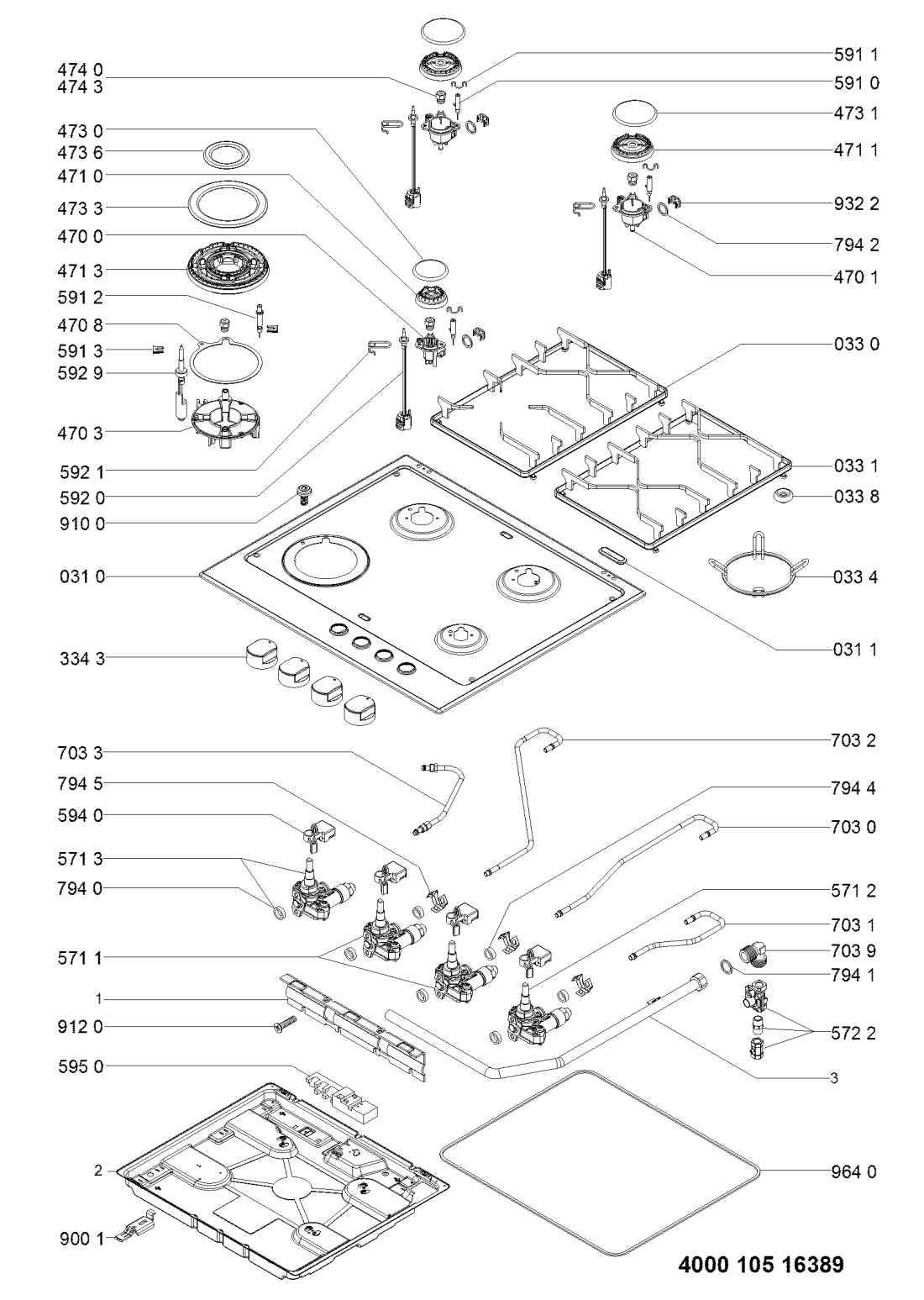

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR38201 |
C00328207
481244039556 |
Lid | Na dotaz | Zadat poptávku | |
| 0021 WHR38201 |
C00330380
481246068574 |
Profile lid | Na dotaz | Zadat poptávku | |
| 0310 WHR38201 |
C00322264
480121103301 |
Hob assembly | Na dotaz | Zadat poptávku | |
| 0311 WHR38201 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 18.10 |
||
| 0330 WHR38201 |
C00404432
481245858459 |
Grid for hob left | Na dotaz | Zadat poptávku | |
| 0331 WHR38201 |
C00404433
481245858461 |
Grid for hob right | Na dotaz | Zadat poptávku | |
| 0334 WHR38201 |
C00330141
481245838443 |
Grid Wok | Na dotaz | Zadat poptávku | |
| 0337 WHR38201 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 59 Kč
€ 2.30 |
||
| 0338 WHR38201 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 0430 WHR38201 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR38201 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR38201 |
C00329213
481240478745 |
Support hinge right | Na dotaz | Zadat poptávku | |
| 0433 WHR38201 |
C00329214
481240478746 |
Support hinge left | Na dotaz | Zadat poptávku | |
| 0434 WHR38201 |
C00327656
481231038994 |
Fastener lid assembly | Na dotaz | Zadat poptávku | |
| 0435 WHR38201 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 3343 WHR38201 |
C00313974
480121104812 |
Knoflík stříbrný | 710 Kč
€ 28.00 |
||
| 4700 WHR38201 |
C00401587
481236068862 |
Injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR38201 |
C00401584
481236068847 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4703 WHR38201 |
C00401586
481236068849 |
Injector holder 4C | Na dotaz | Zadat poptávku | |
| 4708 WHR38201 |
C00316031
481246688837 |
tesneni | 291 Kč
€ 11.50 |
||
| 4710 WHR38201 |
C00316269
481236078135 |
teleso horaku male | Na dotaz | Zadat poptávku | |
| 4711 WHR38201 |
C00313807
481236078136 |
Těleso hořáku plynové varné desky Whirlpool - střední | 345 Kč
€ 13.60 |
||
| 4713 WHR38201 |
C00312490
481236078138 |
horak | 1 914 Kč
€ 75.60 |
||
| 4730 WHR38201 |
C00328685
481236068742 |
viko horaku | 737 Kč
€ 29.10 |
||
| 4731 WHR38201 |
C00328684
481236068741 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4733 WHR38201 |
C00314603
481236078166 |
viko horaku | 980 Kč
€ 38.70 |
||
| 4736 WHR38201 |
C00313926
481236078165 |
hořák | 615 Kč
€ 24.30 |
||
| 4740 WHR38201 |
C00457097
481231039109 |
Set of nozzles G20-10 mbar | Na dotaz | Zadat poptávku | |
| 4743 WHR38201 |
C00457100
481231039119 |
Set of nozzles G31-27.5 mbar | Na dotaz | Zadat poptávku | |
| 5711 WHR38201 |
C00448411
481060114611 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 5712 WHR38201 |
C00448410
481060114601 |
Gas cock A | Na dotaz | Zadat poptávku | |
| 5713 WHR38201 |
C00448413
481060114631 |
Gas cock MW/3C/4C G20 | Na dotaz | Zadat poptávku | |
| 5722 WHR38201 |
C00387646
481222318453 |
Pressure regulator assembly | Na dotaz | Zadat poptávku | |
| 5910 WHR38201 |
C00314182
481225268078 |
svicka zapalovaci | 306 Kč
€ 12.10 |
||
| 5911 WHR38201 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5912 WHR38201 |
C00312417
481225268079 |
svicka zapalovaci | 610 Kč
€ 24.10 |
||
| 5913 WHR38201 |
C00345757
481249268206 |
pružina | 661 Kč
€ 26.10 |
||
| 5920 WHR38201 |
C00312912
481010566193 |
Termočlánek | 1 229 Kč
€ 48.50 |
||
| 5921 WHR38201 |
C00318235
481249268205 |
pružina | 324 Kč
€ 12.80 |
||
| 5929 WHR38201 |
C00312078
481213838042 |
Termočlánek plynové varné desky Whirlpool, Bauknecht | 830 Kč
€ 32.80 |
||
| 5940 WHR38201 |
C00312290
481010444280 |
Mikrospínač zapalování | 1 468 Kč
€ 58.00 |
||
| 5950 WHR38201 |
C00318454
481213818016 |
Ignition generator | Na dotaz | Zadat poptávku | |
| 7030 WHR38201 |
C00324739
481010511238 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 7031 WHR38201 |
C00324738
481010511230 |
Gas pipe AUX | Na dotaz | Zadat poptávku | |
| 7032 WHR38201 |
C00324740
481010511239 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 7033 WHR38201 |
C00324742
481010511643 |
Gas pipe 4C | Na dotaz | Zadat poptávku | |
| 7039 WHR38201 |
C00317975
481931039599 |
Koleno | 361 Kč
€ 14.30 |
||
| 7940 WHR38201 |
C00313330
480121103673 |
Těsnění | 222 Kč
€ 8.80 |
||
| 7941 WHR38201 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 7942 WHR38201 |
C00332761
481281518763 |
O-Ring | Na dotaz | Zadat poptávku | |
| 7944 WHR38201 |
C00513663
481953058098 |
Těsnění kohoutu | 138 Kč
€ 5.40 |
||
| 7945 WHR38201 |
C00326569
481060295871 |
Spring fastener | Na dotaz | Zadat poptávku | |
| 9001 WHR38201 |
C00314843
481240478776 |
Držáky +šrouby | 343 Kč
€ 13.50 |
||
| 9100 WHR38201 |
C00332083
481250218531 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
| 9120 WHR38201 |
C00321181
480112100069 |
Screw 8-18x5/16 | Na dotaz | Zadat poptávku | |
| 9227 WHR38201 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 9322 WHR38201 |
C00317038
481249268203 |
Pružina | 89 Kč
€ 3.50 |
||
| 9640 WHR38201 |
C00319999
481246689004 |
Těsnění varné desky | 558 Kč
€ 22.00 |
||
| 999 WHR38201 |
C00609255 | Gas table WHP | Na dotaz | Zadat poptávku | |
