WHIRLPOOL AKT 661/IXL/02
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKT 661/IXL/02 |
| Kód 12NC: | 859466112000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

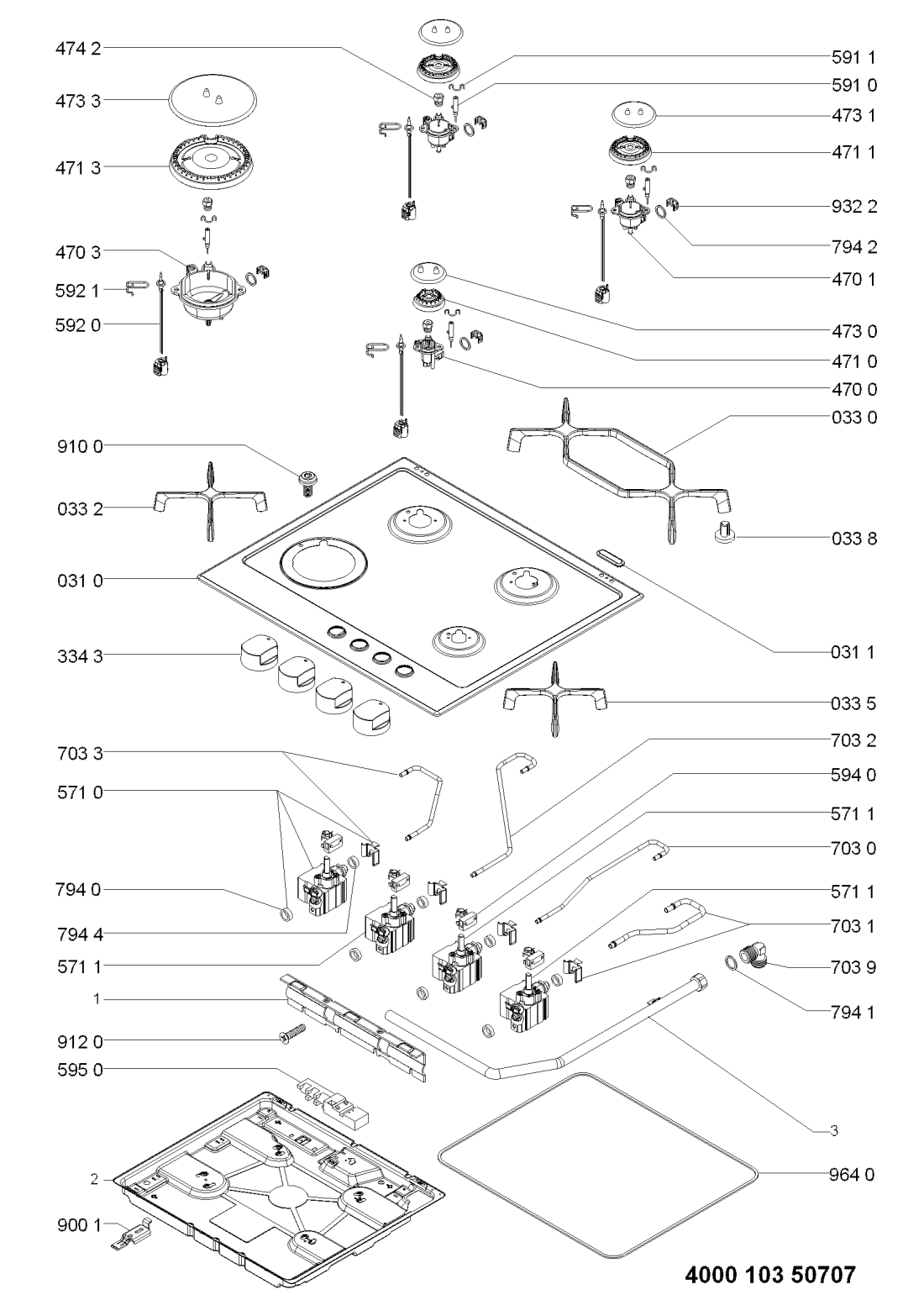

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR38245 |
C00328207
481244039556 |
Lid | Na dotaz | Zadat poptávku | |
| 0021 WHR38245 |
C00330380
481246068574 |
Profile lid | Na dotaz | Zadat poptávku | |
| 0310 WHR38245 |
C00430845
480121103299 |
Hob assembly | Na dotaz | Zadat poptávku | |
| 0311 WHR38245 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 18.10 |
||
| 0330 WHR38245 |
C00378568
481245838451 |
Grid hob assembly | Na dotaz | Zadat poptávku | |
| 0332 WHR38245 |
C00386893
481245828027 |
Grid UR | Na dotaz | Zadat poptávku | |
| 0335 WHR38245 |
C00330140
481245838435 |
Grill assembly left | Na dotaz | Zadat poptávku | |
| 0338 WHR38245 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 59 Kč
€ 2.30 |
||
| 0430 WHR38245 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR38245 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR38245 |
C00329213
481240478745 |
Support hinge right | Na dotaz | Zadat poptávku | |
| 0433 WHR38245 |
C00329214
481240478746 |
Support hinge left | Na dotaz | Zadat poptávku | |
| 0434 WHR38245 |
C00327656
481231038994 |
Fastener lid assembly | Na dotaz | Zadat poptávku | |
| 0435 WHR38245 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 3343 WHR38245 |
C00313974
480121104812 |
Knoflík stříbrný | 710 Kč
€ 28.00 |
||
| 4700 WHR38245 |
C00401499
481236058626 |
Injector holder A G25-25 mbar | Na dotaz | Zadat poptávku | |
| 4701 WHR38245 |
C00401572
481236068817 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4703 WHR38245 |
C00401439
481236058483 |
Injector holder UR | Na dotaz | Zadat poptávku | |
| 4710 WHR38245 |
C00316269
481236078135 |
teleso horaku male | Na dotaz | Zadat poptávku | |
| 4711 WHR38245 |
C00313807
481236078136 |
Těleso hořáku plynové varné desky Whirlpool - střední | 345 Kč
€ 13.60 |
||
| 4713 WHR38245 |
C00377583
481236078137 |
teleso horaku velke | 887 Kč
€ 35.00 |
||
| 4730 WHR38245 |
C00322204
480121102895 |
Víko hořáku - malé | 901 Kč
€ 35.60 |
||
| 4731 WHR38245 |
C00320361
480121102894 |
Víko hořáku - strední | 1 242 Kč
€ 49.00 |
||
| 4733 WHR38245 |
C00373883
480121103288 |
viko horaku - velke | 1 758 Kč
€ 69.40 |
||
| 4742 WHR38245 |
C00482666
481231038972 |
Set of nozzles G25-25 mbar | Na dotaz | Zadat poptávku | |
| 5710 WHR38245 |
C00381480
481236058524 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5711 WHR38245 |
C00381481
481236058525 |
Gas cock SR/A | Na dotaz | Zadat poptávku | |
| 5910 WHR38245 |
C00314182
481225268078 |
svicka zapalovaci | 306 Kč
€ 12.10 |
||
| 5911 WHR38245 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5920 WHR38245 |
C00311810
481213838041 |
Thermocouple 520mm | Na dotaz | Zadat poptávku | |
| 5921 WHR38245 |
C00318235
481249268205 |
pružina | 324 Kč
€ 12.80 |
||
| 5940 WHR38245 |
C00318655
481227648142 |
spinac | 1 416 Kč
€ 55.90 |
||
| 5950 WHR38245 |
C00318454
481213818016 |
Ignition generator | Na dotaz | Zadat poptávku | |
| 7030 WHR38245 |
C00332541
481253048931 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 7031 WHR38245 |
C00332540
481253048929 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 7032 WHR38245 |
C00332543
481253048935 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 7033 WHR38245 |
C00493810
481253048934 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 7039 WHR38245 |
C00328429
481231039153 |
Tube bend | Na dotaz | Zadat poptávku | |
| 7940 WHR38245 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7941 WHR38245 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 7942 WHR38245 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7944 WHR38245 |
C00513663
481953058098 |
Těsnění kohoutu | 138 Kč
€ 5.40 |
||
| 9001 WHR38245 |
C00314843
481240478776 |
Držáky +šrouby | 343 Kč
€ 13.50 |
||
| 9100 WHR38245 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 9120 WHR38245 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 9227 WHR38245 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 9322 WHR38245 |
C00317038
481249268203 |
Pružina | 89 Kč
€ 3.50 |
||
| 9640 WHR38245 |
C00331502
481246688772 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR38245 |
C00609381 | Gas table WHP | Na dotaz | Zadat poptávku | |
