WHIRLPOOL AKZ 226/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKZ 226/IX |
| Kód 12NC: | 858522615000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0911330000, 858522601000, 858522629020 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

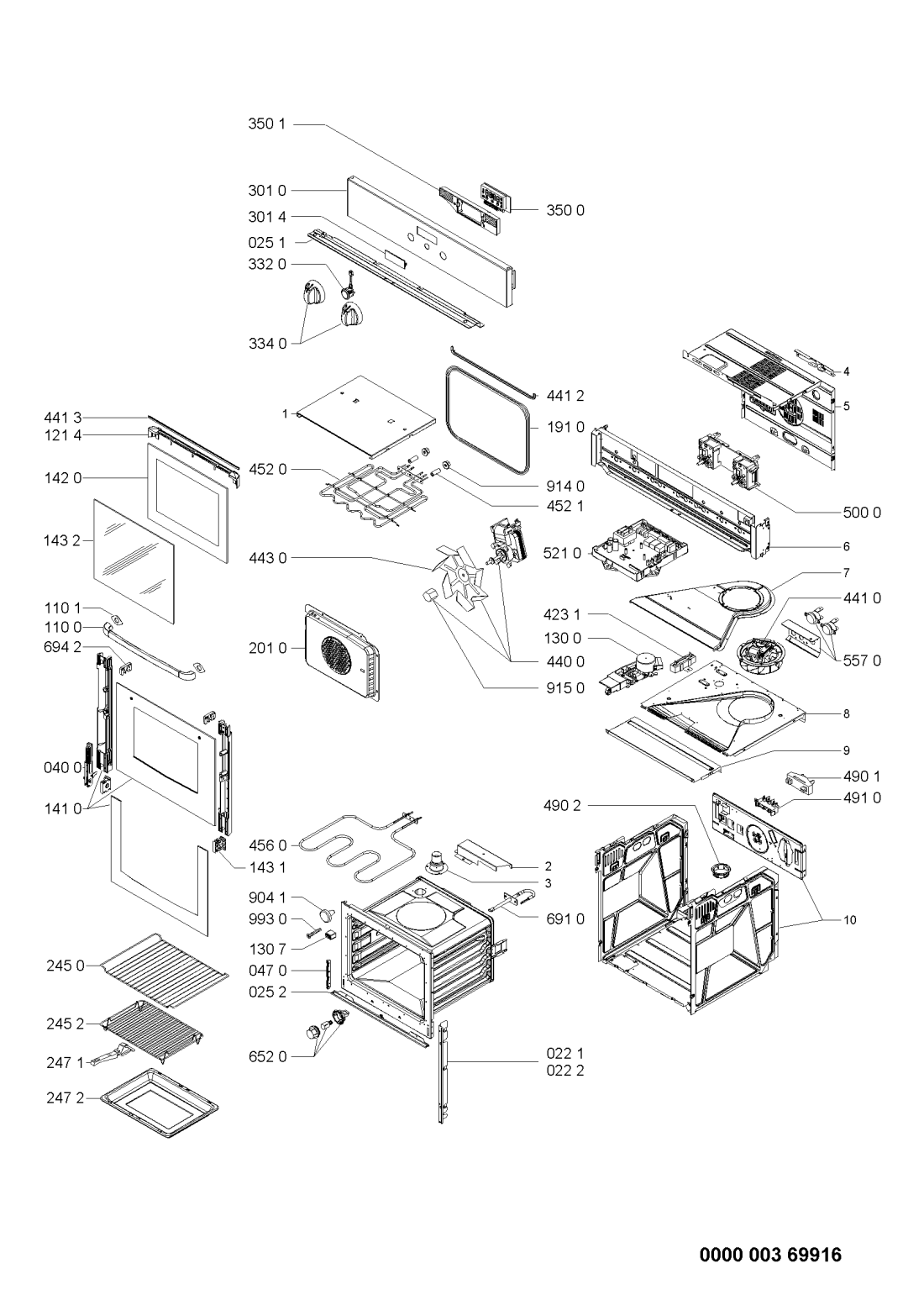

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR02468 |
C00330327
481246049778 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR02468 |
C00330326
481246049777 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR02468 |
C00330392
481246068624 |
panel | 393 Kč
€ 15.50 |
||
| 025 2 WHR02468 |
C00321792
480121100018 |
Profile | Na dotaz | Zadat poptávku | |
| 040 0 WHR02468 |
C00329771
481241719485 |
Hinge 3V | Na dotaz | Zadat poptávku | |
| 047 0 WHR02468 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR02468 |
C00317050
481249868216 |
Madlo dveří trouby Whirlpool, Ignis | 2 253 Kč
€ 88.90 |
||
| 110 1 WHR02468 |
C00315752
481946248443 |
podlozka | 449 Kč
€ 17.70 |
||
| 121 4 WHR02468 |
C00331099
481244528037 |
Deflector | Na dotaz | Zadat poptávku | |
| 130 0 WHR02468 |
C00312737
481241758396 |
Door lock | Na dotaz | Zadat poptávku | |
| 130 7 WHR02468 |
C00330935
481246668813 |
Rubber | 204 Kč
€ 8.00 |
||
| 141 0 WHR02468 |
C00331158
481245059839 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR02468 |
C00331157
481245059838 |
Vnitřní sklo dveří trouby Whirlpool, Bauknecht | 2 485 Kč
€ 98.00 |
||
| 143 1 WHR02468 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 143 2 WHR02468 |
C00312271
481245059599 |
sklo dveri | 2 947 Kč
€ 116.20 |
||
| 191 0 WHR02468 |
C00331530
481246688952 |
Gasket door pyro 32 clips | Na dotaz | Zadat poptávku | |
| 201 0 WHR02468 |
C00328266
481244058324 |
stěna zadní | 2 207 Kč
€ 87.00 |
||
| 245 0 WHR02468 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 419 Kč
€ 16.50 |
||
| 245 2 WHR02468 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 247 1 WHR02468 |
C00317859
481939548003 |
Handle grid | 541 Kč
€ 21.30 |
||
| 247 2 WHR02468 |
C00317041
481241838149 |
Fat pan | 2 342 Kč
€ 92.40 |
||
| 301 0 WHR02468 |
C00331367
481245240259 |
Panel control assembly | Na dotaz | Zadat poptávku | |
| 301 4 WHR02468 |
C00333045
481945359373 |
Glass panel timer | Na dotaz | Zadat poptávku | |
| 332 0 WHR02468 |
C00319352
481241029492 |
Tlačítko | 1 042 Kč
€ 41.10 |
||
| 334 0 WHR02468 |
C00329440
481241278877 |
knoflik ovladaci | 696 Kč
€ 27.50 |
||
| 350 0 WHR02468 |
C00315134
481213008764 |
displej | 2 264 Kč
€ 89.30 |
||
| 350 1 WHR02468 |
C00315393
481240478333 |
drzak displeje | 234 Kč
€ 9.20 |
||
| 423 1 WHR02468 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR02468 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR02468 |
C00312506
481236118511 |
ventilator | 2 888 Kč
€ 113.90 |
||
| 441 2 WHR02468 |
C00315028
481246688784 |
Těsnění dveří trouby | 958 Kč
€ 37.80 |
||
| 441 3 WHR02468 |
C00331562
481246699047 |
tesneni dveri trouby | 466 Kč
€ 18.40 |
||
| 443 0 WHR02468 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR02468 |
C00314913
481225928873 |
Topení horní | 3 864 Kč
€ 152.40 |
||
| 452 1 WHR02468 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR02468 |
C00311461
481225998418 |
Topné těleso trouby - spodní 1450 W | 2 449 Kč
€ 96.60 |
||
| 490 1 WHR02468 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR02468 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR02468 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 7.70 |
||
| 500 0 WHR02468 |
C00316454
481221458476 |
Control unit G2+ | Na dotaz | Zadat poptávku | |
| 521 0 WHR02468 |
C00319254
481221458514 |
Power unit Antares configurable | Na dotaz | Zadat poptávku | |
| 557 0 WHR02468 |
C00313245
481228228336 |
termostat PYRO | 1 521 Kč
€ 60.00 |
||
| 652 0 WHR02468 |
C00311901
481225518213 |
Osvětlení trouby Whirlpool, Bauknecht , Ignis - komplet | 1 554 Kč
€ 61.30 |
||
| 691 0 WHR02468 |
C00314814
481221058051 |
sonda | 1 593 Kč
€ 62.80 |
||
| 694 2 WHR02468 |
C00315933
481246368024 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 904 1 WHR02468 |
C00331589 | Spacer | Na dotaz | Zadat poptávku | |
| 914 0 WHR02468 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR02468 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR02468 |
C00327633
481231038844 |
Mounting kit | Na dotaz | Zadat poptávku | |
| 999 WHR02468 |
C00363282 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
