| Komerční kód: | AKZ 378 WH OVENS WP |
| Kód 12NC: | 858537829000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

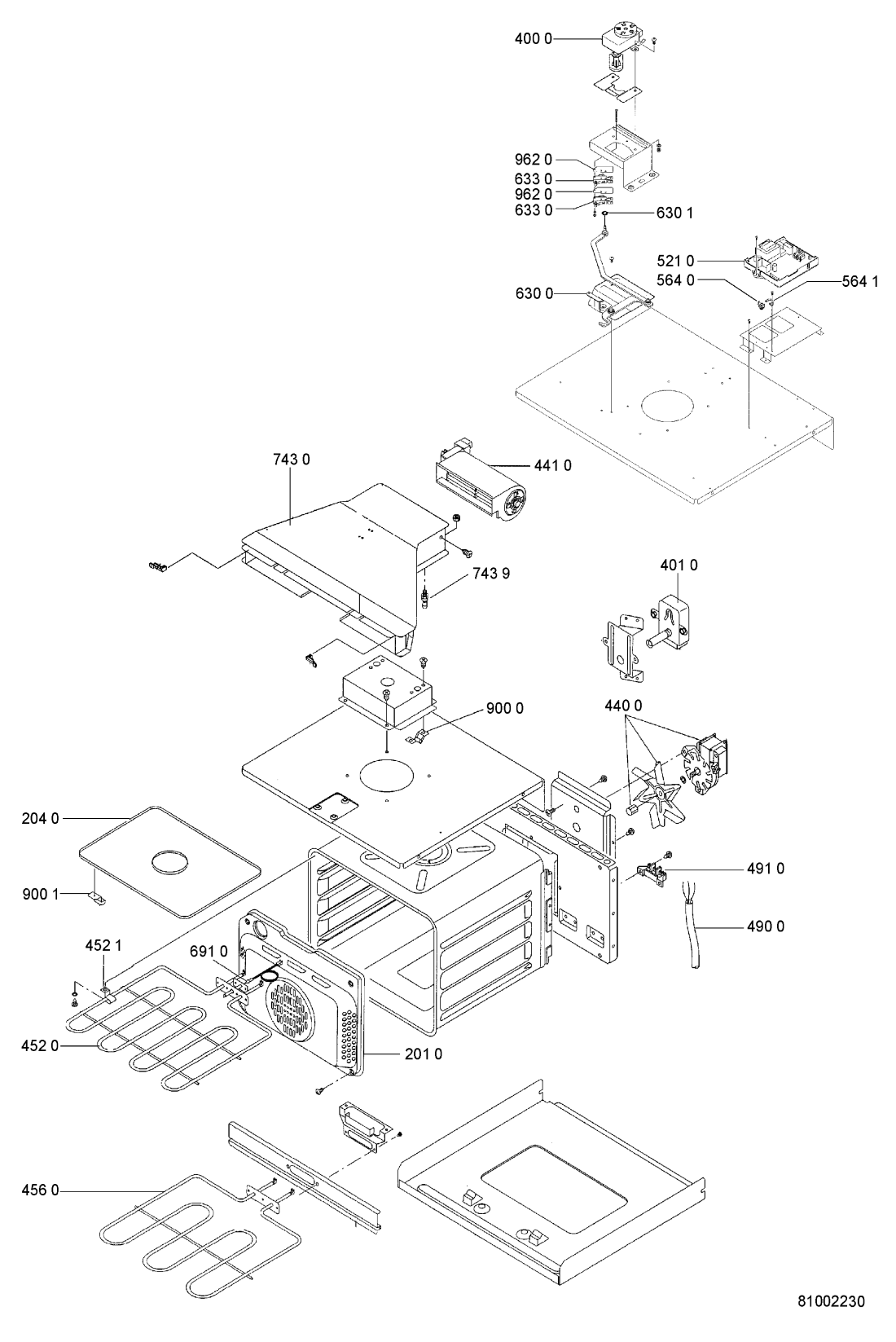

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 025 1 WHR85398 |
C00582952
481946089142 |
Trim side right. | Na dotaz | Zadat poptávku | |
| 025 2 WHR85398 |
C00582951
481946089141 |
Trim side left. | Na dotaz | Zadat poptávku | |
| 040 0 WHR85398 |
C00339751
481241719114 |
Hinge variable fulcrum | Na dotaz | Zadat poptávku | |
| 047 0 WHR85398 |
C00499100
481941719328 |
GUIDE | Na dotaz | Zadat poptávku | |
| 065 5 WHR85398 |
C00498916
481931039281 |
Panel insulatin | Na dotaz | Zadat poptávku | |
| 110 0 WHR85398 |
C00498548
481249878224 |
Handle (silver) | Na dotaz | Zadat poptávku | |
| 110 1 WHR85398 |
C00498549
481249878225 |
Washer (handle) | Na dotaz | Zadat poptávku | |
| 121 0 WHR85398 |
C00497733
481241618632 |
Door black pyrolytic | Na dotaz | Zadat poptávku | |
| 121 2 WHR85398 |
C00484808
481241618635 |
Trim Gifam cool door | Na dotaz | Zadat poptávku | |
| 121 3 WHR85398 |
C00484807
481241618634 |
Frame screen, Gifam cool door | Na dotaz | Zadat poptávku | |
| 121 8 WHR85398 |
C00603852
481241618633 |
Frame gifam cool door. | Na dotaz | Zadat poptávku | |
| 130 0 WHR85398 |
C00497613
481240478558 |
Fastener door (hook) | Na dotaz | Zadat poptávku | |
| 141 0 WHR85398 |
C00606382
481246448139 |
Door frame. | Na dotaz | Zadat poptávku | |
| 142 0 WHR85398 |
C00338934
481945069623 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 143 5 WHR85398 |
C00604103
481253268109 |
Spacer door glass. | Na dotaz | Zadat poptávku | |
| 144 0 WHR85398 |
C00582954
481946089144 |
PROFILE. | Na dotaz | Zadat poptávku | |
| 191 0 WHR85398 |
C00499485
481946818193 |
GASKET | Na dotaz | Zadat poptávku | |
| 192 0 WHR85398 |
C00499435
481946669963 |
GASKET | Na dotaz | Zadat poptávku | |
| 201 0 WHR85398 |
C00498418
481246279824 |
Cover fan | Na dotaz | Zadat poptávku | |
| 204 0 WHR85398 |
C00336917
481944238137 |
REFLECTOR | Na dotaz | Zadat poptávku | |
| 245 0 WHR85398 |
C00499273
481945819941 |
GRID | Na dotaz | Zadat poptávku | |
| 247 0 WHR85398 |
C00497834
481241838088 |
Fat pan | Na dotaz | Zadat poptávku | |
| 248 0 WHR85398 |
C00336784
481953588101 |
ROTARY SPIT | Na dotaz | Zadat poptávku | |
| 248 1 WHR85398 |
C00335926
481940478648 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 301 0 WHR85398 |
C00606380
481246448135 |
Frame Panel. | Na dotaz | Zadat poptávku | |
| 320 0 WHR85398 |
C00606303
481245319882 |
Panel control. | Na dotaz | Zadat poptávku | |
| 321 0 WHR85398 |
C00498297
481245928045 |
INSERT | Na dotaz | Zadat poptávku | |
| 331 0 WHR85398 |
C00487127
481241128844 |
Knob silver | Na dotaz | Zadat poptávku | |
| 331 9 WHR85398 |
C00596600
481249258029 |
SPRING. | Na dotaz | Zadat poptávku | |
| 332 0 WHR85398 |
C00620357
481227618352 |
tlacitko | 599 Kč
€ 23.60 |
||
| 341 0 WHR85398 |
C00605870
481241378689 |
Indicator knob. | Na dotaz | Zadat poptávku | |
| 352 0 WHR85398 |
C00342150
481213038707 |
Display board SMC E22E/E30S - GN | Na dotaz | Zadat poptávku | |
| 352 1 WHR85398 |
C00498298
481245928051 |
Holder display | Na dotaz | Zadat poptávku | |
| 400 0 WHR85398 |
C00497536
481236158356 |
Motor | Na dotaz | Zadat poptávku | |
| 401 0 WHR85398 |
C00341704
481936178195 |
MOTOR | Na dotaz | Zadat poptávku | |
| 440 0 WHR85398 |
C00498964
481936118335 |
Fan oven | Na dotaz | Zadat poptávku | |
| 441 0 WHR85398 |
C00497528
481236118298 |
Air cooling fan oven | Na dotaz | Zadat poptávku | |
| 452 0 WHR85398 |
C00383112
481225928706 |
Heating element upper 2400 W | Na dotaz | Zadat poptávku | |
| 452 1 WHR85398 |
C00335927
481940478647 |
Support | Na dotaz | Zadat poptávku | |
| 456 0 WHR85398 |
C00582592
481225928754 |
Heating element lower 2100 W. | Na dotaz | Zadat poptávku | |
| 490 0 WHR85398 |
C00497230
481201978808 |
Cable mains | Na dotaz | Zadat poptávku | |
| 491 0 WHR85398 |
C00343468
481929068326 |
CONNECTIONBLOCK | Na dotaz | Zadat poptávku | |
| 491 3 WHR85398 |
C00498989
481940118696 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 521 0 WHR85398 |
C00318480
481221478894 |
Control unitGEMINI 2 | Na dotaz | Zadat poptávku | |
| 521 1 WHR85398 |
C00497274
481221478401 |
UNIT CONTROL | Na dotaz | Zadat poptávku | |
| 521 2 WHR85398 |
C00606311
481245359634 |
Panel GEMINI 2. | Na dotaz | Zadat poptávku | |
| 564 0 WHR85398 |
C00498889
481928248252 |
SAFETY THERMOS. | Na dotaz | Zadat poptávku | |
| 564 1 WHR85398 |
C00344265
481240478382 |
Bracket | Na dotaz | Zadat poptávku | |
| 630 0 WHR85398 |
C00497792
481241758386 |
Door lock | Na dotaz | Zadat poptávku | |
| 630 1 WHR85398 |
C00498525
481249268174 |
Ring | Na dotaz | Zadat poptávku | |
| 633 0 WHR85398 |
C00498845
481927138283 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 650 0 WHR85398 |
C00497254
481213488043 |
Lampholder | Na dotaz | Zadat poptávku | |
| 651 0 WHR85398 |
C00341808
481913488191 |
LAMP15W 230V | Na dotaz | Zadat poptávku | |
| 651 1 WHR85398 |
C00340601
481946818019 |
Gasket | Na dotaz | Zadat poptávku | |
| 691 0 WHR85398 |
C00497262
481221058021 |
Temperature probe | Na dotaz | Zadat poptávku | |
| 743 0 WHR85398 |
C00497966
481244038817 |
CONVEYOR | Na dotaz | Zadat poptávku | |
| 743 9 WHR85398 |
C00499634
481953598667 |
Pin fixing cooling channel | Na dotaz | Zadat poptávku | |
| 747 0 WHR85398 |
C00499181
481944239414 |
CATALYSATOR | Na dotaz | Zadat poptávku | |
| 747 1 WHR85398 |
C00499377
481946258191 |
COVER | Na dotaz | Zadat poptávku | |
| 747 2 WHR85398 |
C00498943
481932528028 |
INSULATION | Na dotaz | Zadat poptávku | |
| 747 3 WHR85398 |
C00498942
481932528027 |
INSULATION | Na dotaz | Zadat poptávku | |
| 900 0 WHR85398 |
C00336083
481949268871 |
Spring fixing cooling channel | Na dotaz | Zadat poptávku | |
| 900 1 WHR85398 |
C00336135
481949268772 |
SPRING | Na dotaz | Zadat poptávku | |
| 904 0 WHR85398 |
C00604070
481246699011 |
Spacer. | Na dotaz | Zadat poptávku | |
| 962 0 WHR85398 |
C00499458
481946689458 |
Cover glass | Na dotaz | Zadat poptávku | |
