WHIRLPOOL AKZM693/MR/R
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKZM693/MR/R |
| Kód 12NC: | 852569329010 |
| I.C. kód: | 852569329012 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 852569329010, Q0909950000, 852569329011, Q0909950001, Q0909950002, 852569329013, Q0909950003, 852569329014, Q0909950004 |
Potřebujete servis? Jsme tady pro Vás

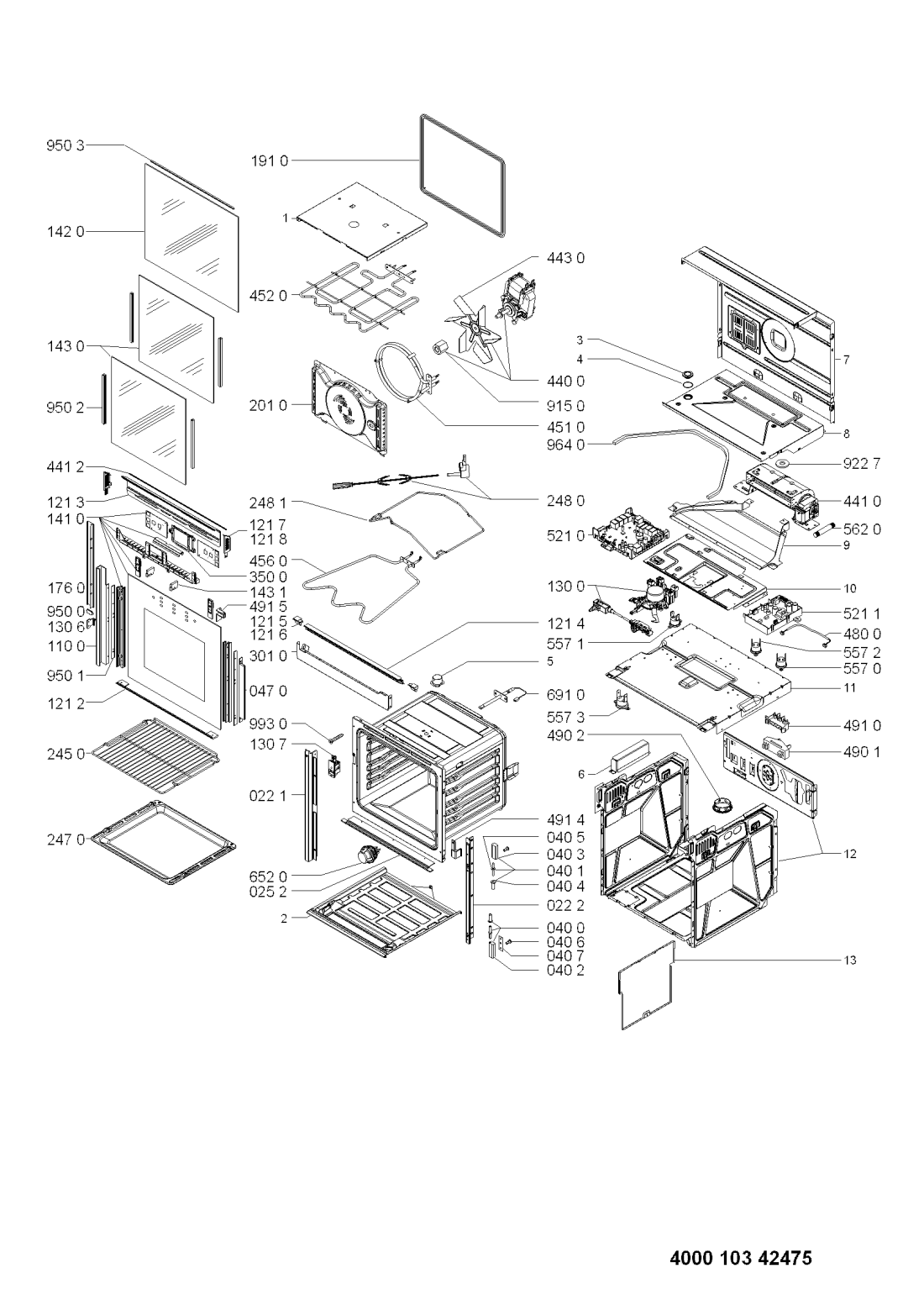

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0221 WHR01152 |
C00322446
480121104264 |
Profile left | Na dotaz | Zadat poptávku | |
| 0222 WHR01152 |
C00322447
480121104265 |
Profile right | Na dotaz | Zadat poptávku | |
| 0252 WHR01152 |
C00322304
480121103503 |
Trim lower | Na dotaz | Zadat poptávku | |
| 0400 WHR01152 |
C00322311
480121103511 |
Hinge assembly | Na dotaz | Zadat poptávku | |
| 0401 WHR01152 |
C00322319
480121103519 |
Hinge assembly | Na dotaz | Zadat poptávku | |
| 0402 WHR01152 |
C00322312
480121103512 |
Hinge support | Na dotaz | Zadat poptávku | |
| 0403 WHR01152 |
C00322320
480121103521 |
Hinge support | Na dotaz | Zadat poptávku | |
| 0404 WHR01152 |
C00322315
480121103515 |
Bushing hinge | Na dotaz | Zadat poptávku | |
| 0405 WHR01152 |
C00322316
480121103516 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 0406 WHR01152 |
C00322314
480121103514 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 0407 WHR01152 |
C00322321
480121103522 |
Spacer hinge | Na dotaz | Zadat poptávku | |
| 0470 WHR01152 |
C00322299
480121103496 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 1100 WHR01152 |
C00322298
480121103495 |
Handle oven door | Na dotaz | Zadat poptávku | |
| 1212 WHR01152 |
C00322326
480121103527 |
Profile oven door | Na dotaz | Zadat poptávku | |
| 1213 WHR01152 |
C00322445
480121104263 |
Cover control unit | Na dotaz | Zadat poptávku | |
| 1214 WHR01152 |
C00322301
480121103499 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 1215 WHR01152 |
C00322302
480121103501 |
Exhaust fume cap left | Na dotaz | Zadat poptávku | |
| 1216 WHR01152 |
C00322303
480121103502 |
Exhaust fume cap right | Na dotaz | Zadat poptávku | |
| 1217 WHR01152 |
C00322325
480121103526 |
Cover control unit left | Na dotaz | Zadat poptávku | |
| 1218 WHR01152 |
C00322324
480121103525 |
Cover control unit right | Na dotaz | Zadat poptávku | |
| 1300 WHR01152 |
C00311963
480121101623 |
Door lock assembly | Na dotaz | Zadat poptávku | |
| 1306 WHR01152 |
C00322317
480121103517 |
Door latch | Na dotaz | Zadat poptávku | |
| 1307 WHR01152 |
C00322308
480121103507 |
Door latch housing | Na dotaz | Zadat poptávku | |
| 1410 WHR01152 |
C00322337
480121103547 |
Oven door outer | Na dotaz | Zadat poptávku | |
| 1420 WHR01152 |
C00322356
480121103713 |
Sklo dveří vnitřní | Na dotaz | Zadat poptávku | |
| 1430 WHR01152 |
C00322309
480121103508 |
Door glass inner | Na dotaz | Zadat poptávku | |
| 1431 WHR01152 |
C00322297
480121103494 |
Spacer oven door glass | Na dotaz | Zadat poptávku | |
| 1760 WHR01152 |
C00322359
480121103722 |
Cover enamelled | Na dotaz | Zadat poptávku | |
| 1910 WHR01152 |
C00318929
480121101583 |
Těsnění dveří | 1 579 Kč
€ 62.30 |
||
| 2010 WHR01152 |
C00322032
480121101601 |
kryt ventilatoru | 977 Kč
€ 38.60 |
||
| 2450 WHR01152 |
C00317560
480121101183 |
mřížka na grilování pro trouby: AKZM 838,663,662,660,654,764,762;AKPM 658; AKZ 56. | Na dotaz | Zadat poptávku | |
| 2470 WHR01152 |
C00320750
480121103007 |
Hluboký plech na pečení pro trouby: AKZM 838, 660, 663, 662, 654, | Na dotaz | Zadat poptávku | |
| 2480 WHR01152 |
C00322873
480131000139 |
Rožeň otočný + motorek | 2 006 Kč
€ 79.20 |
||
| 2481 WHR01152 |
C00322028
480121101582 |
Turnspit support | Na dotaz | Zadat poptávku | |
| 3010 WHR01152 |
C00322293
480121103488 |
Control panel Flagship | Na dotaz | Zadat poptávku | |
| 3500 WHR01152 |
C00322295
480121103492 |
displej ATLAS | 8 662 Kč
€ 342.00 |
||
| 4400 WHR01152 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 4410 WHR01152 |
C00314518
480121101584 |
Chladící ventilator trouby | 2 777 Kč
€ 109.60 |
||
| 4412 WHR01152 |
C00322313
480121103513 |
Gasket control unit | Na dotaz | Zadat poptávku | |
| 4430 WHR01152 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 4510 WHR01152 |
C00312662
480121101159 |
Topné těleso trouby – kruhové, horkovzduch 2450W | 1 626 Kč
€ 64.20 |
||
| 4520 WHR01152 |
C00316630
480121101585 |
Heating element upper/grill 2450W | Na dotaz | Zadat poptávku | |
| 4560 WHR01152 |
C00311591
480121101147 |
Topné těleso trouby - spodní 1150W | 468 Kč
€ 18.50 |
||
| 4800 WHR01152 |
C00322300
480121103498 |
Cable harness | Na dotaz | Zadat poptávku | |
| 4901 WHR01152 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 4902 WHR01152 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 4910 WHR01152 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 7.70 |
||
| 4914 WHR01152 |
C00322323
480121103524 |
Bracket oven door | Na dotaz | Zadat poptávku | |
| 4915 WHR01152 |
C00322322
480121103523 |
Bracket oven door | Na dotaz | Zadat poptávku | |
| 5210 WHR01152 |
C00322442
480121104259 |
Control unit Anatres | Na dotaz | Zadat poptávku | |
| 5211 WHR01152 |
C00322410
480121104048 |
Power unit assembly | Na dotaz | Zadat poptávku | |
| 5570 WHR01152 |
C00313548
480121101598 |
termostat | 530 Kč
€ 20.90 |
||
| 5571 WHR01152 |
C00312460
480121101181 |
Thermostat 155°C | Na dotaz | Zadat poptávku | |
| 5572 WHR01152 |
C00312038
481228228346 |
termostat | 1 306 Kč
€ 51.60 |
||
| 5573 WHR01152 |
C00311539
481228228315 |
Termostat 130 °C | 1 278 Kč
€ 50.50 |
||
| 5620 WHR01152 |
C00315395
481010489052 |
pojistka | 196 Kč
€ 7.70 |
||
| 6520 WHR01152 |
C00314186
480121101148 |
Žárovka halogen - sestava | 378 Kč
€ 14.90 |
||
| 6910 WHR01152 |
C00311274
480121101597 |
senzor teploty | 1 132 Kč
€ 44.70 |
||
| 9150 WHR01152 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 9227 WHR01152 |
C00333313
481953228281 |
podlozka | 119 Kč
€ 4.70 |
||
| 9500 WHR01152 |
C00322360
480121103723 |
Spacer bottom oven door | Na dotaz | Zadat poptávku | |
| 9501 WHR01152 |
C00322296
480121103493 |
Gasket oven door | Na dotaz | Zadat poptávku | |
| 9502 WHR01152 |
C00322310
480121103509 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 9503 WHR01152 |
C00322335
480121103545 |
Gasket inner glass | Na dotaz | Zadat poptávku | |
| 9640 WHR01152 |
C00322212
480121102934 |
tesneni | 1 155 Kč
€ 45.60 |
||
| 9930 WHR01152 |
C00322292
480121103487 |
Mounting kit | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354157 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354158 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354159 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354160 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354161 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354162 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354163 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01152 |
C00354164 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
