WHIRLPOOL ALA 028
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ALA 028 |
| Kód 12NC: | 853202801000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

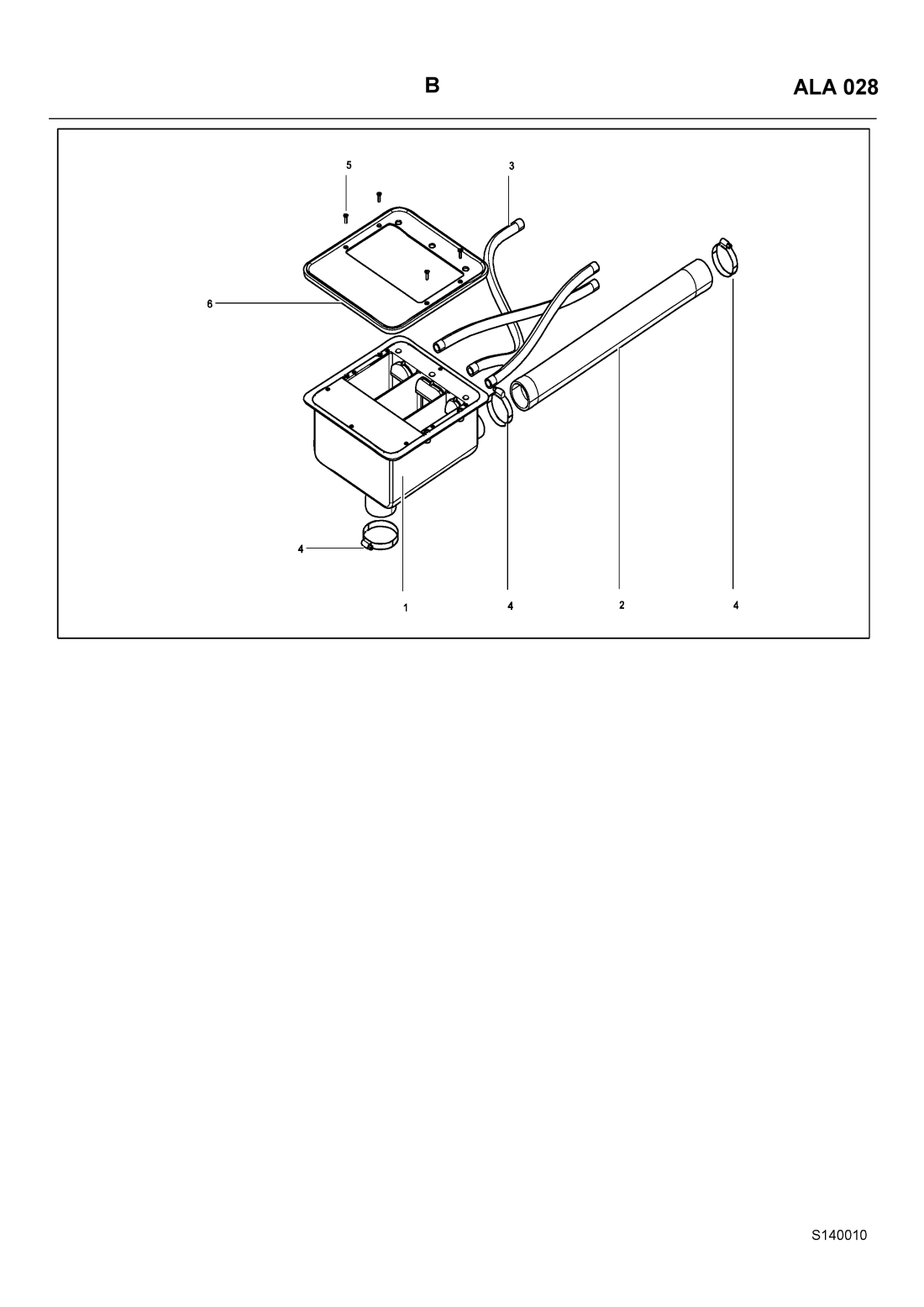

| B1 WHR22269 |
C00524572
483286008229 |
Soap dispenser cpl. | Na dotaz | Zadat poptávku | |
| B2 WHR22269 |
C00524278
483286001147 |
Hose D 48X57 | Na dotaz | Zadat poptávku | |
| B3 WHR22269 |
C00409148
482000005091 |
Tube | Na dotaz | Zadat poptávku | |
| B4 WHR22269 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| B5 WHR22269 |
C00524118
483286000666 |
Screw M5X16 | Na dotaz | Zadat poptávku | |
| B6 WHR22269 |
C00422372
483286008188 |
Gasket Soap dispenser | Na dotaz | Zadat poptávku | |
| C1 WHR22269 |
C00409149
482000005092 |
Support | Na dotaz | Zadat poptávku | |
| C2 WHR22269 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| C3 WHR22269 |
C00409150
482000005093 |
Unit control | Na dotaz | Zadat poptávku | |
| D10 WHR22269 |
C00409255
482000005325 |
Side panel LM18 IM8 DX | Na dotaz | Zadat poptávku | |
| D11 WHR22269 |
C00409153
482000005096 |
Support | Na dotaz | Zadat poptávku | |
| D12 WHR22269 |
C00409154
482000005097 |
Support | Na dotaz | Zadat poptávku | |
| D13 WHR22269 |
C00409155
482000005098 |
Bracket | Na dotaz | Zadat poptávku | |
| D14 WHR22269 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| D16 WHR22269 |
C00409156
482000005099 |
Gasket | Na dotaz | Zadat poptávku | |
| D17 WHR22269 |
C00409157
482000005100 |
Disc emergency | Na dotaz | Zadat poptávku | |
| D4 WHR22269 |
C00409160
482000005103 |
Front | Na dotaz | Zadat poptávku | |
| D5 WHR22269 |
C00409253
482000005323 |
Side panel | Na dotaz | Zadat poptávku | |
| D6 WHR22269 |
C00409162
482000005105 |
Plinth | Na dotaz | Zadat poptávku | |
| D7 WHR22269 |
C00409163
482000005106 |
Rear panel | Na dotaz | Zadat poptávku | |
| D8 WHR22269 |
C00409164
482000005107 |
Support | Na dotaz | Zadat poptávku | |
| D9 WHR22269 |
C00409254
482000005324 |
Support | Na dotaz | Zadat poptávku | |
| E1 WHR22269 |
C00409256
482000005326 |
Cover | Na dotaz | Zadat poptávku | |
| E2 WHR22269 |
C00409167
482000005110 |
Gasket | Na dotaz | Zadat poptávku | |
| E3 WHR22269 |
C00524630
483286008349 |
Screw cylinder M5x12 | Na dotaz | Zadat poptávku | |
| E4 WHR22269 |
C00524626
483286008344 |
Lid washpan | Na dotaz | Zadat poptávku | |
| E5 WHR22269 |
C00409168
482000005111 |
Bracket | Na dotaz | Zadat poptávku | |
| F1 WHR22269 |
C00409169
482000005112 |
Front panel | Na dotaz | Zadat poptávku | |
| F10 WHR22269 |
C00409170
482000005113 |
Screw | Na dotaz | Zadat poptávku | |
| F11 WHR22269 |
C00409171
482000005114 |
Screw | Na dotaz | Zadat poptávku | |
| F2 WHR22269 |
C00409172
482000005115 |
Card SD | Na dotaz | Zadat poptávku | |
| F3 WHR22269 |
C00409173
482000005116 |
Cap | Na dotaz | Zadat poptávku | |
| F4 WHR22269 |
C00409174
482000005117 |
Cable | Na dotaz | Zadat poptávku | |
| F5 WHR22269 |
C00409175
482000005118 |
Microprocessor | Na dotaz | Zadat poptávku | |
| F6 WHR22269 |
C00409176
482000005119 |
Support | Na dotaz | Zadat poptávku | |
| F7 WHR22269 |
C00409177
482000005120 |
Screw | Na dotaz | Zadat poptávku | |
| F9 WHR22269 |
C00409257
482000005327 |
Sticker | Na dotaz | Zadat poptávku | |
| G1 WHR22269 |
C00409179
482000005122 |
Support | Na dotaz | Zadat poptávku | |
| G2 WHR22269 |
C00524488
483286001693 |
Microswitch | Na dotaz | Zadat poptávku | |
| G3 WHR22269 |
C00524660
483286008402 |
Fastener. | Na dotaz | Zadat poptávku | |
| G4 WHR22269 |
C00524661
483286008403 |
Screw Inbus M5x35 | Na dotaz | Zadat poptávku | |
| H10 WHR22269 |
C00421601
483286003568 |
Ring upper | Na dotaz | Zadat poptávku | |
| H11 WHR22269 |
C00501082
483286008244 |
Bellows | Na dotaz | Zadat poptávku | |
| H12 WHR22269 |
C00409181
482000005124 |
Bracket | Na dotaz | Zadat poptávku | |
| H13 WHR22269 |
C00421017
483286002863 |
Grommet cable | Na dotaz | Zadat poptávku | |
| H14 WHR22269 |
C00524354
483286001366 |
Tube | Na dotaz | Zadat poptávku | |
| H15 WHR22269 |
C00501086
483286008282 |
Belt | Na dotaz | Zadat poptávku | |
| H16 WHR22269 |
C00524584
483286008258 |
Rubber Tube dm19x26 45cm | Na dotaz | Zadat poptávku | |
| H17 WHR22269 |
C00524597
483286008287 |
Screw Hexagonal head M20x90 | Na dotaz | Zadat poptávku | |
| H18 WHR22269 |
C00409182
482000005125 |
Key | Na dotaz | Zadat poptávku | |
| H19 WHR22269 |
C00524605
483286008296 |
Rosette 20x37 | Na dotaz | Zadat poptávku | |
| H2 WHR22269 |
C00501098
483286008426 |
Motor XS-100LB 3,5KW | Na dotaz | Zadat poptávku | |
| H20 WHR22269 |
C00524656
483286008396 |
Tie rod with bush | Na dotaz | Zadat poptávku | |
| H5 WHR22269 |
C00409258
482000005328 |
Support | Na dotaz | Zadat poptávku | |
| H7 WHR22269 |
C00524586
483286008265 |
Bushing DM 60 | Na dotaz | Zadat poptávku | |
| H8 WHR22269 |
C00524587
483286008266 |
Pulley | Na dotaz | Zadat poptávku | |
| H9 WHR22269 |
C00421445
483286003344 |
Ring lower | Na dotaz | Zadat poptávku | |
| I1 WHR22269 |
C00409188
482000005131 |
Spring | Na dotaz | Zadat poptávku | |
| I10 WHR22269 |
C00409189
482000005132 |
Shock absorber | Na dotaz | Zadat poptávku | |
| I11 WHR22269 |
C00409190
482000005133 |
Shock absorber | Na dotaz | Zadat poptávku | |
| I12 WHR22269 |
C00409191
482000005134 |
Bellows | Na dotaz | Zadat poptávku | |
| I14 WHR22269 |
C00409192
482000005135 |
Screw | Na dotaz | Zadat poptávku | |
| I15 WHR22269 |
C00524764
483286008614 |
Adjust. foot | Na dotaz | Zadat poptávku | |
| I2 WHR22269 |
C00409193
482000005136 |
Bushing | Na dotaz | Zadat poptávku | |
| I3 WHR22269 |
C00409194
482000005137 |
Drain piece | Na dotaz | Zadat poptávku | |
| I4 WHR22269 |
C00409195
482000005139 |
Spacer | Na dotaz | Zadat poptávku | |
| I5 WHR22269 |
C00409196
482000005140 |
Bracket | Na dotaz | Zadat poptávku | |
| I6 WHR22269 |
C00409197
482000005142 |
Bracket | Na dotaz | Zadat poptávku | |
| I7 WHR22269 |
C00409259
482000005329 |
Drainpipe | Na dotaz | Zadat poptávku | |
| I8 WHR22269 |
C00409199
482000005146 |
Bushing | Na dotaz | Zadat poptávku | |
| I9 WHR22269 |
C00409200
482000005148 |
Valve | Na dotaz | Zadat poptávku | |
| J10 WHR22269 |
C00501092
483286008357 |
Door bellow | Na dotaz | Zadat poptávku | |
| J11 WHR22269 |
C00409202
482000005152 |
Handle | Na dotaz | Zadat poptávku | |
| J12 WHR22269 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| J13 WHR22269 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| J14 WHR22269 |
C00524599
483286008289 |
Nut M8 | Na dotaz | Zadat poptávku | |
| J15 WHR22269 |
C00524174
483286000779 |
Nut M5 | Na dotaz | Zadat poptávku | |
| J16 WHR22269 |
C00524601
483286008292 |
Nut M8x20 Cylindr. | Na dotaz | Zadat poptávku | |
| J17 WHR22269 |
C00524633
483286008358 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| J18 WHR22269 |
C00524634
483286008359 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| J19 WHR22269 |
C00524603
483286008294 |
Rosette 8x16 | Na dotaz | Zadat poptávku | |
| J2 WHR22269 |
C00409203
482000005155 |
Lockingmechn. | Na dotaz | Zadat poptávku | |
| J20 WHR22269 |
C00524309
483286001229 |
Screw M6X16 exagonal | Na dotaz | Zadat poptávku | |
| J21 WHR22269 |
C00524637
483286008363 |
Screw socket M6x25 | Na dotaz | Zadat poptávku | |
| J22 WHR22269 |
C00501089
483286008351 |
sklo dveří | 11 551 Kč
€ 460.40 |
||
| J3 WHR22269 |
C00409204
482000005156 |
Fastener | Na dotaz | Zadat poptávku | |
| J4 WHR22269 |
C00409205
482000005157 |
Hinge | Na dotaz | Zadat poptávku | |
| J5 WHR22269 |
C00409206
482000005158 |
Door frame | Na dotaz | Zadat poptávku | |
| J6 WHR22269 |
C00409871
482000006344 |
Pin | Na dotaz | Zadat poptávku | |
| J7 WHR22269 |
C00409872
482000006345 |
Pin | Na dotaz | Zadat poptávku | |
| J8 WHR22269 |
C00409207
482000005159 |
Spacer | Na dotaz | Zadat poptávku | |
| J9 WHR22269 |
C00409208
482000005160 |
Cap | Na dotaz | Zadat poptávku | |
| K1 WHR22269 |
C00409209
482000005161 |
Door lock | Na dotaz | Zadat poptávku | |
| K2 WHR22269 |
C00409210
482000005162 |
Bracket | Na dotaz | Zadat poptávku | |
| K3 WHR22269 |
C00409211
482000005163 |
Bracket | Na dotaz | Zadat poptávku | |
| K4 WHR22269 |
C00409212
482000005164 |
Sleeve | Na dotaz | Zadat poptávku | |
| K5 WHR22269 |
C00409213
482000005165 |
Can plug | Na dotaz | Zadat poptávku | |
| K6 WHR22269 |
C00409214
482000005166 |
Protector | Na dotaz | Zadat poptávku | |
| K7 WHR22269 |
C00409215
482000005167 |
Screw | Na dotaz | Zadat poptávku | |
| K8 WHR22269 |
C00409216
482000005168 |
Screw | Na dotaz | Zadat poptávku | |
| K9 WHR22269 |
C00409217
482000005169 |
Screw | Na dotaz | Zadat poptávku | |
| L1 WHR22269 |
C00409218
482000005170 |
Support | Na dotaz | Zadat poptávku | |
| L3 WHR22269 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| L4 WHR22269 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
| L5 WHR22269 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| L6 WHR22269 |
C00524671
483286008428 |
Screw M10x35 | Na dotaz | Zadat poptávku | |
| M2 WHR22269 |
C00524676
483286008437 |
Ring,pressure | Na dotaz | Zadat poptávku | |
| M3 WHR22269 |
C00409260
482000005330 |
Drum | Na dotaz | Zadat poptávku | |
| M4 WHR22269 |
C00409261
482000005331 |
Drum outer | Na dotaz | Zadat poptávku | |
| M5 WHR22269 |
C00524681
483286008444 |
Gasket Tub | Na dotaz | Zadat poptávku | |
| M6 WHR22269 |
C00421155
483286003018 |
Ring,locking 80 | Na dotaz | Zadat poptávku | |
| N1 WHR22269 |
C00524685
483286008452 |
Can plug | Na dotaz | Zadat poptávku | |
| N10 WHR22269 |
C00501087
483286008285 |
Steam hose | Na dotaz | Zadat poptávku | |
| N11 WHR22269 |
C00524691
483286008459 |
Rosette 28x40x2 black | Na dotaz | Zadat poptávku | |
| N2 WHR22269 |
C00409221
482000005173 |
Ring Nut | Na dotaz | Zadat poptávku | |
| N3 WHR22269 |
C00524713
483286008503 |
Rear tub plate | Na dotaz | Zadat poptávku | |
| N4 WHR22269 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| N5 WHR22269 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| N6 WHR22269 |
C00524687
483286008455 |
Screwed joint 1 1/4 " | Na dotaz | Zadat poptávku | |
| N7 WHR22269 |
C00524688
483286008456 |
Seal 1 1/4 " | Na dotaz | Zadat poptávku | |
| N8 WHR22269 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| N9 WHR22269 |
C00524690
483286008458 |
Cleaner nozzle 1 1/4 " | Na dotaz | Zadat poptávku | |
| O1 WHR22269 |
C00524692
483286008461 |
Bearing,roll NU 2216 ECP | Na dotaz | Zadat poptávku | |
| O10 WHR22269 |
C00524719
483286008511 |
Ring 100x130x10 | Na dotaz | Zadat poptávku | |
| O11 WHR22269 |
C00524696
483286008467 |
Ring circlip 85/110/12 | Na dotaz | Zadat poptávku | |
| O12 WHR22269 |
C00421602
483286003569 |
Seal | Na dotaz | Zadat poptávku | |
| O13 WHR22269 |
C00524683
483286008446 |
Clamp ring KM 14 | Na dotaz | Zadat poptávku | |
| O14 WHR22269 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| O15 WHR22269 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| O16 WHR22269 |
C00524699
483286008473 |
Screw hexa.M 8X30 | Na dotaz | Zadat poptávku | |
| O17 WHR22269 |
C00524684
483286008447 |
Rosette MB 14 | Na dotaz | Zadat poptávku | |
| O2 WHR22269 |
C00524693
483286008462 |
Bearing,roll C22214E | Na dotaz | Zadat poptávku | |
| O3 WHR22269 |
C00524714
483286008505 |
Adapter cylinr. mod.2601-9-1/8 | Na dotaz | Zadat poptávku | |
| O4 WHR22269 |
C00524694
483286008465 |
Flange | Na dotaz | Zadat poptávku | |
| O5 WHR22269 |
C00524679
483286008441 |
Spacebar | Na dotaz | Zadat poptávku | |
| O6 WHR22269 |
C00524718
483286008509 |
Ring,protecting | Na dotaz | Zadat poptávku | |
| O7 WHR22269 |
C00524720
483286008512 |
Flange plate | Na dotaz | Zadat poptávku | |
| O8 WHR22269 |
C00409222
482000005174 |
Hub | Na dotaz | Zadat poptávku | |
| O9 WHR22269 |
C00524716
483286008507 |
O-Ring DM140X3 NBR | Na dotaz | Zadat poptávku | |
| P10 WHR22269 |
C00409224
482000005176 |
Interf.filter | Na dotaz | Zadat poptávku | |
| P11 WHR22269 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| P12 WHR22269 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
| P13 WHR22269 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| P15 WHR22269 |
C00524624
483286008339 |
Valve magnet 1 way 90° 3/4" | Na dotaz | Zadat poptávku | |
| P16 WHR22269 |
C00524625
483286008343 |
Valve magnet 2 way 90° 230V | Na dotaz | Zadat poptávku | |
| P17 WHR22269 |
C00501088
483286008342 |
Valve magnet 1 way 3/4 " 230V | Na dotaz | Zadat poptávku | |
| P18 WHR22269 |
C00524130
483286000684 |
Spacer | Na dotaz | Zadat poptávku | |
| P19 WHR22269 |
C00524400
483286001447 |
Tube finale | Na dotaz | Zadat poptávku | |
| P3 WHR22269 |
C00409226
482000005178 |
Connection TEE | Na dotaz | Zadat poptávku | |
| P4 WHR22269 |
C00409227
482000005179 |
Support | Na dotaz | Zadat poptávku | |
| P5 WHR22269 |
C00409228
482000005180 |
Support | Na dotaz | Zadat poptávku | |
| P6 WHR22269 |
C00409229
482000005181 |
Cover | Na dotaz | Zadat poptávku | |
| P7 WHR22269 |
C00409230
482000005182 |
Power supplier | Na dotaz | Zadat poptávku | |
| P8 WHR22269 |
C00409231
482000005183 |
Antenna | Na dotaz | Zadat poptávku | |
| P9 WHR22269 |
C00409232
482000005184 |
Fuse | Na dotaz | Zadat poptávku | |
| Q1 WHR22269 |
C00409233
482000005185 |
Box | Na dotaz | Zadat poptávku | |
| Q2 WHR22269 |
C00524942
483286009733 |
Connection 4 way | Na dotaz | Zadat poptávku | |
| Q3 WHR22269 |
C00421457
483286003358 |
Contactor A 11-30-01 | Na dotaz | Zadat poptávku | |
| Q4 WHR22269 |
C00409234
482000005186 |
Connector | Na dotaz | Zadat poptávku | |
| Q5 WHR22269 |
C00524907
483286009544 |
Cable clamp | Na dotaz | Zadat poptávku | |
| Q6 WHR22269 |
C00409235
482000005187 |
Contactor Inverter | Na dotaz | Zadat poptávku | |
| Q7 WHR22269 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
| Q8 WHR22269 |
C00524674
483286008433 |
Washer,spring 5x10 | Na dotaz | Zadat poptávku | |
| Q9 WHR22269 |
C00524205
483286000927 |
Screw M4X10 | Na dotaz | Zadat poptávku | |
| R1 WHR22269 |
C00524668
483286008413 |
Holder | Na dotaz | Zadat poptávku | |
| R2 WHR22269 |
C00409262
482000005332 |
Rectifier | Na dotaz | Zadat poptávku | |
| R3 WHR22269 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
| S2 WHR22269 |
C00524619
483286008319 |
Nut lock 3/4 " | Na dotaz | Zadat poptávku | |
| S3 WHR22269 |
C00524592
483286008277 |
Cover 3/4 " | Na dotaz | Zadat poptávku | |
| S4 WHR22269 |
C00501102
483286008518 |
Heating element 4000W 220V | Na dotaz | Zadat poptávku | |
| S5 WHR22269 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| J11 WHR22277 |
C00847145
488000847145 |
DOOR HANDLE IM8 GREY RAL 7046 | Na dotaz | Zadat poptávku | |
