WHIRLPOOL ALA 043
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ALA 043 |
| Kód 12NC: | 853204301000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

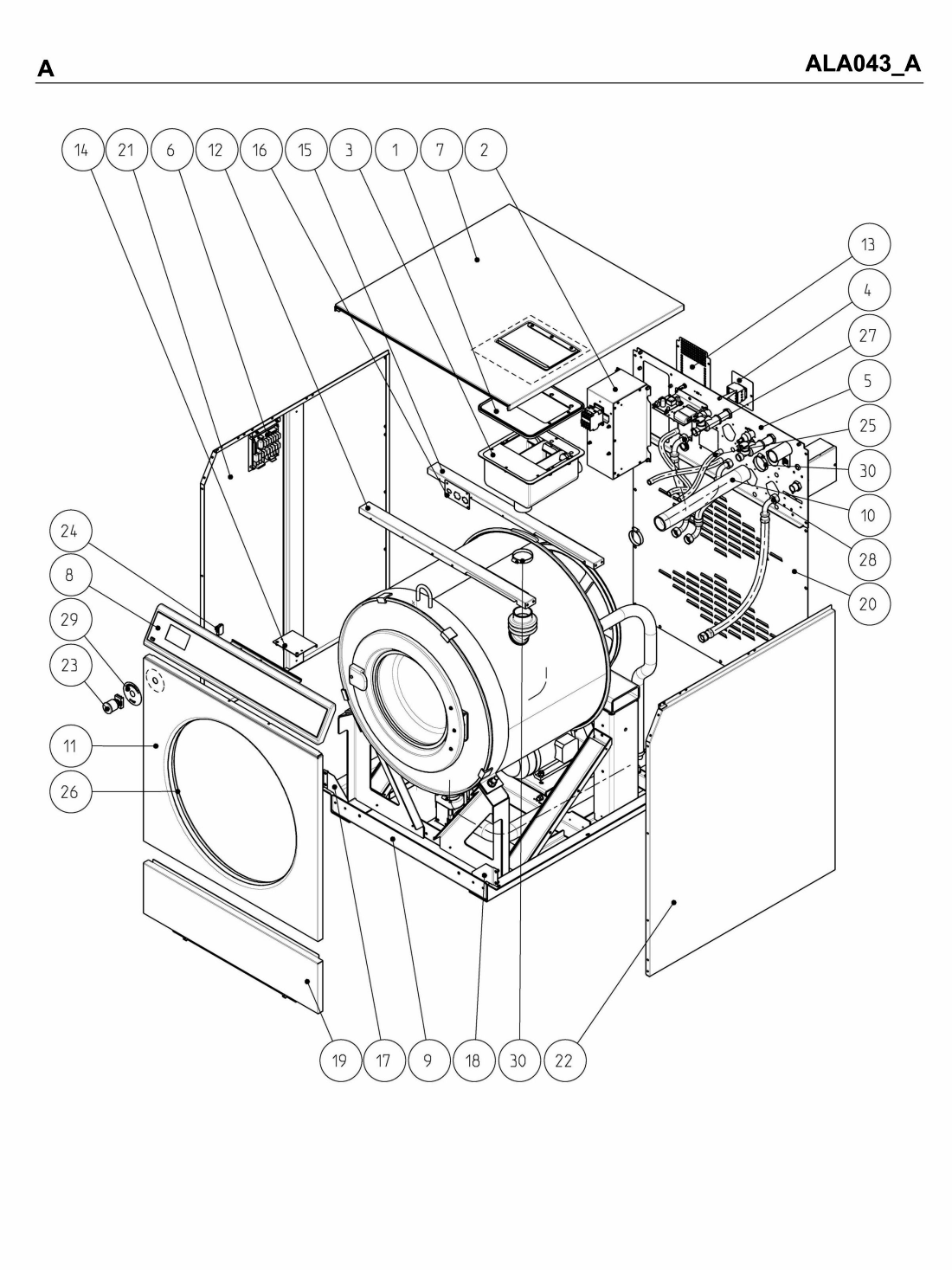

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A01 WHR46800 |
C00422372
483286008188 |
Gasket Soap dispenser | Na dotaz | Zadat poptávku | |
| A02 WHR46800 |
C00416824
482000019861 |
Transf current | Na dotaz | Zadat poptávku | |
| A03 WHR46800 |
C00524572
483286008229 |
Soap dispenser cpl. | Na dotaz | Zadat poptávku | |
| A04 WHR46800 |
C00416825
482000019862 |
Unit pushbutton group | Na dotaz | Zadat poptávku | |
| A05 WHR46800 |
C00416826
482000019863 |
Rear panel | Na dotaz | Zadat poptávku | |
| A06 WHR46800 |
C00416791
482000019819 |
Power unit | Na dotaz | Zadat poptávku | |
| A07 WHR46800 |
C00416827
482000019864 |
Cover | Na dotaz | Zadat poptávku | |
| A08 WHR46800 |
C00416828
482000019865 |
Control cover cpl. | Na dotaz | Zadat poptávku | |
| A09 WHR46800 |
C00416829
482000019866 |
Mechanism | Na dotaz | Zadat poptávku | |
| A10 WHR46800 |
C00524278
483286001147 |
Hose D 48X57 | Na dotaz | Zadat poptávku | |
| A11 WHR46800 |
C00409160
482000005103 |
Front | Na dotaz | Zadat poptávku | |
| A12 WHR46800 |
C00409164
482000005107 |
Support | Na dotaz | Zadat poptávku | |
| A13 WHR46800 |
C00409229
482000005181 |
Cover | Na dotaz | Zadat poptávku | |
| A14 WHR46800 |
C00409153
482000005096 |
Support | Na dotaz | Zadat poptávku | |
| A15 WHR46800 |
C00409154
482000005097 |
Support | Na dotaz | Zadat poptávku | |
| A16 WHR46800 |
C00409155
482000005098 |
Bracket | Na dotaz | Zadat poptávku | |
| A17 WHR46800 |
C00416830
482000019867 |
Holder left | Na dotaz | Zadat poptávku | |
| A18 WHR46800 |
C00416831
482000019868 |
Holder right | Na dotaz | Zadat poptávku | |
| A19 WHR46800 |
C00416832
482000019869 |
Plinth | Na dotaz | Zadat poptávku | |
| A20 WHR46800 |
C00416833
482000019870 |
Rear panel | Na dotaz | Zadat poptávku | |
| A21 WHR46800 |
C00416834
482000019871 |
Side panel left | Na dotaz | Zadat poptávku | |
| A22 WHR46800 |
C00416835
482000019872 |
Side panel right | Na dotaz | Zadat poptávku | |
| A23 WHR46800 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| A24 WHR46800 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| A25 WHR46800 |
C00416797
482000019825 |
Hose 13x19 blue | Na dotaz | Zadat poptávku | |
| A26 WHR46800 |
C00411464
482000009236 |
Gasket | Na dotaz | Zadat poptávku | |
| A27 WHR46800 |
C00524584
483286008258 |
Rubber Tube dm19x26 45cm | Na dotaz | Zadat poptávku | |
| A28 WHR46800 |
C00524585
483286008259 |
Tube silicon DM19x26 105cm | Na dotaz | Zadat poptávku | |
| A29 WHR46800 |
C00409157
482000005100 |
Disc emergency | Na dotaz | Zadat poptávku | |
| A30 WHR46800 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| B01 WHR46800 |
C00421075
483286002927 |
Pillar | Na dotaz | Zadat poptávku | |
| B02 WHR46800 |
C00416836
482000019873 |
Motor cpl. | Na dotaz | Zadat poptávku | |
| B03 WHR46800 |
C00416837
482000019874 |
Window cpl. | Na dotaz | Zadat poptávku | |
| B04 WHR46800 |
C00416838
482000019875 |
Door lock cpl. | Na dotaz | Zadat poptávku | |
| B05 WHR46800 |
C00416839
482000019876 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| B06 WHR46800 |
C00524592
483286008277 |
Cover 3/4 " | Na dotaz | Zadat poptávku | |
| B07 WHR46800 |
C00524593
483286008278 |
Cover protect. Heating | Na dotaz | Zadat poptávku | |
| B08 WHR46800 |
C00524754
483286008598 |
Bushing D 38 | Na dotaz | Zadat poptávku | |
| B09 WHR46800 |
C00524787
483286008737 |
Pulley SPA 500X1 | Na dotaz | Zadat poptávku | |
| B10 WHR46800 |
C00421445
483286003344 |
Ring lower | Na dotaz | Zadat poptávku | |
| B11 WHR46800 |
C00421446
483286003345 |
Ring upper | Na dotaz | Zadat poptávku | |
| B12 WHR46800 |
C00501082
483286008244 |
Bellows | Na dotaz | Zadat poptávku | |
| B13 WHR46800 |
C00421121
483286002981 |
Nozzle | Na dotaz | Zadat poptávku | |
| B14 WHR46800 |
C00409204
482000005156 |
Fastener | Na dotaz | Zadat poptávku | |
| B15 WHR46800 |
C00416840
482000019877 |
Bar motor not shown | Na dotaz | Zadat poptávku | |
| B16 WHR46800 |
C00416841
482000019878 |
Ring packing | Na dotaz | Zadat poptávku | |
| B17 WHR46800 |
C00409194
482000005137 |
Drain piece | Na dotaz | Zadat poptávku | |
| B19 WHR46800 |
C00416842
482000019880 |
Base | Na dotaz | Zadat poptávku | |
| B20 WHR46800 |
C00409200
482000005148 |
Valve | Na dotaz | Zadat poptávku | |
| B21 WHR46800 |
C00501102
483286008518 |
Heating element 4000W 220V | Na dotaz | Zadat poptávku | |
| B22 WHR46800 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B23 WHR46800 |
C00524354
483286001366 |
Tube | Na dotaz | Zadat poptávku | |
| B24 WHR46800 |
C00416843
482000019881 |
Belt driving | Na dotaz | Zadat poptávku | |
| B25 WHR46800 |
C00524594
483286008283 |
O-Ring Silicon | Na dotaz | Zadat poptávku | |
| B26 WHR46800 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| B27 WHR46800 |
C00524648
483286008386 |
Outlet Stud | Na dotaz | Zadat poptávku | |
| B28 WHR46800 |
C00416844
482000019882 |
Reductor | Na dotaz | Zadat poptávku | |
| B29 WHR46800 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| B30 WHR46800 |
C00524598
483286008288 |
Nut self-blocking | Na dotaz | Zadat poptávku | |
| B31 WHR46800 |
C00524599
483286008289 |
Nut M8 | Na dotaz | Zadat poptávku | |
| B32 WHR46800 |
C00524650
483286008389 |
Nut M10 | Na dotaz | Zadat poptávku | |
| B33 WHR46800 |
C00524600
483286008291 |
Clamp fixation 44-56 | Na dotaz | Zadat poptávku | |
| B35 WHR46800 |
C00524601
483286008292 |
Nut M8x20 Cylindr. | Na dotaz | Zadat poptávku | |
| B36 WHR46800 |
C00524726
483286008538 |
Key 10x8x40 | Na dotaz | Zadat poptávku | |
| B37 WHR46800 |
C00524603
483286008294 |
Rosette 8x16 | Na dotaz | Zadat poptávku | |
| B38 WHR46800 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| B39 WHR46800 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
| B40 WHR46800 |
C00524604
483286008295 |
Rosette 16x30 | Na dotaz | Zadat poptávku | |
| B41 WHR46800 |
C00524175
483286000781 |
Screw cap. M8X20 | Na dotaz | Zadat poptávku | |
| B42 WHR46800 |
C00524671
483286008428 |
Screw M10x35 | Na dotaz | Zadat poptávku | |
| B43 WHR46800 |
C00524607
483286008298 |
Screw hexa. M16x60 | Na dotaz | Zadat poptávku | |
| B44 WHR46800 |
C00524728
483286008541 |
Screw M12x50 hexa. | Na dotaz | Zadat poptávku | |
| C01 WHR46800 |
C00581256
483286008559 |
Plate bottom | Na dotaz | Zadat poptávku | |
| C02 WHR46800 |
C00416804
482000019832 |
Hub | Na dotaz | Zadat poptávku | |
| C03 WHR46800 |
C00524676
483286008437 |
Ring,pressure | Na dotaz | Zadat poptávku | |
| C04 WHR46800 |
C00416845
482000019883 |
Drum washing | Na dotaz | Zadat poptávku | |
| C05 WHR46800 |
C00416846
482000019884 |
Container | Na dotaz | Zadat poptávku | |
| C06 WHR46800 |
C00411451
482000009217 |
Seal frontal | Na dotaz | Zadat poptávku | |
| C07 WHR46800 |
C00524681
483286008444 |
Gasket Tub | Na dotaz | Zadat poptávku | |
| C08 WHR46800 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| C09 WHR46800 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| C10 WHR46800 |
C00524741
483286008563 |
Ring,locking SP40 | Na dotaz | Zadat poptávku | |
| C11 WHR46800 |
C00524772
483286008627 |
Ring,locking | Na dotaz | Zadat poptávku | |
| D01 WHR46800 |
C00524685
483286008452 |
Can plug | Na dotaz | Zadat poptávku | |
| D02 WHR46800 |
C00524619
483286008319 |
Nut lock 3/4 " | Na dotaz | Zadat poptávku | |
| D03 WHR46800 |
C00524743
483286008565 |
Rear tub plate | Na dotaz | Zadat poptávku | |
| D04 WHR46800 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| D05 WHR46800 |
C00524687
483286008455 |
Screwed joint 1 1/4 " | Na dotaz | Zadat poptávku | |
| D06 WHR46800 |
C00524688
483286008456 |
Seal 1 1/4 " | Na dotaz | Zadat poptávku | |
| D07 WHR46800 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| D08 WHR46800 |
C00524690
483286008458 |
Cleaner nozzle 1 1/4 " | Na dotaz | Zadat poptávku | |
| D09 WHR46800 |
C00524691
483286008459 |
Rosette 28x40x2 black | Na dotaz | Zadat poptávku | |
| E01 WHR46800 |
C00524774
483286008629 |
Bearing | Na dotaz | Zadat poptávku | |
| E02 WHR46800 |
C00524775
483286008631 |
Bearing,roll | Na dotaz | Zadat poptávku | |
| E03 WHR46800 |
C00524714
483286008505 |
Adapter cylinr. mod.2601-9-1/8 | Na dotaz | Zadat poptávku | |
| E04 WHR46800 |
C00411446
482000009212 |
Hub | Na dotaz | Zadat poptávku | |
| E05 WHR46800 |
C00411447
482000009213 |
Flange | Na dotaz | Zadat poptávku | |
| E06 WHR46800 |
C00411448
482000009214 |
Flange | Na dotaz | Zadat poptávku | |
| E07 WHR46800 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
| E08 WHR46800 |
C00411449
482000009215 |
O-Ring | Na dotaz | Zadat poptávku | |
| E09 WHR46800 |
C00411450
482000009216 |
Seal | Na dotaz | Zadat poptávku | |
| E11 WHR46800 |
C00411452
482000009218 |
Seal flat | Na dotaz | Zadat poptávku | |
| E12 WHR46800 |
C00411453
482000009219 |
Dowel | Na dotaz | Zadat poptávku | |
| E13 WHR46800 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| E14 WHR46800 |
C00524332
483286001264 |
Disc 6X18 | Na dotaz | Zadat poptávku | |
| E15 WHR46800 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| E16 WHR46800 |
C00524608
483286008299 |
Screw hexa.cylind. M6x16 | Na dotaz | Zadat poptávku | |
| F01 WHR46800 |
C00416847
482000019885 |
Support motor | Na dotaz | Zadat poptávku | |
| F02 WHR46800 |
C00416848
482000019886 |
Pulley | Na dotaz | Zadat poptávku | |
| F03 WHR46800 |
C00501108
483286008663 |
Motor XS90-LA4/R641 1,5KW | Na dotaz | Zadat poptávku | |
| F05 WHR46800 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
| G01 WHR46800 |
C00409209
482000005161 |
Door lock | Na dotaz | Zadat poptávku | |
| G02 WHR46800 |
C00409210
482000005162 |
Bracket | Na dotaz | Zadat poptávku | |
| G03 WHR46800 |
C00409211
482000005163 |
Bracket | Na dotaz | Zadat poptávku | |
| G04 WHR46800 |
C00409212
482000005164 |
Sleeve | Na dotaz | Zadat poptávku | |
| G05 WHR46800 |
C00409213
482000005165 |
Can plug | Na dotaz | Zadat poptávku | |
| G06 WHR46800 |
C00416849
482000019887 |
Cover door lock | Na dotaz | Zadat poptávku | |
| G07 WHR46800 |
C00409215
482000005167 |
Screw | Na dotaz | Zadat poptávku | |
| G08 WHR46800 |
C00409216
482000005168 |
Screw | Na dotaz | Zadat poptávku | |
| G09 WHR46800 |
C00409217
482000005169 |
Screw | Na dotaz | Zadat poptávku | |
| H01 WHR46800 |
C00501089
483286008351 |
sklo dveří | 11 551 Kč
€ 460.40 |
||
| H02 WHR46800 |
C00416850
482000019888 |
Swivel door lock | Na dotaz | Zadat poptávku | |
| H03 WHR46800 |
C00409205
482000005157 |
Hinge | Na dotaz | Zadat poptávku | |
| H04 WHR46800 |
C00409206
482000005158 |
Door frame | Na dotaz | Zadat poptávku | |
| H05 WHR46800 |
C00409871
482000006344 |
Pin | Na dotaz | Zadat poptávku | |
| H06 WHR46800 |
C00409872
482000006345 |
Pin | Na dotaz | Zadat poptávku | |
| H07 WHR46800 |
C00409207
482000005159 |
Spacer | Na dotaz | Zadat poptávku | |
| H08 WHR46800 |
C00409208
482000005160 |
Cap | Na dotaz | Zadat poptávku | |
| H09 WHR46800 |
C00501092
483286008357 |
Door bellow | Na dotaz | Zadat poptávku | |
| H10 WHR46800 |
C00409202
482000005152 |
Handle | Na dotaz | Zadat poptávku | |
| H11 WHR46800 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| H13 WHR46800 |
C00524174
483286000779 |
Nut M5 | Na dotaz | Zadat poptávku | |
| H14 WHR46800 |
C00524633
483286008358 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| H15 WHR46800 |
C00524634
483286008359 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| H16 WHR46800 |
C00416851
482000019889 |
Screw M6x16 | Na dotaz | Zadat poptávku | |
| H17 WHR46800 |
C00524637
483286008363 |
Screw socket M6x25 | Na dotaz | Zadat poptávku | |
| I01 WHR46800 |
C00409169
482000005112 |
Front panel | Na dotaz | Zadat poptávku | |
| I02 WHR46800 |
C00409175
482000005118 |
Microprocessor | Na dotaz | Zadat poptávku | |
| I03 WHR46800 |
C00409173
482000005116 |
Cap | Na dotaz | Zadat poptávku | |
| I04 WHR46800 |
C00409174
482000005117 |
Cable | Na dotaz | Zadat poptávku | |
| I05 WHR46800 |
C00416852
482000019890 |
Control board | Na dotaz | Zadat poptávku | |
| I06 WHR46800 |
C00409176
482000005119 |
Support | Na dotaz | Zadat poptávku | |
| I07 WHR46800 |
C00409177
482000005120 |
Screw | Na dotaz | Zadat poptávku | |
| I08 WHR46800 |
C00416853
482000019891 |
Display chart | Na dotaz | Zadat poptávku | |
| I09 WHR46800 |
C00416854
482000019892 |
Gasket tapes | Na dotaz | Zadat poptávku | |
| I10 WHR46800 |
C00409170
482000005113 |
Screw | Na dotaz | Zadat poptávku | |
| I11 WHR46800 |
C00409171
482000005114 |
Screw | Na dotaz | Zadat poptávku | |
| J01 WHR46800 |
C00409149
482000005092 |
Support | Na dotaz | Zadat poptávku | |
| J02 WHR46800 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| J03 WHR46800 |
C00416855
482000019893 |
Power unit | Na dotaz | Zadat poptávku | |
| J04 WHR46800 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| K01 WHR46800 |
C00524626
483286008344 |
Lid washpan | Na dotaz | Zadat poptávku | |
| K02 WHR46800 |
C00524627
483286008345 |
Lamella lid | Na dotaz | Zadat poptávku | |
| K03 WHR46800 |
C00409256
482000005326 |
Cover | Na dotaz | Zadat poptávku | |
| K05 WHR46800 |
C00524779
483286008641 |
Bolt M5 | Na dotaz | Zadat poptávku | |
| K06 WHR46800 |
C00524630
483286008349 |
Screw cylinder M5x12 | Na dotaz | Zadat poptávku | |
| L01 WHR46800 |
C00581245
483286008304 |
Water inlet Group hot water | Na dotaz | Zadat poptávku | |
| L02 WHR46800 |
C00581246
483286008306 |
Water inlet Group cold water | Na dotaz | Zadat poptávku | |
| L03 WHR46800 |
C00416810
482000019838 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| L04 WHR46800 |
C00524620
483286008321 |
Nipple 3/4 " | Na dotaz | Zadat poptávku | |
| L05 WHR46800 |
C00409227
482000005179 |
Support | Na dotaz | Zadat poptávku | |
| L06 WHR46800 |
C00416811
482000019839 |
Cabinet solenoid valve | Na dotaz | Zadat poptávku | |
| L07 WHR46800 |
C00416812
482000019840 |
Cover | Na dotaz | Zadat poptávku | |
| L08 WHR46800 |
C00416856
482000019894 |
Support | Na dotaz | Zadat poptávku | |
| L09 WHR46800 |
C00409230
482000005182 |
Power supplier | Na dotaz | Zadat poptávku | |
| L10 WHR46800 |
C00409231
482000005183 |
Antenna | Na dotaz | Zadat poptávku | |
| L11 WHR46800 |
C00621167
483286008326 |
Valve magnet 3/4 " 240V | Na dotaz | Zadat poptávku | |
| L12 WHR46800 |
C00421101
483286002957 |
Fuse | Na dotaz | Zadat poptávku | |
| L13 WHR46800 |
C00416857
482000019895 |
Module | Na dotaz | Zadat poptávku | |
| L14 WHR46800 |
C00524907
483286009544 |
Cable clamp | Na dotaz | Zadat poptávku | |
| L15 WHR46800 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| L16 WHR46800 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
| L17 WHR46800 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| L18 WHR46800 |
C00524130
483286000684 |
Spacer | Na dotaz | Zadat poptávku | |
| L20 WHR46800 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| L22 WHR46800 |
C00524777
483286008637 |
Screw,selftap 4,2x13 | Na dotaz | Zadat poptávku | |
| L23 WHR46800 |
C00524400
483286001447 |
Tube finale | Na dotaz | Zadat poptávku | |
| M02 WHR46800 |
C00524623
483286008338 |
T-adapter 3/4 " | Na dotaz | Zadat poptávku | |
| M03 WHR46800 |
C00524621
483286008325 |
Pipe 3/4 " x 100 | Na dotaz | Zadat poptávku | |
| M04 WHR46800 |
C00524624
483286008339 |
Valve magnet 1 way 90° 3/4" | Na dotaz | Zadat poptávku | |
| M05 WHR46800 |
C00501088
483286008342 |
Valve magnet 1 way 3/4 " 230V | Na dotaz | Zadat poptávku | |
| N01 WHR46800 |
C00416858
482000019896 |
Nut | Na dotaz | Zadat poptávku | |
| N02 WHR46800 |
C00416859
482000019897 |
Coupling pipe | Na dotaz | Zadat poptávku | |
| N04 WHR46800 |
C00524625
483286008343 |
Valve magnet 2 way 90° 230V | Na dotaz | Zadat poptávku | |
| N05 WHR46800 |
C00416860
482000019898 |
Valve magnet | Na dotaz | Zadat poptávku | |
| O01 WHR46800 |
C00409233
482000005185 |
Box | Na dotaz | Zadat poptávku | |
| O02 WHR46800 |
C00524942
483286009733 |
Connection 4 way | Na dotaz | Zadat poptávku | |
| O03 WHR46800 |
C00421457
483286003358 |
Contactor A 11-30-01 | Na dotaz | Zadat poptávku | |
| O04 WHR46800 |
C00409234
482000005186 |
Connector | Na dotaz | Zadat poptávku | |
| O06 WHR46800 |
C00411459
482000009227 |
Unit control | Na dotaz | Zadat poptávku | |
| O07 WHR46800 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
| O08 WHR46800 |
C00524674
483286008433 |
Washer,spring 5x10 | Na dotaz | Zadat poptávku | |
| O09 WHR46800 |
C00416815
482000019843 |
Screw M5x16 | Na dotaz | Zadat poptávku | |
| P01 WHR46800 |
C00524668
483286008413 |
Holder | Na dotaz | Zadat poptávku | |
| P02 WHR46800 |
C00524667
483286008411 |
Switch OT25 | Na dotaz | Zadat poptávku | |
| P03 WHR46800 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
