| Komerční kód: | AMB 877 AIR CONDITIONERS WP |
| Kód 12NC: | 852887710000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

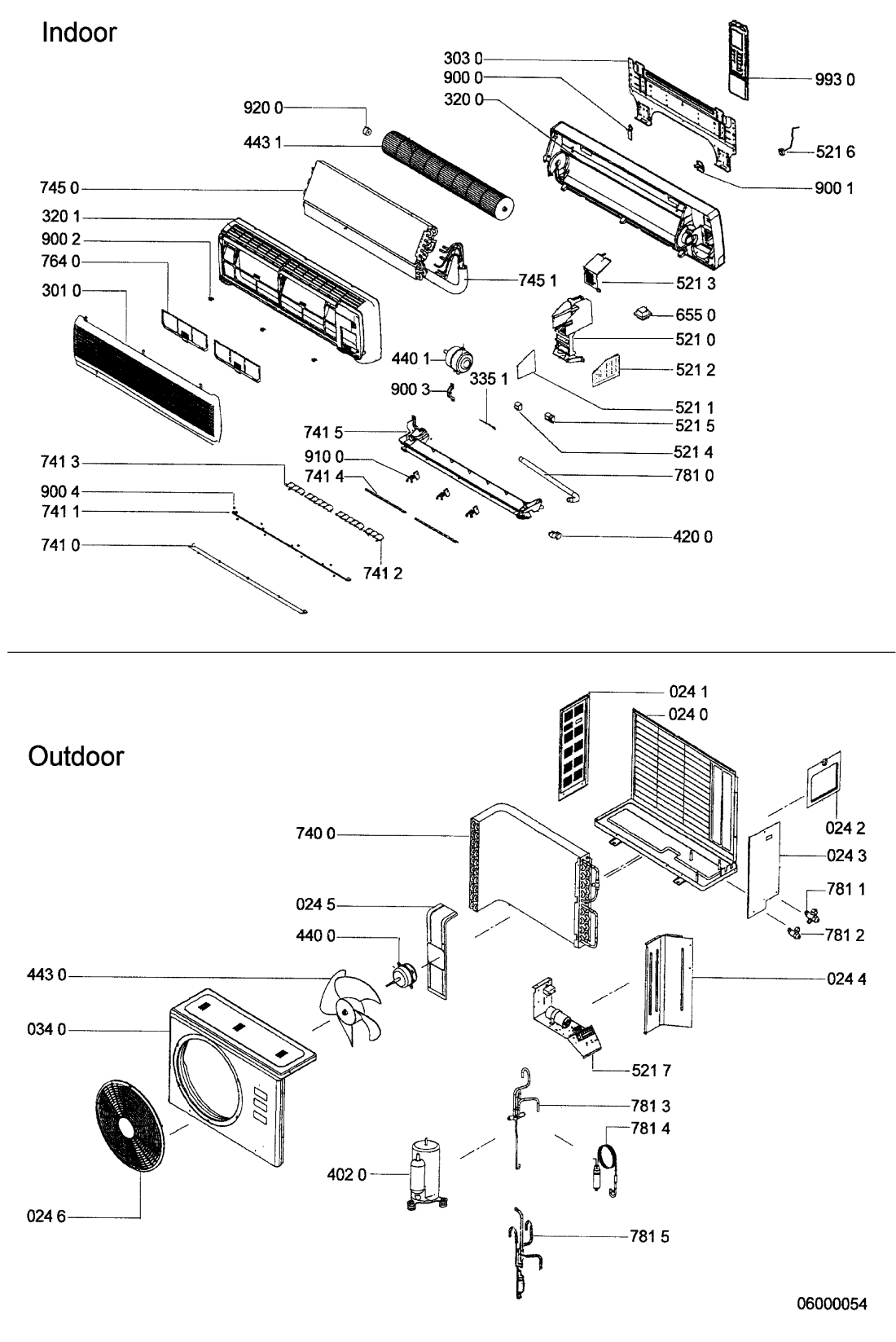

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 024 0 WHR93251 |
C00584208
481246418086 |
Chassis. | Na dotaz | Zadat poptávku | |
| 024 1 WHR93251 |
C00583722
481244048301 |
Cover plate. | Na dotaz | Zadat poptávku | |
| 024 2 WHR93251 |
C00583723
481244048302 |
Cover,top. | Na dotaz | Zadat poptávku | |
| 024 3 WHR93251 |
C00528108
481244048303 |
Cover ,left left | Na dotaz | Zadat poptávku | |
| 024 4 WHR93251 |
C00583734
481244069099 |
Small plate. | Na dotaz | Zadat poptávku | |
| 024 5 WHR93251 |
C00583745
481244218018 |
Bracket. | Na dotaz | Zadat poptávku | |
| 024 6 WHR93251 |
C00583737
481244098086 |
Grille. | Na dotaz | Zadat poptávku | |
| 034 0 WHR93251 |
C00583741
481244138002 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 301 0 WHR93251 |
C00583756
481245310057 |
Front cover. | Na dotaz | Zadat poptávku | |
| 303 0 WHR93251 |
C00583720
481244048297 |
KONZOLA VNUTORNEJ JEDNOTKY | Na dotaz | Zadat poptávku | |
| 320 0 WHR93251 |
C00584207
481246418085 |
Chassis. | Na dotaz | Zadat poptávku | |
| 320 1 WHR93251 |
C00583693
481244010603 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 335 1 WHR93251 |
C00583754
481245288023 |
DISPLAY N | Na dotaz | Zadat poptávku | |
| 402 0 WHR93251 |
C00583599
481236038803 |
Compressor. | Na dotaz | Zadat poptávku | |
| 420 0 WHR93251 |
C00636319
481240488042 |
BRZDA N | Na dotaz | Zadat poptávku | |
| 440 0 WHR93251 |
C00583579
481228048622 |
KONDENZATOR N | Na dotaz | Zadat poptávku | |
| 440 1 WHR93251 |
C00583648
481236138063 |
MOTORCEK VENTILATORA *** N | Na dotaz | Zadat poptávku | |
| 443 0 WHR93251 |
C00583586
481228268029 |
VRTULA VENTILATORA | Na dotaz | Zadat poptávku | |
| 443 1 WHR93251 |
C00621253
481236118353 |
VENTILATOR VONK.JEDNOTKY N | Na dotaz | Zadat poptávku | |
| 521 0 WHR93251 |
C00583721
481244048299 |
elektronika klima. | 824 Kč
€ 32.50 |
||
| 521 1 WHR93251 |
C00583552
481221848028 |
jednotka kontr.klima | 4 492 Kč
€ 177.20 |
||
| 521 2 WHR93251 |
C00583553
481221848029 |
jednotka napajeci | 2 057 Kč
€ 81.10 |
||
| 521 3 WHR93251 |
C00635774
481244048298 |
Panel left. | Na dotaz | Zadat poptávku | |
| 521 4 WHR93251 |
C00583373
481245279732 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 5 WHR93251 |
C00620290
481228078007 |
Terminal Board (3pu) indoor | Na dotaz | Zadat poptávku | |
| 521 6 WHR93251 |
C00495873
481221058027 |
TERMOREGULATOR N | Na dotaz | Zadat poptávku | |
| 521 7 WHR93251 |
C00499753
481221848031 |
Unit electrical assembly | Na dotaz | Zadat poptávku | |
| 655 0 WHR93251 |
C00635789
481204868001 |
TRANSFORMATOR | 768 Kč
€ 30.30 |
||
| 740 0 WHR93251 |
C00584240
481251148295 |
Condenser. | Na dotaz | Zadat poptávku | |
| 741 0 WHR93251 |
C00500800
481240488044 |
Batten | Na dotaz | Zadat poptávku | |
| 741 1 WHR93251 |
C00500801
481240488045 |
Batten | Na dotaz | Zadat poptávku | |
| 741 2 WHR93251 |
C00584217
481246678404 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 3 WHR93251 |
C00584216
481246678403 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 4 WHR93251 |
C00583679
481240488043 |
Batten left | Na dotaz | Zadat poptávku | |
| 741 5 WHR93251 |
C00583752
481244508008 |
Tray leak. | Na dotaz | Zadat poptávku | |
| 745 0 WHR93251 |
C00584229
481251138203 |
Evaporator ,assy. | Na dotaz | Zadat poptávku | |
| 745 1 WHR93251 |
C00527432
481236068465 |
Pipe ,assy assy | Na dotaz | Zadat poptávku | |
| 764 0 WHR93251 |
C00621644
481248028061 |
filtr vzduchovy | 10 289 Kč
€ 405.80 |
||
| 781 0 WHR93251 |
C00583156
481236068466 |
HADICA | Na dotaz | Zadat poptávku | |
| 781 1 WHR93251 |
C00529908
481253038032 |
Valve 3 way 3 way | Na dotaz | Zadat poptávku | |
| 781 2 WHR93251 |
C00583466
481253038022 |
Valve. | Na dotaz | Zadat poptávku | |
| 781 3 WHR93251 |
C00146149
481253038033 |
MOUNTING RUBBER | Na dotaz | Zadat poptávku | |
| 781 4 WHR93251 |
C00583627
481236068467 |
Capillary tube. | Na dotaz | Zadat poptávku | |
| 781 5 WHR93251 |
C00583153
481236058317 |
Coil ,4 way | Na dotaz | Zadat poptávku | |
| 900 0 WHR93251 |
C00583658
481240418377 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 1 WHR93251 |
C00636041
481240418378 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 2 WHR93251 |
C00584274
481256018062 |
Screw. | Na dotaz | Zadat poptávku | |
| 900 3 WHR93251 |
C00584258
481252648125 |
Ring. | Na dotaz | Zadat poptávku | |
| 900 4 WHR93251 |
C00620391
481240448817 |
drzak vrtule ventil. | 42 Kč
€ 1.70 |
||
| 910 0 WHR93251 |
C00583660
481240418379 |
Support. | Na dotaz | Zadat poptávku | |
| 920 0 WHR93251 |
C00621258
481252008033 |
LOZISKO GULICKOVE | Na dotaz | Zadat poptávku | |
| 993 0 WHR93251 |
C00583484
481269028028 |
OVLADANIE DIALKOVE AC N | Na dotaz | Zadat poptávku | |
| 999 WHR93251 |
C00761251 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
