WHIRLPOOL AMB 878 ROOM AIR CONDITIONER WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMB 878 ROOM AIR CONDITIONER WP |
| Kód 12NC: | 852887810000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

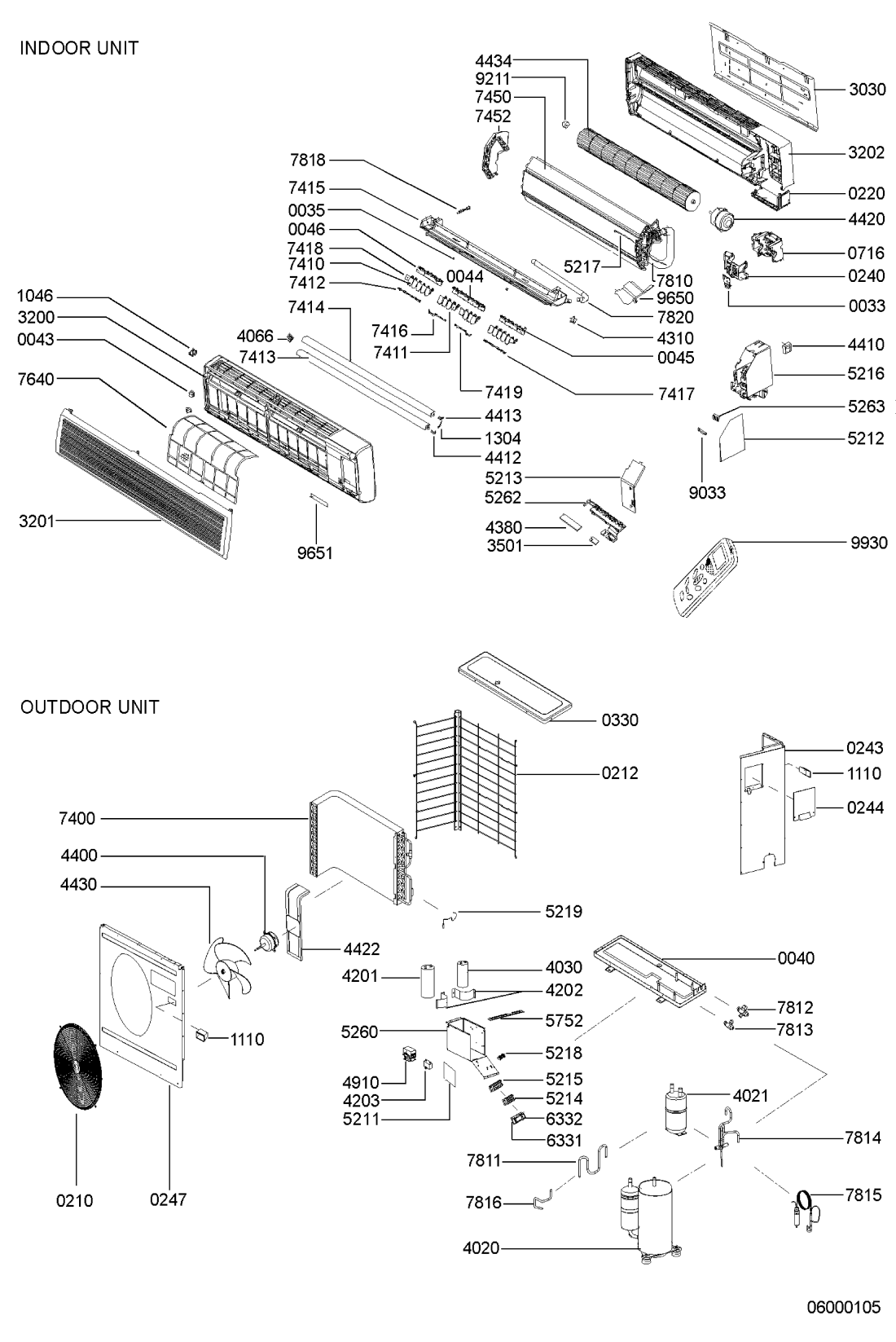

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 3 WHR93253 |
C00401831
481240418493 |
Bracket | Na dotaz | Zadat poptávku | |
| 003 5 WHR93253 |
C00401948
481240449574 |
Bearing | Na dotaz | Zadat poptávku | |
| 004 0 WHR93253 |
C00584211
481246418161 |
Chassis | Na dotaz | Zadat poptávku | |
| 004 3 WHR93253 |
C00401949
481240449575 |
Clamp | Na dotaz | Zadat poptávku | |
| 004 4 WHR93253 |
C00402196
481240488094 |
Batten | Na dotaz | Zadat poptávku | |
| 004 5 WHR93253 |
C00402197
481240488095 |
Batten | Na dotaz | Zadat poptávku | |
| 004 6 WHR93253 |
C00402198
481240488096 |
,atten | Na dotaz | Zadat poptávku | |
| 021 0 WHR93253 |
C00500846
481244069279 |
Cover front | Na dotaz | Zadat poptávku | |
| 021 2 WHR93253 |
C00583762
481246228227 |
Cover | Na dotaz | Zadat poptávku | |
| 022 0 WHR93253 |
C00403350
481244048378 |
Corner piece | Na dotaz | Zadat poptávku | |
| 024 0 WHR93253 |
C00404943
481246418178 |
Cover | Na dotaz | Zadat poptávku | |
| 024 3 WHR93253 |
C00500792
481240448766 |
Bracket | Na dotaz | Zadat poptávku | |
| 024 4 WHR93253 |
C00386235
481246228229 |
Cover rear | Na dotaz | Zadat poptávku | |
| 024 7 WHR93253 |
C00403351
481244048379 |
kryt | 3 273 Kč
€ 129.10 |
||
| 033 0 WHR93253 |
C00583761
481246228226 |
Cover | Na dotaz | Zadat poptávku | |
| 071 6 WHR93253 |
C00401950
481240449576 |
Support Motor | Na dotaz | Zadat poptávku | |
| 104 6 WHR93253 |
C00401951
481240449577 |
Fastener | Na dotaz | Zadat poptávku | |
| 111 0 WHR93253 |
C00584226
481249858202 |
Handle | Na dotaz | Zadat poptávku | |
| 130 4 WHR93253 |
C00401952
481240449578 |
Link | Na dotaz | Zadat poptávku | |
| 303 0 WHR93253 |
C00403352
481244048381 |
Plate,mounting | Na dotaz | Zadat poptávku | |
| 320 0 WHR93253 |
C00403353
481244048382 |
Cabinet | Na dotaz | Zadat poptávku | |
| 320 1 WHR93253 |
C00403354
481244048383 |
Grille | Na dotaz | Zadat poptávku | |
| 320 2 WHR93253 |
C00403355
481244048384 |
Cabinet | Na dotaz | Zadat poptávku | |
| 350 1 WHR93253 |
C00400682
481221848115 |
Receiver | Na dotaz | Zadat poptávku | |
| 402 0 WHR93253 |
C00401380
481236038977 |
Compressor | Na dotaz | Zadat poptávku | |
| 402 1 WHR93253 |
C00399875
481213818013 |
Accumulator | Na dotaz | Zadat poptávku | |
| 403 0 WHR93253 |
C00401363
481236018555 |
Capacitor | Na dotaz | Zadat poptávku | |
| 406 6 WHR93253 |
C00401953
481240449579 |
Support Motor | Na dotaz | Zadat poptávku | |
| 420 1 WHR93253 |
C00401379
481236038976 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 2 WHR93253 |
C00495088
481252648202 |
Ring,adjusting | Na dotaz | Zadat poptávku | |
| 420 3 WHR93253 |
C00583542
481212158144 |
Capacitor | Na dotaz | Zadat poptávku | |
| 431 0 WHR93253 |
C00399684
481202858354 |
Motor | 1 494 Kč
€ 58.90 |
||
| 438 0 WHR93253 |
C00405016
481246469145 |
Display | Na dotaz | Zadat poptávku | |
| 440 0 WHR93253 |
C00399685
481202858355 |
Motor,fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR93253 |
C00635789
481204868001 |
TRANSFORMATOR | 768 Kč
€ 30.30 |
||
| 441 2 WHR93253 |
C00401832
481240418494 |
Rocker | Na dotaz | Zadat poptávku | |
| 441 3 WHR93253 |
C00401833
481240418495 |
Rocker | Na dotaz | Zadat poptávku | |
| 442 0 WHR93253 |
C00399686
481202858356 |
Motor,fan | Na dotaz | Zadat poptávku | |
| 442 2 WHR93253 |
C00583667
481240448767 |
Bracket | Na dotaz | Zadat poptávku | |
| 443 0 WHR93253 |
C00500778
481236118423 |
VENTILATOR | Na dotaz | Zadat poptávku | |
| 443 4 WHR93253 |
C00401644
481236118499 |
Fan | Na dotaz | Zadat poptávku | |
| 491 0 WHR93253 |
C00505492
481221458214 |
kondenzator | 4 254 Kč
€ 167.80 |
||
| 521 1 WHR93253 |
C00400686
481221848119 |
Moduł do klimatyzatora | Na dotaz | Zadat poptávku | |
| 521 2 WHR93253 |
C00400684
481221848117 |
Control board | Na dotaz | Zadat poptávku | |
| 521 3 WHR93253 |
C00404944
481246418179 |
Cover | Na dotaz | Zadat poptávku | |
| 521 4 WHR93253 |
C00636018
481221848078 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 521 5 WHR93253 |
C00583545
481219628007 |
Terminal block | Na dotaz | Zadat poptávku | |
| 521 6 WHR93253 |
C00400683
481221848116 |
Electronic box | Na dotaz | Zadat poptávku | |
| 521 7 WHR93253 |
C00495873
481221058027 |
TERMOREGULATOR N | Na dotaz | Zadat poptávku | |
| 521 8 WHR93253 |
C00583367
481245228152 |
Connectionblock (3PS) | Na dotaz | Zadat poptávku | |
| 521 9 WHR93253 |
C00481255
481228208612 |
senzor | 1 858 Kč
€ 73.30 |
||
| 526 0 WHR93253 |
C00400685
481221848118 |
Electronic box | Na dotaz | Zadat poptávku | |
| 526 2 WHR93253 |
C00401954
481240449581 |
Holder relay | Na dotaz | Zadat poptávku | |
| 526 3 WHR93253 |
C00400687
481221848121 |
Terminal Board 4PU | Na dotaz | Zadat poptávku | |
| 575 2 WHR93253 |
C00401269
481231618029 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 633 1 WHR93253 |
C00636040
481240118614 |
Clamp | Na dotaz | Zadat poptávku | |
| 633 2 WHR93253 |
C00583506
481240418393 |
Clamp | Na dotaz | Zadat poptávku | |
| 740 0 WHR93253 |
C00405486
481251148407 |
Condenser | Na dotaz | Zadat poptávku | |
| 741 0 WHR93253 |
C00405051
481246638095 |
Deflector | Na dotaz | Zadat poptávku | |
| 741 1 WHR93253 |
C00405052
481246638096 |
Deflector mid | Na dotaz | Zadat poptávku | |
| 741 2 WHR93253 |
C00401955
481240449582 |
Link Lamella, left side | Na dotaz | Zadat poptávku | |
| 741 3 WHR93253 |
C00403356
481244048385 |
Deflector | Na dotaz | Zadat poptávku | |
| 741 4 WHR93253 |
C00403357
481244048386 |
Deflector | Na dotaz | Zadat poptávku | |
| 741 5 WHR93253 |
C00403358
481244048387 |
Drain strip | Na dotaz | Zadat poptávku | |
| 741 6 WHR93253 |
C00401956
481240449583 |
Link Lamella | Na dotaz | Zadat poptávku | |
| 741 7 WHR93253 |
C00401958
481240449585 |
Link Lamella | Na dotaz | Zadat poptávku | |
| 741 8 WHR93253 |
C00401959
481240449586 |
Lamella | Na dotaz | Zadat poptávku | |
| 741 9 WHR93253 |
C00401957
481240449584 |
Link Lamella | Na dotaz | Zadat poptávku | |
| 745 0 WHR93253 |
C00405452
481251138307 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 2 WHR93253 |
C00404981
481246419339 |
Side panel Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR93253 |
C00405173
481248028101 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 781 0 WHR93253 |
C00401531
481236068757 |
Pipe | Na dotaz | Zadat poptávku | |
| 781 1 WHR93253 |
C00130965
481236058379 |
FIXING BRACKET GR300-1 | Na dotaz | Zadat poptávku | |
| 781 2 WHR93253 |
C00481269
481236058377 |
ventil | 2 580 Kč
€ 101.80 |
||
| 781 3 WHR93253 |
C00481270
481236058378 |
Valve | Na dotaz | Zadat poptávku | |
| 781 4 WHR93253 |
C00401528
481236068754 |
Suction pipe | Na dotaz | Zadat poptávku | |
| 781 5 WHR93253 |
C00401532
481236068758 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 781 6 WHR93253 |
C00401527
481236068753 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 781 8 WHR93253 |
C00404744
481246228739 |
Plug Spout | Na dotaz | Zadat poptávku | |
| 782 0 WHR93253 |
C00401530
481236068756 |
Drain hose | Na dotaz | Zadat poptávku | |
| 903 3 WHR93253 |
C00401960
481240449587 |
Fastener | Na dotaz | Zadat poptávku | |
| 921 1 WHR93253 |
C00401834
481240418496 |
Bearing | Na dotaz | Zadat poptávku | |
| 965 0 WHR93253 |
C00402199
481240488097 |
Deflector | Na dotaz | Zadat poptávku | |
| 965 1 WHR93253 |
C00404745
481246228741 |
Cover | Na dotaz | Zadat poptávku | |
| 993 0 WHR93253 |
C00633194
481269028033 |
DIALKOVY OVLADAC | Na dotaz | Zadat poptávku | |
| 999 WHR93253 |
C00761254 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
