| Komerční kód: | AMB 887 AIR CONDITIONERS WP |
| Kód 12NC: | 852888710000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

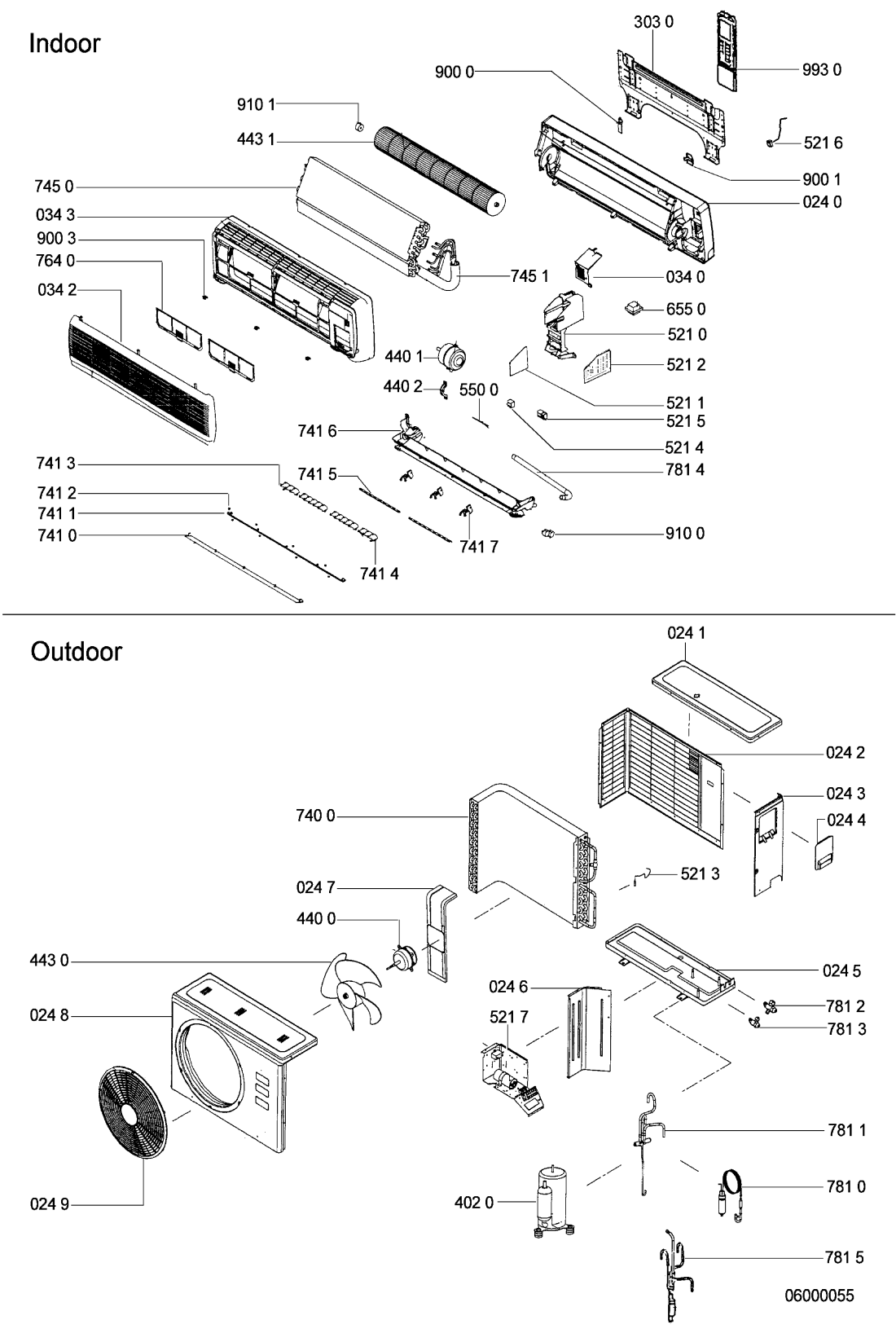

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 024 0 WHR62940 |
C00584207
481246418085 |
Chassis. | Na dotaz | Zadat poptávku | |
| 024 1 WHR62940 |
C00383493
481244048304 |
Cover plate | Na dotaz | Zadat poptávku | |
| 024 2 WHR62940 |
C00583724
481244048305 |
Housing. | Na dotaz | Zadat poptávku | |
| 024 3 WHR62940 |
C00496251
481244010604 |
Small plate,sid | Na dotaz | Zadat poptávku | |
| 024 4 WHR62940 |
C00583725
481244048306 |
Cover | Na dotaz | Zadat poptávku | |
| 024 5 WHR62940 |
C00636336
481246418087 |
Chassis. | Na dotaz | Zadat poptávku | |
| 024 6 WHR62940 |
C00583694
481244010605 |
Cover. | Na dotaz | Zadat poptávku | |
| 024 7 WHR62940 |
C00811021
481240418381 |
CONTROL PANEL WHITE | Na dotaz | Zadat poptávku | |
| 024 8 WHR62940 |
C00620302
481244138003 |
Cabinet | Na dotaz | Zadat poptávku | |
| 024 9 WHR62940 |
C00584257
481252518012 |
Guide | Na dotaz | Zadat poptávku | |
| 034 0 WHR62940 |
C00635774
481244048298 |
Panel left. | Na dotaz | Zadat poptávku | |
| 034 2 WHR62940 |
C00583756
481245310057 |
Front cover. | Na dotaz | Zadat poptávku | |
| 034 3 WHR62940 |
C00583693
481244010603 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 303 0 WHR62940 |
C00583720
481244048297 |
KONZOLA VNUTORNEJ JEDNOTKY | Na dotaz | Zadat poptávku | |
| 402 0 WHR62940 |
C00583600
481236038804 |
KOMPRESOR ROTACNY SHV33 | Na dotaz | Zadat poptávku | |
| 440 0 WHR62940 |
C00633192
481236138065 |
ventilator klim. | Na dotaz | Zadat poptávku | |
| 440 1 WHR62940 |
C00583649
481236138064 |
Motor fan. | Na dotaz | Zadat poptávku | |
| 440 2 WHR62940 |
C00584258
481252648125 |
Ring. | Na dotaz | Zadat poptávku | |
| 443 0 WHR62940 |
C00527451
481236118354 |
Ventilator | Na dotaz | Zadat poptávku | |
| 443 1 WHR62940 |
C00621253
481236118353 |
VENTILATOR VONK.JEDNOTKY N | Na dotaz | Zadat poptávku | |
| 521 0 WHR62940 |
C00583721
481244048299 |
elektronika klima. | 824 Kč
€ 32.50 |
||
| 521 1 WHR62940 |
C00583554
481221848032 |
JEDNOTKA KONTROLNA *** N | Na dotaz | Zadat poptávku | |
| 521 2 WHR62940 |
C00583553
481221848029 |
jednotka napajeci | 2 057 Kč
€ 81.10 |
||
| 521 3 WHR62940 |
C00635997
481221058026 |
TERMOREGULATOR | 1 746 Kč
€ 68.90 |
||
| 521 4 WHR62940 |
C00583373
481245279732 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 5 WHR62940 |
C00583502
481228078006 |
OVLADACIA JEDNOTKA | Na dotaz | Zadat poptávku | |
| 521 6 WHR62940 |
C00495873
481221058027 |
TERMOREGULATOR N | Na dotaz | Zadat poptávku | |
| 521 7 WHR62940 |
C00583555
481221848033 |
MODUL ELEKTRO N | Na dotaz | Zadat poptávku | |
| 550 0 WHR62940 |
C00583754
481245288023 |
DISPLAY N | Na dotaz | Zadat poptávku | |
| 655 0 WHR62940 |
C00635789
481204868001 |
TRANSFORMATOR | 768 Kč
€ 30.30 |
||
| 740 0 WHR62940 |
C00584241
481251148296 |
Condenser. | Na dotaz | Zadat poptávku | |
| 741 0 WHR62940 |
C00500800
481240488044 |
Batten | Na dotaz | Zadat poptávku | |
| 741 1 WHR62940 |
C00500801
481240488045 |
Batten | Na dotaz | Zadat poptávku | |
| 741 2 WHR62940 |
C00620391
481240448817 |
drzak vrtule ventil. | 42 Kč
€ 1.70 |
||
| 741 3 WHR62940 |
C00584216
481246678403 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 4 WHR62940 |
C00584217
481246678404 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 5 WHR62940 |
C00583679
481240488043 |
Batten left | Na dotaz | Zadat poptávku | |
| 741 6 WHR62940 |
C00583752
481244508008 |
Tray leak. | Na dotaz | Zadat poptávku | |
| 741 7 WHR62940 |
C00583660
481240418379 |
Support. | Na dotaz | Zadat poptávku | |
| 745 0 WHR62940 |
C00584229
481251138203 |
Evaporator ,assy. | Na dotaz | Zadat poptávku | |
| 745 1 WHR62940 |
C00527432
481236068465 |
Pipe ,assy assy | Na dotaz | Zadat poptávku | |
| 764 0 WHR62940 |
C00621644
481248028061 |
filtr vzduchovy | 10 289 Kč
€ 405.80 |
||
| 781 0 WHR62940 |
C00583628
481236068468 |
Capillary tube. | Na dotaz | Zadat poptávku | |
| 781 1 WHR62940 |
C00553390
481236058321 |
Valve ,4 way | Na dotaz | Zadat poptávku | |
| 781 2 WHR62940 |
C00620293
481236058318 |
Valve ,3 way | Na dotaz | Zadat poptávku | |
| 781 3 WHR62940 |
C00620294
481236058319 |
Valve ,2 way | Na dotaz | Zadat poptávku | |
| 781 4 WHR62940 |
C00583156
481236068466 |
HADICA | Na dotaz | Zadat poptávku | |
| 781 5 WHR62940 |
C00583504
481236058316 |
Valve 4 Way Valve Coil | Na dotaz | Zadat poptávku | |
| 900 0 WHR62940 |
C00583658
481240418377 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 1 WHR62940 |
C00636041
481240418378 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 3 WHR62940 |
C00584274
481256018062 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 0 WHR62940 |
C00636319
481240488042 |
BRZDA N | Na dotaz | Zadat poptávku | |
| 910 1 WHR62940 |
C00621258
481252008033 |
LOZISKO GULICKOVE | Na dotaz | Zadat poptávku | |
| 993 0 WHR62940 |
C00583484
481269028028 |
OVLADANIE DIALKOVE AC N | Na dotaz | Zadat poptávku | |
| 999 WHR62940 |
C00678950 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
