| Komerční kód: | AMC 986 AIR CONDITIONERS WP |
| Kód 12NC: | 852898610000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

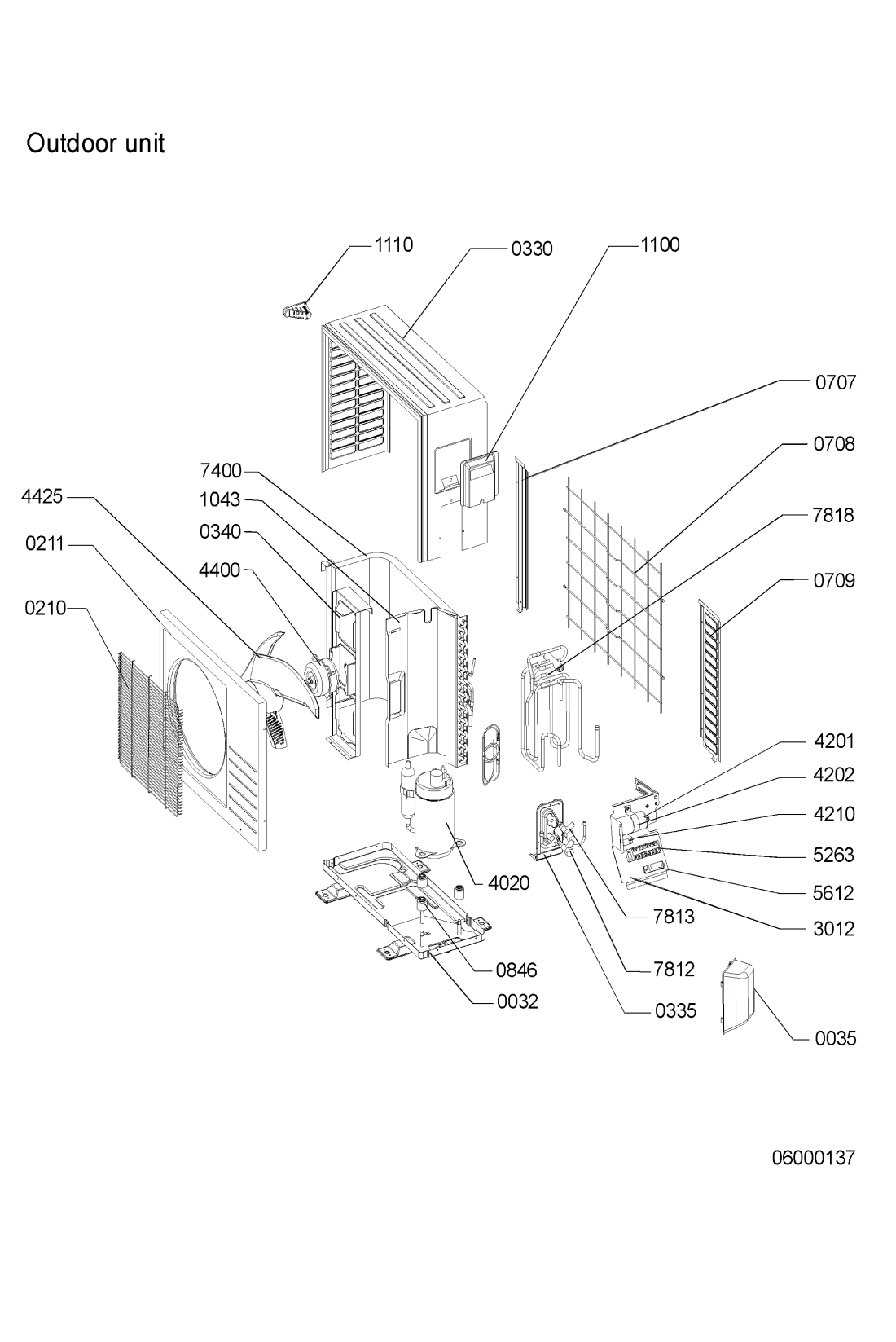

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 2 WHR55917 |
C00403411
481244048451 |
Plate bottom | Na dotaz | Zadat poptávku | |
| 003 3 WHR55917 |
C00403397
481244048433 |
spona | 111 Kč
€ 4.40 |
||
| 003 5 WHR55917 |
C00404774
481246228833 |
Cover | Na dotaz | Zadat poptávku | |
| 021 0 WHR55917 |
C00404410
481245848401 |
Grille | Na dotaz | Zadat poptávku | |
| 021 1 WHR55917 |
C00403412
481244048452 |
Front,panel | Na dotaz | Zadat poptávku | |
| 024 0 WHR55917 |
C00403399
481244048435 |
Cover | Na dotaz | Zadat poptávku | |
| 033 0 WHR55917 |
C00403413
481244048453 |
Panel,top | Na dotaz | Zadat poptávku | |
| 033 5 WHR55917 |
C00402097
481240468072 |
Fastener | Na dotaz | Zadat poptávku | |
| 034 0 WHR55917 |
C00402001
481240449674 |
Support Motor | Na dotaz | Zadat poptávku | |
| 070 7 WHR55917 |
C00403414
481244048454 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 070 8 WHR55917 |
C00403415
481244048455 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 070 9 WHR55917 |
C00403416
481244048456 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 084 6 WHR55917 |
C00404930
481246368031 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 104 3 WHR55917 |
C00403417
481244048457 |
Separator | Na dotaz | Zadat poptávku | |
| 110 0 WHR55917 |
C00405339
481249818689 |
rukojeť | 56 Kč
€ 2.20 |
||
| 111 0 WHR55917 |
C00405340
481249818691 |
Handle | Na dotaz | Zadat poptávku | |
| 231 2 WHR55917 |
C00404960
481246418205 |
kryt | 299 Kč
€ 11.80 |
||
| 232 2 WHR55917 |
C00377781
481245238235 |
Cover | Na dotaz | Zadat poptávku | |
| 301 2 WHR55917 |
C00400698
481221848139 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 303 0 WHR55917 |
C00378566
481244048443 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 320 1 WHR55917 |
C00403396
481244048432 |
kryt | 1 970 Kč
€ 77.70 |
||
| 320 2 WHR55917 |
C00403406
481244048444 |
držák | 564 Kč
€ 22.20 |
||
| 320 3 WHR55917 |
C00380360
481244048445 |
držák | 903 Kč
€ 35.60 |
||
| 324 5 WHR55917 |
C00377728
481244528053 |
navaděč vzduchu | 149 Kč
€ 5.90 |
||
| 350 0 WHR55917 |
C00403407
481244048446 |
Cover | Na dotaz | Zadat poptávku | |
| 350 1 WHR55917 |
C00377464
481221479946 |
Display | Na dotaz | Zadat poptávku | |
| 350 2 WHR55917 |
C00403408
481244048447 |
Cover | Na dotaz | Zadat poptávku | |
| 350 5 WHR55917 |
C00403409
481244048448 |
Cover | Na dotaz | Zadat poptávku | |
| 350 6 WHR55917 |
C00403410
481244048449 |
Cover | Na dotaz | Zadat poptávku | |
| 402 0 WHR55917 |
C00401393
481236039026 |
Compressor 2P16S225ANA | Na dotaz | Zadat poptávku | |
| 420 1 WHR55917 |
C00399727
481212018027 |
Capacitor , Compressor | Na dotaz | Zadat poptávku | |
| 420 2 WHR55917 |
C00402000
481240449673 |
Bracket | Na dotaz | Zadat poptávku | |
| 421 0 WHR55917 |
C00399744
481212108253 |
Motor | 111 Kč
€ 4.40 |
||
| 440 0 WHR55917 |
C00401717
481236138122 |
Motor,fan | Na dotaz | Zadat poptávku | |
| 440 5 WHR55917 |
C00403695
481244508025 |
Grille | Na dotaz | Zadat poptávku | |
| 441 0 WHR55917 |
C00377402
481214838016 |
Transformer | Na dotaz | Zadat poptávku | |
| 441 2 WHR55917 |
C00404773
481246228832 |
Cover | Na dotaz | Zadat poptávku | |
| 442 0 WHR55917 |
C00377595
481236158453 |
Motor fan indoor | Na dotaz | Zadat poptávku | |
| 442 5 WHR55917 |
C00401028
481228678007 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR55917 |
C00399691
481202858369 |
Steppin motor | 189 Kč
€ 7.50 |
||
| 443 4 WHR55917 |
C00377553
481228678006 |
Fan indoor | Na dotaz | Zadat poptávku | |
| 481 0 WHR55917 |
C00401333
481232128471 |
Cable | Na dotaz | Zadat poptávku | |
| 493 0 WHR55917 |
C00404340
481245388073 |
Cover | Na dotaz | Zadat poptávku | |
| 521 2 WHR55917 |
C00400605
481221479947 |
Control box | Na dotaz | Zadat poptávku | |
| 521 7 WHR55917 |
C00378552
481223708024 |
Sensor temper. pipe | Na dotaz | Zadat poptávku | |
| 521 8 WHR55917 |
C00377425
481221458365 |
Sensor pipe | Na dotaz | Zadat poptávku | |
| 526 0 WHR55917 |
C00399768
481212398003 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 526 3 WHR55917 |
C00401086
481229088105 |
Terminal block | Na dotaz | Zadat poptávku | |
| 526 4 WHR55917 |
C00377426
481221458368 |
Control board | Na dotaz | Zadat poptávku | |
| 561 2 WHR55917 |
C00401038
481229028023 |
Clamp,fixation | Na dotaz | Zadat poptávku | |
| 561 7 WHR55917 |
C00401087
481229088106 |
Terminal block | Na dotaz | Zadat poptávku | |
| 701 1 WHR55917 |
C00401056
481229068327 |
Pipe | Na dotaz | Zadat poptávku | |
| 740 0 WHR55917 |
C00405496
481251148427 |
Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR55917 |
C00405458
481251138334 |
Evaporator | Na dotaz | Zadat poptávku | |
| 750 3 WHR55917 |
C00400850
481226278035 |
Cap | Na dotaz | Zadat poptávku | |
| 751 0 WHR55917 |
C00404961
481246418206 |
hadice | Na dotaz | Zadat poptávku | |
| 764 0 WHR55917 |
C00405249
481248058383 |
filtr | 44 Kč
€ 1.70 |
||
| 764 1 WHR55917 |
C00405248
481248058382 |
filtr | 44 Kč
€ 1.70 |
||
| 781 2 WHR55917 |
C00399851
481213598934 |
Valve 3/8 on-off | Na dotaz | Zadat poptávku | |
| 781 3 WHR55917 |
C00377398
481213598935 |
Valve 1/4 on-off | Na dotaz | Zadat poptávku | |
| 781 8 WHR55917 |
C00399852
481213598936 |
Valve 4-WAY | Na dotaz | Zadat poptávku | |
| 782 0 WHR55917 |
C00399916
481217088013 |
Drainhose | Na dotaz | Zadat poptávku | |
| 910 4 WHR55917 |
C00405157
481246818369 |
Cover | Na dotaz | Zadat poptávku | |
| 921 1 WHR55917 |
C00405546
481252008037 |
Bearing | Na dotaz | Zadat poptávku | |
| 993 0 WHR55917 |
C00377388
481201408001 |
Remote control | Na dotaz | Zadat poptávku | |
| 999 WHR55917 |
C00667252 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
