| Komerční kód: | AMC 992/1 ECO RANGE SPLIT |
| Kód 12NC: | 852899210010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

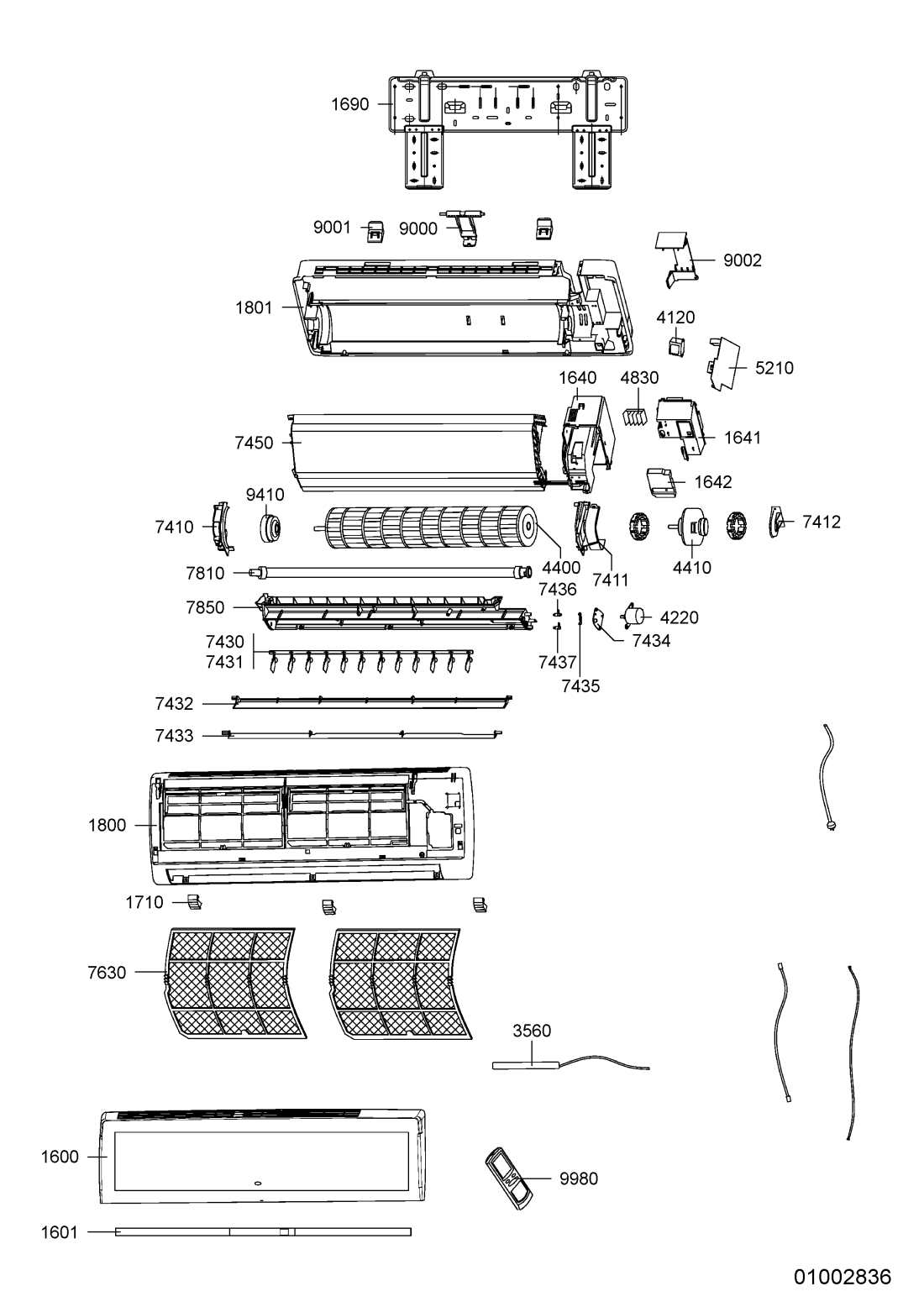

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 160 0 WHR50781 |
C00395380
480150100693 |
Panel front | Na dotaz | Zadat poptávku | |
| 160 1 WHR50781 |
C00404512
481245938096 |
Trim | Na dotaz | Zadat poptávku | |
| 160 5 WHR50781 |
C00396051
480150101527 |
Panel front | Na dotaz | Zadat poptávku | |
| 162 5 WHR50781 |
C00396052
480150101528 |
Side panel right | Na dotaz | Zadat poptávku | |
| 163 5 WHR50781 |
C00403453
481244048498 |
Cover top | Na dotaz | Zadat poptávku | |
| 164 0 WHR50781 |
C00401090
481229088111 |
Kryt | 479 Kč
€ 18.90 |
||
| 164 1 WHR50781 |
C00404039
481245298336 |
kryt elektronika | 489 Kč
€ 19.30 |
||
| 164 2 WHR50781 |
C00400731
481222438033 |
Cover electronic box | Na dotaz | Zadat poptávku | |
| 164 5 WHR50781 |
C00396053
480150101529 |
Electronic box assem | Na dotaz | Zadat poptávku | |
| 169 0 WHR50781 |
C00402141
481240478833 |
Bracket | Na dotaz | Zadat poptávku | |
| 171 0 WHR50781 |
C00405159
481246818373 |
Cover | Na dotaz | Zadat poptávku | |
| 174 0 WHR50781 |
C00401461
481236058551 |
Valve 1/4 | Na dotaz | Zadat poptávku | |
| 174 1 WHR50781 |
C00401472
481236058563 |
Valve 1/2 | Na dotaz | Zadat poptávku | |
| 174 5 WHR50781 |
C00396054
480150101531 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 180 0 WHR50781 |
C00403455
481244048501 |
Cover front | Na dotaz | Zadat poptávku | |
| 180 1 WHR50781 |
C00403448
481244048493 |
Panel rear | Na dotaz | Zadat poptávku | |
| 182 5 WHR50781 |
C00401808
481240118847 |
Support valve | Na dotaz | Zadat poptávku | |
| 184 5 WHR50781 |
C00396055
480150101532 |
Base | Na dotaz | Zadat poptávku | |
| 186 5 WHR50781 |
C00405373
481249858224 |
Handle | Na dotaz | Zadat poptávku | |
| 189 5 WHR50781 |
C00396056
480150101533 |
Grid air front | Na dotaz | Zadat poptávku | |
| 189 6 WHR50781 |
C00395378
480150100691 |
Grid air rear | Na dotaz | Zadat poptávku | |
| 356 0 WHR50781 |
C00377476
481221848141 |
Receiver | 1 688 Kč
€ 66.60 |
||
| 402 0 WHR50781 |
C00396057
480150101534 |
Compressor | Na dotaz | Zadat poptávku | |
| 412 0 WHR50781 |
C00399893
481214288039 |
Transformer 48X26G | Na dotaz | Zadat poptávku | |
| 420 5 WHR50781 |
C00399746
481212108255 |
Capacitor motor | Na dotaz | Zadat poptávku | |
| 420 6 WHR50781 |
C00399758
481212158164 |
KONDENZATOR | Na dotaz | Zadat poptávku | |
| 422 0 WHR50781 |
C00401720
481236138128 |
Motor | 580 Kč
€ 22.90 |
||
| 440 0 WHR50781 |
C00405528
481251518024 |
Fan | Na dotaz | Zadat poptávku | |
| 440 5 WHR50781 |
C00395385
480150100698 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 441 0 WHR50781 |
C00377587
481236138131 |
Motor FN8H pro klimatizace Whirlpool | 1 617 Kč
€ 63.80 |
||
| 441 5 WHR50781 |
C00316176
481236138132 |
Motor ventilátoru vnější jednotky klimatizace | 2 256 Kč
€ 89.00 |
||
| 463 5 WHR50781 |
C00396058
480150101535 |
Partition | Na dotaz | Zadat poptávku | |
| 483 0 WHR50781 |
C00399769
481212398004 |
svorkovnice | 1 830 Kč
€ 72.20 |
||
| 483 5 WHR50781 |
C00395387
480150100701 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 483 6 WHR50781 |
C00399770
481212398005 |
Terminal Board T386A | Na dotaz | Zadat poptávku | |
| 521 0 WHR50781 |
C00377437
481221470052 |
Power control board | Na dotaz | Zadat poptávku | |
| 571 0 WHR50781 |
C00401471
481236058562 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 571 1 WHR50781 |
C00399868
481213598956 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 740 0 WHR50781 |
C00396059
480150101536 |
Condenser | Na dotaz | Zadat poptávku | |
| 741 0 WHR50781 |
C00401859
481240418545 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 741 1 WHR50781 |
C00401860
481240418546 |
Clamp fixation motor right | Na dotaz | Zadat poptávku | |
| 741 2 WHR50781 |
C00402014
481240449704 |
Bearing holder | Na dotaz | Zadat poptávku | |
| 741 5 WHR50781 |
C00396060
480150101537 |
Support Motor fan | Na dotaz | Zadat poptávku | |
| 743 0 WHR50781 |
C00402204
481240488104 |
Konzole vnitřní jednotky klimatizace | 86 Kč
€ 3.40 |
||
| 743 1 WHR50781 |
C00400725
481222318445 |
Lever | Na dotaz | Zadat poptávku | |
| 743 2 WHR50781 |
C00403707
481244528059 |
Lamella | Na dotaz | Zadat poptávku | |
| 743 3 WHR50781 |
C00403706
481244528058 |
Guide | Na dotaz | Zadat poptávku | |
| 743 4 WHR50781 |
C00395388
480150100702 |
Clamp Air guide | Na dotaz | Zadat poptávku | |
| 743 5 WHR50781 |
C00395389
480150100703 |
Air guide | Na dotaz | Zadat poptávku | |
| 743 6 WHR50781 |
C00395390
480150100704 |
Air guide upper | Na dotaz | Zadat poptávku | |
| 743 7 WHR50781 |
C00395391
480150100705 |
Air guide lower | Na dotaz | Zadat poptávku | |
| 745 0 WHR50781 |
C00395397
480150100712 |
Evaporator | Na dotaz | Zadat poptávku | |
| 763 0 WHR50781 |
C00406002
481258038018 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 781 0 WHR50781 |
C00405997
481254828063 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 781 5 WHR50781 |
C00405996
481254828057 |
Drain piece | Na dotaz | Zadat poptávku | |
| 785 0 WHR50781 |
C00403047
481241848917 |
ZLAB | Na dotaz | Zadat poptávku | |
| 900 0 WHR50781 |
C00405971
481253288086 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 1 WHR50781 |
C00402013
481240449703 |
Hook | Na dotaz | Zadat poptávku | |
| 900 2 WHR50781 |
C00401861
481240418549 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 941 0 WHR50781 |
C00405551
481252048011 |
Ložiskový kroužek | 184 Kč
€ 7.30 |
||
| 998 0 WHR50781 |
C00377389
481201408002 |
ovladac dalkovy | Na dotaz | Zadat poptávku | |
