WHIRLPOOL AMD 003 AIR CONDITIONERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 003 AIR CONDITIONERS WP |
| Kód 12NC: | 853000301000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

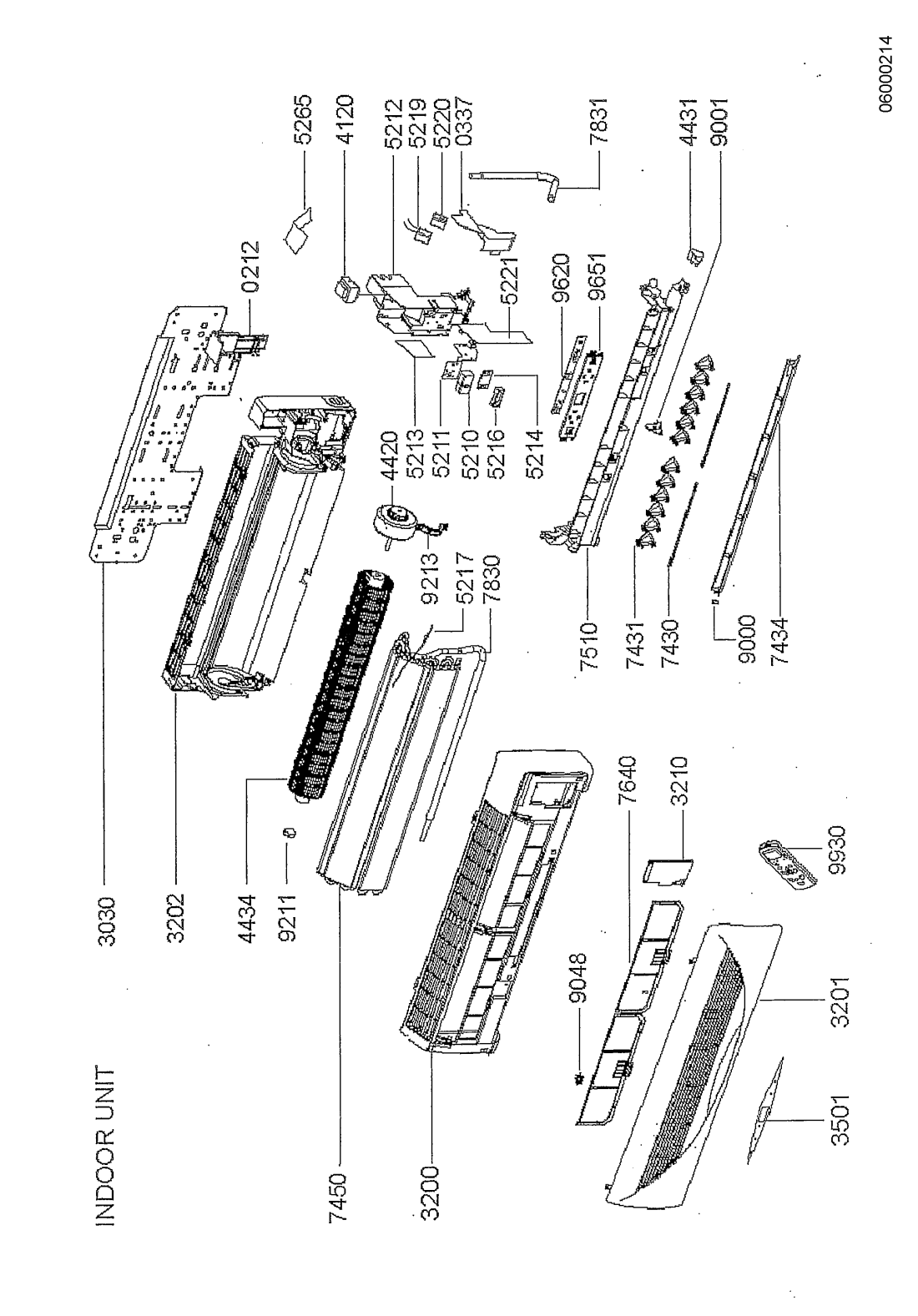

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 6 WHR55921 |
C00403495
481244048558 |
Support | Na dotaz | Zadat poptávku | |
| 021 0 WHR55921 |
C00403490
481244048553 |
Grille front | Na dotaz | Zadat poptávku | |
| 021 1 WHR55921 |
C00403491
481244048554 |
Cover front | Na dotaz | Zadat poptávku | |
| 021 2 WHR55921 |
C00401964
481240449592 |
Clamp fixation Chassis | Na dotaz | Zadat poptávku | |
| 033 0 WHR55921 |
C00403492
481244048555 |
Cover top | Na dotaz | Zadat poptávku | |
| 033 2 WHR55921 |
C00403493
481244048556 |
Panel right | Na dotaz | Zadat poptávku | |
| 033 3 WHR55921 |
C00394841
480150100026 |
Base | Na dotaz | Zadat poptávku | |
| 033 4 WHR55921 |
C00403494
481244048557 |
Grille rear | Na dotaz | Zadat poptávku | |
| 033 5 WHR55921 |
C00403496
481244048559 |
Panel insulatin | Na dotaz | Zadat poptávku | |
| 033 7 WHR55921 |
C00583354
481244158002 |
Cover plate | Na dotaz | Zadat poptávku | |
| 033 8 WHR55921 |
C00583505
481240418376 |
Bracket | Na dotaz | Zadat poptávku | |
| 034 0 WHR55921 |
C00401900
481240418642 |
Motor Support | Na dotaz | Zadat poptávku | |
| 303 0 WHR55921 |
C00620394
481240478587 |
Bracket | Na dotaz | Zadat poptávku | |
| 320 0 WHR55921 |
C00403365
481244048395 |
Cabinet | Na dotaz | Zadat poptávku | |
| 320 1 WHR55921 |
C00403366
481244048396 |
Cover front | Na dotaz | Zadat poptávku | |
| 320 2 WHR55921 |
C00583229
481240438697 |
Chassis | Na dotaz | Zadat poptávku | |
| 321 0 WHR55921 |
C00394819
480150100002 |
Cover protect. | Na dotaz | Zadat poptávku | |
| 350 1 WHR55921 |
C00405017
481246469146 |
Display | Na dotaz | Zadat poptávku | |
| 402 0 WHR55921 |
C00394842
480150100027 |
Compressor | Na dotaz | Zadat poptávku | |
| 412 0 WHR55921 |
C00394820
480150100003 |
Transformer | Na dotaz | Zadat poptávku | |
| 420 0 WHR55921 |
C00394843
480150100028 |
Capacitor Compressor | Na dotaz | Zadat poptávku | |
| 420 1 WHR55921 |
C00394822
480150100005 |
Capacitor Ventilator | Na dotaz | Zadat poptávku | |
| 420 2 WHR55921 |
C00583081
481221838261 |
Ring,adjusting | Na dotaz | Zadat poptávku | |
| 440 0 WHR55921 |
C00394823
480150100006 |
Motor fan Outdoor | Na dotaz | Zadat poptávku | |
| 442 0 WHR55921 |
C00394824
480150100007 |
Motor fan Indoor | Na dotaz | Zadat poptávku | |
| 443 0 WHR55921 |
C00405536
481251518035 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 443 1 WHR55921 |
C00394825
480150100008 |
Motor | Na dotaz | Zadat poptávku | |
| 443 4 WHR55921 |
C00620378
481236118386 |
Ventilator | 3 428 Kč
€ 135.30 |
||
| 521 0 WHR55921 |
C00394826
480150100009 |
Terminal Board 5PU | Na dotaz | Zadat poptávku | |
| 521 1 WHR55921 |
C00394827
480150100011 |
Support Clamp | Na dotaz | Zadat poptávku | |
| 521 2 WHR55921 |
C00394828
480150100012 |
Electronic box | Na dotaz | Zadat poptávku | |
| 521 3 WHR55921 |
C00394844
480150100029 |
Control board | Na dotaz | Zadat poptávku | |
| 521 4 WHR55921 |
C00394830
480150100014 |
Clamp cable lower | Na dotaz | Zadat poptávku | |
| 521 6 WHR55921 |
C00394831
480150100015 |
Clamp cable upper | Na dotaz | Zadat poptávku | |
| 521 7 WHR55921 |
C00394832
480150100016 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
| 521 8 WHR55921 |
C00635997
481221058026 |
TERMOREGULATOR | 1 746 Kč
€ 68.90 |
||
| 521 9 WHR55921 |
C00583671
481240448958 |
Clamp Cable | Na dotaz | Zadat poptávku | |
| 522 0 WHR55921 |
C00394835
480150100019 |
Terminal Board 3PS | Na dotaz | Zadat poptávku | |
| 522 1 WHR55921 |
C00394834
480150100018 |
Power unit | Na dotaz | Zadat poptávku | |
| 526 0 WHR55921 |
C00400432
481221470906 |
Electric plate | Na dotaz | Zadat poptávku | |
| 526 5 WHR55921 |
C00401098
481229088124 |
Electronic box | Na dotaz | Zadat poptávku | |
| 740 0 WHR55921 |
C00394845
480150100031 |
Condenser | Na dotaz | Zadat poptávku | |
| 743 0 WHR55921 |
C00583256
481240488058 |
Batten | Na dotaz | Zadat poptávku | |
| 743 1 WHR55921 |
C00584218
481246678429 |
Deflector | Na dotaz | Zadat poptávku | |
| 743 4 WHR55921 |
C00402200
481240488098 |
Link | Na dotaz | Zadat poptávku | |
| 745 0 WHR55921 |
C00405480
481251138399 |
Evaporator | Na dotaz | Zadat poptávku | |
| 751 0 WHR55921 |
C00404947
481246418183 |
Drain strip | Na dotaz | Zadat poptávku | |
| 764 0 WHR55921 |
C00405180
481248028108 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 781 0 WHR55921 |
C00401501
481236058628 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| 781 1 WHR55921 |
C00394836
480150100021 |
Coil Valve 4-WAY | Na dotaz | Zadat poptávku | |
| 781 2 WHR55921 |
C00386125
481236058434 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| 781 5 WHR55921 |
C00394846
480150100032 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 781 9 WHR55921 |
C00583210
481240418375 |
Bracket | Na dotaz | Zadat poptávku | |
| 782 0 WHR55921 |
C00620299
481236058432 |
Valve | Na dotaz | Zadat poptávku | |
| 783 0 WHR55921 |
C00394847
480150100033 |
Pipe | Na dotaz | Zadat poptávku | |
| 783 1 WHR55921 |
C00583637
481236068698 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 900 0 WHR55921 |
C00620391
481240448817 |
drzak vrtule ventil. | 42 Kč
€ 1.70 |
||
| 900 1 WHR55921 |
C00583666
481240438742 |
Support | Na dotaz | Zadat poptávku | |
| 904 8 WHR55921 |
C00404752
481246228782 |
Cover Screw | Na dotaz | Zadat poptávku | |
| 921 1 WHR55921 |
C00583215
481240418403 |
Bearing | Na dotaz | Zadat poptávku | |
| 921 3 WHR55921 |
C00583451
481252648123 |
Ring | Na dotaz | Zadat poptávku | |
| 962 0 WHR55921 |
C00394838
480150100023 |
displej | 2 145 Kč
€ 84.70 |
||
| 965 1 WHR55921 |
C00394839
480150100024 |
Cover Display board | Na dotaz | Zadat poptávku | |
| 993 0 WHR55921 |
C00394840
480150100025 |
Ovládač dálkový | Na dotaz | Zadat poptávku | |
| 999 0 WHR55921 |
C00405179
481248028107 |
Filter | Na dotaz | Zadat poptávku | |
| 999 1 WHR55921 |
C00405178
481248028106 |
Filter | Na dotaz | Zadat poptávku | |
| 999 2 WHR55921 |
C00404537
481246049661 |
Frame | Na dotaz | Zadat poptávku | |
| 999 3 WHR55921 |
C00404486
481245918263 |
Nameplate | Na dotaz | Zadat poptávku | |
