WHIRLPOOL AMD 037 AIR CONDITIONERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 037 AIR CONDITIONERS WP |
| Kód 12NC: | 853003701000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

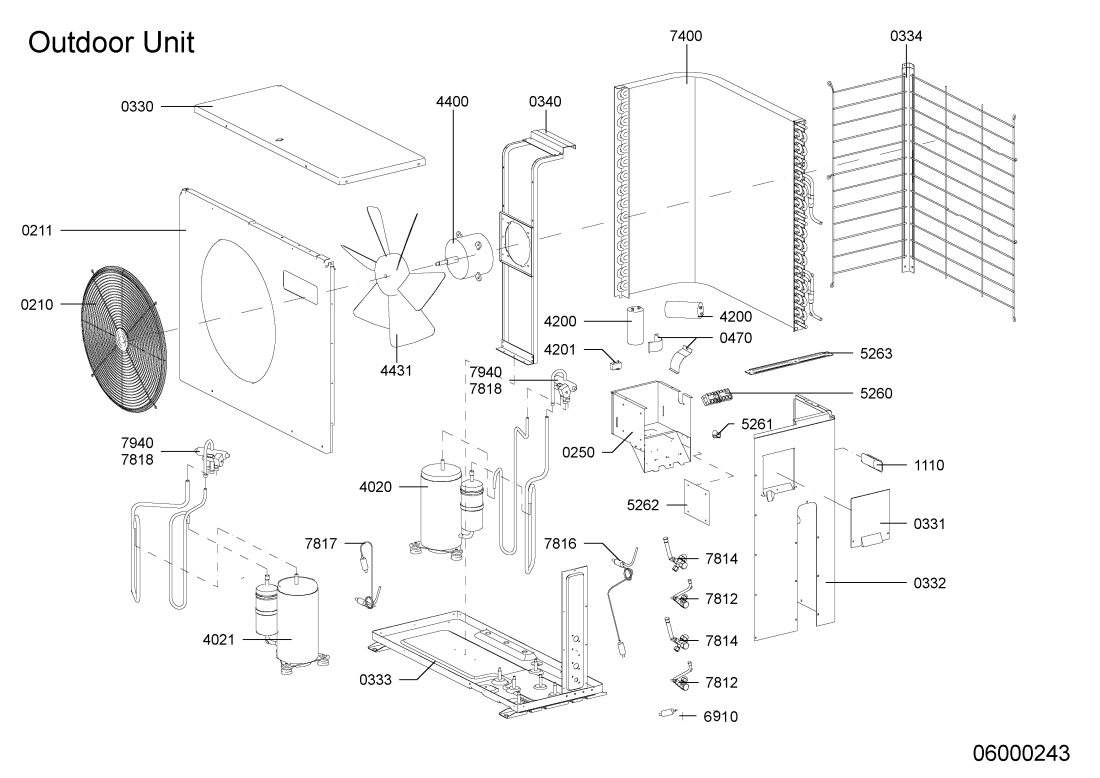

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0210 WHR22005 |
C00403501
481244048565 |
Grille Fan wheel | Na dotaz | Zadat poptávku | |
| 0211 WHR22005 |
C00395063
480150100313 |
Cover front | Na dotaz | Zadat poptávku | |
| 0212 WHR22005 |
C00395064
480150100314 |
Cover Chassis | Na dotaz | Zadat poptávku | |
| 0250 WHR22005 |
C00401105
481229088132 |
Electronic box | Na dotaz | Zadat poptávku | |
| 0330 WHR22005 |
C00403503
481244048567 |
Cover | Na dotaz | Zadat poptávku | |
| 0331 WHR22005 |
C00404847
481246229431 |
Cover plate Electronic box | Na dotaz | Zadat poptávku | |
| 0332 WHR22005 |
C00405010
481246448261 |
Side panel | Na dotaz | Zadat poptávku | |
| 0333 WHR22005 |
C00395065
480150100315 |
Base | Na dotaz | Zadat poptávku | |
| 0334 WHR22005 |
C00403504
481244048568 |
Grille rear | Na dotaz | Zadat poptávku | |
| 0340 WHR22005 |
C00401904
481240418646 |
Motor Support | Na dotaz | Zadat poptávku | |
| 0470 WHR22005 |
C00402195
481240478951 |
Holder Capacitor | Na dotaz | Zadat poptávku | |
| 1110 WHR22005 |
C00386185
481249818794 |
Cover Handle | Na dotaz | Zadat poptávku | |
| 3030 WHR22005 |
C00402193
481240478948 |
Bracket | Na dotaz | Zadat poptávku | |
| 3200 WHR22005 |
C00395092
480150100346 |
Cabinet | Na dotaz | Zadat poptávku | |
| 3201 WHR22005 |
C00395093
480150100347 |
Panel front | Na dotaz | Zadat poptávku | |
| 3202 WHR22005 |
C00395068
480150100318 |
Chassis | Na dotaz | Zadat poptávku | |
| 3210 WHR22005 |
C00395094
480150100348 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 3501 WHR22005 |
C00395095
480150100349 |
Panel Display board | Na dotaz | Zadat poptávku | |
| 3502 WHR22005 |
C00400441
481221470965 |
Display | Na dotaz | Zadat poptávku | |
| 4020 WHR22005 |
C00377575
481236039096 |
Compressor 9K | Na dotaz | Zadat poptávku | |
| 4021 WHR22005 |
C00401420
481236039097 |
Compressor 12K | Na dotaz | Zadat poptávku | |
| 4120 WHR22005 |
C00399897
481214288179 |
Transformer | Na dotaz | Zadat poptávku | |
| 4200 WHR22005 |
C00394950
480150100166 |
Kompresorový kondenzátor | Na dotaz | Zadat poptávku | |
| 4201 WHR22005 |
C00395032
480150100272 |
Capacitor Motor Ventilator | Na dotaz | Zadat poptávku | |
| 4205 WHR22005 |
C00401110
481229088137 |
connector 3PS | Na dotaz | Zadat poptávku | |
| 4400 WHR22005 |
C00377590
481236138149 |
Motor venkovního ventilátoru | 5 340 Kč
€ 210.60 |
||
| 4410 WHR22005 |
C00395070
480150100321 |
Steppin motor | Na dotaz | Zadat poptávku | |
| 4420 WHR22005 |
C00394951
480150100167 |
Motor Ventilator | Na dotaz | Zadat poptávku | |
| 4420 WHR22005 |
C00416677
482000019491 |
Motor Ventilator | Na dotaz | Zadat poptávku | |
| 4431 WHR22005 |
C00405537
481251518036 |
vrtule | 2 238 Kč
€ 88.30 |
||
| 4434 WHR22005 |
C00395071
480150100322 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| 5212 WHR22005 |
C00395072
480150100323 |
Electronic box | Na dotaz | Zadat poptávku | |
| 5213 WHR22005 |
C00395073
480150100324 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| 5214 WHR22005 |
C00394990
480150100218 |
Clamp | Na dotaz | Zadat poptávku | |
| 5216 WHR22005 |
C00401045
481229028031 |
Clamp | Na dotaz | Zadat poptávku | |
| 5221 WHR22005 |
C00395089
480150100343 |
Control board | Na dotaz | Zadat poptávku | |
| 5260 WHR22005 |
C00401112
481229088138 |
Connector | Na dotaz | Zadat poptávku | |
| 5261 WHR22005 |
C00401043
481229028028 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 5262 WHR22005 |
C00401109
481229088136 |
Control board Outdoor | Na dotaz | Zadat poptávku | |
| 5263 WHR22005 |
C00401106
481229088133 |
Connection Pl | Na dotaz | Zadat poptávku | |
| 6910 WHR22005 |
C00411114
482000008523 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 7400 WHR22005 |
C00395075
480150100326 |
Condenser | Na dotaz | Zadat poptávku | |
| 7430 WHR22005 |
C00395076
480150100327 |
Batten | Na dotaz | Zadat poptávku | |
| 7431 WHR22005 |
C00395077
480150100328 |
Deflector | Na dotaz | Zadat poptávku | |
| 7432 WHR22005 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 7434 WHR22005 |
C00395096
480150100351 |
Batten | Na dotaz | Zadat poptávku | |
| 7450 WHR22005 |
C00395079
480150100331 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7510 WHR22005 |
C00395097
480150100352 |
Drain strip | Na dotaz | Zadat poptávku | |
| 7640 WHR22005 |
C00395081
480150100333 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 7641 WHR22005 |
C00395082
480150100334 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 7810 WHR22005 |
C00405999
481254828065 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 7812 WHR22005 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| 7814 WHR22005 |
C00377579
481236058638 |
Valve 3-way | Na dotaz | Zadat poptávku | |
| 7816 WHR22005 |
C00395090
480150100344 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 7817 WHR22005 |
C00395091
480150100345 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 7818 WHR22005 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 7820 WHR22005 |
C00377871
481253008019 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 7940 WHR22005 |
C00401510
481236058641 |
Coil Valve | Na dotaz | Zadat poptávku | |
| 9030 WHR22005 |
C00395086
480150100339 |
Cap | Na dotaz | Zadat poptávku | |
| 9031 WHR22005 |
C00395004
480150100236 |
Cap | Na dotaz | Zadat poptávku | |
| 9211 WHR22005 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| 9213 WHR22005 |
C00402194
481240478949 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| 9214 WHR22005 |
C00394930
480150100137 |
Support Clamp | Na dotaz | Zadat poptávku | |
| 9215 WHR22005 |
C00395098
480150100353 |
Bracket Sensor | Na dotaz | Zadat poptávku | |
| 9620 WHR22005 |
C00395055
480150100302 |
Cover Display board | Na dotaz | Zadat poptávku | |
| 9651 WHR22005 |
C00395099
480150100354 |
Display board | Na dotaz | Zadat poptávku | |
| 9930 WHR22005 |
C00377008
480150100309 |
Dálkové ovládání | Na dotaz | Zadat poptávku | |
