| Komerční kód: | AMD 066 |
| Kód 12NC: | 853006601000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

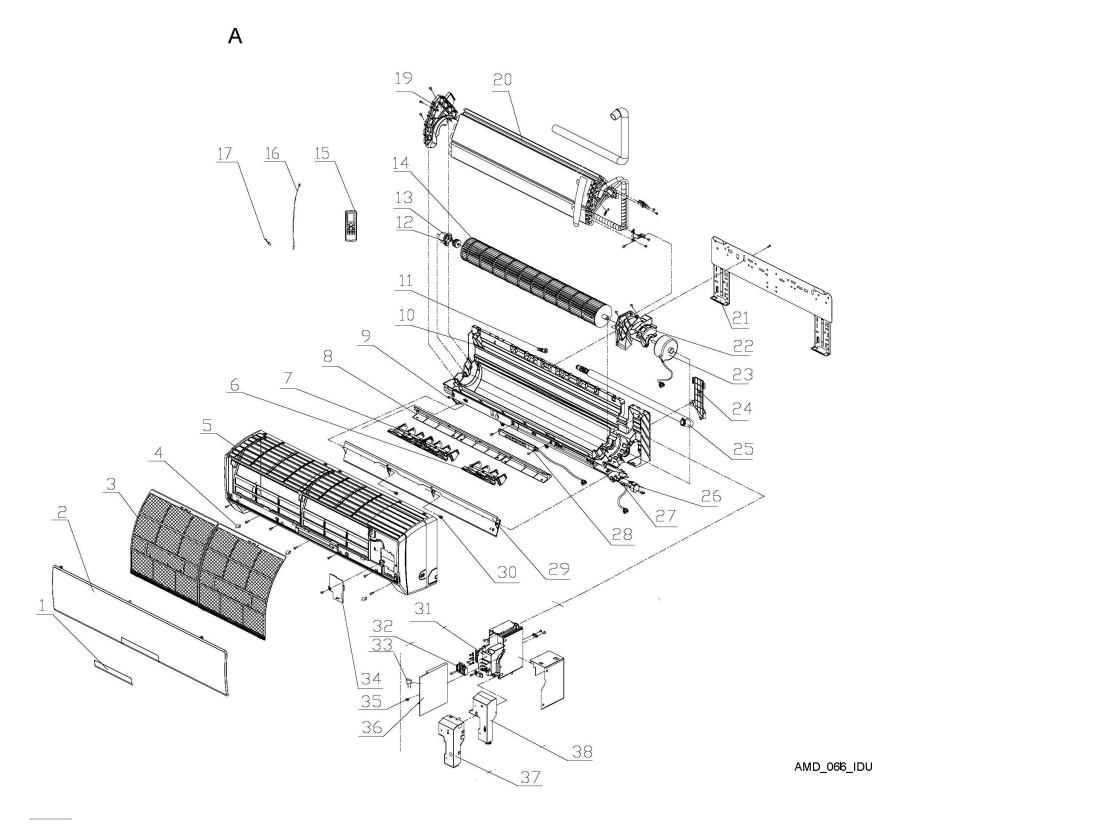

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR45044 |
C00634385 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR45044 |
C00634386 | NTC WHP | Na dotaz | Zadat poptávku | |
| A13 WHR45044 |
C00395590
480150100934 |
Bearing | Na dotaz | Zadat poptávku | |
| A14 WHR45044 |
C00409380
482000005476 |
Fan | Na dotaz | Zadat poptávku | |
| A15 WHR45044 |
C00378216
482000005394 |
Remote control | Na dotaz | Zadat poptávku | |
| A16 WHR45044 |
C00399947
481221058071 |
senzor | 283 Kč
€ 11.20 |
||
| A17 WHR45044 |
C00409540
482000005679 |
Sensor temper. Ambient | Na dotaz | Zadat poptávku | |
| A19 WHR45044 |
C00409306
482000005398 |
Evaporatorflap Traeger | Na dotaz | Zadat poptávku | |
| A20 WHR45044 |
C00410737
482000007864 |
Evaporator cpl. | Na dotaz | Zadat poptávku | |
| A21 WHR45044 |
C00409304
482000005396 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A22 WHR45044 |
C00409312
482000005406 |
Motor | Na dotaz | Zadat poptávku | |
| A23 WHR45044 |
C00409313
482000005407 |
Motor fan | Na dotaz | Zadat poptávku | |
| A24 WHR45044 |
C00409314
482000005408 |
Pipe Clamp | Na dotaz | Zadat poptávku | |
| A25 WHR45044 |
C00409303
482000005395 |
Hose draining | Na dotaz | Zadat poptávku | |
| A26 WHR45044 |
C00409311
482000005405 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A27 WHR45044 |
C00409310
482000005404 |
Crank | Na dotaz | Zadat poptávku | |
| A28 WHR45044 |
C00378218
482000005403 |
Display board kpl. | Na dotaz | Zadat poptávku | |
| A29 WHR45044 |
C00409295
482000005386 |
Air guide | Na dotaz | Zadat poptávku | |
| A30 WHR45044 |
C00395591
480150100935 |
Bush | Na dotaz | Zadat poptávku | |
| A31 WHR45044 |
C00410738
482000007865 |
Unit electrical | Na dotaz | Zadat poptávku | |
| A32 WHR45044 |
C00399772
481212398007 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A33 WHR45044 |
C00409316
482000005410 |
Capacitor kpl. | Na dotaz | Zadat poptávku | |
| A34 WHR45044 |
C00409292
482000005383 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A35 WHR45044 |
C00410739
482000007866 |
Link,jumper | Na dotaz | Zadat poptávku | |
| A36 WHR45044 |
C00410740
482000007867 |
Control board | Na dotaz | Zadat poptávku | |
| A37 WHR45044 |
C00409646
482000005932 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| A38 WHR45044 |
C00410741
482000007868 |
Cover shield | Na dotaz | Zadat poptávku | |
| B01 WHR45044 |
C00409569
482000005709 |
Grid air | Na dotaz | Zadat poptávku | |
| B02 WHR45044 |
C00409568
482000005708 |
Cabinet | Na dotaz | Zadat poptávku | |
| B03 WHR45044 |
C00632957
482000007911 |
Chassis cpl. | Na dotaz | Zadat poptávku | |
| B04 WHR45044 |
C00409565
482000005705 |
Plug | Na dotaz | Zadat poptávku | |
| B06 WHR45044 |
C00409564
482000005704 |
Compressor | Na dotaz | Zadat poptávku | |
| B07 WHR45044 |
C00409562
482000005702 |
Magnet | Na dotaz | Zadat poptávku | |
| B08 WHR45044 |
C00410776
482000007912 |
Valve 4 Way cpl. | Na dotaz | Zadat poptávku | |
| B09 WHR45044 |
C00410756
482000007883 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B10 WHR45044 |
C00410757
482000007884 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B11 WHR45044 |
C00395611
480150100957 |
Valve | Na dotaz | Zadat poptávku | |
| B12 WHR45044 |
C00410753
482000007880 |
Valve cut-off | Na dotaz | Zadat poptávku | |
| B13 WHR45044 |
C00410777
482000007913 |
Valve Cover | Na dotaz | Zadat poptávku | |
| B14 WHR45044 |
C00410778
482000007914 |
Handle | Na dotaz | Zadat poptávku | |
| B15 WHR45044 |
C00410760
482000007887 |
Valve fitting | Na dotaz | Zadat poptávku | |
| B16 WHR45044 |
C00410761
482000007888 |
Valve fitting | Na dotaz | Zadat poptávku | |
| B17 WHR45044 |
C00410779
482000007915 |
Transformer | Na dotaz | Zadat poptávku | |
| B18 WHR45044 |
C00410780
482000007916 |
Cover | Na dotaz | Zadat poptávku | |
| B19 WHR45044 |
C00409553
482000005693 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B20 WHR45044 |
C00409552
482000005692 |
Grill rear | Na dotaz | Zadat poptávku | |
| B21 WHR45044 |
C00410781
482000007917 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B22 WHR45044 |
C00409547
482000005687 |
Cover top | Na dotaz | Zadat poptávku | |
| B23 WHR45044 |
C00410782
482000007918 |
Support cpl. | Na dotaz | Zadat poptávku | |
| B24 WHR45044 |
C00409546
482000005686 |
Side panel left | Na dotaz | Zadat poptávku | |
| B25 WHR45044 |
C00410783
482000007919 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| B27 WHR45044 |
C00410784
482000007920 |
Motor fan | Na dotaz | Zadat poptávku | |
| B28 WHR45044 |
C00409567
482000005707 |
Acial flow fan | Na dotaz | Zadat poptávku | |
