WHIRLPOOL AMD 323/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | AMD 323/1 |
Kód 12NC: | 853032301010 |
Značka: | WHIRLPOOL |
Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

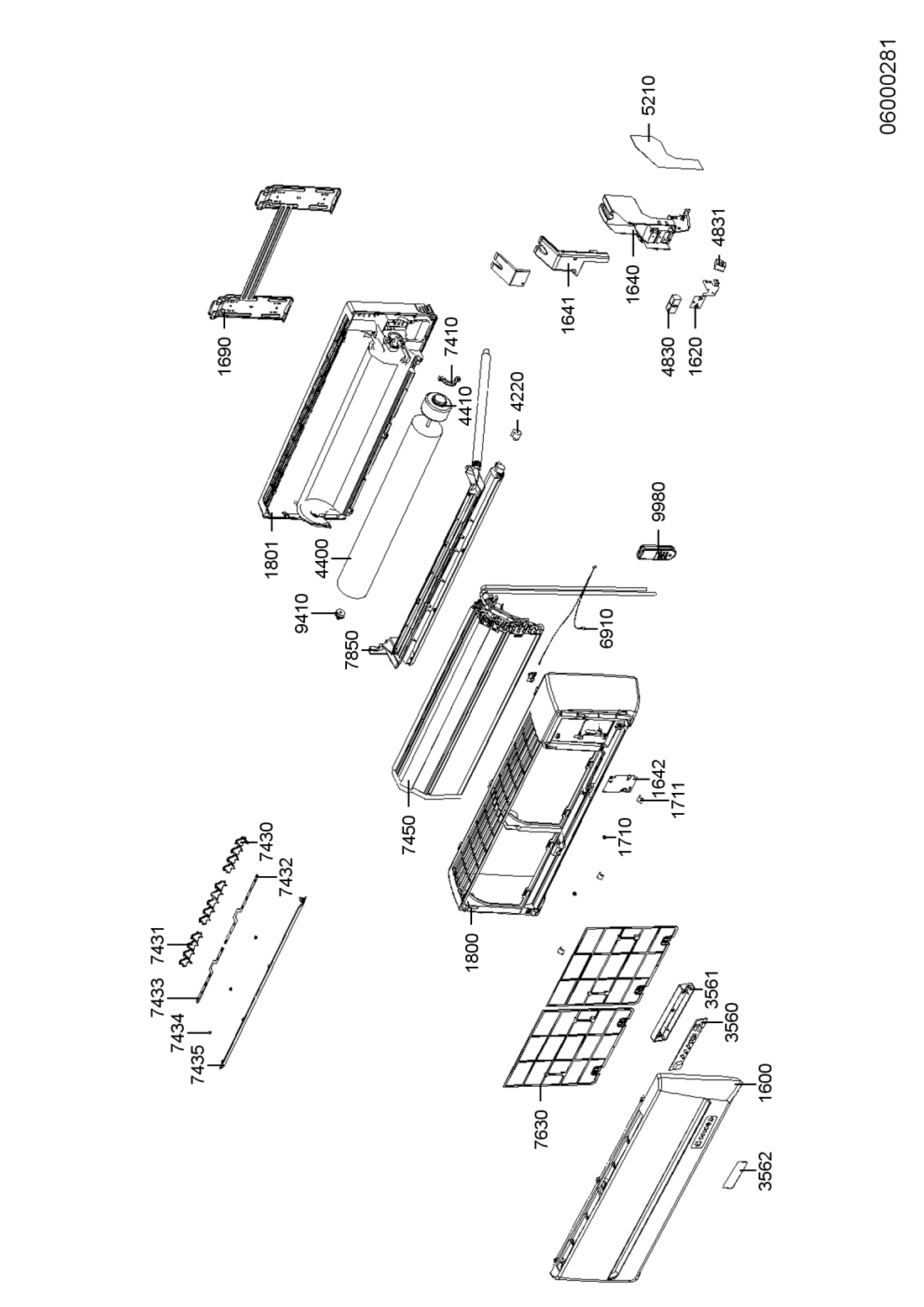

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
1600 WHR22155 |
C00394979
480150100201 |
Panel front | Na dotaz | Zadat poptávku | |
1605 WHR22155 |
C00406892
482000000354 |
Panel FRONT | Na dotaz | Zadat poptávku | |
1620 WHR22155 |
C00394993
480150100222 |
Support Clamp | Na dotaz | Zadat poptávku | |
1625 WHR22155 |
C00406893
482000000355 |
Panel RIGHT | Na dotaz | Zadat poptávku | |
1635 WHR22155 |
C00406894
482000000356 |
Panel TOP | Na dotaz | Zadat poptávku | |
1640 WHR22155 |
C00406866
482000000327 |
Electronic box | Na dotaz | Zadat poptávku | |
1641 WHR22155 |
C00406867
482000000328 |
Cover ELECTRONICS | Na dotaz | Zadat poptávku | |
1642 WHR22155 |
C00394981
480150100203 |
Plate protect. | Na dotaz | Zadat poptávku | |
1645 WHR22155 |
C00406895
482000000357 |
Electronic box | Na dotaz | Zadat poptávku | |
1690 WHR22155 |
C00394977
480150100198 |
Plate mounting | Na dotaz | Zadat poptávku | |
1710 WHR22155 |
C00395004
480150100236 |
Cap | Na dotaz | Zadat poptávku | |
1711 WHR22155 |
C00395005
480150100237 |
Cap | Na dotaz | Zadat poptávku | |
1740 WHR22155 |
C00386445
482000000358 |
Valve | Na dotaz | Zadat poptávku | |
1741 WHR22155 |
C00406896
482000000359 |
Valve | Na dotaz | Zadat poptávku | |
1745 WHR22155 |
C00378595
482000000360 |
pillary tube | Na dotaz | Zadat poptávku | |
1800 WHR22155 |
C00394978
480150100199 |
Cabinet | Na dotaz | Zadat poptávku | |
1801 WHR22155 |
C00406868
482000000329 |
Cabinet REAR | Na dotaz | Zadat poptávku | |
1825 WHR22155 |
C00406845
482000000306 |
Support VALVE | Na dotaz | Zadat poptávku | |
1835 WHR22155 |
C00406897
482000000361 |
Panel LEFT | Na dotaz | Zadat poptávku | |
1845 WHR22155 |
C00406898
482000000362 |
Base | Na dotaz | Zadat poptávku | |
1865 WHR22155 |
C00406847
482000000308 |
Handle | Na dotaz | Zadat poptávku | |
1895 WHR22155 |
C00406899
482000000363 |
Grid airing REAR | Na dotaz | Zadat poptávku | |
3560 WHR22155 |
C00394923
480150100124 |
Display PCB | Na dotaz | Zadat poptávku | |
3561 WHR22155 |
C00406869
482000000330 |
Cover DISPLAY | Na dotaz | Zadat poptávku | |
3562 WHR22155 |
C00376984
480150100123 |
Panel Display board | Na dotaz | Zadat poptávku | |
4020 WHR22155 |
C00406900
482000000364 |
Compressor | Na dotaz | Zadat poptávku | |
4205 WHR22155 |
C00386439
480150100206 |
Capacitor | Na dotaz | Zadat poptávku | |
4206 WHR22155 |
C00406882
482000000343 |
Capacitor | Na dotaz | Zadat poptávku | |
4220 WHR22155 |
C00376989
480150100135 |
Motorek | 495 Kč
€ 19.50 |
||
4400 WHR22155 |
C00376997
480150100211 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
4405 WHR22155 |
C00406883
482000000344 |
Fan wheel | Na dotaz | Zadat poptávku | |
4410 WHR22155 |
C00406870
482000000331 |
Motor fan | Na dotaz | Zadat poptávku | |
4415 WHR22155 |
C00406884
482000000345 |
Motor fan | Na dotaz | Zadat poptávku | |
4635 WHR22155 |
C00406901
482000000365 |
Separator | Na dotaz | Zadat poptávku | |
4830 WHR22155 |
C00394929
480150100136 |
Terminal Board | Na dotaz | Zadat poptávku | |
4831 WHR22155 |
C00386169
480150100146 |
Terminal Board | Na dotaz | Zadat poptávku | |
5210 WHR22155 |
C00406871
482000000332 |
Control board | Na dotaz | Zadat poptávku | |
5710 WHR22155 |
C00406902
482000000366 |
Valve 4-WAY | Na dotaz | Zadat poptávku | |
5711 WHR22155 |
C00406903
482000000367 |
Valve body 4-WAY | Na dotaz | Zadat poptávku | |
5712 WHR22155 |
C00394954
480150100172 |
Coil Valve | Na dotaz | Zadat poptávku | |
6910 WHR22155 |
C00376990
480150100143 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
7400 WHR22155 |
C00413883
482000013835 |
Condenser assy | Na dotaz | Zadat poptávku | |
7410 WHR22155 |
C00402194
481240478949 |
Bracket Motor | Na dotaz | Zadat poptávku | |
7415 WHR22155 |
C00406904
482000000368 |
Support motor | Na dotaz | Zadat poptávku | |
7430 WHR22155 |
C00395012
480150100245 |
Deflector | Na dotaz | Zadat poptávku | |
7431 WHR22155 |
C00395011
480150100244 |
Deflector | Na dotaz | Zadat poptávku | |
7432 WHR22155 |
C00395014
480150100247 |
Batten | Na dotaz | Zadat poptávku | |
7433 WHR22155 |
C00395013
480150100246 |
Batten | Na dotaz | Zadat poptávku | |
7434 WHR22155 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
7435 WHR22155 |
C00395015
480150100248 |
Batten | Na dotaz | Zadat poptávku | |
7450 WHR22155 |
C00406891
482000000353 |
Evaporator | Na dotaz | Zadat poptávku | |
7630 WHR22155 |
C00406873
482000000334 |
Air clean filt. | Na dotaz | Zadat poptávku | |
7850 WHR22155 |
C00406874
482000000335 |
Tray drip | Na dotaz | Zadat poptávku | |
9410 WHR22155 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
9980 WHR22155 |
C00406875
482000000336 |
Remote control | Na dotaz | Zadat poptávku |
