WHIRLPOOL AMD 341 GWH12MB-K3NND8A
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 341 GWH12MB-K3NND8A |
| Kód 12NC: | 853034101000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

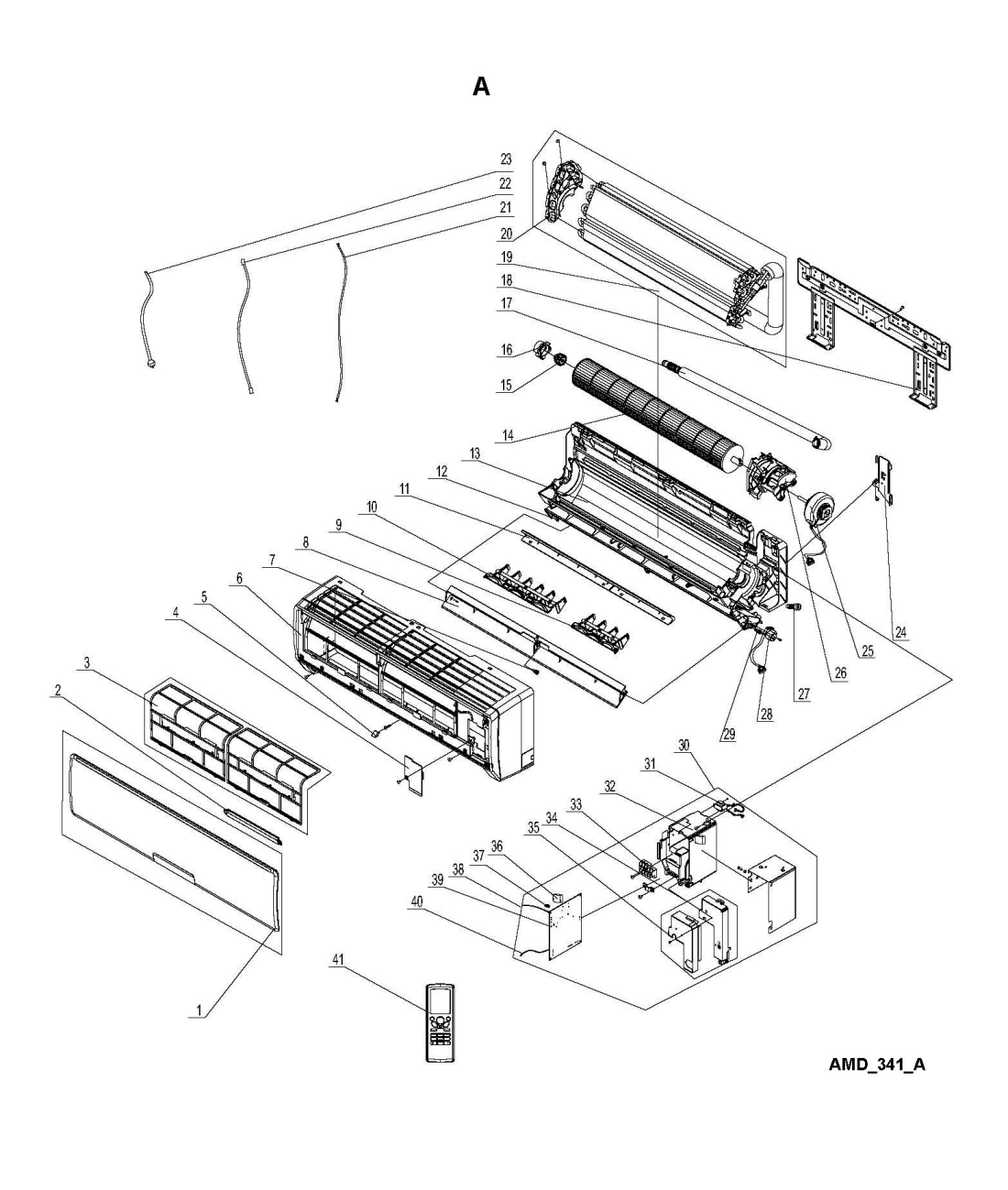

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22183 |
C00562097 | Resistor NTC WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22183 |
C00562098 | FC WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22183 |
C00410681
482000007687 |
Nameplate n.shown | Na dotaz | Zadat poptávku | |
| A1 WHR22183 |
C00409658
482000005944 |
Front panel cpl. | Na dotaz | Zadat poptávku | |
| A10 WHR22183 |
C00409462
482000005568 |
Air guide | Na dotaz | Zadat poptávku | |
| A11 WHR22183 |
C00409463
482000005569 |
Rail | Na dotaz | Zadat poptávku | |
| A12 WHR22183 |
C00409464
482000005570 |
Guide | Na dotaz | Zadat poptávku | |
| A13 WHR22183 |
C00409465
482000005571 |
Rear panel cpl. | Na dotaz | Zadat poptávku | |
| A14 WHR22183 |
C00409466
482000005572 |
vrtule | 1 101 Kč
€ 43.40 |
||
| A15 WHR22183 |
C00395590
480150100934 |
Bearing | Na dotaz | Zadat poptávku | |
| A16 WHR22183 |
C00409302
482000005393 |
Bearing ring | Na dotaz | Zadat poptávku | |
| A17 WHR22183 |
C00405997
481254828063 |
Drainpipe | Na dotaz | Zadat poptávku | |
| A18 WHR22183 |
C00409659
482000005945 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A19 WHR22183 |
C00409660
482000005946 |
Evaporator cpl. | Na dotaz | Zadat poptávku | |
| A2 WHR22183 |
C00378218
482000005403 |
Display board kpl. | Na dotaz | Zadat poptávku | |
| A20 WHR22183 |
C00409470
482000005576 |
Evaporator Support | Na dotaz | Zadat poptávku | |
| A23 WHR22183 |
C00409538
482000005677 |
Cable mains | Na dotaz | Zadat poptávku | |
| A24 WHR22183 |
C00409314
482000005408 |
Pipe Clamp | Na dotaz | Zadat poptávku | |
| A25 WHR22183 |
C00409420
482000005516 |
Motor fan | Na dotaz | Zadat poptávku | |
| A26 WHR22183 |
C00409471
482000005577 |
Motor | Na dotaz | Zadat poptávku | |
| A27 WHR22183 |
C00395586
480150100929 |
Plug | Na dotaz | Zadat poptávku | |
| A28 WHR22183 |
C00409311
482000005405 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A29 WHR22183 |
C00409310
482000005404 |
Crank | Na dotaz | Zadat poptávku | |
| A3 WHR22183 |
C00409458
482000005564 |
Air clean filt. HEPA | Na dotaz | Zadat poptávku | |
| A30 WHR22183 |
C00409661
482000005947 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| A31 WHR22183 |
C00409643
482000005929 |
Transformer | Na dotaz | Zadat poptávku | |
| A32 WHR22183 |
C00409308
482000005401 |
Unit electrical | Na dotaz | Zadat poptávku | |
| A33 WHR22183 |
C00409642
482000005928 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A34 WHR22183 |
C00409646
482000005932 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| A35 WHR22183 |
C00409318
482000005412 |
Cover | Na dotaz | Zadat poptávku | |
| A36 WHR22183 |
C00409316
482000005410 |
Capacitor kpl. | Na dotaz | Zadat poptávku | |
| A37 WHR22183 |
C00409662
482000005948 |
Link,jumper | Na dotaz | Zadat poptávku | |
| A38 WHR22183 |
C00409540
482000005679 |
Sensor temper. Ambient | Na dotaz | Zadat poptávku | |
| A39 WHR22183 |
C00409641
482000005927 |
Control board | Na dotaz | Zadat poptávku | |
| A4 WHR22183 |
C00409292
482000005383 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A40 WHR22183 |
C00409640
482000005926 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| A41 WHR22183 |
C00378216
482000005394 |
Remote control | Na dotaz | Zadat poptávku | |
| A5 WHR22183 |
C00409291
482000005382 |
Cover Screw | Na dotaz | Zadat poptávku | |
| A6 WHR22183 |
C00409459
482000005565 |
Cover front col. | Na dotaz | Zadat poptávku | |
| A7 WHR22183 |
C00409294
482000005385 |
Bushing | Na dotaz | Zadat poptávku | |
| A8 WHR22183 |
C00409460
482000005566 |
Air guide | Na dotaz | Zadat poptávku | |
| A9 WHR22183 |
C00409461
482000005567 |
Air guide | Na dotaz | Zadat poptávku | |
| A98 WHR22183 |
C00409043
482000004979 |
Filtr klimatizace s aktivním uhlím | 427 Kč
€ 16.80 |
||
| B1 WHR22183 |
C00396056
480150101533 |
Grid air front | Na dotaz | Zadat poptávku | |
| B10 WHR22183 |
C00401471
481236058562 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B11 WHR22183 |
C00396054
480150101531 |
Capillary tube | Na dotaz | Zadat poptávku | |
| B12 WHR22183 |
C00409666
482000005952 |
Plate | Na dotaz | Zadat poptávku | |
| B13 WHR22183 |
C00401461
481236058551 |
Valve 1/4 | Na dotaz | Zadat poptávku | |
| B14 WHR22183 |
C00401472
481236058563 |
Valve 1/2 | Na dotaz | Zadat poptávku | |
| B15 WHR22183 |
C00409338
482000005433 |
Handle | Na dotaz | Zadat poptávku | |
| B16 WHR22183 |
C00409667
482000005953 |
Support Valve | Na dotaz | Zadat poptávku | |
| B17 WHR22183 |
C00409653
482000005939 |
Terminal Board | Na dotaz | Zadat poptávku | |
| B18 WHR22183 |
C00409668
482000005954 |
Capacitor CBB65 | Na dotaz | Zadat poptávku | |
| B19 WHR22183 |
C00409669
482000005955 |
Capacitor CBB61 | Na dotaz | Zadat poptávku | |
| B2 WHR22183 |
C00409663
482000005949 |
Front panel | Na dotaz | Zadat poptávku | |
| B20 WHR22183 |
C00402020
481240449714 |
Clamp capacitor | Na dotaz | Zadat poptávku | |
| B21 WHR22183 |
C00409670
482000005956 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| B22 WHR22183 |
C00395378
480150100691 |
Grid air rear | Na dotaz | Zadat poptávku | |
| B23 WHR22183 |
C00403453
481244048498 |
Cover top | Na dotaz | Zadat poptávku | |
| B24 WHR22183 |
C00396059
480150101536 |
Condenser | Na dotaz | Zadat poptávku | |
| B25 WHR22183 |
C00396058
480150101535 |
Partition | Na dotaz | Zadat poptávku | |
| B26 WHR22183 |
C00409324
482000005418 |
Support | Na dotaz | Zadat poptávku | |
| B27 WHR22183 |
C00409671
482000005957 |
Motor fan | Na dotaz | Zadat poptávku | |
| B28 WHR22183 |
C00409657
482000005943 |
Acial flow fan | Na dotaz | Zadat poptávku | |
| B3 WHR22183 |
C00396055
480150101532 |
Base | Na dotaz | Zadat poptávku | |
| B4 WHR22183 |
C00405996
481254828057 |
Drain piece | Na dotaz | Zadat poptávku | |
| B5 WHR22183 |
C00399868
481213598956 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B6 WHR22183 |
C00396057
480150101534 |
Compressor | Na dotaz | Zadat poptávku | |
| B7 WHR22183 |
C00409664
482000005950 |
Gasket | Na dotaz | Zadat poptávku | |
| B9 WHR22183 |
C00409665
482000005951 |
Valve 4 Way cpl. | Na dotaz | Zadat poptávku | |
