WHIRLPOOL AMD 352 GWH18MC-K3DND8A
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 352 GWH18MC-K3DND8A |
| Kód 12NC: | 853035201000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

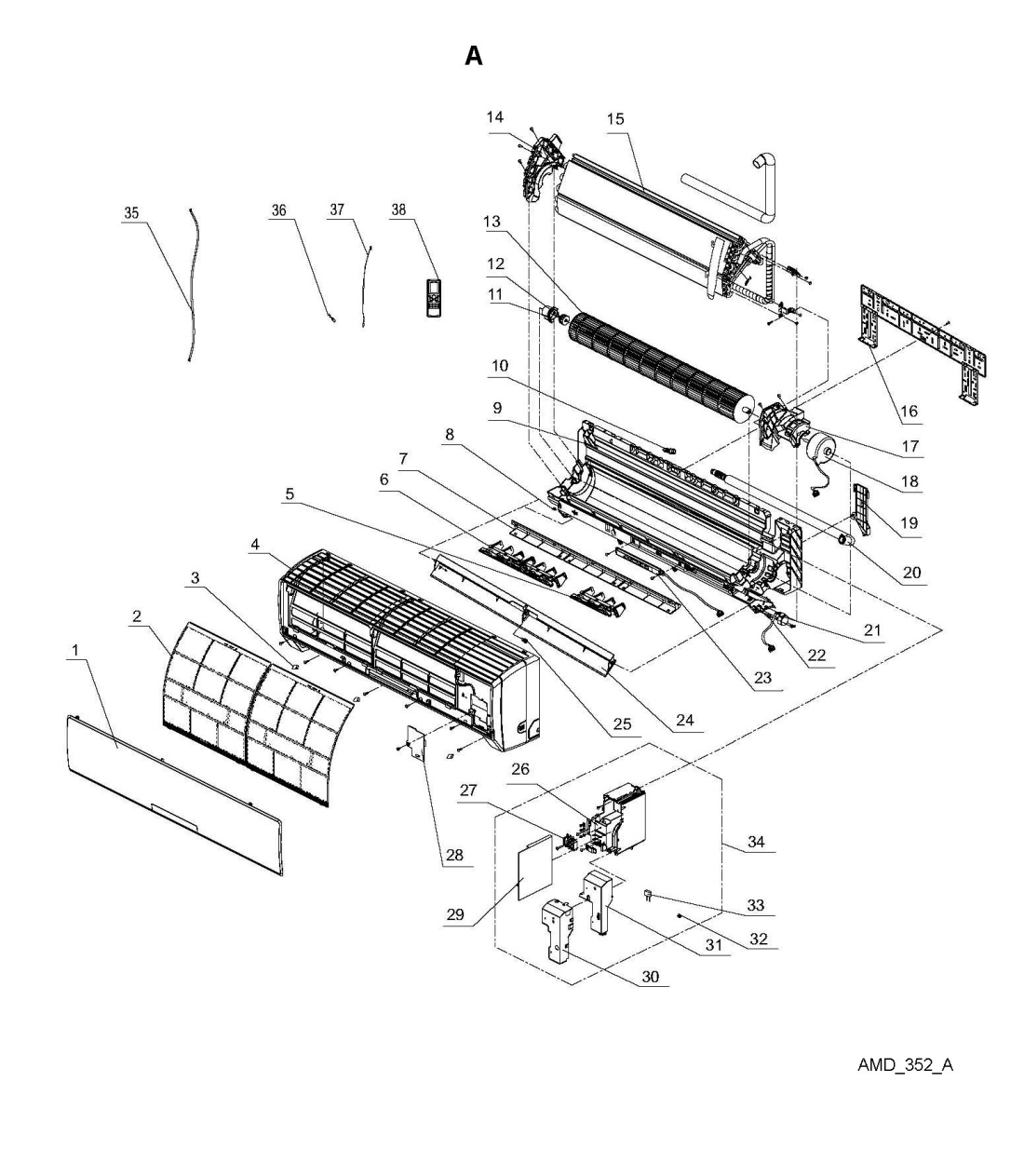

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR39615 |
C00610992 | Resistor NTC WHP | Na dotaz | Zadat poptávku | |
| 999 WHR39615 |
C00610993 | FC WHP | Na dotaz | Zadat poptávku | |
| A01 WHR39615 |
C00410681
482000007687 |
Nameplate n.shown | Na dotaz | Zadat poptávku | |
| A01 WHR39615 |
C00409515
482000005654 |
Front panel cpl. | Na dotaz | Zadat poptávku | |
| A02 WHR39615 |
C00409516
482000005655 |
Filtr klimatizace-prachový | Na dotaz | Zadat poptávku | |
| A03 WHR39615 |
C00409291
482000005382 |
Cover Screw | Na dotaz | Zadat poptávku | |
| A04 WHR39615 |
C00409517
482000005656 |
Cover front | Na dotaz | Zadat poptávku | |
| A05 WHR39615 |
C00409518
482000005657 |
Air guide | Na dotaz | Zadat poptávku | |
| A06 WHR39615 |
C00409519
482000005658 |
Air guide | Na dotaz | Zadat poptávku | |
| A07 WHR39615 |
C00409520
482000005659 |
Rail Guide | Na dotaz | Zadat poptávku | |
| A08 WHR39615 |
C00409464
482000005570 |
Guide | Na dotaz | Zadat poptávku | |
| A09 WHR39615 |
C00409521
482000005660 |
Panel rear Holder | Na dotaz | Zadat poptávku | |
| A10 WHR39615 |
C00395586
480150100929 |
Plug | Na dotaz | Zadat poptávku | |
| A11 WHR39615 |
C00409302
482000005393 |
Bearing ring | Na dotaz | Zadat poptávku | |
| A12 WHR39615 |
C00409301
482000005392 |
Bearing | Na dotaz | Zadat poptávku | |
| A13 WHR39615 |
C00409522
482000005661 |
Ventilátor | 1 146 Kč
€ 45.20 |
||
| A14 WHR39615 |
C00409523
482000005662 |
Evaporator Holder | Na dotaz | Zadat poptávku | |
| A15 WHR39615 |
C00409524
482000005663 |
Evaporator cpl. | Na dotaz | Zadat poptávku | |
| A16 WHR39615 |
C00409525
482000005664 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A17 WHR39615 |
C00409526
482000005665 |
Motor | Na dotaz | Zadat poptávku | |
| A18 WHR39615 |
C00409527
482000005666 |
Motor fan | Na dotaz | Zadat poptávku | |
| A19 WHR39615 |
C00409314
482000005408 |
Pipe Clamp | Na dotaz | Zadat poptávku | |
| A20 WHR39615 |
C00409424
482000005520 |
Hose draining | Na dotaz | Zadat poptávku | |
| A21 WHR39615 |
C00409528
482000005667 |
Motor | Na dotaz | Zadat poptávku | |
| A22 WHR39615 |
C00409310
482000005404 |
Crank | Na dotaz | Zadat poptávku | |
| A23 WHR39615 |
C00378218
482000005403 |
Display board kpl. | Na dotaz | Zadat poptávku | |
| A24 WHR39615 |
C00409529
482000005668 |
Air guide | Na dotaz | Zadat poptávku | |
| A25 WHR39615 |
C00409530
482000005669 |
Bushing | Na dotaz | Zadat poptávku | |
| A26 WHR39615 |
C00409531
482000005670 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A27 WHR39615 |
C00399772
481212398007 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A28 WHR39615 |
C00409532
482000005671 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A29 WHR39615 |
C00409533
482000005672 |
Control board | Na dotaz | Zadat poptávku | |
| A30 WHR39615 |
C00409534
482000005673 |
Cover shield | Na dotaz | Zadat poptávku | |
| A31 WHR39615 |
C00409535
482000005674 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A32 WHR39615 |
C00409315
482000005409 |
Link,jumper Klemme | Na dotaz | Zadat poptávku | |
| A33 WHR39615 |
C00409536
482000005675 |
Capacitor CBB611A | Na dotaz | Zadat poptávku | |
| A34 WHR39615 |
C00409537
482000005676 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| A35 WHR39615 |
C00409538
482000005677 |
Cable mains | Na dotaz | Zadat poptávku | |
| A36 WHR39615 |
C00409539
482000005678 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| A37 WHR39615 |
C00409540
482000005679 |
Sensor temper. Ambient | Na dotaz | Zadat poptávku | |
| A38 WHR39615 |
C00548261
482000005680 |
Remote control | Na dotaz | Zadat poptávku | |
| A98 WHR39615 |
C00409043
482000004979 |
Filtr klimatizace s aktivním uhlím | 427 Kč
€ 16.80 |
||
| A99 WHR39615 |
C00409628
482000005852 |
Filtr antibakteriální-biologický | Na dotaz | Zadat poptávku | |
| B01 WHR39615 |
C00409541
482000005681 |
Motor fan | Na dotaz | Zadat poptávku | |
| B02 WHR39615 |
C00395645
480150100995 |
Capacitor CBB61 | Na dotaz | Zadat poptávku | |
| B03 WHR39615 |
C00409542
482000005682 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| B04 WHR39615 |
C00409543
482000005683 |
Radiator | Na dotaz | Zadat poptávku | |
| B05 WHR39615 |
C00409544
482000005684 |
Control board | Na dotaz | Zadat poptávku | |
| B06 WHR39615 |
C00409545
482000005685 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| B07 WHR39615 |
C00399775
481212398011 |
Terminal Board | Na dotaz | Zadat poptávku | |
| B08 WHR39615 |
C00409546
482000005686 |
Side panel left | Na dotaz | Zadat poptávku | |
| B09 WHR39615 |
C00409547
482000005687 |
Cover top | Na dotaz | Zadat poptávku | |
| B10 WHR39615 |
C00409548
482000005688 |
Support motor | Na dotaz | Zadat poptávku | |
| B11 WHR39615 |
C00409549
482000005689 |
Support Condenser | Na dotaz | Zadat poptávku | |
| B12 WHR39615 |
C00409550
482000005690 |
Cover | Na dotaz | Zadat poptávku | |
| B13 WHR39615 |
C00409551
482000005691 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B14 WHR39615 |
C00409552
482000005692 |
Grill rear | Na dotaz | Zadat poptávku | |
| B15 WHR39615 |
C00409553
482000005693 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B16 WHR39615 |
C00409554
482000005694 |
Transformer | Na dotaz | Zadat poptávku | |
| B17 WHR39615 |
C00409555
482000005695 |
Cover right | Na dotaz | Zadat poptávku | |
| B18 WHR39615 |
C00409338
482000005433 |
Handle | Na dotaz | Zadat poptávku | |
| B19 WHR39615 |
C00409556
482000005696 |
Valve Cover | Na dotaz | Zadat poptávku | |
| B20 WHR39615 |
C00409557
482000005697 |
Valve cut off | Na dotaz | Zadat poptávku | |
| B21 WHR39615 |
C00409558
482000005698 |
Holder valve cpl. | Na dotaz | Zadat poptávku | |
| B22 WHR39615 |
C00409559
482000005699 |
Valve cut off | Na dotaz | Zadat poptávku | |
| B23 WHR39615 |
C00409560
482000005700 |
Capillary tube cpl. | Na dotaz | Zadat poptávku | |
| B24 WHR39615 |
C00409561
482000005701 |
Valve 4 Way cpl. | Na dotaz | Zadat poptávku | |
| B25 WHR39615 |
C00409562
482000005702 |
Magnet | Na dotaz | Zadat poptávku | |
| B26 WHR39615 |
C00409563
482000005703 |
Cover rubber | Na dotaz | Zadat poptávku | |
| B27 WHR39615 |
C00409564
482000005704 |
Compressor | Na dotaz | Zadat poptávku | |
| B28 WHR39615 |
C00409565
482000005705 |
Plug | Na dotaz | Zadat poptávku | |
| B29 WHR39615 |
C00409566
482000005706 |
Chassis | Na dotaz | Zadat poptávku | |
| B30 WHR39615 |
C00409567
482000005707 |
Acial flow fan | Na dotaz | Zadat poptávku | |
| B31 WHR39615 |
C00409568
482000005708 |
Cabinet | Na dotaz | Zadat poptávku | |
| B32 WHR39615 |
C00409569
482000005709 |
Grid air | Na dotaz | Zadat poptávku | |
