| Komerční kód: | AMD 382 AIR CONDITIONERS WP |
| Kód 12NC: | 853038201000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

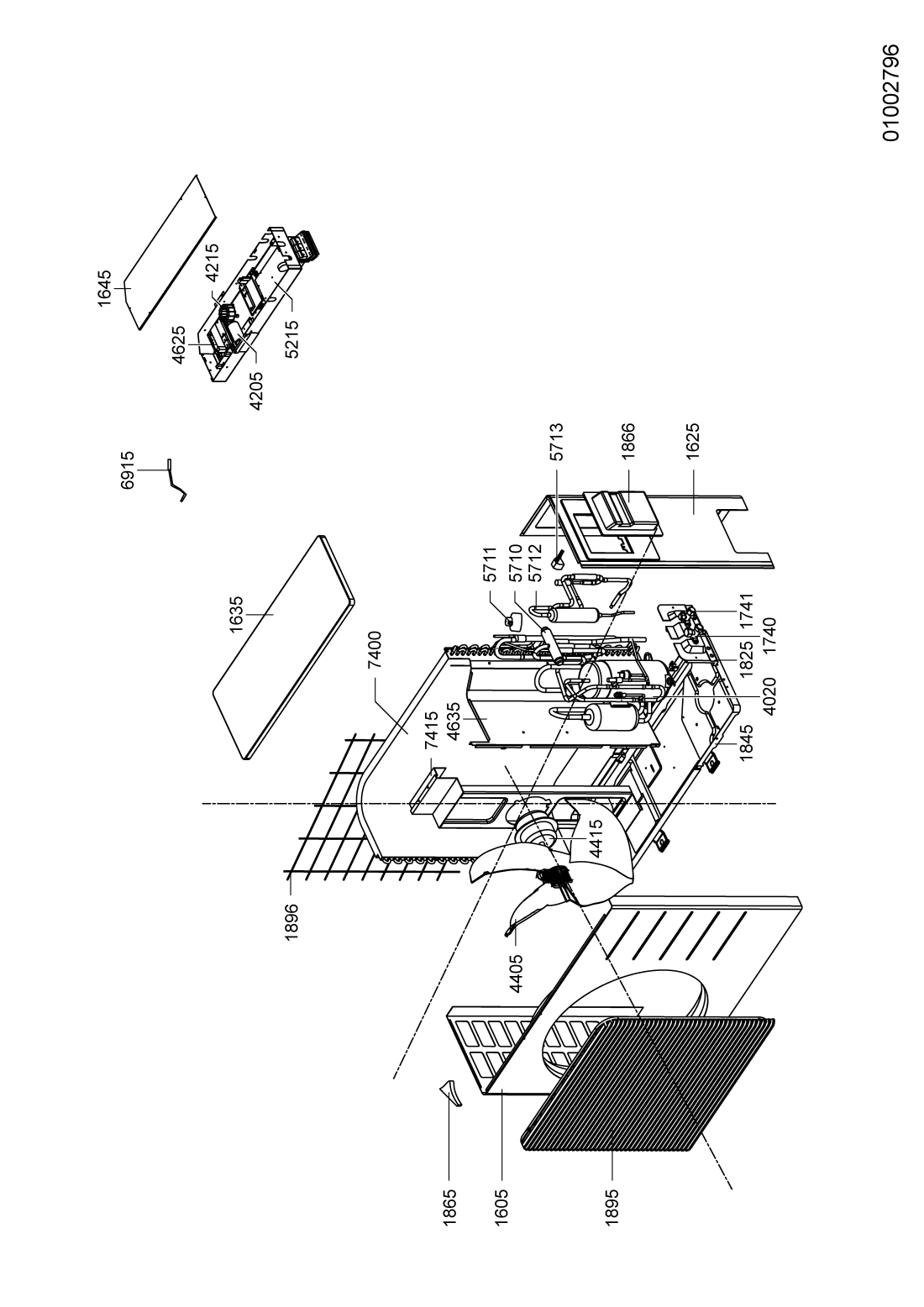

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 160 0 WHR22216 |
C00395721
480150101079 |
Panel front | Na dotaz | Zadat poptávku | |
| 160 5 WHR22216 |
C00395601
480150100946 |
Panel front | Na dotaz | Zadat poptávku | |
| 161 0 WHR22216 |
C00395722
480150101081 |
Panel rear | Na dotaz | Zadat poptávku | |
| 162 0 WHR22216 |
C00395723
480150101082 |
Panel left | Na dotaz | Zadat poptávku | |
| 162 1 WHR22216 |
C00395724
480150101083 |
Panel right | Na dotaz | Zadat poptávku | |
| 162 5 WHR22216 |
C00395553
480150100893 |
Cover right | Na dotaz | Zadat poptávku | |
| 163 5 WHR22216 |
C00395635
480150100984 |
Cover top | Na dotaz | Zadat poptávku | |
| 164 0 WHR22216 |
C00395725
480150101084 |
Electronic box | Na dotaz | Zadat poptávku | |
| 164 1 WHR22216 |
C00395726
480150101085 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| 164 5 WHR22216 |
C00395656
480150101007 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| 174 0 WHR22216 |
C00399869
481213598957 |
Valve | Na dotaz | Zadat poptávku | |
| 174 1 WHR22216 |
C00401483
481236058587 |
Valve | Na dotaz | Zadat poptávku | |
| 182 0 WHR22216 |
C00395727
480150101086 |
Support Bearing | Na dotaz | Zadat poptávku | |
| 182 1 WHR22216 |
C00395728
480150101087 |
Support Motor | Na dotaz | Zadat poptávku | |
| 182 2 WHR22216 |
C00395729
480150101088 |
Support left Air guide | Na dotaz | Zadat poptávku | |
| 182 3 WHR22216 |
C00395730
480150101089 |
Support right Air guide | Na dotaz | Zadat poptávku | |
| 182 5 WHR22216 |
C00399871
481213598959 |
Support Valve | Na dotaz | Zadat poptávku | |
| 184 0 WHR22216 |
C00395731
480150101091 |
Base Motor | Na dotaz | Zadat poptávku | |
| 184 5 WHR22216 |
C00395642
480150100992 |
Base | Na dotaz | Zadat poptávku | |
| 186 0 WHR22216 |
C00395732
480150101092 |
Handle | Na dotaz | Zadat poptávku | |
| 186 5 WHR22216 |
C00405362
481249818793 |
Handle | Na dotaz | Zadat poptávku | |
| 186 6 WHR22216 |
C00395589
480150100933 |
Handle | Na dotaz | Zadat poptávku | |
| 189 0 WHR22216 |
C00395733
480150101093 |
Grid air front | Na dotaz | Zadat poptávku | |
| 189 5 WHR22216 |
C00395615
480150100962 |
Grid air front | Na dotaz | Zadat poptávku | |
| 189 6 WHR22216 |
C00395567
480150100908 |
Grid air rear | Na dotaz | Zadat poptávku | |
| 356 0 WHR22216 |
C00395734
480150101094 |
Display board | Na dotaz | Zadat poptávku | |
| 356 1 WHR22216 |
C00395643
480150100993 |
Display board | Na dotaz | Zadat poptávku | |
| 402 0 WHR22216 |
C00395644
480150100994 |
Compressor | Na dotaz | Zadat poptávku | |
| 412 0 WHR22216 |
C00399889
481214288035 |
Transformer | Na dotaz | Zadat poptávku | |
| 420 0 WHR22216 |
C00395616
480150100963 |
Capacitor CBB611A(3uF/450V) | Na dotaz | Zadat poptávku | |
| 420 5 WHR22216 |
C00395646
480150100996 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 5 WHR22216 |
C00395569
480150100911 |
Coil | Na dotaz | Zadat poptávku | |
| 422 0 WHR22216 |
C00395735
480150101095 |
Steppin motor | Na dotaz | Zadat poptávku | |
| 440 0 WHR22216 |
C00395736
480150101096 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 440 5 WHR22216 |
C00405532
481251518028 |
Vrtule ventilátoru | 1 950 Kč
€ 76.90 |
||
| 441 0 WHR22216 |
C00395737
480150101097 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 5 WHR22216 |
C00395650
480150101001 |
Motor fan | Na dotaz | Zadat poptávku | |
| 462 5 WHR22216 |
C00395651
480150101002 |
Radiator | Na dotaz | Zadat poptávku | |
| 463 5 WHR22216 |
C00395652
480150101003 |
Separator | Na dotaz | Zadat poptávku | |
| 483 0 WHR22216 |
C00395738
480150101098 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 483 1 WHR22216 |
C00395739
480150101099 |
Connection | Na dotaz | Zadat poptávku | |
| 521 0 WHR22216 |
C00395740
480150101101 |
Control board | Na dotaz | Zadat poptávku | |
| 521 5 WHR22216 |
C00395655
480150101006 |
Control board | Na dotaz | Zadat poptávku | |
| 562 0 WHR22216 |
C00395741
480150101102 |
Fuse | Na dotaz | Zadat poptávku | |
| 571 0 WHR22216 |
C00395657
480150101008 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 571 1 WHR22216 |
C00395579
480150100922 |
Coil Valve | Na dotaz | Zadat poptávku | |
| 571 2 WHR22216 |
C00395658
480150101009 |
Valve | Na dotaz | Zadat poptávku | |
| 571 3 WHR22216 |
C00395659
480150101011 |
Fitting Valve | Na dotaz | Zadat poptávku | |
| 691 0 WHR22216 |
C00395742
480150101103 |
Sensor 20K | Na dotaz | Zadat poptávku | |
| 691 1 WHR22216 |
C00395743
480150101104 |
Sensor 15K | Na dotaz | Zadat poptávku | |
| 691 5 WHR22216 |
C00395662
480150101014 |
Sensor | Na dotaz | Zadat poptávku | |
| 740 0 WHR22216 |
C00395663
480150101015 |
Condenser | Na dotaz | Zadat poptávku | |
| 741 0 WHR22216 |
C00395744
480150101105 |
Housing Fan wheel | Na dotaz | Zadat poptávku | |
| 741 1 WHR22216 |
C00395745
480150101106 |
Housing front | Na dotaz | Zadat poptávku | |
| 741 5 WHR22216 |
C00395665
480150101017 |
Support Motor fan | Na dotaz | Zadat poptávku | |
| 743 0 WHR22216 |
C00395746
480150101107 |
Air guide | Na dotaz | Zadat poptávku | |
| 743 1 WHR22216 |
C00395747
480150101108 |
Air guide | Na dotaz | Zadat poptávku | |
| 743 2 WHR22216 |
C00395748
480150101109 |
Lever 5 bit | Na dotaz | Zadat poptávku | |
| 743 3 WHR22216 |
C00395749
480150101111 |
Lever 4 bit | Na dotaz | Zadat poptávku | |
| 743 4 WHR22216 |
C00395752
480150101114 |
Holder Air guide | Na dotaz | Zadat poptávku | |
| 743 5 WHR22216 |
C00395750
480150101112 |
Shaft Air guide | Na dotaz | Zadat poptávku | |
| 743 6 WHR22216 |
C00395751
480150101113 |
Shaft Air guide | Na dotaz | Zadat poptávku | |
| 745 0 WHR22216 |
C00395753
480150101115 |
Evaporator | Na dotaz | Zadat poptávku | |
| 781 0 WHR22216 |
C00395754
480150101116 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 785 0 WHR22216 |
C00395755
480150101117 |
Drain strip | Na dotaz | Zadat poptávku | |
| 785 1 WHR22216 |
C00395756
480150101118 |
Drain piece | Na dotaz | Zadat poptávku | |
| 941 0 WHR22216 |
C00405547
481252008038 |
Uložení vrtule vnitřní jednotky | 367 Kč
€ 14.50 |
||
| 998 0 WHR22216 |
C00395673
480150101026 |
Remote control | Na dotaz | Zadat poptávku | |
