WHIRLPOOL AMD099/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD099/1 |
| Kód 12NC: | 853009901100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

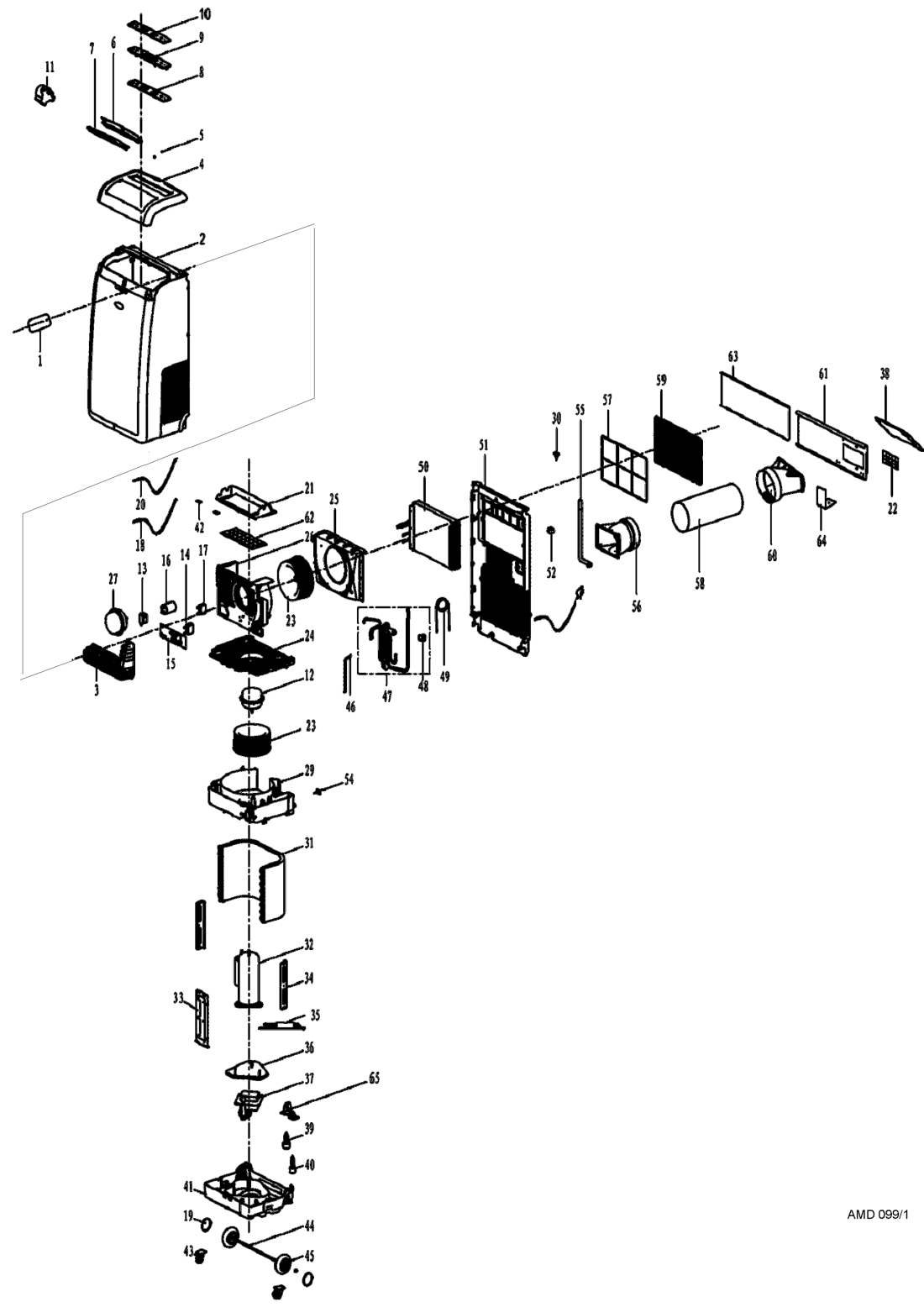

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 01 WHR22111 |
C00377008
480150100309 |
Dálkové ovládání | Na dotaz | Zadat poptávku | |
| 02 WHR22111 |
C00407257
482000000930 |
Cabinet | Na dotaz | Zadat poptávku | |
| 03 WHR22111 |
C00377073
480150101344 |
Electronic box | Na dotaz | Zadat poptávku | |
| 04 WHR22111 |
C00407255
482000000928 |
Cover top | Na dotaz | Zadat poptávku | |
| 05 WHR22111 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 06 WHR22111 |
C00407262
482000000935 |
Deflector | Na dotaz | Zadat poptávku | |
| 07 WHR22111 |
C00407261
482000000934 |
Deflektor mobilní klimatizace Whirlpool | 1 403 Kč
€ 55.40 |
||
| 08 WHR22111 |
C00377019
480150100651 |
displej | 2 160 Kč
€ 85.30 |
||
| 09 WHR22111 |
C00377072
480150101342 |
display | Na dotaz | Zadat poptávku | |
| 10 WHR22111 |
C00407259
482000000932 |
Membrane switch | Na dotaz | Zadat poptávku | |
| 11 WHR22111 |
C00395907
480150101343 |
Motor | 499 Kč
€ 19.70 |
||
| 12 WHR22111 |
C00395313
480150100607 |
Motor fan | Na dotaz | Zadat poptávku | |
| 13 WHR22111 |
C00395311
480150100605 |
Transformer | Na dotaz | Zadat poptávku | |
| 14 WHR22111 |
C00395032
480150100272 |
Capacitor Motor Ventilator | Na dotaz | Zadat poptávku | |
| 15 WHR22111 |
C00419189
482000032577 |
Control board | Na dotaz | Zadat poptávku | |
| 16 WHR22111 |
C00394950
480150100166 |
Kompresorový kondenzátor | Na dotaz | Zadat poptávku | |
| 17 WHR22111 |
C00395312
480150100606 |
Capacitor | Na dotaz | Zadat poptávku | |
| 18 WHR22111 |
C00407253
482000000926 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 19 WHR22111 |
C00395902
480150101334 |
Disk kolečka | 141 Kč
€ 5.60 |
||
| 20 WHR22111 |
C00407051
482000000625 |
Sensor | Na dotaz | Zadat poptávku | |
| 21 WHR22111 |
C00395302
480150100594 |
Air guide | Na dotaz | Zadat poptávku | |
| 22 WHR22111 |
C00402163
481240478884 |
Ventilator grill | Na dotaz | Zadat poptávku | |
| 23 WHR22111 |
C00377015
480150100613 |
vrtule ven. | 1 114 Kč
€ 44.00 |
||
| 24 WHR22111 |
C00395905
480150101339 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 25 WHR22111 |
C00395906
480150101341 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 26 WHR22111 |
C00395904
480150101338 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 27 WHR22111 |
C00395315
480150100609 |
Motor fan | Na dotaz | Zadat poptávku | |
| 29 WHR22111 |
C00395305
480150100597 |
Air diffuser | 3 508 Kč
€ 138.50 |
||
| 30 WHR22111 |
C00379243
480150100647 |
Záslepka | 156 Kč
€ 6.20 |
||
| 31 WHR22111 |
C00407254
482000000927 |
Condenser | Na dotaz | Zadat poptávku | |
| 32 WHR22111 |
C00377020
480150100656 |
Compressor | Na dotaz | Zadat poptávku | |
| 33 WHR22111 |
C00395903
480150101337 |
Support | Na dotaz | Zadat poptávku | |
| 34 WHR22111 |
C00407047
482000000619 |
Support | Na dotaz | Zadat poptávku | |
| 35 WHR22111 |
C00407050
482000000623 |
Cable harness | Na dotaz | Zadat poptávku | |
| 36 WHR22111 |
C00407258
482000000931 |
Support plate | Na dotaz | Zadat poptávku | |
| 37 WHR22111 |
C00395316
480150100611 |
Pump | Na dotaz | Zadat poptávku | |
| 38 WHR22111 |
C00407248
482000000921 |
Support plate | Na dotaz | Zadat poptávku | |
| 39 WHR22111 |
C00395307
480150100599 |
Switch | Na dotaz | Zadat poptávku | |
| 40 WHR22111 |
C00395308
480150100601 |
Switch | Na dotaz | Zadat poptávku | |
| 41 WHR22111 |
C00379078
480150100586 |
kryt | 1 834 Kč
€ 72.40 |
||
| 42 WHR22111 |
C00407043
482000000615 |
Cover | Na dotaz | Zadat poptávku | |
| 43 WHR22111 |
C00395289
480150100578 |
Wheel small | Na dotaz | Zadat poptávku | |
| 44 WHR22111 |
C00395290
480150100579 |
Axle | Na dotaz | Zadat poptávku | |
| 45 WHR22111 |
C00395288
480150100577 |
Wheel | Na dotaz | Zadat poptávku | |
| 46 WHR22111 |
C00407044
482000000616 |
Tube | Na dotaz | Zadat poptávku | |
| 47 WHR22111 |
C00407260
482000000933 |
Valve 4-Way | Na dotaz | Zadat poptávku | |
| 48 WHR22111 |
C00407252
482000000925 |
Valve magnet | Na dotaz | Zadat poptávku | |
| 49 WHR22111 |
C00407256
482000000929 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 50 WHR22111 |
C00395350
480150100658 |
vyparnik | 2 404 Kč
€ 94.90 |
||
| 51 WHR22111 |
C00377071
480150101336 |
Cover rear | Na dotaz | Zadat poptávku | |
| 52 WHR22111 |
C00395913
480150101351 |
Držák hadice | 208 Kč
€ 8.20 |
||
| 54 WHR22111 |
C00379231
480150100646 |
Stopper | Na dotaz | Zadat poptávku | |
| 55 WHR22111 |
C00407045
482000000617 |
hadice | 929 Kč
€ 36.70 |
||
| 56 WHR22111 |
C00379232
480150100617 |
Redukce | Na dotaz | Zadat poptávku | |
| 57 WHR22111 |
C00395911
480150101348 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 58 WHR22111 |
C00377018
480150100618 |
Hadice pro odtah vzduchu mobilní klimatizace Whirlpool 180cm/15cm | 2 132 Kč
€ 84.20 |
||
| 59 WHR22111 |
C00395912
480150101349 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 60 WHR22111 |
C00407053
482000000627 |
Příruba odtahové hadice mobilní klimatizace Whirlpool | 703 Kč
€ 27.80 |
||
| 61 WHR22111 |
C00402167
481240478888 |
Ventilator pipe frame | Na dotaz | Zadat poptávku | |
| 62 WHR22111 |
C00395329
480150100631 |
Guard Air clean filt. | Na dotaz | Zadat poptávku | |
| 63 WHR22111 |
C00402168
481240478889 |
Ventilator pipe frame | Na dotaz | Zadat poptávku | |
| 64 WHR22111 |
C00407247
482000000920 |
Support plate | Na dotaz | Zadat poptávku | |
| 65 WHR22111 |
C00395301
480150100593 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 999 WHR22111 |
C00561981 | Technical Data Info WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22111 |
C00561982 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
