IGNIS AMT 618/WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMT 618/WS |
| Kód 12NC: | 859161822230 |
| I.C. kód: | 859161822231 |
| Značka: | IGNIS |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

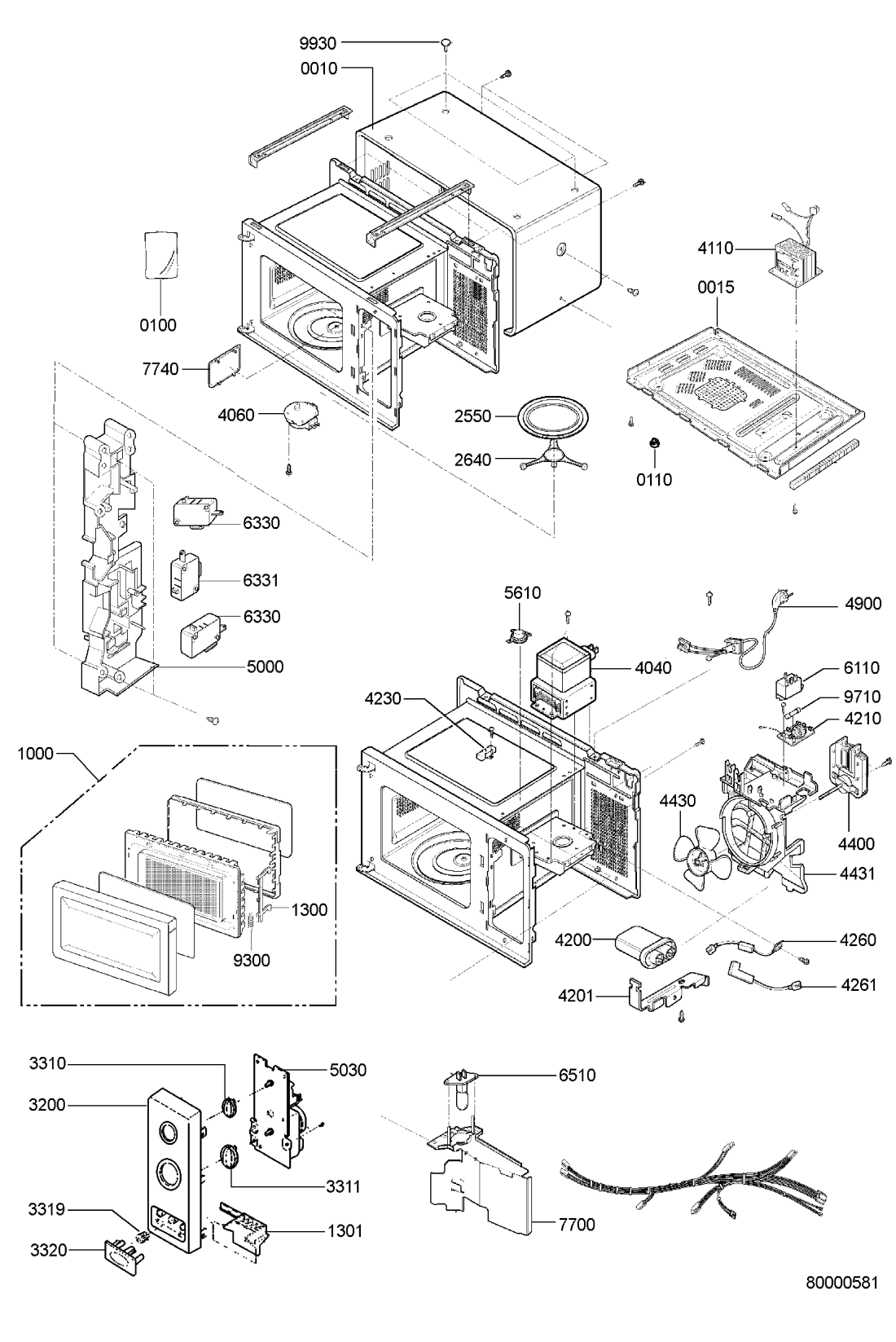

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR104856 |
C00778475
481244011297 |
Casing | Na dotaz | Zadat poptávku | |
| 001 5 WHR104856 |
C00778456
481244011295 |
Base plate | Na dotaz | Zadat poptávku | |
| 010 0 WHR104856 |
C00778457
481231038958 |
Mounting kit assembly | Na dotaz | Zadat poptávku | |
| 011 0 WHR104856 |
C00586789
481246279841 |
Foot. | Na dotaz | Zadat poptávku | |
| 100 0 WHR104856 |
C00586696
481244269277 |
Door assembly. | Na dotaz | Zadat poptávku | |
| 130 0 WHR104856 |
C00586705
481245058711 |
Latch door. | Na dotaz | Zadat poptávku | |
| 130 1 WHR104856 |
C00586649
481241719133 |
Lever | Na dotaz | Zadat poptávku | |
| 255 0 WHR104856 |
C00496171
481246678435 |
zásobník sklo | 1 203 Kč
€ 47.50 |
||
| 264 0 WHR104856 |
C00778459
481253578088 |
Turntable ring assembly | Na dotaz | Zadat poptávku | |
| 320 0 WHR104856 |
C00778476
481245350144 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR104856 |
C00586607
481241128864 |
Knob. | Na dotaz | Zadat poptávku | |
| 331 1 WHR104856 |
C00778477
481241259136 |
Knob | Na dotaz | Zadat poptávku | |
| 331 9 WHR104856 |
C00586798
481249268183 |
Spring. | Na dotaz | Zadat poptávku | |
| 332 0 WHR104856 |
C00586615
481241128892 |
Button. | Na dotaz | Zadat poptávku | |
| 404 0 WHR104856 |
C00778461
481213158809 |
Magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR104856 |
C00586588
481236118379 |
Motor turntable | Na dotaz | Zadat poptávku | |
| 411 0 WHR104856 |
C00778462
481214538046 |
Transformer | Na dotaz | Zadat poptávku | |
| 420 0 WHR104856 |
C00778463
481212158152 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 1 WHR104856 |
C00586518
481212138004 |
Capacitor bracket. | Na dotaz | Zadat poptávku | |
| 421 0 WHR104856 |
C00778464
481212208002 |
Filter,mains | Na dotaz | Zadat poptávku | |
| 423 0 WHR104856 |
C00586513
481212118248 |
Resistor. | Na dotaz | Zadat poptávku | |
| 426 0 WHR104856 |
C00778465
481221838275 |
Diode | Na dotaz | Zadat poptávku | |
| 426 1 WHR104856 |
C00586538
481221838178 |
Diode HV. | Na dotaz | Zadat poptávku | |
| 440 0 WHR104856 |
C00491463
481236158368 |
motor ventilatoru | 1 746 Kč
€ 68.90 |
||
| 443 0 WHR104856 |
C00586567
481231038704 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR104856 |
C00586566
481231038703 |
Fan support. | Na dotaz | Zadat poptávku | |
| 490 0 WHR104856 |
C00778466
481232118256 |
Cable mains | Na dotaz | Zadat poptávku | |
| 500 0 WHR104856 |
C00778467
481220988051 |
Support switch | Na dotaz | Zadat poptávku | |
| 503 0 WHR104856 |
C00778468
481228219857 |
Timer motor | Na dotaz | Zadat poptávku | |
| 561 0 WHR104856 |
C00778469
481228208658 |
Thermostat | Na dotaz | Zadat poptávku | |
| 611 0 WHR104856 |
C00586551
481228068363 |
RELE | Na dotaz | Zadat poptávku | |
| 633 0 WHR104856 |
C00778470
481227138478 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 1 WHR104856 |
C00491039
481227138479 |
microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR104856 |
C00586527
481213488047 |
ZIAROVKA | Na dotaz | Zadat poptávku | |
| 770 0 WHR104856 |
C00778471
481244528043 |
Air guide | Na dotaz | Zadat poptávku | |
| 774 0 WHR104856 |
C00586699
481244528024 |
Mica plate. | Na dotaz | Zadat poptávku | |
| 930 0 WHR104856 |
C00586797
481249268182 |
Spring | Na dotaz | Zadat poptávku | |
| 971 0 WHR104856 |
C00778472
481225228049 |
Fuse | Na dotaz | Zadat poptávku | |
| 993 0 WHR104856 |
C00778478
481253258029 |
Accessory | Na dotaz | Zadat poptávku | |
