WHIRLPOOL AMW 468/1 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMW 468/1 IX |
| Kód 12NC: | 858746838730 |
| I.C. kód: | 858746838731 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 858746838732 |
Potřebujete servis? Jsme tady pro Vás

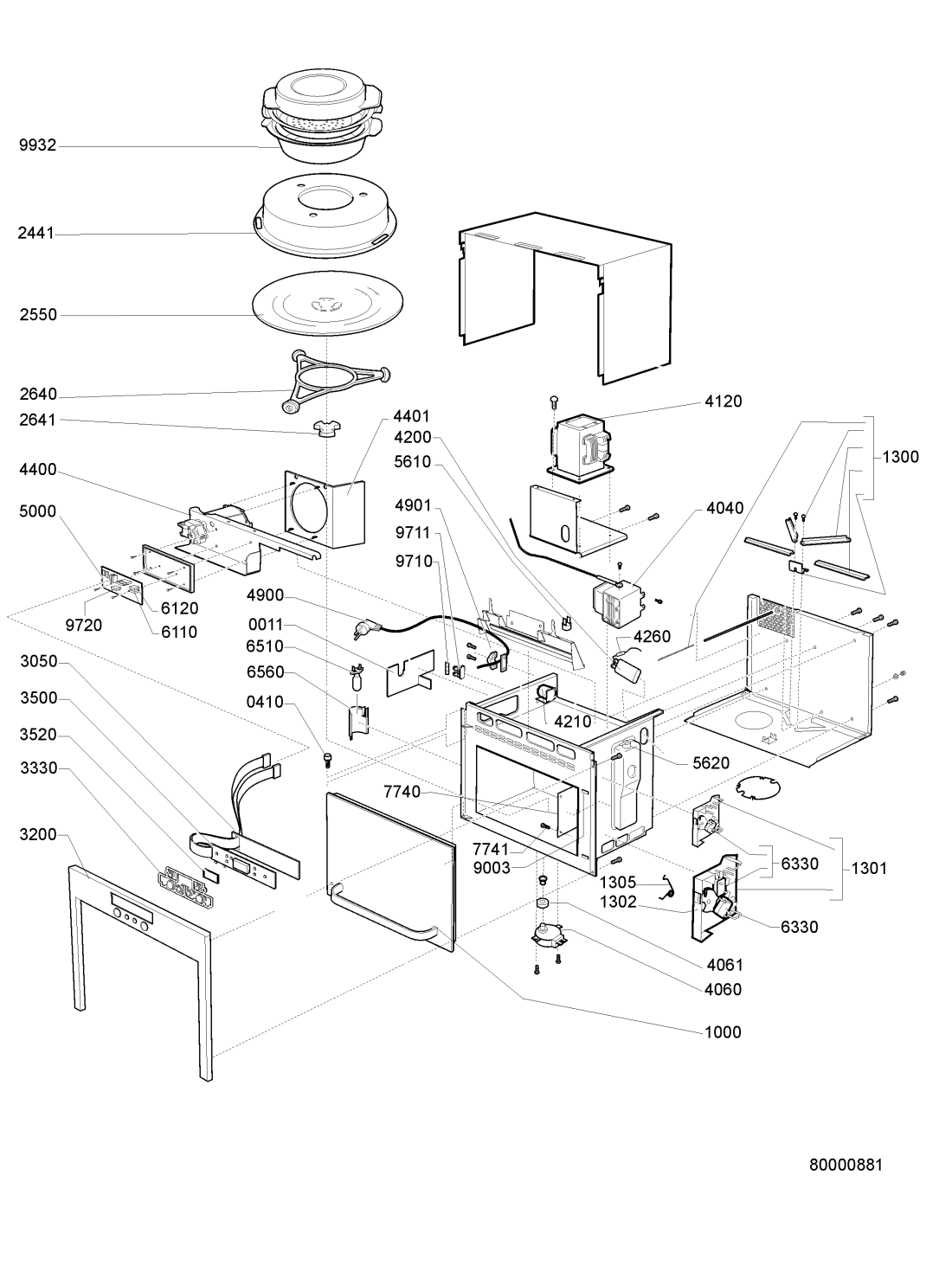

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR35284 |
C00331042
481244229204 |
PANEL | 363 Kč
€ 14.30 |
||
| 041 0 WHR35284 |
C00329714
481241719181 |
Hinge screw | Na dotaz | Zadat poptávku | |
| 100 0 WHR35284 |
C00331081
481244269677 |
Door cpl. INOX | Na dotaz | Zadat poptávku | |
| 130 0 WHR35284 |
C00327629
481231038748 |
sada montazni | 2 331 Kč
€ 92.00 |
||
| 130 1 WHR35284 |
C00313653
481231038739 |
Držák spínačů mikrovlnné trouby Whirlpool, Bauknecht | 1 025 Kč
€ 40.50 |
||
| 130 2 WHR35284 |
C00327630
481231038782 |
Vačka | 230 Kč
€ 9.10 |
||
| 130 5 WHR35284 |
C00345823
481249268172 |
SPRING,TENSION | 984 Kč
€ 38.80 |
||
| 244 1 WHR35284 |
C00333131
481946689229 |
Cover for food | Na dotaz | Zadat poptávku | |
| 255 0 WHR35284 |
C00313978
481246678412 |
Talíř otočný 25 cm skleněný Whirlpool náhrada C00862548 | 912 Kč
€ 36.00 |
||
| 264 0 WHR35284 |
C00332730
481253578092 |
Ring turntable | Na dotaz | Zadat poptávku | |
| 264 1 WHR35284 |
C00319471
481246238249 |
Crosspiece turntable | Na dotaz | Zadat poptávku | |
| 305 0 WHR35284 |
C00484780
481240478658 |
Cover plate | Na dotaz | Zadat poptávku | |
| 320 0 WHR35284 |
C00429571
480120100749 |
Panel control | Na dotaz | Zadat poptávku | |
| 333 0 WHR35284 |
C00329425
481241259099 |
Sestava tlačítek | 1 069 Kč
€ 42.20 |
||
| 350 0 WHR35284 |
C00313726
481220988105 |
displej | 3 849 Kč
€ 152.00 |
||
| 352 0 WHR35284 |
C00319056
481990200644 |
sklo displeje | Na dotaz | Zadat poptávku | |
| 404 0 WHR35284 |
C00313156
481213158813 |
magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR35284 |
C00311611
481236158419 |
Motorek otočného talíře 5/6RPM 4W | 1 035 Kč
€ 40.90 |
||
| 406 1 WHR35284 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 412 0 WHR35284 |
C00317663
481214528019 |
Transformer HT | Na dotaz | Zadat poptávku | |
| 420 0 WHR35284 |
C00311879
481212158159 |
kondenzator VN 1,05uF | 333 Kč
€ 13.10 |
||
| 421 0 WHR35284 |
C00326791
481212208001 |
Filter,mains | Na dotaz | Zadat poptávku | |
| 426 0 WHR35284 |
C00319476
481221838134 |
Diode HV | Na dotaz | Zadat poptávku | |
| 440 0 WHR35284 |
C00320705
481236118441 |
motor ventilatoru | 3 589 Kč
€ 141.70 |
||
| 440 1 WHR35284 |
C00330649
481246238176 |
Air guide deflector | Na dotaz | Zadat poptávku | |
| 490 0 WHR35284 |
C00328491
481232118204 |
Cable mains | Na dotaz | Zadat poptávku | |
| 490 1 WHR35284 |
C00332915
481940118494 |
Clamp | Na dotaz | Zadat poptávku | |
| 500 0 WHR35284 |
C00320090
480120100748 |
Elektronika | 3 752 Kč
€ 148.10 |
||
| 561 0 WHR35284 |
C00327565
481228248277 |
termostat | 1 349 Kč
€ 53.30 |
||
| 562 0 WHR35284 |
C00327566
481228248278 |
termostat | 1 316 Kč
€ 52.00 |
||
| 611 0 WHR35284 |
C00327501
481228068369 |
Relay G5PA-1-WP 24V | Na dotaz | Zadat poptávku | |
| 612 0 WHR35284 |
C00326770
481212118192 |
Relay | Na dotaz | Zadat poptávku | |
| 633 0 WHR35284 |
C00429569
480120100739 |
Mikrospínač dveří - Servisní sada | 317 Kč
€ 12.50 |
||
| 651 0 WHR35284 |
C00326854
481213488055 |
Lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR35284 |
C00333084
481946258335 |
ochrana zarovky | 547 Kč
€ 21.60 |
||
| 774 0 WHR35284 |
C00311470
481244229206 |
Krytka slídová | 555 Kč
€ 21.90 |
||
| 774 1 WHR35284 |
C00312011
481249148016 |
Kolík krytky slídové | 148 Kč
€ 5.80 |
||
| 900 3 WHR35284 |
C00327628
481231038743 |
Stopper door | Na dotaz | Zadat poptávku | |
| 971 0 WHR35284 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 971 1 WHR35284 |
C00332822
481925638016 |
Držák pojistky | 377 Kč
€ 14.90 |
||
| 972 0 WHR35284 |
C00317905
481925228132 |
pojistka 160 mA | 301 Kč
€ 11.90 |
||
| 993 2 WHR35284 |
C00320366
481281718666 |
parní hrnec kulatý 1,5 litru | Na dotaz | Zadat poptávku | |
| 999 WHR35284 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
| 999 WHR35284 |
C00362858 | Connecting Diagram WHP | Na dotaz | Zadat poptávku | |
