WHIRLPOOL AMW 486 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMW 486 IX |
| Kód 12NC: | 858748601790 |
| I.C. kód: | 858748601791 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 858748601792 |
Potřebujete servis? Jsme tady pro Vás

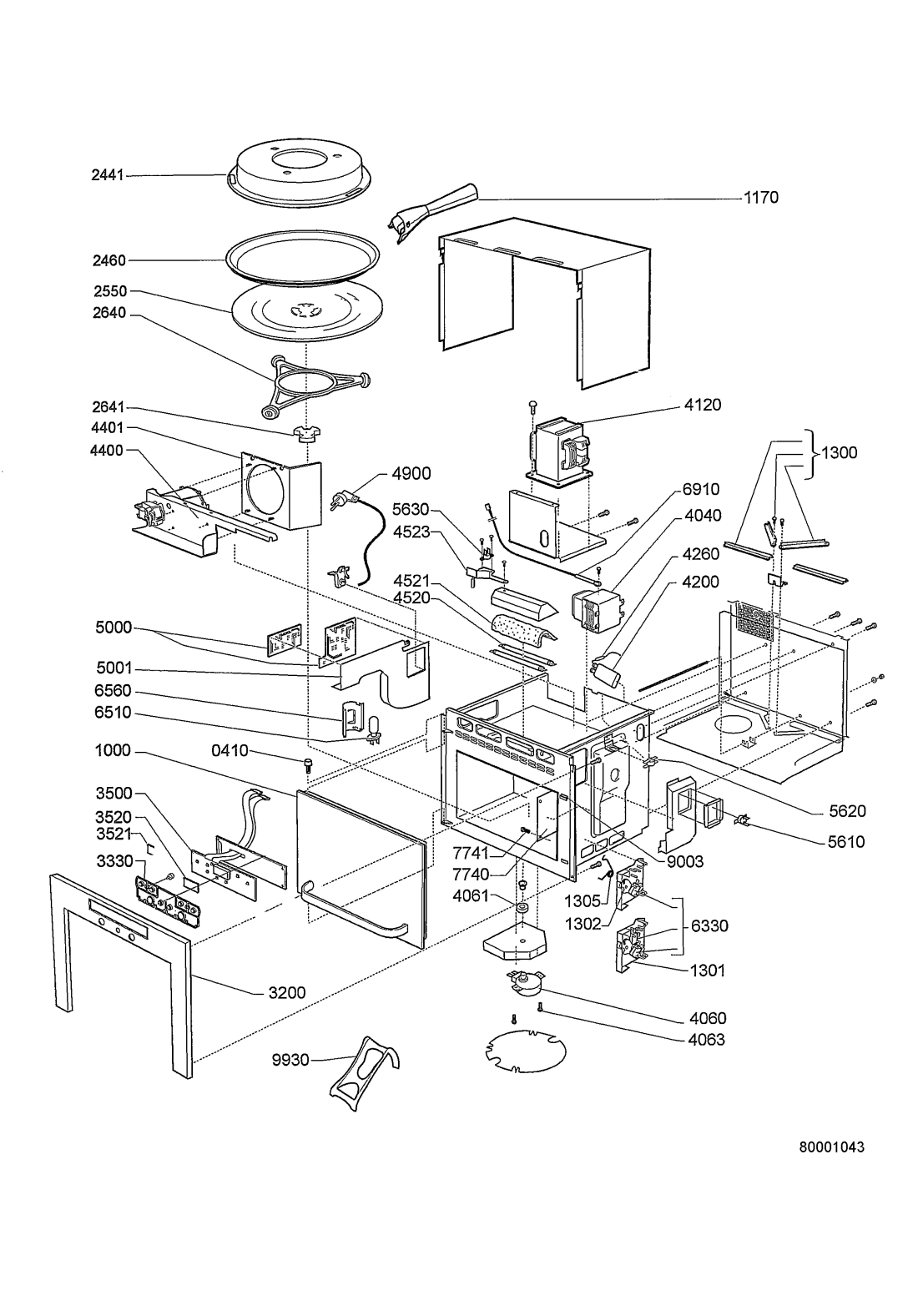

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 041 0 WHR41400 |
C00329714
481241719181 |
Hinge screw | Na dotaz | Zadat poptávku | |
| 100 0 WHR41400 |
C00430031
480120101782 |
Door cpl. INOX | Na dotaz | Zadat poptávku | |
| 117 0 WHR41400 |
C00318974
481949878366 |
Držák talíře Crisp | Na dotaz | Zadat poptávku | |
| 130 0 WHR41400 |
C00327629
481231038748 |
sada montazni | 2 331 Kč
€ 91.90 |
||
| 130 1 WHR41400 |
C00313653
481231038739 |
Držák spínačů mikrovlnné trouby Whirlpool, Bauknecht | 1 025 Kč
€ 40.40 |
||
| 130 2 WHR41400 |
C00327630
481231038782 |
Vačka | 230 Kč
€ 9.10 |
||
| 130 5 WHR41400 |
C00345823
481249268172 |
SPRING,TENSION | 984 Kč
€ 38.80 |
||
| 244 1 WHR41400 |
C00333131
481946689229 |
Cover for food | Na dotaz | Zadat poptávku | |
| 246 0 WHR41400 |
C00321711
480120101453 |
Crisp plate small | Na dotaz | Zadat poptávku | |
| 255 0 WHR41400 |
C00313978
481246678412 |
Talíř otočný 25 cm skleněný Whirlpool náhrada C00862548 | 912 Kč
€ 36.00 |
||
| 264 0 WHR41400 |
C00332725
481253578073 |
Turntable ring | Na dotaz | Zadat poptávku | |
| 264 1 WHR41400 |
C00312137
481946238767 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 320 0 WHR41400 |
C00430032
480120101783 |
Panel control INOX | Na dotaz | Zadat poptávku | |
| 333 0 WHR41400 |
C00315734
480120101505 |
Tlačítka mikrovlnné trouby Whirlpool, Ikea | 1 224 Kč
€ 48.30 |
||
| 333 0 WHR41400 |
C00430033
480120101784 |
Button ASSY | Na dotaz | Zadat poptávku | |
| 350 0 WHR41400 |
C00318266
481213038772 |
jednotka ovladaci | 3 429 Kč
€ 135.20 |
||
| 350 1 WHR41400 |
C00342381
480120100036 |
Cover plate PCB | Na dotaz | Zadat poptávku | |
| 352 0 WHR41400 |
C00319056
481990200644 |
sklo displeje | Na dotaz | Zadat poptávku | |
| 352 1 WHR41400 |
C00342167
481290208039 |
Display | Na dotaz | Zadat poptávku | |
| 404 0 WHR41400 |
C00313156
481213158813 |
magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR41400 |
C00311611
481236158419 |
Motorek otočného talíře 5/6RPM 4W | 1 035 Kč
€ 40.80 |
||
| 406 1 WHR41400 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 406 3 WHR41400 |
C00333212
481950218402 |
Screw | Na dotaz | Zadat poptávku | |
| 412 0 WHR41400 |
C00312379
480120100336 |
transformator | 4 364 Kč
€ 172.10 |
||
| 420 0 WHR41400 |
C00311879
481212158159 |
kondenzator VN 1,05uF | 333 Kč
€ 13.10 |
||
| 426 0 WHR41400 |
C00311329
481221838323 |
DIODE HIGH VOLTAGE | Na dotaz | Zadat poptávku | |
| 440 0 WHR41400 |
C00320705
481236118441 |
motor ventilatoru | 3 589 Kč
€ 141.60 |
||
| 440 1 WHR41400 |
C00330649
481246238176 |
Air guide deflector | Na dotaz | Zadat poptávku | |
| 452 0 WHR41400 |
C00327180
481225998461 |
Heating element quartz tube | Na dotaz | Zadat poptávku | |
| 452 1 WHR41400 |
C00327182
481225998463 |
izolace grilu | 901 Kč
€ 35.50 |
||
| 452 3 WHR41400 |
C00327181
481225998462 |
Holder grill switch | Na dotaz | Zadat poptávku | |
| 490 0 WHR41400 |
C00548531
481232118242 |
KABEL | Na dotaz | Zadat poptávku | |
| 500 0 WHR41400 |
C00326908
481220988131 |
elektronika | 4 610 Kč
€ 181.80 |
||
| 500 1 WHR41400 |
C00327012
481221479291 |
Holder grill | Na dotaz | Zadat poptávku | |
| 561 0 WHR41400 |
C00312568
480120100531 |
Thermostat 130 °C | Na dotaz | Zadat poptávku | |
| 562 0 WHR41400 |
C00327566
481228248278 |
termostat | 1 316 Kč
€ 51.90 |
||
| 563 0 WHR41400 |
C00319824
481228208647 |
termostat | 1 339 Kč
€ 52.80 |
||
| 633 0 WHR41400 |
C00429569
480120100739 |
Mikrospínač dveří - Servisní sada | 317 Kč
€ 12.50 |
||
| 651 0 WHR41400 |
C00326854
481213488055 |
Lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR41400 |
C00333084
481946258335 |
ochrana zarovky | 547 Kč
€ 21.60 |
||
| 691 0 WHR41400 |
C00314612
481221078032 |
senzor | 700 Kč
€ 27.60 |
||
| 774 0 WHR41400 |
C00311470
481244229206 |
Krytka slídová | 555 Kč
€ 21.90 |
||
| 774 1 WHR41400 |
C00312011
481249148016 |
Kolík krytky slídové | 148 Kč
€ 5.80 |
||
| 900 3 WHR41400 |
C00327628
481231038743 |
Stopper door | Na dotaz | Zadat poptávku | |
| 990 0 WHR41400 |
C00328463
481231039313 |
Kit INSTALLATION PARTS | Na dotaz | Zadat poptávku | |
| 993 0 WHR41400 |
C00332772
481281728767 |
stojan pro ohřev dětské láhve | Na dotaz | Zadat poptávku | |
| 999 WHR41400 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
