WHIRLPOOL AMW 518 NB
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMW 518 NB |
| Kód 12NC: | 858751838490 |
| I.C. kód: | 858751838491 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 858751838493 |
Potřebujete servis? Jsme tady pro Vás

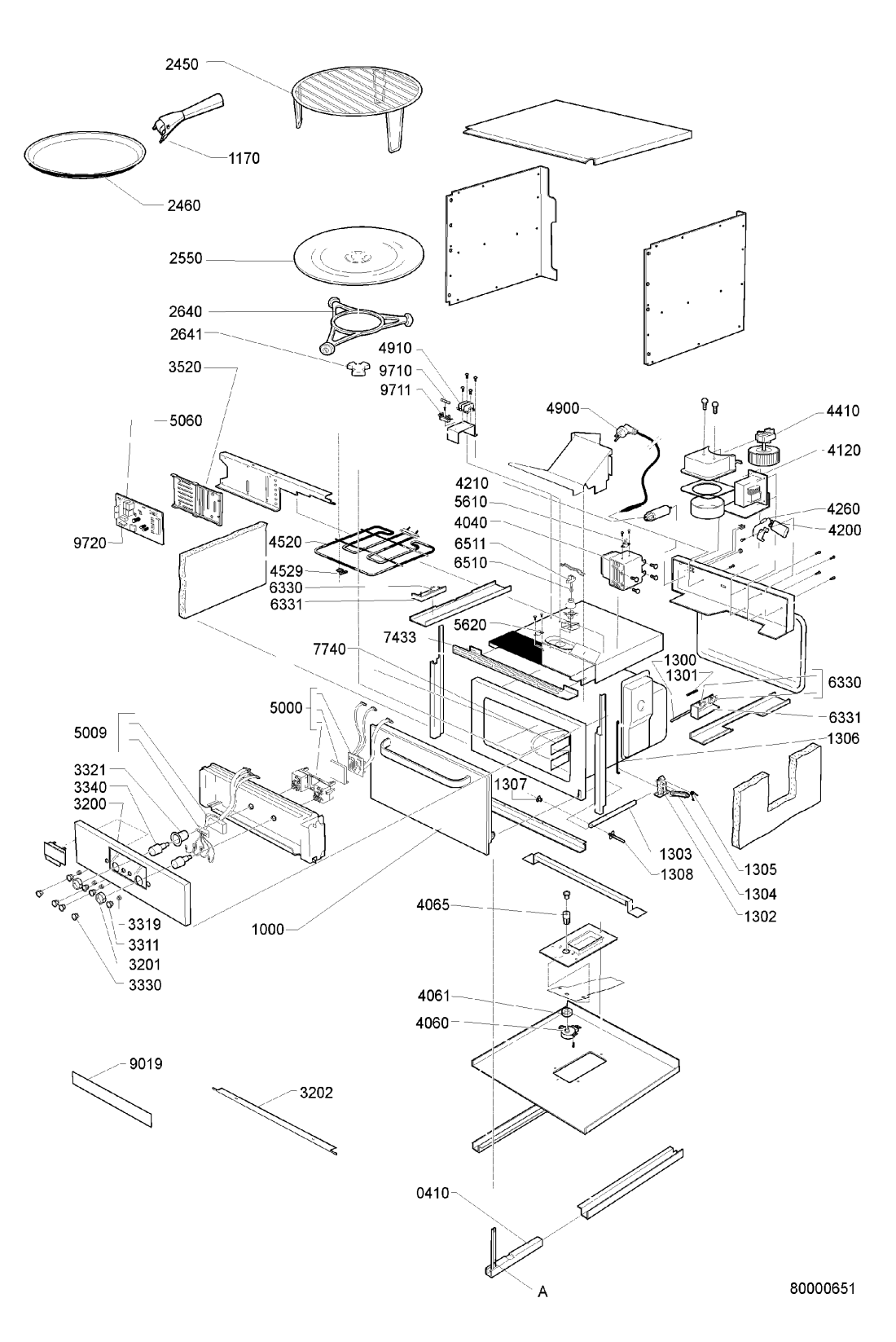

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 010 0 WHR58553 |
C00327639
481231038912 |
Mounting kit(not shown) OBI, LEGO KIT | Na dotaz | Zadat poptávku | |
| 041 0 WHR58553 |
C00329818
481241778173 |
Hinge | Na dotaz | Zadat poptávku | |
| 100 0 WHR58553 |
C00459732
481244269667 |
Door cpl. BL | Na dotaz | Zadat poptávku | |
| 117 0 WHR58553 |
C00318974
481949878366 |
Držák talíře Crisp | Na dotaz | Zadat poptávku | |
| 130 0 WHR58553 |
C00327640
481231038914 |
tahlo | 259 Kč
€ 10.20 |
||
| 130 1 WHR58553 |
C00327641
481231038915 |
Cam spring | Na dotaz | Zadat poptávku | |
| 130 2 WHR58553 |
C00327642
481231038916 |
vacka | 416 Kč
€ 16.40 |
||
| 130 3 WHR58553 |
C00319192
481231038917 |
tahlo | 1 156 Kč
€ 45.60 |
||
| 130 4 WHR58553 |
C00457674
481240478774 |
Lift | Na dotaz | Zadat poptávku | |
| 130 5 WHR58553 |
C00327645
481231038921 |
vacka | 297 Kč
€ 11.70 |
||
| 130 6 WHR58553 |
C00327644
481231038919 |
Bracket | Na dotaz | Zadat poptávku | |
| 130 7 WHR58553 |
C00313657
481231038922 |
klapka | 317 Kč
€ 12.50 |
||
| 130 8 WHR58553 |
C00315215
481231038923 |
kolik | 291 Kč
€ 11.50 |
||
| 245 0 WHR58553 |
C00330071
481245819275 |
Rošt grilovací v-13cm | 1 322 Kč
€ 52.20 |
||
| 246 0 WHR58553 |
C00330979
481246678428 |
Crisp plate for JetChef and Opera | Na dotaz | Zadat poptávku | |
| 255 0 WHR58553 |
C00315671
481246678426 |
Skleněný otočný talíř o průměru 40 cm pro mikrovlnné trouby Whirlpool AMW 545, AMW 575. | 1 318 Kč
€ 52.00 |
||
| 264 0 WHR58553 |
C00312621
481253578084 |
Turntable ring | Na dotaz | Zadat poptávku | |
| 264 1 WHR58553 |
C00312137
481946238767 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 320 0 WHR58553 |
C00463122
481245350284 |
Panel control BL | Na dotaz | Zadat poptávku | |
| 320 1 WHR58553 |
C00332339
481252648156 |
krouzek | 592 Kč
€ 23.40 |
||
| 320 2 WHR58553 |
C00457861
481241259161 |
Bottom ,black | Na dotaz | Zadat poptávku | |
| 331 1 WHR58553 |
C00373633
481241259084 |
Kroužek tlačítka | 821 Kč
€ 32.40 |
||
| 331 9 WHR58553 |
C00311807
481241129011 |
Pružina tlačítka | 381 Kč
€ 15.00 |
||
| 332 1 WHR58553 |
C00329421
481241259073 |
Disc push-push knob | Na dotaz | Zadat poptávku | |
| 333 0 WHR58553 |
C00373634
481241259083 |
knoflik mw | 347 Kč
€ 13.70 |
||
| 334 0 WHR58553 |
C00329444
481241278928 |
Knoflík | 285 Kč
€ 11.30 |
||
| 352 0 WHR58553 |
C00327242
481227138474 |
Holder PCB | Na dotaz | Zadat poptávku | |
| 404 0 WHR58553 |
C00313156
481213158813 |
magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR58553 |
C00312759
481236158408 |
Motor turntable | Na dotaz | Zadat poptávku | |
| 406 1 WHR58553 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 406 5 WHR58553 |
C00314332
481253578091 |
spojka mot.-unasec | Na dotaz | Zadat poptávku | |
| 412 0 WHR58553 |
C00312591
481214528028 |
transformator VN | 4 440 Kč
€ 175.30 |
||
| 420 0 WHR58553 |
C00326782
481212158145 |
CapacitorHV sub 481212158163 | Na dotaz | Zadat poptávku | |
| 421 0 WHR58553 |
C00320874
481912118162 |
Filter,mains KPL3009 16A 10N GW850 ISKRA | Na dotaz | Zadat poptávku | |
| 426 0 WHR58553 |
C00312562
481912118265 |
Diode HV 12KV/500MA | Na dotaz | Zadat poptávku | |
| 441 0 WHR58553 |
C00313825
481236118461 |
Fan cooling assembly | Na dotaz | Zadat poptávku | |
| 452 0 WHR58553 |
C00315071
481225998469 |
Topné těleso trouby – horní grill 1600W | 2 821 Kč
€ 111.40 |
||
| 452 9 WHR58553 |
C00314910
481225998553 |
Držák grilu | Na dotaz | Zadat poptávku | |
| 490 0 WHR58553 |
C00457188
481232118295 |
Cable MAINS CABLE 3 x 1.5 SA OBI | Na dotaz | Zadat poptávku | |
| 491 0 WHR58553 |
C00327594
481229068299 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 500 0 WHR58553 |
C00399927
481220988071 |
elektronika sada | 3 360 Kč
€ 132.60 |
||
| 500 9 WHR58553 |
C00313981
481213038738 |
displej+kabel | 3 256 Kč
€ 128.50 |
||
| 506 0 WHR58553 |
C00319170
481220988038 |
jednotka kontrolni | Na dotaz | Zadat poptávku | |
| 561 0 WHR58553 |
C00327567
481228248283 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR58553 |
C00316757
481927128651 |
termostat 175 | 1 306 Kč
€ 51.60 |
||
| 633 0 WHR58553 |
C00312719
481927618336 |
Mikrospínač - náhrada 480120101578 | 688 Kč
€ 27.20 |
||
| 633 1 WHR58553 |
C00315857
481227138473 |
Držák spínače | 341 Kč
€ 13.50 |
||
| 651 0 WHR58553 |
C00314001
481213488067 |
Žárovka do mikrovlnných trub (12V, 10W) | 121 Kč
€ 4.80 |
||
| 651 1 WHR58553 |
C00326856
481213488068 |
Lamp socket | Na dotaz | Zadat poptávku | |
| 743 3 WHR58553 |
C00330077
481245819302 |
Grid vent | Na dotaz | Zadat poptávku | |
| 774 0 WHR58553 |
C00311773
481244229283 |
Krytka slídová | 766 Kč
€ 30.20 |
||
| 901 9 WHR58553 |
C00317729
481231038925 |
Guide food class | Na dotaz | Zadat poptávku | |
| 971 0 WHR58553 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 971 1 WHR58553 |
C00332822
481925638016 |
Držák pojistky | 377 Kč
€ 14.90 |
||
| 972 0 WHR58553 |
C00315549
481925338011 |
pojistka 250mA | 228 Kč
€ 9.00 |
||
