WHIRLPOOL AMW 567 AL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMW 567 AL |
| Kód 12NC: | 858756729640 |
| I.C. kód: | 858756729641 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 858756729642 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

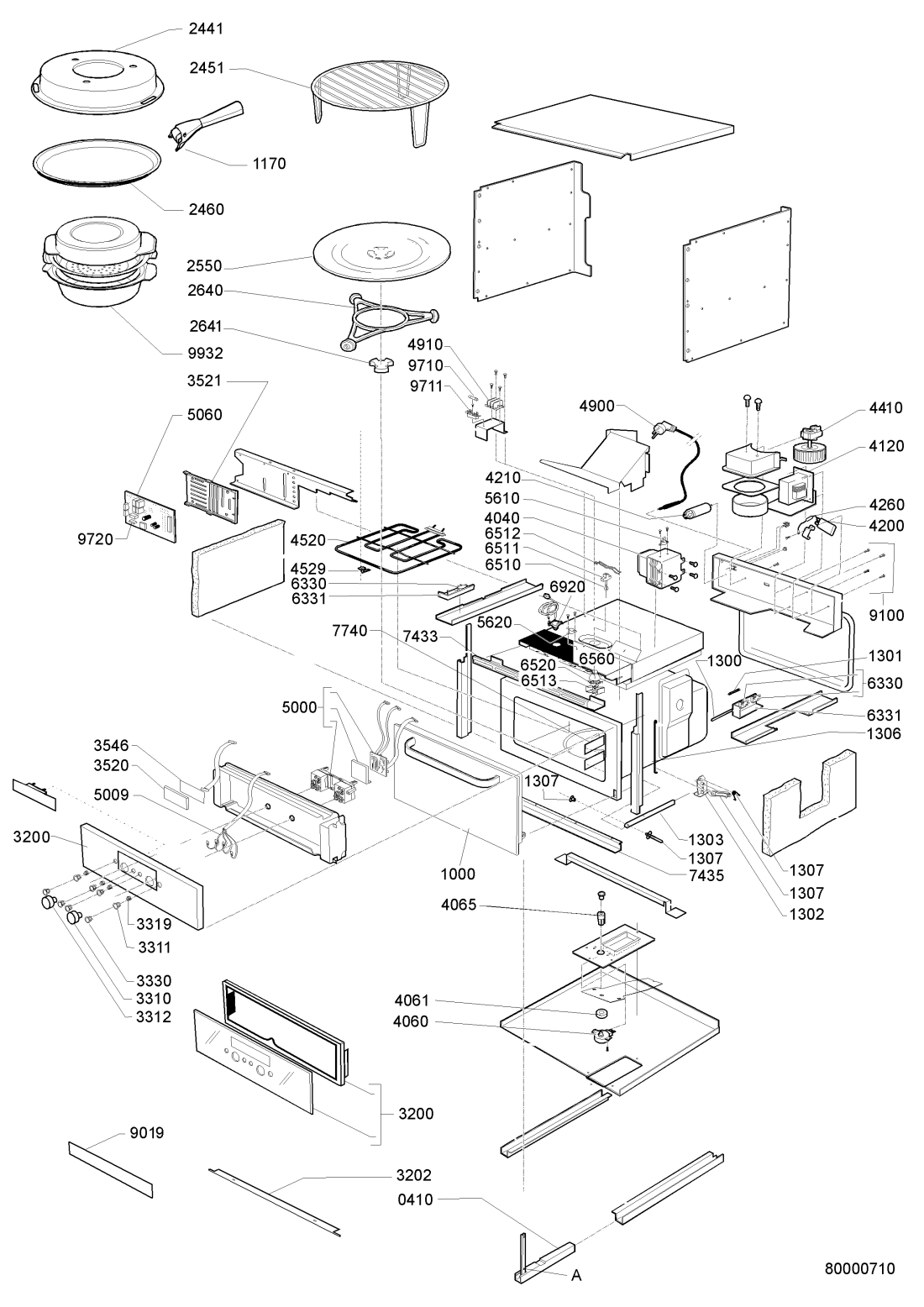

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0100 WHR85852 |
C00327639
481231038912 |
Mounting kit(not shown) OBI, LEGO KIT | Na dotaz | Zadat poptávku | |
| 0410 WHR85852 |
C00329806
481241778141 |
Hinge assembly | Na dotaz | Zadat poptávku | |
| 1000 WHR85852 |
C00459727
481244269655 |
Door cpl. AL | Na dotaz | Zadat poptávku | |
| 1170 WHR85852 |
C00318974
481949878366 |
Držák talíře Crisp | Na dotaz | Zadat poptávku | |
| 1300 WHR85852 |
C00327640
481231038914 |
tahlo | 259 Kč
€ 10.20 |
||
| 1301 WHR85852 |
C00327641
481231038915 |
Cam spring | Na dotaz | Zadat poptávku | |
| 1302 WHR85852 |
C00327642
481231038916 |
vacka | 416 Kč
€ 16.40 |
||
| 1303 WHR85852 |
C00319192
481231038917 |
tahlo | 1 156 Kč
€ 45.60 |
||
| 1306 WHR85852 |
C00327644
481231038919 |
Bracket | Na dotaz | Zadat poptávku | |
| 1307 WHR85852 |
C00314852
481231039126 |
vacka | 1 160 Kč
€ 45.80 |
||
| 2441 WHR85852 |
C00333131
481946689229 |
Cover for food | Na dotaz | Zadat poptávku | |
| 2451 WHR85852 |
C00330071
481245819275 |
Rošt grilovací v-13cm | 1 322 Kč
€ 52.10 |
||
| 2460 WHR85852 |
C00330979
481246678428 |
Crisp plate for JetChef and Opera | Na dotaz | Zadat poptávku | |
| 2550 WHR85852 |
C00315671
481246678426 |
Skleněný otočný talíř o průměru 40 cm pro mikrovlnné trouby Whirlpool AMW 545, AMW 575. | 1 318 Kč
€ 52.00 |
||
| 2640 WHR85852 |
C00312621
481253578084 |
Turntable ring | Na dotaz | Zadat poptávku | |
| 2641 WHR85852 |
C00312137
481946238767 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 3200 WHR85852 |
C00463113
481245350273 |
Panel control AL | Na dotaz | Zadat poptávku | |
| 3202 WHR85852 |
C00457861
481241259161 |
Bottom ,black | Na dotaz | Zadat poptávku | |
| 3310 WHR85852 |
C00402366
481241279281 |
Knob | Na dotaz | Zadat poptávku | |
| 3311 WHR85852 |
C00527668
481241129009 |
Button | Na dotaz | Zadat poptávku | |
| 3312 WHR85852 |
C00402365
481241279279 |
Knob | Na dotaz | Zadat poptávku | |
| 3319 WHR85852 |
C00311807
481241129011 |
Pružina tlačítka | 381 Kč
€ 15.00 |
||
| 3330 WHR85852 |
C00493497
481241259074 |
Button | Na dotaz | Zadat poptávku | |
| 3520 WHR85852 |
C00317416
481213068959 |
Displej | Na dotaz | Zadat poptávku | |
| 3521 WHR85852 |
C00327242
481227138474 |
Holder PCB | Na dotaz | Zadat poptávku | |
| 3546 WHR85852 |
C00331052
481244229315 |
Cover | Na dotaz | Zadat poptávku | |
| 4040 WHR85852 |
C00313156
481213158813 |
magnetron | Na dotaz | Zadat poptávku | |
| 4060 WHR85852 |
C00312759
481236158408 |
Motor turntable | Na dotaz | Zadat poptávku | |
| 4061 WHR85852 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 4065 WHR85852 |
C00314332
481253578091 |
spojka mot.-unasec | Na dotaz | Zadat poptávku | |
| 4120 WHR85852 |
C00312591
481214528028 |
transformator VN | 4 440 Kč
€ 175.10 |
||
| 4200 WHR85852 |
C00314933
481212158163 |
Capacitor HV | Na dotaz | Zadat poptávku | |
| 4210 WHR85852 |
C00319002
481212208004 |
Filtr odrušovací | 1 355 Kč
€ 53.40 |
||
| 4260 WHR85852 |
C00312562
481912118265 |
Diode HV 12KV/500MA | Na dotaz | Zadat poptávku | |
| 4410 WHR85852 |
C00313825
481236118461 |
Fan cooling assembly | Na dotaz | Zadat poptávku | |
| 4520 WHR85852 |
C00315071
481225998469 |
Topné těleso trouby – horní grill 1600W | 2 821 Kč
€ 111.30 |
||
| 4529 WHR85852 |
C00314910
481225998553 |
Držák grilu | Na dotaz | Zadat poptávku | |
| 4900 WHR85852 |
C00328494
481232118245 |
Cable mains | Na dotaz | Zadat poptávku | |
| 4910 WHR85852 |
C00327594
481229068299 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 5000 WHR85852 |
C00455084
481220988102 |
Control unit | Na dotaz | Zadat poptávku | |
| 5009 WHR85852 |
C00315816
481220988103 |
tlacitka | Na dotaz | Zadat poptávku | |
| 5060 WHR85852 |
C00385112
481213038746 |
elektronika | Na dotaz | Zadat poptávku | |
| 5610 WHR85852 |
C00327567
481228248283 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5620 WHR85852 |
C00316757
481927128651 |
termostat 175 | 1 306 Kč
€ 51.50 |
||
| 6330 WHR85852 |
C00312719
481927618336 |
Mikrospínač - náhrada 480120101578 | 688 Kč
€ 27.10 |
||
| 6331 WHR85852 |
C00315857
481227138473 |
Držák spínače | 341 Kč
€ 13.40 |
||
| 6510 WHR85852 |
C00314001
481213488067 |
Žárovka do mikrovlnných trub (12V, 10W) | 121 Kč
€ 4.80 |
||
| 6511 WHR85852 |
C00326856
481213488068 |
Lamp socket | Na dotaz | Zadat poptávku | |
| 6512 WHR85852 |
C00333175
481949268507 |
Spring cavity lamp assy CB / OMIN | Na dotaz | Zadat poptávku | |
| 6513 WHR85852 |
C00331517
481246688855 |
Spring lampchoke | Na dotaz | Zadat poptávku | |
| 6520 WHR85852 |
C00332901
481938118151 |
Kryt žárovky | 741 Kč
€ 29.20 |
||
| 6560 WHR85852 |
C00332897
481938028007 |
Reflector | Na dotaz | Zadat poptávku | |
| 6920 WHR85852 |
C00326922
481221078005 |
senzor | 960 Kč
€ 37.90 |
||
| 7433 WHR85852 |
C00330077
481245819302 |
Grid vent | Na dotaz | Zadat poptávku | |
| 7435 WHR85852 |
C00328914
481240118679 |
Strip bottom | Na dotaz | Zadat poptávku | |
| 7740 WHR85852 |
C00311773
481244229283 |
Krytka slídová | 766 Kč
€ 30.20 |
||
| 9019 WHR85852 |
C00497422
481231038932 |
stitek | 495 Kč
€ 19.50 |
||
| 9100 WHR85852 |
C00332075
481250218476 |
Screw | Na dotaz | Zadat poptávku | |
| 9710 WHR85852 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 9711 WHR85852 |
C00332822
481925638016 |
Držák pojistky | 377 Kč
€ 14.90 |
||
| 9720 WHR85852 |
C00315549
481925338011 |
pojistka 250mA | 228 Kč
€ 9.00 |
||
| 9932 WHR85852 |
C00328473
481231088418 |
parní hrnec oválný 2,5 litru | Na dotaz | Zadat poptávku | |
| 999 WHR85852 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
