WHIRLPOOL ARC 0820 TABLE TOP WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARC 0820 TABLE TOP WP |
| Kód 12NC: | 850108210000 |
| I.C. kód: | 850108210005 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice |
| Další podobné modely: | 850108210000 |
Potřebujete servis? Jsme tady pro Vás

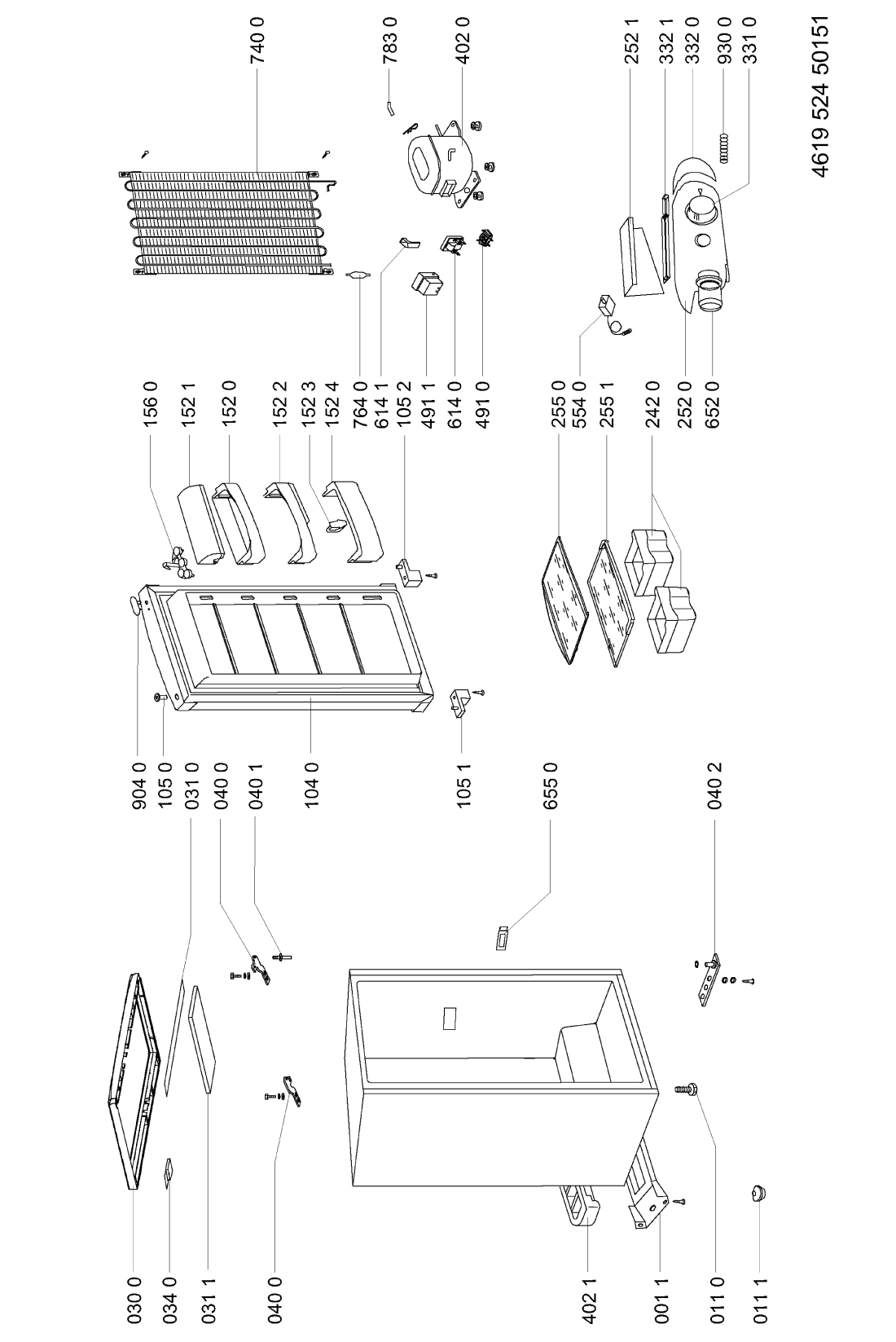

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR77343 |
C00330804
481246418121 |
Crossbar | Na dotaz | Zadat poptávku | |
| 011 0 WHR77343 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 011 1 WHR77343 |
C00330452
481246218254 |
noha | 161 Kč
€ 6.30 |
||
| 030 0 WHR77343 |
C00327979
481244011091 |
deska horni | 2 553 Kč
€ 100.70 |
||
| 031 0 WHR77343 |
C00330279
481246049473 |
Strip masking | Na dotaz | Zadat poptávku | |
| 031 1 WHR77343 |
C00328972
481240418431 |
SUPPORT TABLETOP EPS | Na dotaz | Zadat poptávku | |
| 034 0 WHR77343 |
C00329046
481240448855 |
BRACKET TABLE TOP WHITE PW | Na dotaz | Zadat poptávku | |
| 040 0 WHR77343 |
C00329710
481241719147 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 1 WHR77343 |
C00327075
481222608004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR77343 |
C00329708
481241719115 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 104 0 WHR77343 |
C00497759
481241619485 |
DVEŘE CHLADNIČKY, BÍLÁ | Na dotaz | Zadat poptávku | |
| 105 0 WHR77343 |
C00332691
481253288034 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR77343 |
C00320223
481253288062 |
Sleeve | Na dotaz | Zadat poptávku | |
| 105 2 WHR77343 |
C00320225
481253288063 |
Sleeveleft | Na dotaz | Zadat poptávku | |
| 152 0 WHR77343 |
C00318075
481941879724 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 152 1 WHR77343 |
C00318546
481241828439 |
Flap f. door dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR77343 |
C00316239
481241828607 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 3 WHR77343 |
C00315574
481241828426 |
drzak lahvi | 555 Kč
€ 21.90 |
||
| 152 4 WHR77343 |
C00313959
481241828606 |
BOTTLE SHELF | Na dotaz | Zadat poptávku | |
| 156 0 WHR77343 |
C00315576
481241828427 |
držák na vajíčka | Na dotaz | Zadat poptávku | |
| 242 0 WHR77343 |
C00318816
481241838111 |
zasuvka na zeleninu | 1 612 Kč
€ 63.60 |
||
| 252 0 WHR77343 |
C00316276
481244078978 |
krabicka termostatu | 794 Kč
€ 31.30 |
||
| 252 1 WHR77343 |
C00319193
481246048927 |
reflektor | 200 Kč
€ 7.90 |
||
| 255 0 WHR77343 |
C00312514
481245088214 |
Skleněná police do chladničky | 1 117 Kč
€ 44.10 |
||
| 255 1 WHR77343 |
C00331200
481245088215 |
kryci deska v plastu | 932 Kč
€ 36.80 |
||
| 331 0 WHR77343 |
C00497680
481241278999 |
KNOB THERMOSTAT | Na dotaz | Zadat poptávku | |
| 332 0 WHR77343 |
C00327092
481222708014 |
Cam | Na dotaz | Zadat poptávku | |
| 332 1 WHR77343 |
C00311795
481227618362 |
Páčka osvětlení | 995 Kč
€ 39.20 |
||
| 402 0 WHR77343 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 402 1 WHR77343 |
C00333005
481941878641 |
miska na kondenzat | 171 Kč
€ 6.70 |
||
| 491 0 WHR77343 |
C00330757
481246279861 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR77343 |
C00326886
481215128002 |
Cover | Na dotaz | Zadat poptávku | |
| 554 0 WHR77343 |
C00315916
481228238141 |
TERMOSTAT BIM. | 911 Kč
€ 35.90 |
||
| 614 0 WHR77343 |
C00327500
481228068367 |
PTC-Unit | Na dotaz | Zadat poptávku | |
| 614 1 WHR77343 |
C00497259
481215128003 |
Cover | Na dotaz | Zadat poptávku | |
| 652 0 WHR77343 |
C00318733
481225518262 |
objimka zarovky | 480 Kč
€ 18.90 |
||
| 655 0 WHR77343 |
C00327240
481227138465 |
Switch light | Na dotaz | Zadat poptávku | |
| 740 0 WHR77343 |
C00332240
481251148361 |
Condenser | Na dotaz | Zadat poptávku | |
| 764 0 WHR77343 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 783 0 WHR77343 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 904 0 WHR77343 |
C00332698
481253288061 |
Cover | Na dotaz | Zadat poptávku | |
| 930 0 WHR77343 |
C00312939
481249148014 |
pruzina | 382 Kč
€ 15.10 |
||
| 999 WHR77343 |
C00704478 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
