WHIRLPOOL ARC 1090/WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARC 1090/WH |
| Kód 12NC: | 850110901000 |
| I.C. kód: | 850110901001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice |
| Další podobné modely: | 850141616000 |
Potřebujete servis? Jsme tady pro Vás

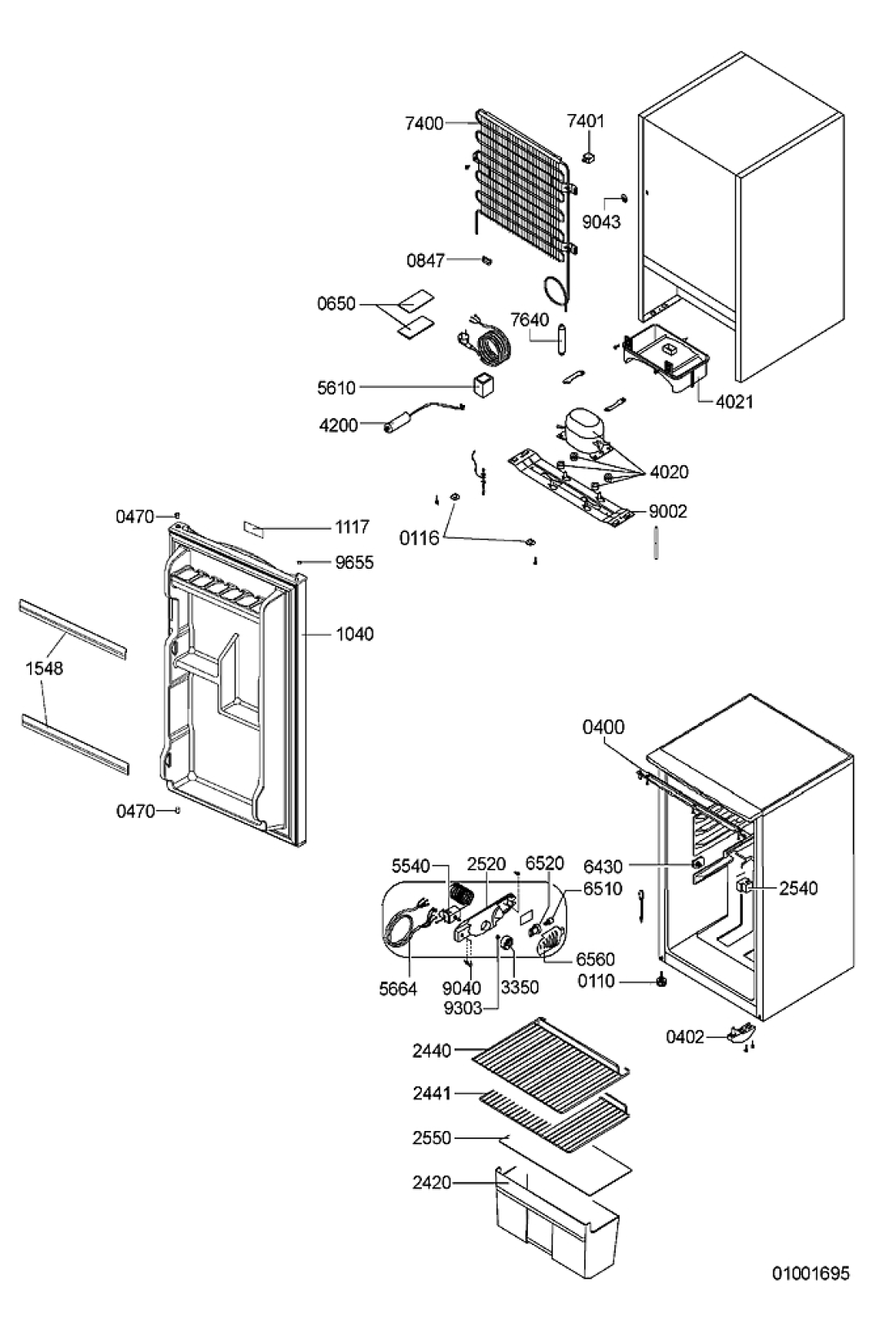

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR71444 |
C00330456
481246218273 |
noha nastavitelna | 211 Kč
€ 8.30 |
||
| 011 6 WHR71444 |
C00330458
481246218283 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR71444 |
C00402751
481241719441 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR71444 |
C00329734
481241719315 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 047 0 WHR71444 |
C00331108
481244688159 |
Bushing | Na dotaz | Zadat poptávku | |
| 065 0 WHR71444 |
C00330785
481246348012 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 084 7 WHR71444 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 104 0 WHR71444 |
C00402542
481241610207 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 111 7 WHR71444 |
C00330203
481245918277 |
Nameplate | Na dotaz | Zadat poptávku | |
| 154 8 WHR71444 |
C00402022
481240449718 |
Batten | Na dotaz | Zadat poptávku | |
| 242 0 WHR71444 |
C00403001
481241829785 |
Crisper | Na dotaz | Zadat poptávku | |
| 244 0 WHR71444 |
C00403002
481241829786 |
Grille | Na dotaz | Zadat poptávku | |
| 244 1 WHR71444 |
C00403003
481241829787 |
Grille | Na dotaz | Zadat poptávku | |
| 252 0 WHR71444 |
C00328134
481244029478 |
Casing | Na dotaz | Zadat poptávku | |
| 254 0 WHR71444 |
C00329453
481241279137 |
spinac | 810 Kč
€ 32.00 |
||
| 255 0 WHR71444 |
C00403842
481245088431 |
Cover plate | Na dotaz | Zadat poptávku | |
| 335 0 WHR71444 |
C00317787
481241458279 |
Knoflík termostatu | 206 Kč
€ 8.10 |
||
| 402 0 WHR71444 |
C00328571
481236038955 |
Compressor THG 1330 MJS | Na dotaz | Zadat poptávku | |
| 402 1 WHR71444 |
C00327879
481241870005 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 420 0 WHR71444 |
C00326765
481212108245 |
Capacitor 2#F 400V P2-M8 | Na dotaz | Zadat poptávku | |
| 554 0 WHR71444 |
C00319332
481228208654 |
termostat | 1 648 Kč
€ 65.10 |
||
| 561 0 WHR71444 |
C00327574
481228268042 |
Protect motor | Na dotaz | Zadat poptávku | |
| 566 4 WHR71444 |
C00328483
481232058166 |
Cable harness thermostat | Na dotaz | Zadat poptávku | |
| 643 0 WHR71444 |
C00327022
481221538021 |
Thermometer WHIRLPOOL | Na dotaz | Zadat poptávku | |
| 651 0 WHR71444 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR71444 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 656 0 WHR71444 |
C00328257
481244048366 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 740 0 WHR71444 |
C00405510
481251148449 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR71444 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 0 WHR71444 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 900 2 WHR71444 |
C00403004
481241829788 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 904 0 WHR71444 |
C00327204
481226278023 |
Cap | Na dotaz | Zadat poptávku | |
| 904 3 WHR71444 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 930 3 WHR71444 |
C00345850
481249258054 |
Knob thermostat spring | Na dotaz | Zadat poptávku | |
| 965 5 WHR71444 |
C00327082
481222608028 |
Krytka/záslepka | 122 Kč
€ 4.80 |
||
| 999 WHR71444 |
C00693348 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
