| Komerční kód: | ARC 1788/IX REFRIGERATORS WP |
| Kód 12NC: | 850117896010 |
| I.C. kód: | 850117896011 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice |
| Další podobné modely: | 850117896012, 850117815010, 850117896010, 850117815011, 850117815012 |
Potřebujete servis? Jsme tady pro Vás

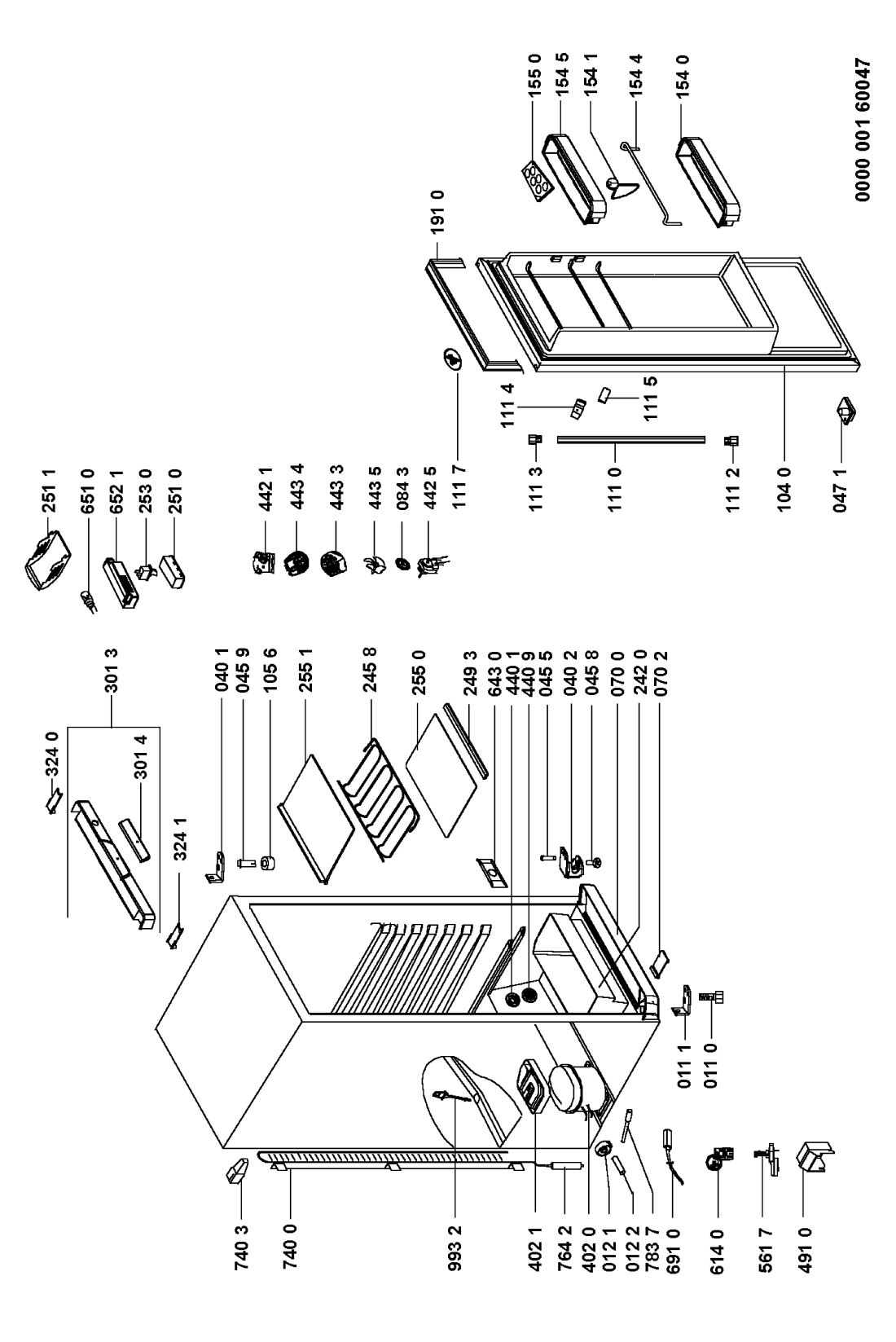

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR61390 |
C00330677
481246248398 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR61390 |
C00319501
481246248399 |
Foot support | Na dotaz | Zadat poptávku | |
| 012 1 WHR61390 |
C00330460
481246218292 |
kolecko zadni | Na dotaz | Zadat poptávku | |
| 012 2 WHR61390 |
C00333340
481953538013 |
osa kolecka lednice | 47 Kč
€ 1.90 |
||
| 040 1 WHR61390 |
C00314777
481941719619 |
zaves horni | 949 Kč
€ 37.40 |
||
| 040 2 WHR61390 |
C00314779
481941719627 |
Závěs spodní | 730 Kč
€ 28.80 |
||
| 045 5 WHR61390 |
C00333341
481953538056 |
Shaft | Na dotaz | Zadat poptávku | |
| 045 8 WHR61390 |
C00317178
481253538098 |
kolik | Na dotaz | Zadat poptávku | |
| 045 9 WHR61390 |
C00332717
481253538113 |
Pin,hinge | Na dotaz | Zadat poptávku | |
| 047 1 WHR61390 |
C00331106
481244688147 |
Bushing lower right | Na dotaz | Zadat poptávku | |
| 070 0 WHR61390 |
C00319385
481246228613 |
Plinth | Na dotaz | Zadat poptávku | |
| 070 2 WHR61390 |
C00330290
481246049533 |
Insert silver | Na dotaz | Zadat poptávku | |
| 084 3 WHR61390 |
C00333281
481952918124 |
krouzek tlumici | 495 Kč
€ 19.50 |
||
| 104 0 WHR61390 |
C00574419
481241619516 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 105 6 WHR61390 |
C00314341
481244688139 |
Bushing | Na dotaz | Zadat poptávku | |
| 111 0 WHR61390 |
C00319531
481246268842 |
rukojet dveri | 2 288 Kč
€ 90.20 |
||
| 111 2 WHR61390 |
C00330492
481246228429 |
PLASTOVA KRYTKA | 654 Kč
€ 25.80 |
||
| 111 3 WHR61390 |
C00498377
481246228428 |
Stopper | Na dotaz | Zadat poptávku | |
| 111 4 WHR61390 |
C00315877
481246228426 |
Support door handle | Na dotaz | Zadat poptávku | |
| 111 5 WHR61390 |
C00315424
481246228482 |
Support | Na dotaz | Zadat poptávku | |
| 111 7 WHR61390 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 154 0 WHR61390 |
C00314237
481241828892 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR61390 |
C00314769
481241828748 |
Separátor lahví | Na dotaz | Zadat poptávku | |
| 154 4 WHR61390 |
C00316683
481252648213 |
Držák na lahve do dveří chladniček Whirlpool | 1 246 Kč
€ 49.10 |
||
| 154 5 WHR61390 |
C00314773
481241828891 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 155 0 WHR61390 |
C00315576
481241828427 |
držák na vajíčka | Na dotaz | Zadat poptávku | |
| 191 0 WHR61390 |
C00331504
481246688779 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 242 0 WHR61390 |
C00316978
481241828261 |
Zásuvka na zeleninu | 1 716 Kč
€ 67.70 |
||
| 245 8 WHR61390 |
C00329052
481240448914 |
rost lahvi | 1 439 Kč
€ 56.80 |
||
| 249 3 WHR61390 |
C00319233
481246049446 |
Trim glass plate | Na dotaz | Zadat poptávku | |
| 251 0 WHR61390 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR61390 |
C00328851
481238118297 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 253 0 WHR61390 |
C00316133
481927618444 |
spinac osvetleni | 562 Kč
€ 22.20 |
||
| 255 0 WHR61390 |
C00331196
481245088183 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR61390 |
C00331197
481245088184 |
Glass shelf with frame | Na dotaz | Zadat poptávku | |
| 301 3 WHR61390 |
C00461570
481245228726 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 301 4 WHR61390 |
C00330291
481246049535 |
panel | 4 598 Kč
€ 181.30 |
||
| 324 0 WHR61390 |
C00330288
481246049531 |
Insert.trimright | Na dotaz | Zadat poptávku | |
| 324 1 WHR61390 |
C00330289
481246049532 |
Insert.trimleft hand | Na dotaz | Zadat poptávku | |
| 402 0 WHR61390 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 402 1 WHR61390 |
C00317573
481241818379 |
Miska odkapní | 408 Kč
€ 16.10 |
||
| 440 1 WHR61390 |
C00328947
481240148586 |
Držák | 178 Kč
€ 7.00 |
||
| 440 9 WHR61390 |
C00331591
481246818358 |
Stopper | Na dotaz | Zadat poptávku | |
| 442 1 WHR61390 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 442 5 WHR61390 |
C00314721
481936118466 |
motor ventilatoru | 3 046 Kč
€ 120.10 |
||
| 443 3 WHR61390 |
C00333090
481946258376 |
kryt ventilatoru | 669 Kč
€ 26.40 |
||
| 443 4 WHR61390 |
C00333108
481946288073 |
kryt | 4 697 Kč
€ 185.20 |
||
| 443 5 WHR61390 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 491 0 WHR61390 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 561 7 WHR61390 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR61390 |
C00527058
481228068322 |
Monoblock | Na dotaz | Zadat poptávku | |
| 643 0 WHR61390 |
C00327019
481221538009 |
termometr | 1 162 Kč
€ 45.80 |
||
| 651 0 WHR61390 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 652 1 WHR61390 |
C00327137
481225528018 |
Support | Na dotaz | Zadat poptávku | |
| 691 0 WHR61390 |
C00326911
481221058042 |
Sensor | Na dotaz | Zadat poptávku | |
| 740 0 WHR61390 |
C00333257
481951148684 |
CONDENSER | Na dotaz | Zadat poptávku | |
| 740 3 WHR61390 |
C00333329
481953268859 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 2 WHR61390 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 783 7 WHR61390 |
C00326890
481217088001 |
Tube | Na dotaz | Zadat poptávku | |
| 993 2 WHR61390 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR61390 |
C00327348
481231019021 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 999 WHR61390 |
C00676717 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
