WHIRLPOOL ARC 229
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | ARC 229 |
Kód 12NC: | 850122901010 |
I.C. kód: | 850122901012 |
Značka: | WHIRLPOOL |
Typ produktu: | Vestavné lednice |
Další podobné modely: | 850122901011, Q0912180001, Q0912180002, 850122901010 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

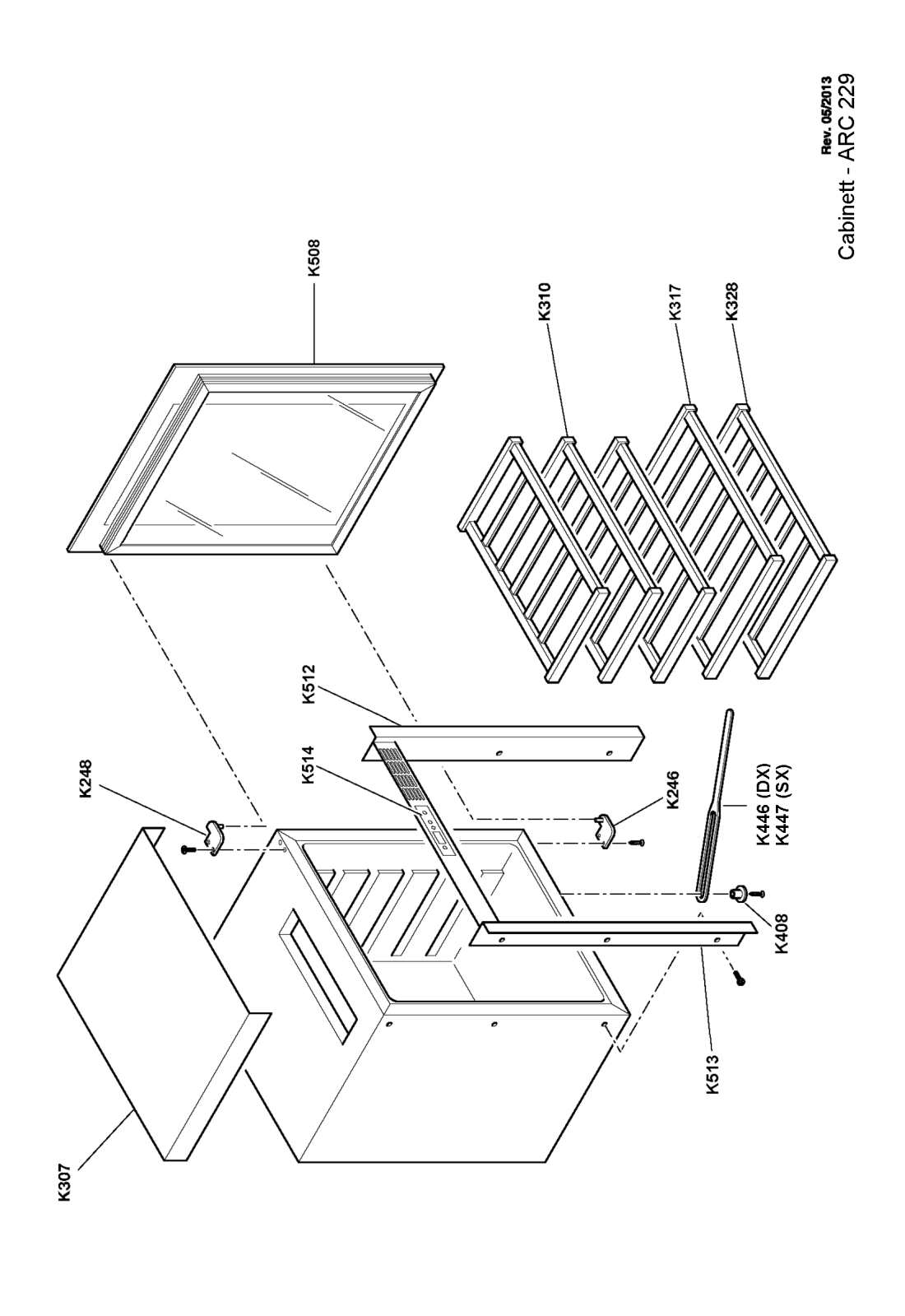

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
B047 WHR00035 |
C00327213
481226278053 |
Filter | Na dotaz | Zadat poptávku | |
G166 WHR00035 |
C00334587
482000012896 |
PTC-Unit starting device 22V | Na dotaz | Zadat poptávku | |
G173 WHR00035 |
C00328594
481236039081 |
Evaporator | Na dotaz | Zadat poptávku | |
G782 WHR00035 |
C00334588
482000012897 |
Compressor DLX 4KK.1 | Na dotaz | Zadat poptávku | |
K100 WHR00035 |
C00333858
482000009084 |
Rivet BK | Na dotaz | Zadat poptávku | |
K135 WHR00035 |
C00334589
482000012898 |
Cable mains | Na dotaz | Zadat poptávku | |
K136 WHR00035 |
C00328540
481232178389 |
Cable harness Lamp | Na dotaz | Zadat poptávku | |
K144 WHR00035 |
C00331063
481244229345 |
Panel Evaporator | Na dotaz | Zadat poptávku | |
K145 WHR00035 |
C00313861
481236138137 |
Internal fan | Na dotaz | Zadat poptávku | |
K209 WHR00035 |
C00328539
481232178388 |
Cable harness Ventilator | Na dotaz | Zadat poptávku | |
K215 WHR00035 |
C00327041
481221778273 |
Housing CB | Na dotaz | Zadat poptávku | |
K220 WHR00035 |
C00329249
481240478927 |
senzor | 1 013 Kč
€ 40.00 |
||
K221 WHR00035 |
C00328596
481236039083 |
Bracket Evaporator | Na dotaz | Zadat poptávku | |
K234 WHR00035 |
C00328825
481236138138 |
Ventilator Condenser | Na dotaz | Zadat poptávku | |
K246 WHR00035 |
C00329773
481241719495 |
závěs | 640 Kč
€ 25.20 |
||
K248 WHR00035 |
C00329775
481241719497 |
Hinge top right | Na dotaz | Zadat poptávku | |
K250 WHR00035 |
C00327321
481229088122 |
Terminal Board | Na dotaz | Zadat poptávku | |
K251 WHR00035 |
C00332268
481251148474 |
Condenser | Na dotaz | Zadat poptávku | |
K307 WHR00035 |
C00330233
481245948218 |
Cover top | Na dotaz | Zadat poptávku | |
K310 WHR00035 |
C00331236
481245088493 |
Shelf small | Na dotaz | Zadat poptávku | |
K317 WHR00035 |
C00331238
481245088495 |
Rošt | 1 932 Kč
€ 76.20 |
||
K328 WHR00035 |
C00331237
481245088494 |
Shelf large | Na dotaz | Zadat poptávku | |
K408 WHR00035 |
C00333878
482000009112 |
Bushing | Na dotaz | Zadat poptávku | |
K427 WHR00035 |
C00334596
482000012911 |
Control board thermost. LED | Na dotaz | Zadat poptávku | |
K428 WHR00035 |
C00334590
482000012899 |
Modul, vinotéka | Na dotaz | Zadat poptávku | |
K446 WHR00035 |
C00331655
482000001206 |
Stop door RIGHT | Na dotaz | Zadat poptávku | |
K447 WHR00035 |
C00331656
482000001207 |
Stop door left | Na dotaz | Zadat poptávku | |
K508 WHR00035 |
C00333862
482000009088 |
Door WHIRLPOOL | Na dotaz | Zadat poptávku | |
K512 WHR00035 |
C00333864
482000009090 |
Frame | Na dotaz | Zadat poptávku | |
K513 WHR00035 |
C00333865
482000009091 |
Frame | Na dotaz | Zadat poptávku | |
K514 WHR00035 |
C00334597
482000012928 |
Control panel | Na dotaz | Zadat poptávku | |
K523 WHR00035 |
C00334591
482000012900 |
Capacitor 2 MF | Na dotaz | Zadat poptávku |
