WHIRLPOOL ARC4380IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | ARC4380IX |
Kód 12NC: | 850143811040 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

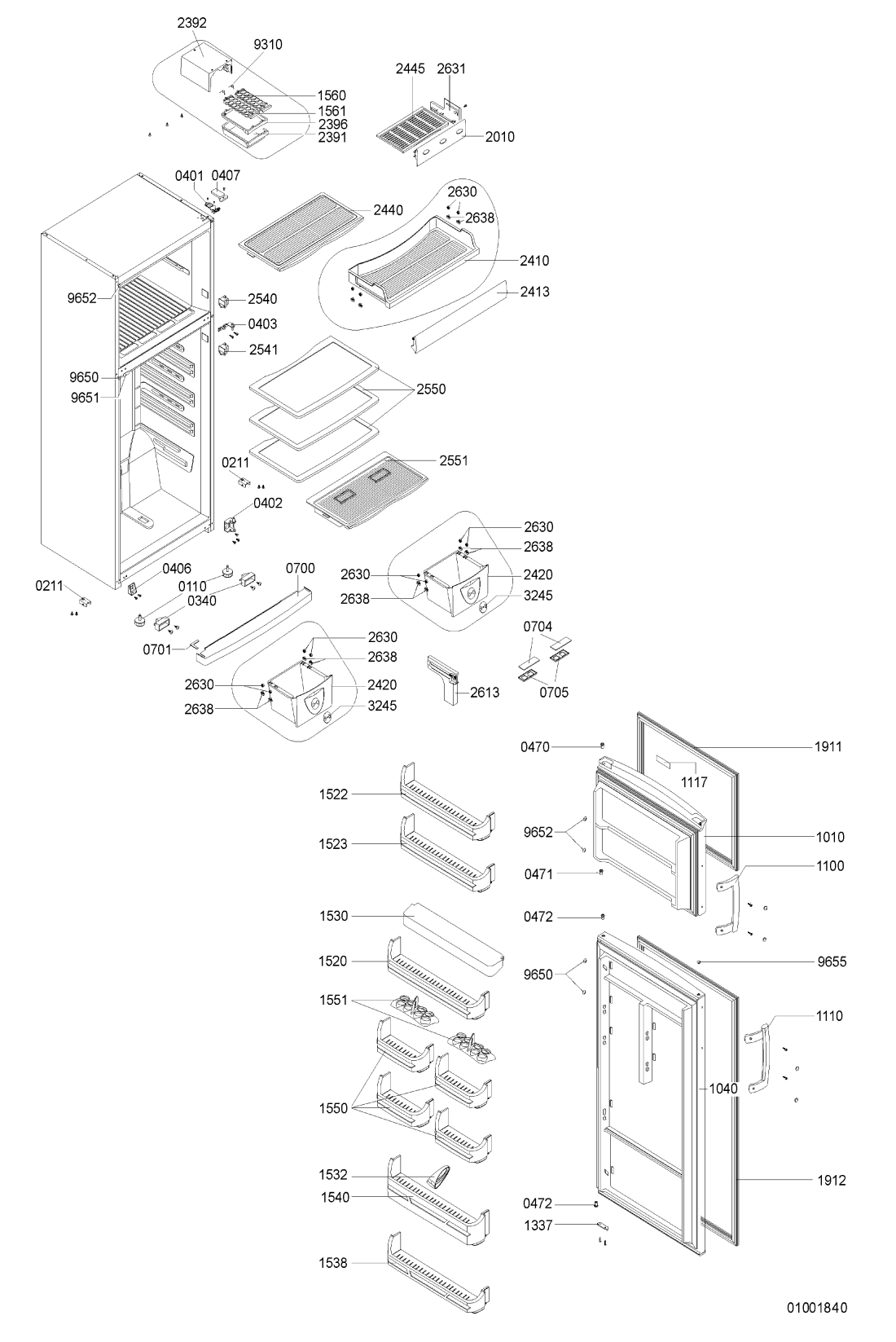

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
011 0 WHR60009 |
C00270036
481246218305 |
FOOT - ADJUSTABLE | Na dotaz | Zadat poptávku | |
012 1 WHR60009 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
012 2 WHR60009 |
C00332729
481253578083 |
Axle Roller | Na dotaz | Zadat poptávku | |
021 1 WHR60009 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
034 0 WHR60009 |
C00329017
481240438739 |
Holder plinth | Na dotaz | Zadat poptávku | |
040 1 WHR60009 |
C00377660
481241719458 |
Hinge upper | Na dotaz | Zadat poptávku | |
040 2 WHR60009 |
C00329762
481241719459 |
Hinge lower | Na dotaz | Zadat poptávku | |
040 3 WHR60009 |
C00377661
481241719461 |
Hinge middle | Na dotaz | Zadat poptávku | |
040 6 WHR60009 |
C00330465
481246218306 |
Support foot | Na dotaz | Zadat poptávku | |
040 7 WHR60009 |
C00403233
481244029541 |
Cover hinge | Na dotaz | Zadat poptávku | |
047 0 WHR60009 |
C00403723
481244688167 |
Bushing | Na dotaz | Zadat poptávku | |
047 1 WHR60009 |
C00403722
481244688165 |
Bushing | Na dotaz | Zadat poptávku | |
047 2 WHR60009 |
C00377729
481244688166 |
Bushing | Na dotaz | Zadat poptávku | |
070 0 WHR60009 |
C00377703
481244029542 |
Plinth | Na dotaz | Zadat poptávku | |
070 1 WHR60009 |
C00403579
481244089167 |
Cover bar plinth | Na dotaz | Zadat poptávku | |
070 4 WHR60009 |
C00405258
481248058396 |
Filter | Na dotaz | Zadat poptávku | |
070 5 WHR60009 |
C00405297
481248128188 |
Filter body | Na dotaz | Zadat poptávku | |
101 0 WHR60009 |
C00402551
481241610337 |
Door freezer | Na dotaz | Zadat poptávku | |
104 0 WHR60009 |
C00377641
481241610338 |
Door refriger. | Na dotaz | Zadat poptávku | |
110 0 WHR60009 |
C00405344
481249818731 |
Door handle freezer | Na dotaz | Zadat poptávku | |
111 0 WHR60009 |
C00377838
481249818732 |
Dveře | 1 542 Kč
€ 60.90 |
||
111 7 WHR60009 |
C00330203
481245918277 |
Nameplate | Na dotaz | Zadat poptávku | |
133 7 WHR60009 |
C00329805
481241778139 |
Stop door | Na dotaz | Zadat poptávku | |
152 0 WHR60009 |
C00377688
481241829863 |
Door dairy | Na dotaz | Zadat poptávku | |
152 2 WHR60009 |
C00403015
481241829864 |
Door dairy | Na dotaz | Zadat poptávku | |
152 3 WHR60009 |
C00548539
481241829865 |
Door dairy | Na dotaz | Zadat poptávku | |
153 0 WHR60009 |
C00377689
481241829866 |
Flap f. door dairy | Na dotaz | Zadat poptávku | |
153 2 WHR60009 |
C00403016
481241829867 |
Separator | Na dotaz | Zadat poptávku | |
153 8 WHR60009 |
C00403017
481241829868 |
Door dairy | Na dotaz | Zadat poptávku | |
154 0 WHR60009 |
C00548540
481241829869 |
Bottle shelf | Na dotaz | Zadat poptávku | |
155 0 WHR60009 |
C00403018
481241829871 |
Holder eggs | Na dotaz | Zadat poptávku | |
155 1 WHR60009 |
C00403051
481241848929 |
Egg trim | Na dotaz | Zadat poptávku | |
156 0 WHR60009 |
C00269945
481241820032 |
DVÍŘKA LED RIGHT | Na dotaz | Zadat poptávku | |
156 1 WHR60009 |
C00269946
481241820033 |
DVÍŘKA LED LEFT | Na dotaz | Zadat poptávku | |
191 1 WHR60009 |
C00405133
481246688962 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
191 2 WHR60009 |
C00405134
481246688963 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
201 0 WHR60009 |
C00403553
481244079291 |
Cover freezing | Na dotaz | Zadat poptávku | |
239 1 WHR60009 |
C00402836
481241820034 |
Icecube tray | Na dotaz | Zadat poptávku | |
239 2 WHR60009 |
C00327735
481241829849 |
Panel icemaker | Na dotaz | Zadat poptávku | |
239 6 WHR60009 |
C00328988
481240418578 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
241 0 WHR60009 |
C00403019
481241829872 |
Shelf | Na dotaz | Zadat poptávku | |
241 3 WHR60009 |
C00403020
481241829873 |
Flap f. shelf | Na dotaz | Zadat poptávku | |
242 0 WHR60009 |
C00280342
481241829874 |
SCHRÁNKA NA ZELENINU | Na dotaz | Zadat poptávku | |
244 0 WHR60009 |
C00280314
481241829875 |
DVEŘNÍ PŘIHRÁDKA FREEZER | Na dotaz | Zadat poptávku | |
244 5 WHR60009 |
C00280313
481241829876 |
DVEŘNÍ PŘIHRÁDKA SUPER FREEZER | Na dotaz | Zadat poptávku | |
247 2 WHR60009 |
C00402155
481240478857 |
Cover | Na dotaz | Zadat poptávku | |
249 2 WHR60009 |
C00405046
481246488055 |
Trim condenser | Na dotaz | Zadat poptávku | |
251 0 WHR60009 |
C00401779
481238028036 |
Reflector | Na dotaz | Zadat poptávku | |
251 1 WHR60009 |
C00280305
481244079278 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
252 0 WHR60009 |
C00405131
481246688958 |
Insulation | Na dotaz | Zadat poptávku | |
252 1 WHR60009 |
C00403551
481244079279 |
Conveyor | Na dotaz | Zadat poptávku | |
252 2 WHR60009 |
C00405132
481246688959 |
Dumper | Na dotaz | Zadat poptávku | |
252 6 WHR60009 |
C00405080
481246668917 |
Damper thermostat | Na dotaz | Zadat poptávku | |
254 0 WHR60009 |
C00269955
481241279236 |
VYPÍNAČ OSVĚTLENÍ | Na dotaz | Zadat poptávku | |
254 1 WHR60009 |
C00400929
481227618528 |
Switch door | Na dotaz | Zadat poptávku | |
255 0 WHR60009 |
C00403858
481245088454 |
Glass shelf | Na dotaz | Zadat poptávku | |
255 1 WHR60009 |
C00403859
481245088455 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
261 3 WHR60009 |
C00280303
481246238316 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
263 0 WHR60009 |
C00280318
481252028189 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
263 1 WHR60009 |
C00330669
481246238315 |
Rail freezing | Na dotaz | Zadat poptávku | |
263 8 WHR60009 |
C00269973
481240449772 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
324 5 WHR60009 |
C00402511
481241378791 |
Air regulator | Na dotaz | Zadat poptávku | |
324 9 WHR60009 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
325 0 WHR60009 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
325 1 WHR60009 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
325 2 WHR60009 |
C00280310
481244079284 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
325 3 WHR60009 |
C00280311
481244079285 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
325 4 WHR60009 |
C00280312
481244079286 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
335 0 WHR60009 |
C00402524
481241458324 |
Knob thermostat | Na dotaz | Zadat poptávku | |
335 1 WHR60009 |
C00329532
481241458323 |
Knob thermostat | Na dotaz | Zadat poptávku | |
335 5 WHR60009 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
402 0 WHR60009 |
C00401410
481236039064 |
Compressor NBU 1118 Y 4MF | Na dotaz | Zadat poptávku | |
402 1 WHR60009 |
C00327854
481241848968 |
Tray Compressor | Na dotaz | Zadat poptávku | |
420 0 WHR60009 |
C00345713
481248028096 |
Capacitor 4#F/400V-M8 WIT | Na dotaz | Zadat poptávku | |
441 0 WHR60009 |
C00280290
481236158485 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
441 2 WHR60009 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
441 3 WHR60009 |
C00280291
481228678014 |
VRTULE | Na dotaz | Zadat poptávku | |
441 5 WHR60009 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
441 6 WHR60009 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
442 7 WHR60009 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
456 1 WHR60009 |
C00269914
481211528011 |
TERMOSTAT BIMETALOVÝ | Na dotaz | Zadat poptávku | |
491 2 WHR60009 |
C00330819
481246418232 |
Cover timer | Na dotaz | Zadat poptávku | |
554 1 WHR60009 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
557 2 WHR60009 |
C00405144
481246689016 |
Gasket | Na dotaz | Zadat poptávku | |
561 0 WHR60009 |
C00400379
481221470238 |
Relay, Overload prot. Comp.NBU1118Y | Na dotaz | Zadat poptávku | |
562 0 WHR60009 |
C00327543
481228228345 |
Thermofuse | Na dotaz | Zadat poptávku | |
566 5 WHR60009 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
566 6 WHR60009 |
C00330820
481246418233 |
Casing | Na dotaz | Zadat poptávku | |
651 0 WHR60009 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
656 0 WHR60009 |
C00280309
481246228887 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
740 0 WHR60009 |
C00280299
481251148458 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
740 1 WHR60009 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
743 4 WHR60009 |
C00280308
481244079287 |
Air guide | Na dotaz | Zadat poptávku | |
745 0 WHR60009 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
746 1 WHR60009 |
C00280304
481244079288 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
746 2 WHR60009 |
C00280292
481244079324 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
764 0 WHR60009 |
C00345712
481248028092 |
Dryer | Na dotaz | Zadat poptávku | |
900 1 WHR60009 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
900 2 WHR60009 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
903 4 WHR60009 |
C00280301
481246228888 |
ZÁTKA | Na dotaz | Zadat poptávku | |
931 0 WHR60009 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
965 0 WHR60009 |
C00404887
481246248442 |
Cap for hole door handle | Na dotaz | Zadat poptávku | |
965 1 WHR60009 |
C00404888
481246248443 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
965 2 WHR60009 |
C00281810
481246248444 |
ZÁTKA KRYTKA ŠROUBU | Na dotaz | Zadat poptávku | |
965 5 WHR60009 |
C00404889
481246248445 |
Cover bushing | Na dotaz | Zadat poptávku | |
965 7 WHR60009 |
C00330575
481246228891 |
Cap | Na dotaz | Zadat poptávku | |
999 WHR60010 |
C00674546 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
