| Komerční kód: | ARC4440 REFRIGERATORS |
| Kód 12NC: | 850144411000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

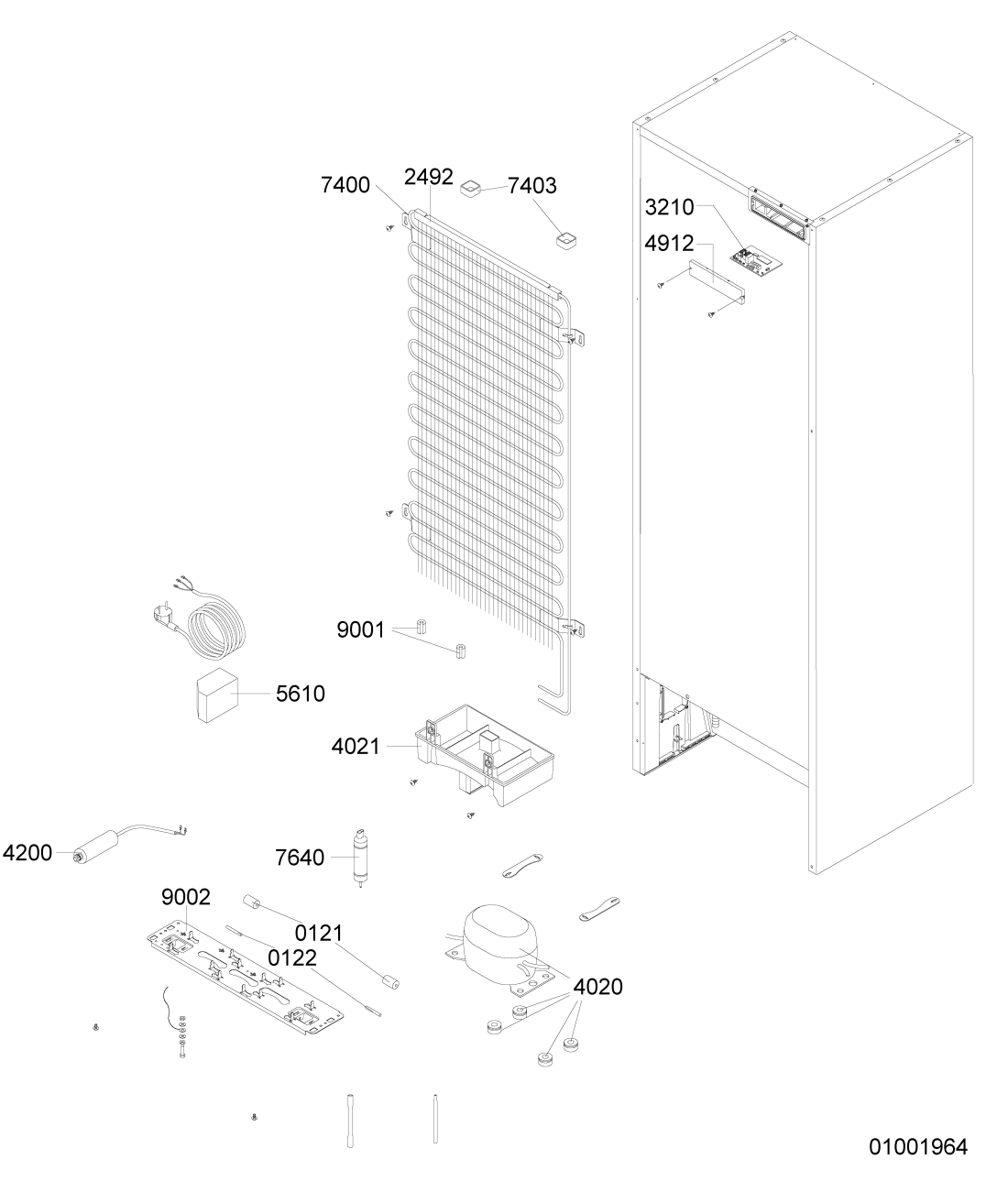

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR10402 |
C00330466
481246218308 |
Foot | Na dotaz | Zadat poptávku | |
| 0121 WHR10402 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 0122 WHR10402 |
C00332729
481253578083 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 0210 WHR10402 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 0215 WHR10402 |
C00330465
481246218306 |
Support foot | Na dotaz | Zadat poptávku | |
| 0340 WHR10402 |
C00329017
481240438739 |
Holder plinth | Na dotaz | Zadat poptávku | |
| 0400 WHR10402 |
C00403235
481244029544 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 0401 WHR10402 |
C00377660
481241719458 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR10402 |
C00329763
481241719468 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0403 WHR10402 |
C00329762
481241719459 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0470 WHR10402 |
C00403725
481244688169 |
Bushing | Na dotaz | Zadat poptávku | |
| 0471 WHR10402 |
C00331108
481244688159 |
Bushing | Na dotaz | Zadat poptávku | |
| 0472 WHR10402 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 0700 WHR10402 |
C00403581
481244089171 |
Plinth | Na dotaz | Zadat poptávku | |
| 0701 WHR10402 |
C00403236
481244029545 |
Cover bar Plinth | Na dotaz | Zadat poptávku | |
| 0705 WHR10402 |
C00405258
481248058396 |
Filter | Na dotaz | Zadat poptávku | |
| 0706 WHR10402 |
C00405297
481248128188 |
Filter body | Na dotaz | Zadat poptávku | |
| 1010 WHR10402 |
C00394138
480132101875 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR10402 |
C00402556
481241610364 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1100 WHR10402 |
C00345725
481249818733 |
Door handle | Na dotaz | Zadat poptávku | |
| 1110 WHR10402 |
C00345726
481249818734 |
Door handle | Na dotaz | Zadat poptávku | |
| 1117 WHR10402 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 1337 WHR10402 |
C00329805
481241778139 |
Stop door | Na dotaz | Zadat poptávku | |
| 1520 WHR10402 |
C00377688
481241829863 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1522 WHR10402 |
C00403015
481241829864 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1530 WHR10402 |
C00377689
481241829866 |
Flap f. door dairy | Na dotaz | Zadat poptávku | |
| 1532 WHR10402 |
C00403016
481241829867 |
Separator | Na dotaz | Zadat poptávku | |
| 1533 WHR10402 |
C00548539
481241829865 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1538 WHR10402 |
C00403017
481241829868 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1540 WHR10402 |
C00548540
481241829869 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1550 WHR10402 |
C00403018
481241829871 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1551 WHR10402 |
C00403051
481241848929 |
Egg trim | Na dotaz | Zadat poptávku | |
| 1560 WHR10402 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 1561 WHR10402 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 1910 WHR10402 |
C00405135
481246688965 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 1911 WHR10402 |
C00405136
481246688966 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 2010 WHR10402 |
C00403553
481244079291 |
Cover freezing | Na dotaz | Zadat poptávku | |
| 2391 WHR10402 |
C00327734
481241829848 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 2392 WHR10402 |
C00327735
481241829849 |
Panel icemaker | Na dotaz | Zadat poptávku | |
| 2396 WHR10402 |
C00328988
481240418578 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 2410 WHR10402 |
C00280317
480132101061 |
Shelf | Na dotaz | Zadat poptávku | |
| 2413 WHR10402 |
C00403020
481241829873 |
Flap f. shelf | Na dotaz | Zadat poptávku | |
| 2420 WHR10402 |
C00280342
481241829874 |
SCHRÁNKA NA ZELENINU | Na dotaz | Zadat poptávku | |
| 2440 WHR10402 |
C00280314
481241829875 |
DVEŘNÍ PŘIHRÁDKA FREEZER | Na dotaz | Zadat poptávku | |
| 2445 WHR10402 |
C00280313
481241829876 |
DVEŘNÍ PŘIHRÁDKA SUPER FREEZER | Na dotaz | Zadat poptávku | |
| 2492 WHR10402 |
C00405046
481246488055 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 2510 WHR10402 |
C00401779
481238028036 |
Reflector | Na dotaz | Zadat poptávku | |
| 2521 WHR10402 |
C00405137
481246688968 |
Insulation | Na dotaz | Zadat poptávku | |
| 2522 WHR10402 |
C00402160
481240478877 |
Cover | Na dotaz | Zadat poptávku | |
| 2523 WHR10402 |
C00403554
481244079294 |
Conveyor | Na dotaz | Zadat poptávku | |
| 2526 WHR10402 |
C00377809
481246378024 |
DAMPER THERMOSTAT | Na dotaz | Zadat poptávku | |
| 2540 WHR10402 |
C00269955
481241279236 |
VYPÍNAČ OSVĚTLENÍ | Na dotaz | Zadat poptávku | |
| 2541 WHR10402 |
C00329499
481241279488 |
Switch door | Na dotaz | Zadat poptávku | |
| 2550 WHR10402 |
C00403858
481245088454 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2551 WHR10402 |
C00403859
481245088455 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 2613 WHR10402 |
C00280303
481246238316 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
| 2630 WHR10402 |
C00330669
481246238315 |
Rail freezing | Na dotaz | Zadat poptávku | |
| 2635 WHR10402 |
C00280318
481252028189 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 2636 WHR10402 |
C00269973
481240449772 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 3200 WHR10402 |
C00377439
481221470237 |
Display board | Na dotaz | Zadat poptávku | |
| 3201 WHR10402 |
C00401785
481238148008 |
Insert f. lens | Na dotaz | Zadat poptávku | |
| 3202 WHR10402 |
C00403921
481245228917 |
Panel control | Na dotaz | Zadat poptávku | |
| 3203 WHR10402 |
C00400378
481221470236 |
Button | Na dotaz | Zadat poptávku | |
| 3204 WHR10402 |
C00403922
481245228918 |
Frame switch | Na dotaz | Zadat poptávku | |
| 3205 WHR10402 |
C00400377
481221470235 |
Button | Na dotaz | Zadat poptávku | |
| 3210 WHR10402 |
C00378558
481228210313 |
Timer | Na dotaz | Zadat poptávku | |
| 3245 WHR10402 |
C00402511
481241378791 |
Air regulator | Na dotaz | Zadat poptávku | |
| 3250 WHR10402 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 3251 WHR10402 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 3252 WHR10402 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 3255 WHR10402 |
C00280311
481244079285 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
| 3256 WHR10402 |
C00280310
481244079284 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
| 3257 WHR10402 |
C00280312
481244079286 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
| 4020 WHR10402 |
C00401410
481236039064 |
Compressor NBU 1118 Y 4MF | Na dotaz | Zadat poptávku | |
| 4021 WHR10402 |
C00327854
481241848968 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 4200 WHR10402 |
C00345713
481248028096 |
Capacitor 4#F/400V-M8 WIT | Na dotaz | Zadat poptávku | |
| 4410 WHR10402 |
C00280290
481236158485 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 4412 WHR10402 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 4413 WHR10402 |
C00280291
481228678014 |
VRTULE | Na dotaz | Zadat poptávku | |
| 4415 WHR10402 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 4416 WHR10402 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 4427 WHR10402 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 4561 WHR10402 |
C00376914
480132100183 |
Sensor Defrost | Na dotaz | Zadat poptávku | |
| 4562 WHR10402 |
C00306233
480132100182 |
Sensor refriger. | Na dotaz | Zadat poptávku | |
| 4563 WHR10402 |
C00377477
481221848159 |
Sensor freezer | Na dotaz | Zadat poptávku | |
| 4912 WHR10402 |
C00306244
481246418236 |
Cover timer | Na dotaz | Zadat poptávku | |
| 5570 WHR10402 |
C00405144
481246689016 |
Gasket | Na dotaz | Zadat poptávku | |
| 5610 WHR10402 |
C00400379
481221470238 |
Relay, Overload prot. Comp.NBU1118Y | Na dotaz | Zadat poptávku | |
| 5620 WHR10402 |
C00327543
481228228345 |
Thermofuse | Na dotaz | Zadat poptávku | |
| 5665 WHR10402 |
C00403237
481244029546 |
Cover casing | Na dotaz | Zadat poptávku | |
| 5666 WHR10402 |
C00330820
481246418233 |
Casing | Na dotaz | Zadat poptávku | |
| 6510 WHR10402 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 6560 WHR10402 |
C00280305
481244079278 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 6561 WHR10402 |
C00280309
481246228887 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 7400 WHR10402 |
C00280299
481251148458 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
| 7403 WHR10402 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 7434 WHR10402 |
C00280308
481244079287 |
Air guide | Na dotaz | Zadat poptávku | |
| 7450 WHR10402 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 7451 WHR10402 |
C00318912
481225928966 |
Heating element | Na dotaz | Zadat poptávku | |
| 7461 WHR10402 |
C00280304
481244079288 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
| 7462 WHR10402 |
C00280292
481244079324 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
| 7640 WHR10402 |
C00313426
481248028088 |
Filtr - patronka | 211 Kč
€ 8.30 |
||
| 9001 WHR10402 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 9002 WHR10402 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
| 9030 WHR10402 |
C00280301
481246228888 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 9310 WHR10402 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 9650 WHR10402 |
C00330532
481246228675 |
Cap | Na dotaz | Zadat poptávku | |
| 9651 WHR10402 |
C00330683
481246248446 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 9652 WHR10402 |
C00330568
481246228861 |
Cap | Na dotaz | Zadat poptávku | |
| 9654 WHR10402 |
C00404808
481246228919 |
Cover bushing | Na dotaz | Zadat poptávku | |
| 9655 WHR10402 |
C00327082
481222608028 |
Krytka/záslepka | 122 Kč
€ 4.80 |
||
| 9657 WHR10402 |
C00330575
481246228891 |
Cap | Na dotaz | Zadat poptávku | |
