WHIRLPOOL ARC 5270/AL REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARC 5270/AL REFRIGERATORS WP |
| Kód 12NC: | 850152710000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850152710001, 850152710002 |
Potřebujete servis? Jsme tady pro Vás

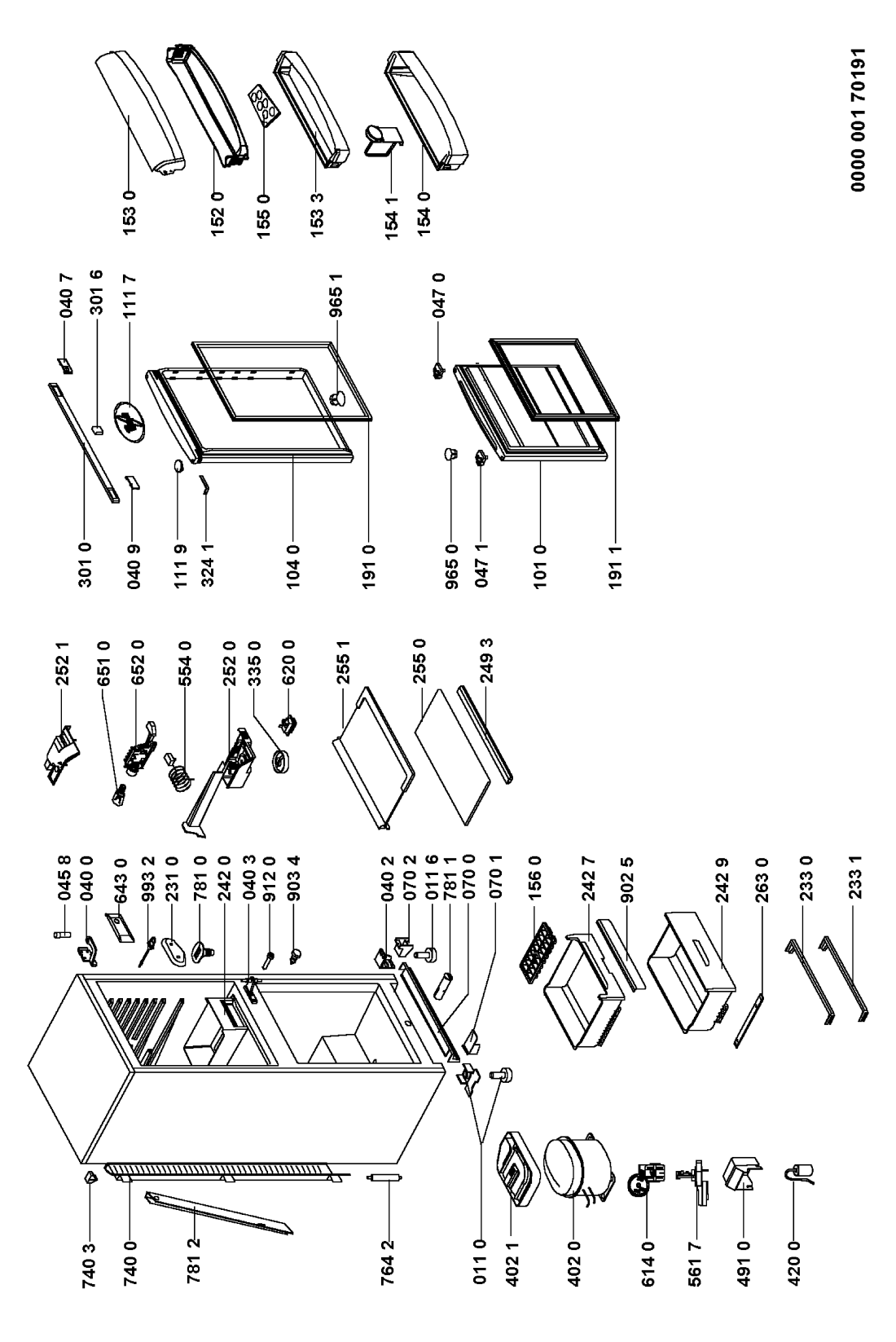

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR71594 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 011 6 WHR71594 |
C00333081
481946248513 |
noha | 144 Kč
€ 5.70 |
||
| 040 0 WHR71594 |
C00329701
481241718916 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR71594 |
C00332997
481941719642 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR71594 |
C00329698
481241718826 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 7 WHR71594 |
C00330242
481246048879 |
Insert | Na dotaz | Zadat poptávku | |
| 040 9 WHR71594 |
C00330474
481246228022 |
Insert | Na dotaz | Zadat poptávku | |
| 045 8 WHR71594 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR71594 |
C00332686
481253288013 |
Bushing | Na dotaz | Zadat poptávku | |
| 047 1 WHR71594 |
C00332687
481253288014 |
Bushing | Na dotaz | Zadat poptávku | |
| 070 0 WHR71594 |
C00330259
481246049331 |
Plinth | Na dotaz | Zadat poptávku | |
| 070 1 WHR71594 |
C00333065
481946078698 |
Insert | Na dotaz | Zadat poptávku | |
| 070 2 WHR71594 |
C00332946
481940478921 |
drzak soklu | 151 Kč
€ 6.00 |
||
| 101 0 WHR71594 |
C00329637
481241618676 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR71594 |
C00574358
481241618678 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 111 7 WHR71594 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 111 9 WHR71594 |
C00330676
481246248055 |
Stopper | Na dotaz | Zadat poptávku | |
| 152 0 WHR71594 |
C00316998
481241828431 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR71594 |
C00329920
481241828432 |
Flap f.door dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR71594 |
C00327676
481241828611 |
DAIRY DOOR | Na dotaz | Zadat poptávku | |
| 154 0 WHR71594 |
C00317677
481241828612 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR71594 |
C00315574
481241828426 |
drzak lahvi | 555 Kč
€ 21.90 |
||
| 155 0 WHR71594 |
C00315576
481241828427 |
držák na vajíčka | Na dotaz | Zadat poptávku | |
| 156 0 WHR71594 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR71594 |
C00338273
481246688697 |
tesneni magneticke | 1 995 Kč
€ 78.80 |
||
| 191 1 WHR71594 |
C00312571
481246688702 |
Těsnění magnetické 691x526 | 2 358 Kč
€ 93.10 |
||
| 231 0 WHR71594 |
C00328315
481244079063 |
kryt termostatu | 111 Kč
€ 4.40 |
||
| 233 0 WHR71594 |
C00316376
481244098171 |
drzak vyparniku | 289 Kč
€ 11.40 |
||
| 233 1 WHR71594 |
C00331011
481244098169 |
Support drawer | Na dotaz | Zadat poptávku | |
| 242 0 WHR71594 |
C00333011
481941879478 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 7 WHR71594 |
C00327822
481241848615 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 9 WHR71594 |
C00327825
481241848648 |
Drawer | Na dotaz | Zadat poptávku | |
| 249 3 WHR71594 |
C00314579
481246049346 |
Krycí lišta skleněné police chladničky Whirlpool - přední | 322 Kč
€ 12.70 |
||
| 252 0 WHR71594 |
C00329191
481240478624 |
Casing | Na dotaz | Zadat poptávku | |
| 252 1 WHR71594 |
C00328314
481244079062 |
Lid lamp | Na dotaz | Zadat poptávku | |
| 255 0 WHR71594 |
C00331194
481245088172 |
kryci deska | Na dotaz | Zadat poptávku | |
| 255 1 WHR71594 |
C00331195
481245088176 |
rost skleneny | 1 428 Kč
€ 56.40 |
||
| 263 0 WHR71594 |
C00330648
481246238165 |
Lišta vodící | 657 Kč
€ 25.90 |
||
| 301 0 WHR71594 |
C00331293
481245228397 |
Panel control | Na dotaz | Zadat poptávku | |
| 301 6 WHR71594 |
C00333085
481946258342 |
Insert | Na dotaz | Zadat poptávku | |
| 324 1 WHR71594 |
C00330678
481246248401 |
Cover | Na dotaz | Zadat poptávku | |
| 335 0 WHR71594 |
C00341923
481241359134 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR71594 |
C00320271
481236038651 |
Kompresor | 3 887 Kč
€ 153.50 |
||
| 402 1 WHR71594 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR71594 |
C00326781
481212158142 |
Capacitor | Na dotaz | Zadat poptávku | |
| 491 0 WHR71594 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR71594 |
C00312010
481927128788 |
Thermostat A13-0103-26 | Na dotaz | Zadat poptávku | |
| 561 7 WHR71594 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR71594 |
C00320902
481228068327 |
Monoblock ,AD55BU10AD55BU10 | Na dotaz | Zadat poptávku | |
| 620 0 WHR71594 |
C00335774
481927618335 |
Switch | Na dotaz | Zadat poptávku | |
| 643 0 WHR71594 |
C00327019
481221538009 |
termometr | 1 162 Kč
€ 45.90 |
||
| 651 0 WHR71594 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR71594 |
C00327136
481225528017 |
drzak termostatu A | Na dotaz | Zadat poptávku | |
| 740 0 WHR71594 |
C00333252
481951148652 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR71594 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 2 WHR71594 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR71594 |
C00330756
481246279859 |
Stopper | Na dotaz | Zadat poptávku | |
| 781 1 WHR71594 |
C00331098
481244528022 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 781 2 WHR71594 |
C00333287
481953028869 |
Hadice odvodu vody | 158 Kč
€ 6.20 |
||
| 902 5 WHR71594 |
C00333064
481946078368 |
Kryt koše | 596 Kč
€ 23.50 |
||
| 903 4 WHR71594 |
C00332930
481940118856 |
Stopper | Na dotaz | Zadat poptávku | |
| 912 0 WHR71594 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 965 0 WHR71594 |
C00333107
481946288025 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 1 WHR71594 |
C00333109
481946288079 |
Stopper | Na dotaz | Zadat poptávku | |
| 993 2 WHR71594 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 999 WHR71594 |
C00693647 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
