| Komerční kód: | ARC 5731/AL REFRIGERATEURS WP |
| Kód 12NC: | 850157361030 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850157361036 |
Potřebujete servis? Jsme tady pro Vás

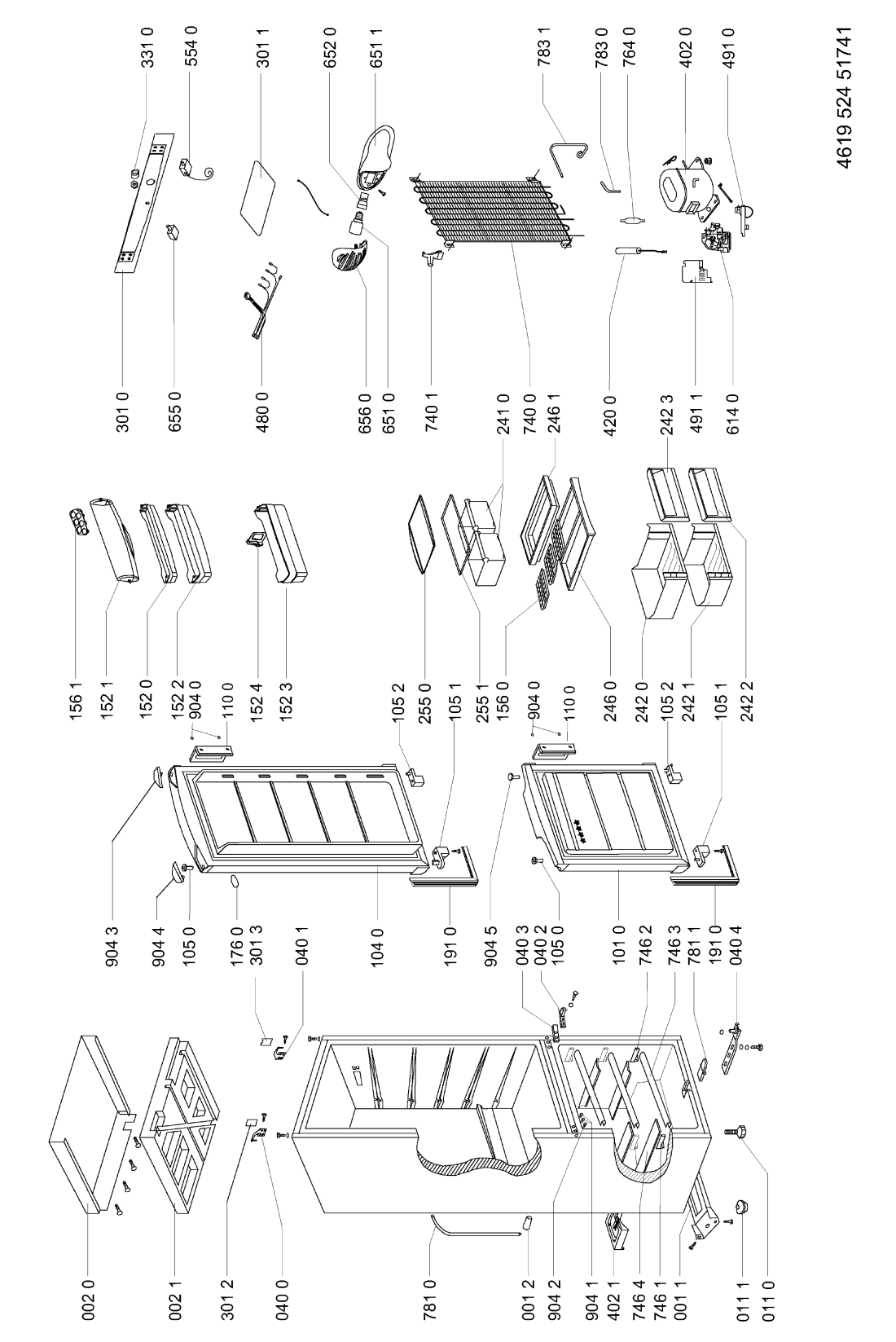

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR77538 |
C00330804
481246418121 |
Crossbar | Na dotaz | Zadat poptávku | |
| 001 2 WHR77538 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR77538 |
C00342568
481246418148 |
Cover AL | Na dotaz | Zadat poptávku | |
| 002 1 WHR77538 |
C00326888
481215748001 |
VLOZKA PLAST | 453 Kč
€ 17.90 |
||
| 011 0 WHR77538 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 011 1 WHR77538 |
C00330452
481246218254 |
noha | 161 Kč
€ 6.40 |
||
| 040 0 WHR77538 |
C00329716
481241719231 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 040 1 WHR77538 |
C00315502
481241719232 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 2 WHR77538 |
C00497790
481241719253 |
NAHRADENE 481231028318 | Na dotaz | Zadat poptávku | |
| 040 3 WHR77538 |
C00480844
481252648142 |
STRIEKACIE RAMENO UMYVACKY | Na dotaz | Zadat poptávku | |
| 040 4 WHR77538 |
C00329708
481241719115 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 101 0 WHR77538 |
C00339077
481241619653 |
Door freezer ,AL | Na dotaz | Zadat poptávku | |
| 104 0 WHR77538 |
C00574793
481241619672 |
Door refriger. ,AL. | Na dotaz | Zadat poptávku | |
| 105 0 WHR77538 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 105 1 WHR77538 |
C00320221
481253288057 |
SleeveAL | Na dotaz | Zadat poptávku | |
| 105 2 WHR77538 |
C00336272
481253288058 |
Sleeve left AL | Na dotaz | Zadat poptávku | |
| 110 0 WHR77538 |
C00498533
481249818368 |
Rukojeť dveří, stříbrná | 932 Kč
€ 36.80 |
||
| 152 0 WHR77538 |
C00319168
481241828438 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 152 1 WHR77538 |
C00318546
481241828439 |
Flap f. door dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR77538 |
C00317004
481241828624 |
Shelf | Na dotaz | Zadat poptávku | |
| 152 3 WHR77538 |
C00313959
481241828606 |
BOTTLE SHELF | Na dotaz | Zadat poptávku | |
| 152 4 WHR77538 |
C00315574
481241828426 |
drzak lahvi | 555 Kč
€ 21.90 |
||
| 156 0 WHR77538 |
C00311390
481241828471 |
Miska na led | 154 Kč
€ 6.10 |
||
| 156 1 WHR77538 |
C00315576
481241828427 |
držák na vajíčka | Na dotaz | Zadat poptávku | |
| 176 0 WHR77538 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 191 0 WHR77538 |
C00338271
481246668804 |
Magnetic sealgrey | Na dotaz | Zadat poptávku | |
| 241 0 WHR77538 |
C00311423
481241879962 |
Zásuvka na zeleninu | 1 685 Kč
€ 66.50 |
||
| 242 0 WHR77538 |
C00312692
481241868301 |
kos mraznicky bez čela uz nebude !!!!!! | Na dotaz | Zadat poptávku | |
| 242 1 WHR77538 |
C00315606
481241868299 |
kos mraznicky maly | Na dotaz | Zadat poptávku | |
| 242 2 WHR77538 |
C00312686
481241848733 |
Čelo koše mrazáku | Na dotaz | Zadat poptávku | |
| 242 3 WHR77538 |
C00311666
481241848689 |
Čelo koše mrazničky | 1 182 Kč
€ 46.70 |
||
| 246 0 WHR77538 |
C00335343
481246228616 |
Šuplík mrazáku horní na misky na led a zásobník | 1 279 Kč
€ 50.50 |
||
| 246 1 WHR77538 |
C00335361
481246228453 |
Tray | Na dotaz | Zadat poptávku | |
| 255 0 WHR77538 |
C00312514
481245088214 |
Skleněná police do chladničky | 1 117 Kč
€ 44.10 |
||
| 255 1 WHR77538 |
C00317774
481245088222 |
Rošt - skleněný | 960 Kč
€ 37.90 |
||
| 301 0 WHR77538 |
C00574953
481246469061 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR77538 |
C00328422
481244098137 |
kryt | 152 Kč
€ 6.00 |
||
| 301 2 WHR77538 |
C00342905
481246228589 |
Cover AL | Na dotaz | Zadat poptávku | |
| 301 3 WHR77538 |
C00342906
481246228591 |
Cover AL | Na dotaz | Zadat poptávku | |
| 331 0 WHR77538 |
C00574744
481241218036 |
Knoflík termostatu | 134 Kč
€ 5.30 |
||
| 402 0 WHR77538 |
C00313753
481236058114 |
COMPRESSOR | Na dotaz | Zadat poptávku | |
| 402 1 WHR77538 |
C00327897
481241878971 |
Miska na kondezát | 232 Kč
€ 9.20 |
||
| 420 0 WHR77538 |
C00326749
481212028022 |
Capacitor 4mf | Na dotaz | Zadat poptávku | |
| 480 0 WHR77538 |
C00343796
481232178176 |
Cable harness | Na dotaz | Zadat poptávku | |
| 491 0 WHR77538 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
| 491 1 WHR77538 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 554 0 WHR77538 |
C00491358
481228238147 |
TERMOSTAT | Na dotaz | Zadat poptávku | |
| 614 0 WHR77538 |
C00341713
481228038051 |
elektroinstalace MK | Na dotaz | Zadat poptávku | |
| 651 0 WHR77538 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 651 1 WHR77538 |
C00317259
481244098245 |
Housing lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR77538 |
C00320404
481225528015 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR77538 |
C00335710
481227618465 |
Switch WP20K AL | Na dotaz | Zadat poptávku | |
| 656 0 WHR77538 |
C00312883
481246098066 |
Stínidlo světla | 735 Kč
€ 29.00 |
||
| 740 0 WHR77538 |
C00332236
481251148314 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR77538 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 746 1 WHR77538 |
C00319703
481246628139 |
drzak vyparniku l | 154 Kč
€ 6.10 |
||
| 746 2 WHR77538 |
C00319357
481246228447 |
drzak vyparniku p | 148 Kč
€ 5.80 |
||
| 746 3 WHR77538 |
C00319331
481246098081 |
lista kryci vyparnik | 196 Kč
€ 7.70 |
||
| 746 4 WHR77538 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 764 0 WHR77538 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR77538 |
C00326893
481217158001 |
Hadice na kondenzát | Na dotaz | Zadat poptávku | |
| 781 1 WHR77538 |
C00342062
481217158002 |
Kanál odtokový | 265 Kč
€ 10.50 |
||
| 783 0 WHR77538 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 783 1 WHR77538 |
C00332442
481253029298 |
Pipe | Na dotaz | Zadat poptávku | |
| 904 0 WHR77538 |
C00342915
481246228689 |
Cover ,screw AL | Na dotaz | Zadat poptávku | |
| 904 1 WHR77538 |
C00327077
481222608012 |
zaslepka | 178 Kč
€ 7.00 |
||
| 904 2 WHR77538 |
C00327076
481222608011 |
zaslepka | 75 Kč
€ 3.00 |
||
| 904 3 WHR77538 |
C00497298
481222608013 |
Cover | Na dotaz | Zadat poptávku | |
| 904 4 WHR77538 |
C00497299
481222608014 |
Cover | Na dotaz | Zadat poptávku | |
| 904 5 WHR77538 |
C00337629
481222608015 |
Plug AL | Na dotaz | Zadat poptávku | |
| 999 WHR77538 |
C00704872 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
