| Komerční kód: | ARC 7080/PB |
| Kód 12NC: | 850170801020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850170801021 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

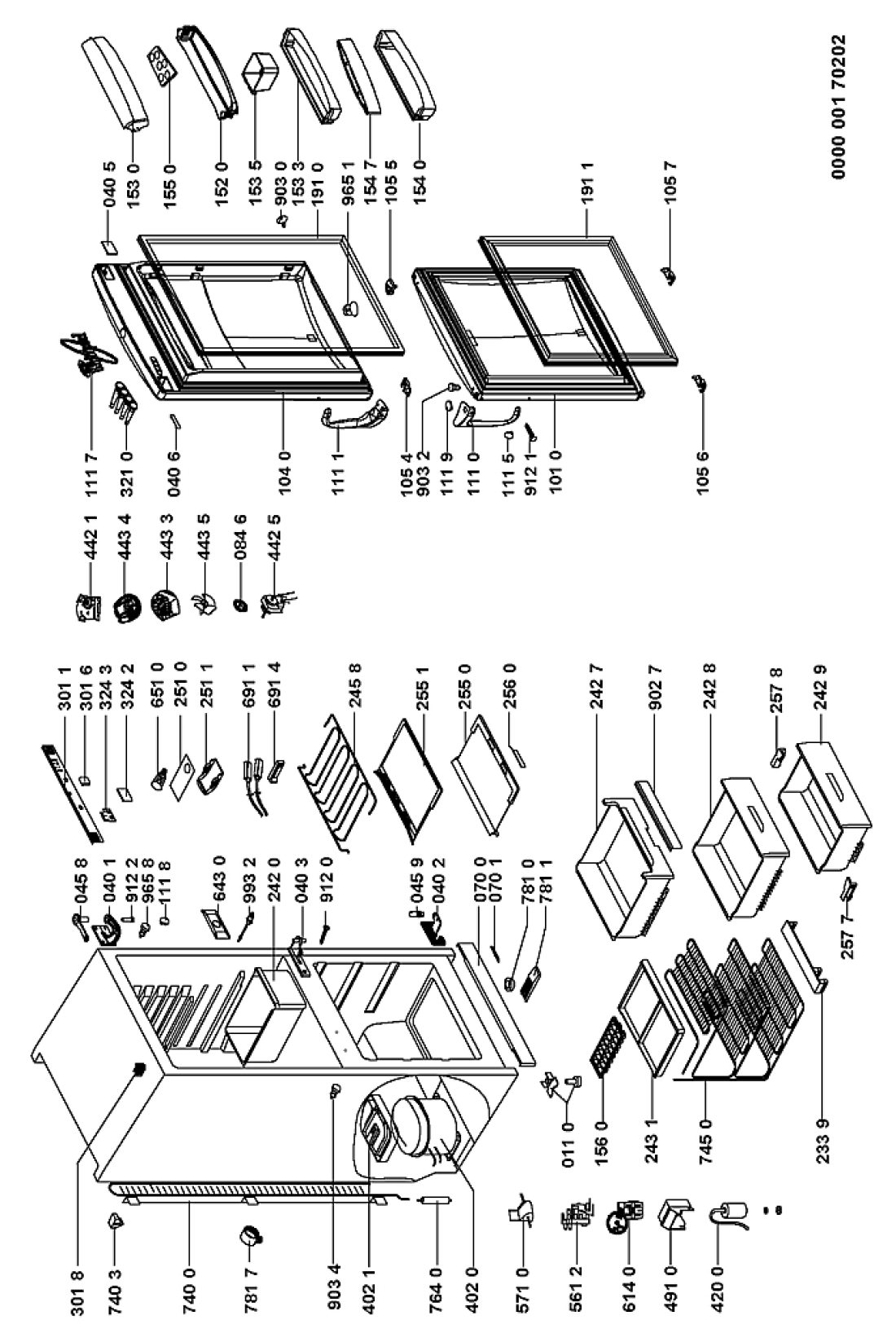

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR104899 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 040 1 WHR104899 |
C00339769
481241718951 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR104899 |
C00497787
481241719113 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR104899 |
C00488965
481241719136 |
ZAVES STREDNY KOVOVY N | Na dotaz | Zadat poptávku | |
| 040 5 WHR104899 |
C00490058
481246049415 |
Insert | Na dotaz | Zadat poptávku | |
| 040 6 WHR104899 |
C00574532
481246049413 |
Insert | Na dotaz | Zadat poptávku | |
| 045 8 WHR104899 |
C00344546
481253588004 |
Axle | Na dotaz | Zadat poptávku | |
| 045 9 WHR104899 |
C00499633
481953598661 |
KOLIK ZAVESU ART527 N | Na dotaz | Zadat poptávku | |
| 070 0 WHR104899 |
C00606343
481246049328 |
Plinth. | Na dotaz | Zadat poptávku | |
| 070 1 WHR104899 |
C00606344
481246049329 |
Insert. | Na dotaz | Zadat poptávku | |
| 084 6 WHR104899 |
C00333281
481952918124 |
krouzek tlumici | 495 Kč
€ 19.50 |
||
| 101 0 WHR104899 |
C00605904
481241618674 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR104899 |
C00739197
481241619238 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 105 4 WHR104899 |
C00605817
481240448837 |
Latch. | Na dotaz | Zadat poptávku | |
| 105 5 WHR104899 |
C00605816
481240448836 |
Latch. | Na dotaz | Zadat poptávku | |
| 105 6 WHR104899 |
C00605814
481240448834 |
Latch. | Na dotaz | Zadat poptávku | |
| 105 7 WHR104899 |
C00605815
481240448835 |
Latch. | Na dotaz | Zadat poptávku | |
| 111 0 WHR104899 |
C00487731
481246268829 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR104899 |
C00606375
481246268831 |
Door handle. | Na dotaz | Zadat poptávku | |
| 111 5 WHR104899 |
C00574536
481246068549 |
Cover. | Na dotaz | Zadat poptávku | |
| 111 7 WHR104899 |
C00606336
481245918223 |
Nameplate. | Na dotaz | Zadat poptávku | |
| 111 8 WHR104899 |
C00336030
481946258325 |
SCREW COVER HANDLE GREY | Na dotaz | Zadat poptávku | |
| 111 9 WHR104899 |
C00606369
481246228445 |
Stopper. | Na dotaz | Zadat poptávku | |
| 152 0 WHR104899 |
C00327902
481241879842 |
Door dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR104899 |
C00318546
481241828439 |
Flap f. door dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR104899 |
C00489035
481241828597 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 5 WHR104899 |
C00574462
481241848672 |
Container. | Na dotaz | Zadat poptávku | |
| 154 0 WHR104899 |
C00574458
481241828598 |
police lahvi | 924 Kč
€ 36.50 |
||
| 154 7 WHR104899 |
C00574457
481241828596 |
Holder. | Na dotaz | Zadat poptávku | |
| 155 0 WHR104899 |
C00315576
481241828427 |
držák na vajíčka | Na dotaz | Zadat poptávku | |
| 156 0 WHR104899 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR104899 |
C00319927
481246688704 |
tesneni magneticke | 1 929 Kč
€ 76.20 |
||
| 191 1 WHR104899 |
C00312786
481246818065 |
Těsnění magnetické - mraznička | 1 920 Kč
€ 75.80 |
||
| 233 9 WHR104899 |
C00335837
481946699082 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 242 0 WHR104899 |
C00342290
481941879416 |
Zásuvka na zeleninu | 2 126 Kč
€ 83.90 |
||
| 242 7 WHR104899 |
C00497857
481241879837 |
KOS MRAZNICKY | Na dotaz | Zadat poptávku | |
| 242 8 WHR104899 |
C00374068
481241848609 |
kos mraznicky stred. | Na dotaz | Zadat poptávku | |
| 242 9 WHR104899 |
C00497843
481241848651 |
ZASUVKA PLAST | Na dotaz | Zadat poptávku | |
| 243 1 WHR104899 |
C00336402
481241868293 |
Shelf | Na dotaz | Zadat poptávku | |
| 245 8 WHR104899 |
C00340253
481245819151 |
rost lahvi | 1 269 Kč
€ 50.10 |
||
| 251 0 WHR104899 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR104899 |
C00342451
481946279771 |
kryt svetla | 365 Kč
€ 14.40 |
||
| 255 0 WHR104899 |
C00340349
481245088189 |
Spodní police chladničky Whirlpool | 1 977 Kč
€ 78.00 |
||
| 255 1 WHR104899 |
C00340350
481245088188 |
Rošt skleněný | 1 030 Kč
€ 40.70 |
||
| 256 0 WHR104899 |
C00344558
481245938062 |
Air regulator | Na dotaz | Zadat poptávku | |
| 257 7 WHR104899 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR104899 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 301 1 WHR104899 |
C00739191
481245228567 |
Panel control | Na dotaz | Zadat poptávku | |
| 301 6 WHR104899 |
C00606192
481245228353 |
Insert. | Na dotaz | Zadat poptávku | |
| 301 8 WHR104899 |
C00498324
481246048954 |
Insert | Na dotaz | Zadat poptávku | |
| 321 0 WHR104899 |
C00341790
481238118259 |
Lens | Na dotaz | Zadat poptávku | |
| 324 2 WHR104899 |
C00636090
481246068548 |
Cover. | Na dotaz | Zadat poptávku | |
| 324 3 WHR104899 |
C00336239
481946689233 |
krytka | 134 Kč
€ 5.30 |
||
| 402 0 WHR104899 |
C00320271
481236038651 |
Kompresor | 3 887 Kč
€ 153.50 |
||
| 402 1 WHR104899 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR104899 |
C00326742
481212018008 |
Capacitor 4#F | Na dotaz | Zadat poptávku | |
| 442 1 WHR104899 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 442 5 WHR104899 |
C00341705
481936118463 |
motor ventilatoru | 2 753 Kč
€ 108.70 |
||
| 443 3 WHR104899 |
C00333090
481946258376 |
kryt ventilatoru | 669 Kč
€ 26.40 |
||
| 443 4 WHR104899 |
C00333108
481946288073 |
kryt | 4 697 Kč
€ 185.40 |
||
| 443 5 WHR104899 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 491 0 WHR104899 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 561 2 WHR104899 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 571 0 WHR104899 |
C00337286
481928128272 |
ventil elektromagn. | 2 744 Kč
€ 108.30 |
||
| 614 0 WHR104899 |
C00320313
481269028005 |
Monoblock | Na dotaz | Zadat poptávku | |
| 643 0 WHR104899 |
C00327019
481221538009 |
termometr | 1 162 Kč
€ 45.90 |
||
| 651 0 WHR104899 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 691 1 WHR104899 |
C00340976
481223708003 |
Feeler | Na dotaz | Zadat poptávku | |
| 691 4 WHR104899 |
C00574850
481244079103 |
Cover. | Na dotaz | Zadat poptávku | |
| 740 0 WHR104899 |
C00499546
481951148664 |
KONDENZATOR RJ N | Na dotaz | Zadat poptávku | |
| 740 3 WHR104899 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 745 0 WHR104899 |
C00498579
481251138201 |
Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR104899 |
C00341169
481248028058 |
Dryer | Na dotaz | Zadat poptávku | |
| 781 0 WHR104899 |
C00331410
481245298259 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR104899 |
C00327909
481241889008 |
kanal odtokovy | 143 Kč
€ 5.60 |
||
| 781 7 WHR104899 |
C00333270
481952648307 |
priruba hadice | 265 Kč
€ 10.50 |
||
| 902 7 WHR104899 |
C00739195
481244069268 |
Insert | Na dotaz | Zadat poptávku | |
| 903 0 WHR104899 |
C00574578
481249148023 |
Stopper. | Na dotaz | Zadat poptávku | |
| 903 2 WHR104899 |
C00606771
481249148024 |
Clip. | Na dotaz | Zadat poptávku | |
| 903 4 WHR104899 |
C00574577
481249148022 |
Stopper. | Na dotaz | Zadat poptávku | |
| 912 0 WHR104899 |
C00336672
481950218525 |
Screw | Na dotaz | Zadat poptávku | |
| 912 1 WHR104899 |
C00336664
481250238164 |
Screw | Na dotaz | Zadat poptávku | |
| 912 2 WHR104899 |
C00336771
481250238162 |
Screw | Na dotaz | Zadat poptávku | |
| 965 1 WHR104899 |
C00606760
481246228446 |
Stopper. | Na dotaz | Zadat poptávku | |
| 965 8 WHR104899 |
C00498323
481246048944 |
Cover | Na dotaz | Zadat poptávku | |
| 993 2 WHR104899 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR104899 |
C00488593
481231028165 |
Door revers.Kit ,not shown | Na dotaz | Zadat poptávku | |
| 999 WHR104899 |
C00781124 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
